Digital Signage Station DSS-1000

Name: Digital Signage Station DSS-1000
SKU: 167826
Price: 566.94 EUR
Availability: InStock

€697.34

LevelOne DSS-1000, Black, Silver, AVI, JPG, H.264, CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), Full HD

2 in stock

Categories: network, Network article

Description
Additional information

Description

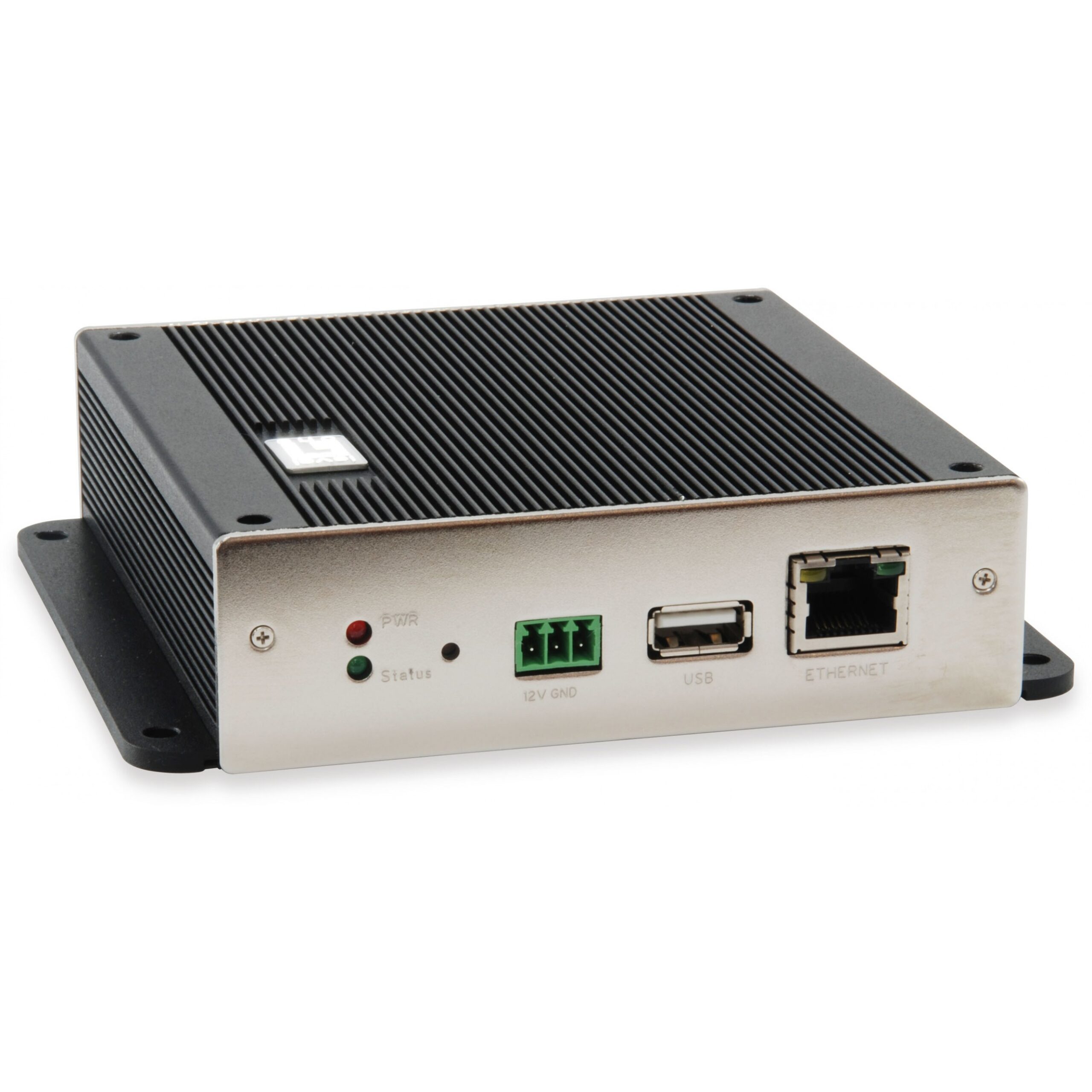

LevelOne DSS-1000. Product color: Black, Silver. Supported video formats: AVI. Supported image formats: JPG. HD type: Full HD. Maximum video resolution: 1920 x 1080 pixels. Up to 30 frames per second: 30 fps. Ethernet LAN data transfer rates: 10,100 Mbps. LED indicators: Power, Ready. Width: 114 mm, Depth: 33 mm, Height: 135 mm.

Additional information

Product color	Black, Silver
Supported video formats	AVI
Supported image formats	JPG
Video compression formats	H.264
Certification	CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B)
Total storage capacity	0 GB
HD type	Full HD
Characteristic	AC power adapter, Direct current connection (DC), Ethernet/LAN, Full HD, Universal Plug and Play (UPnP), User manual on CD-ROM
Maximum video resolution	1920 x 1080 pixels
Up to 30 frames per second	30 fps

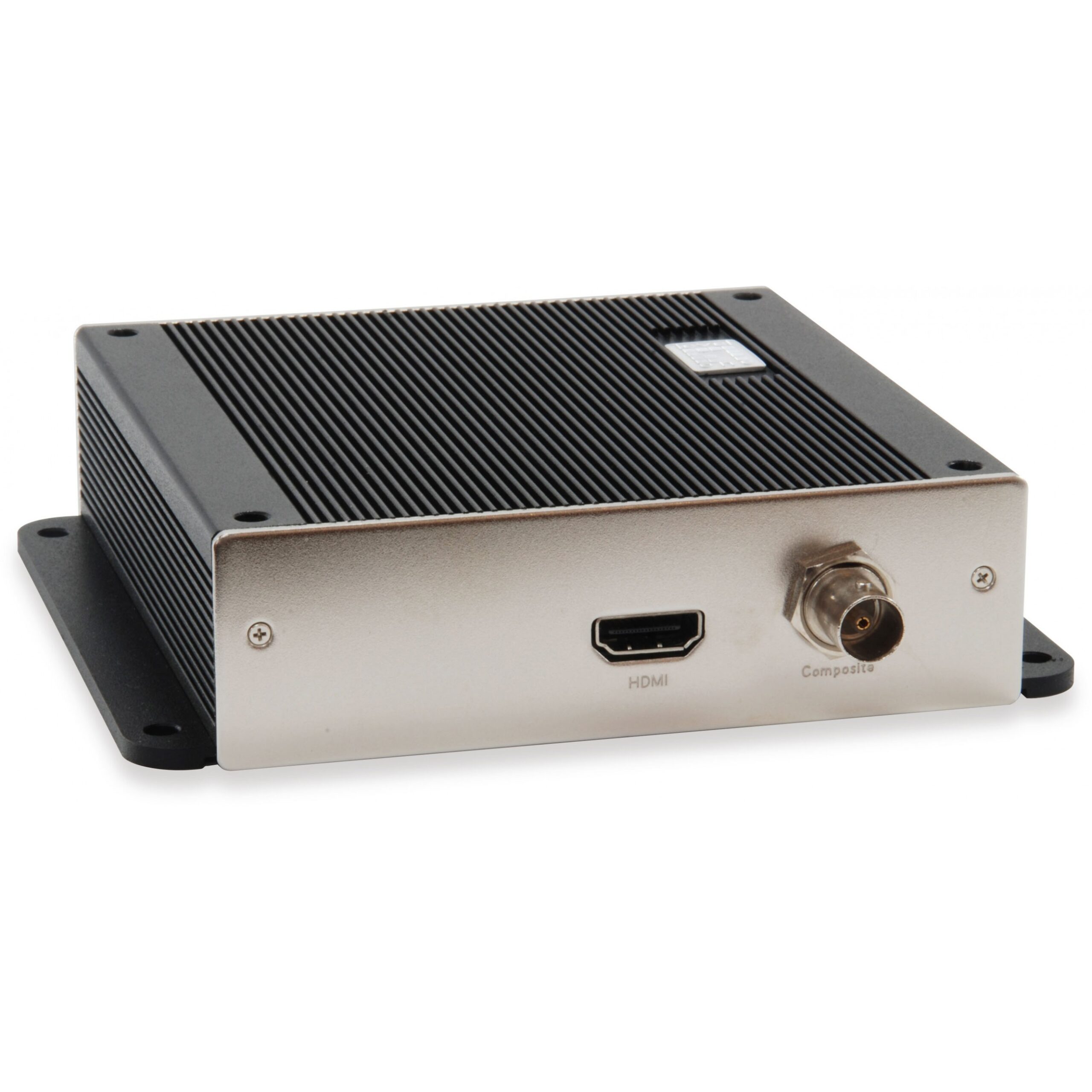

Number of HDMI connections	1
Number of Ethernet LAN connections (RJ-45)	1
Number of USB 2.0 ports	1
Composite video output	1
Ethernet LAN data transfer rates	10.100 Mbit / s
LED indicators	Finished, Perfomance
Broad	114 mm
Depth	33 mm
Height	135 mm
Weight	566 g
Packaging width	200 mm
Packaging depth	285 mm
Packing height	100 mm
Package weight	1.24 kg
Packaging type	Box
Operating temperatur	0 – 50 ° C
Relative humidity in operation	10-85%
Supported network protocols	ARP, HTTP, ICMP, IP, RTP, RTSP, TCP, UDP, UPnP
Shipping box weight	11.9 kg
Width of the shipping box	410 mm
Shipping box length	566 mm
Shipping box height	205 mm
Manufacturer	Level One
