DIGITUS FTTH Drop Cable LC/APC 50m Singlemode 4 Fibers OS2

72.02

Digitus FTTH Drop Cable, Singlemode, 4 fibers, 4 LC/APC, 50 m, 50 m, LC/APC, G.657.A2, 4x LC

Availability: 15 in stock

Description

Digitus FTTH Drop Cable, Singlemode, 4 fibers, 4 LC/APC, 50 m. Cable length: 50 m, Cable type: LC/APC, Fiber type: G.657.A2, Connector 1: 4x LC, Hole diameter: 9 µm

High-quality cables offer an excellent option for fiber optic connections at the intended network level 4. Installation is simplified by pre-assembled connectors for all 4 fibers at one cable end.

– Significantly reduces installation time
– Pre-wired with LC/APC connectors on one side
– The open end can simply be pulled in or connected to the house distribution box.
– G.657A2 bend-optimized

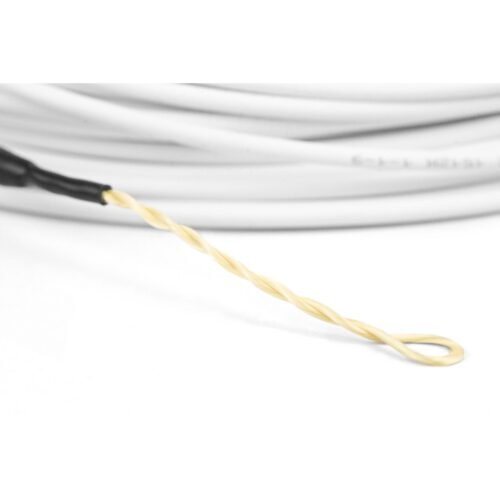

– Stable pull-in loop for pulling the cable into duct systems

The growing need to extend fiber optic networks into homes requires products that enable simple and efficient network installation. The Digitus cable offers a straightforward way to extend and complete the fiber optic network within a building. This cable is designed for use as a connection between the building distribution frame and the floor distribution frame or subscriber termination point at network level 4. Installation is simplified because the cable is pre-terminated with open LC/APC connectors on the subscriber end. It can then be installed through a conduit to the distribution frame, which serves as the entry point for the fiber optic network within the building.

Additional information

Cable length

Light guide type

G.657.A2

Cable shape

Around

Connection 1

Connector 1 gender

Grinding type plug

APC

Cable type

Product color

Hole diameter

9 µm

Cladding diameter

125 µm

Cable fashion structure

Single mode

Introduction loss

0.3 dB

Return loss

60 dB

Compressive strength

1000

Sheath material

Low smoke halogen free (LSZH)

Feature

Plug & Play

Operating temperatur

20 – 70 ° C

Storage temperature range

Cable diameter

Weight

Quantity per pack

Manufacturer
