DIGITUS FTTX empty housing for 4 x SC SX / LC DX couplings

Description

Digitus FTTX empty housing for 4 x SC SX / LC DX couplers. Product color: gray. Housing material: acrylonitrile butadiene styrene (ABS), plastic. International protection class (IP code): IP45. Width: 100 mm, depth: 80 mm, height: 30 mm.

FTTX empty enclosure for fiber splicing, termination, storage and cable connection in a compact protective housing

– Ideal connection box for fiber optic cables in the FTTX / FTTH area

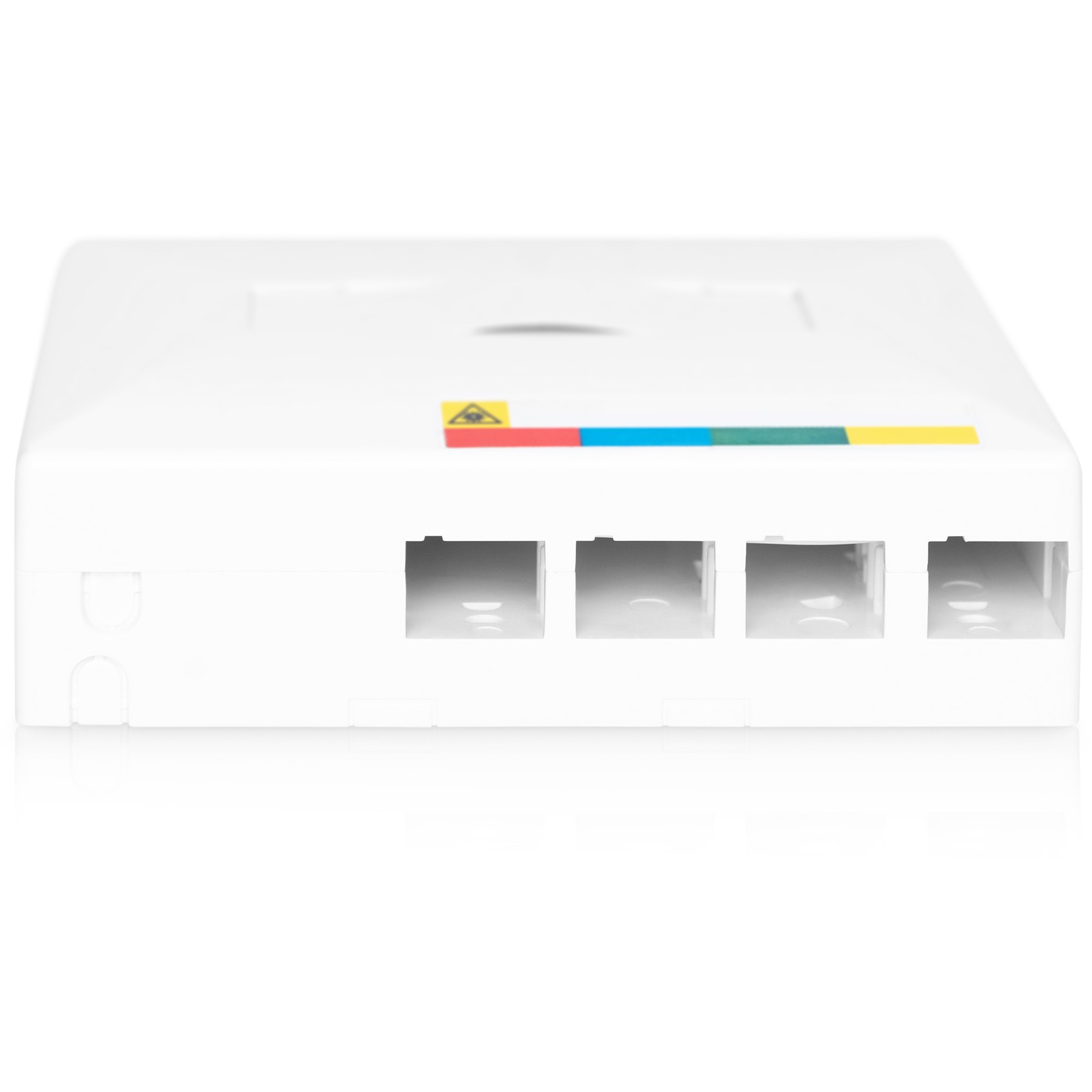

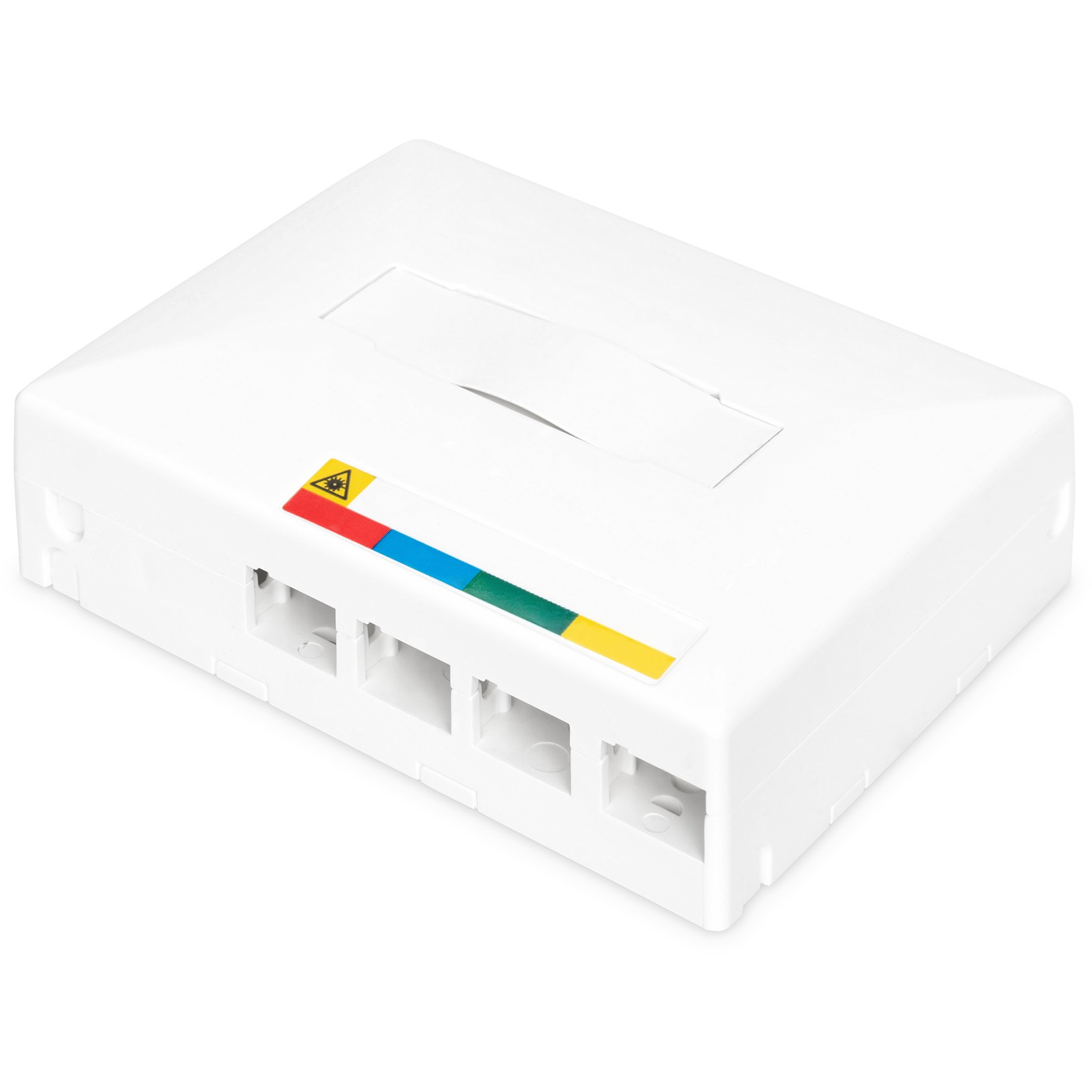

– Suitable for 4 x SC SX or 4 x LC DX couplings (without flange)
– Suitable for wall and top hat rail mounting (DIN rail)
– Integrated splice cassette, fold-out with cable guides
– Dust protection design with IP45 protection class
– Integrated labeling field on the housing cover
– Suitable for fusion splicers or mechanical splicers
– Easy maintenance and expansion

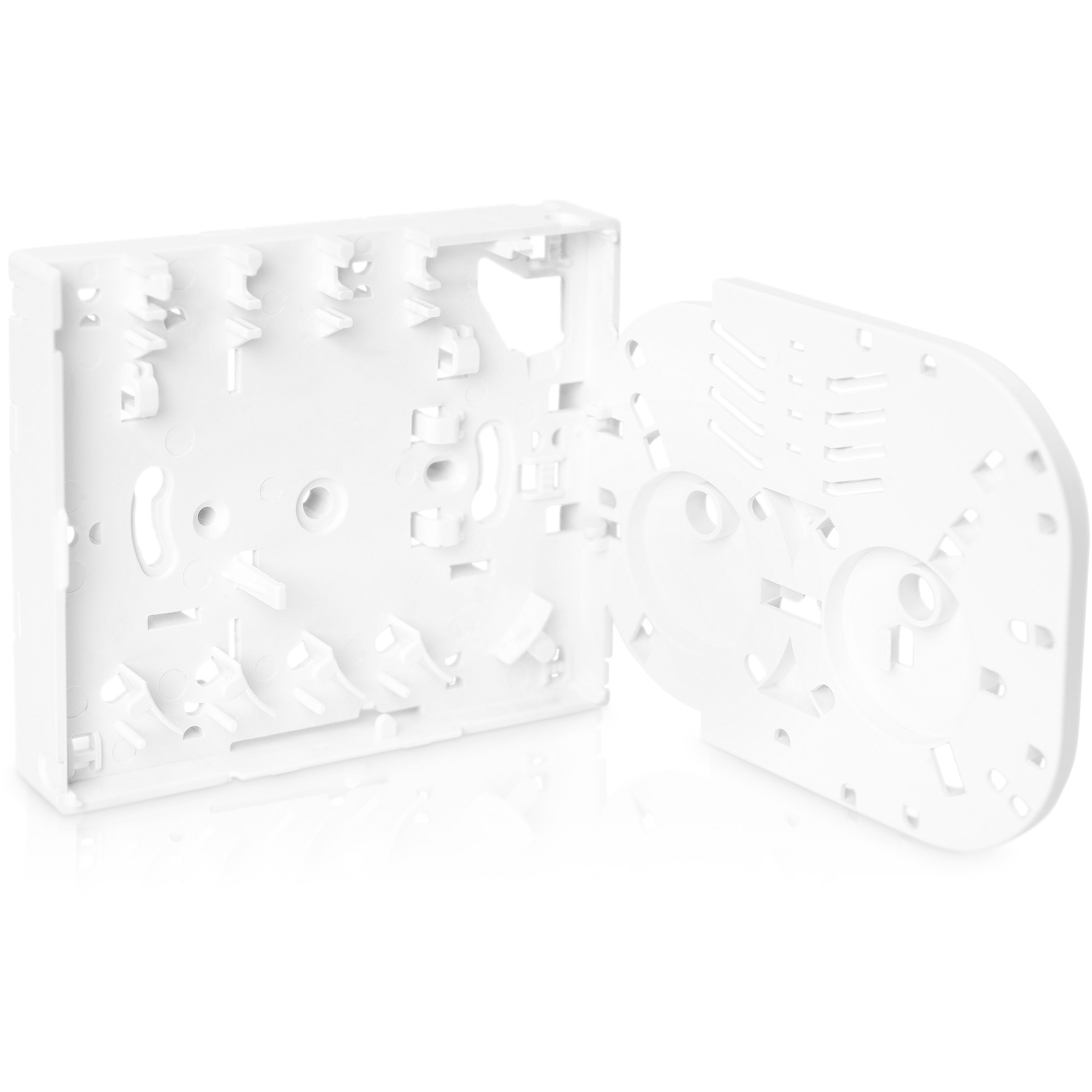

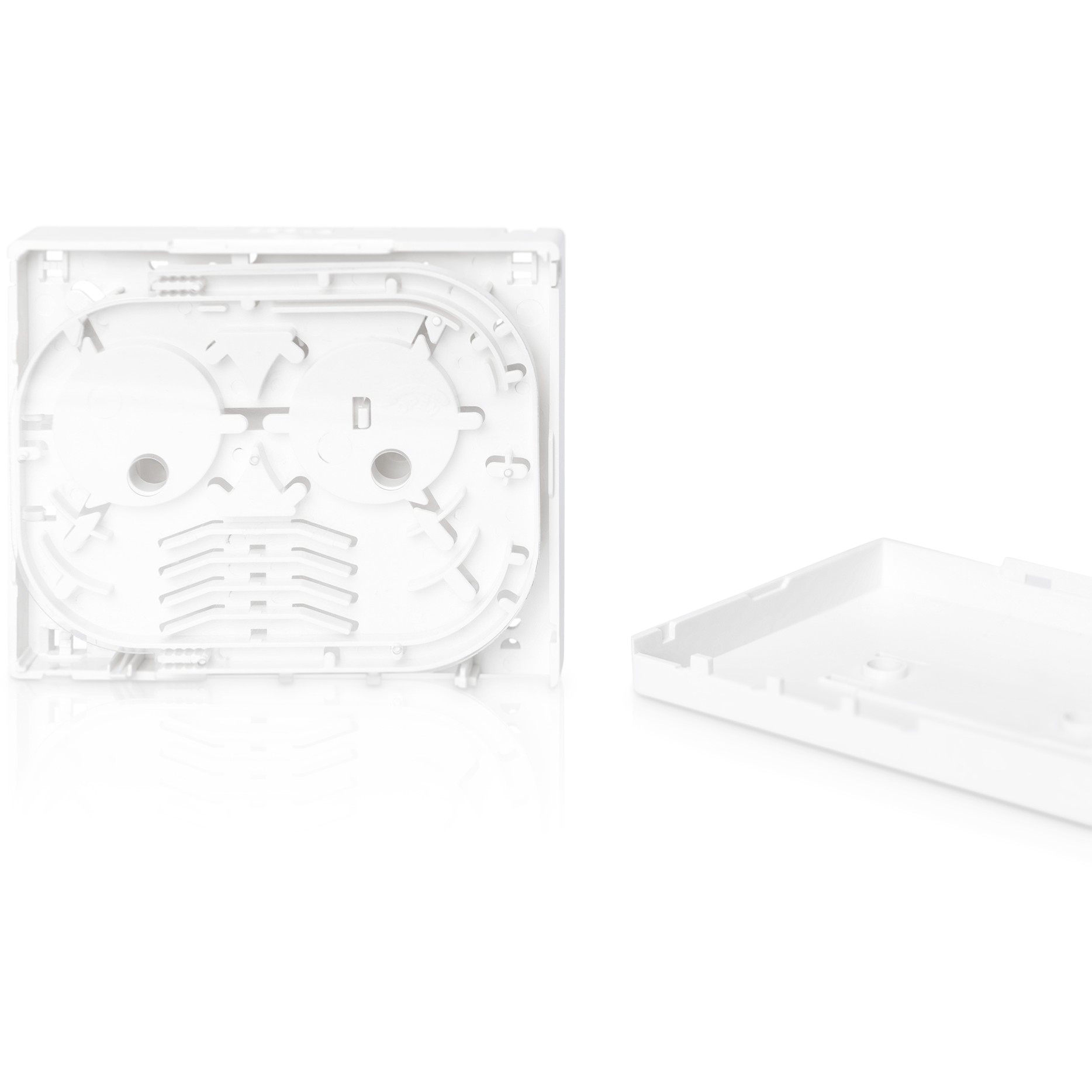

The FTTX empty housing can accommodate up to four fiber optic cables and distribute them to four end devices using the appropriate adapters. It can accommodate four SC simplex or four LC duplex adapters (without flange). The housing consists of a front panel, the housing with a hinged splice tray, and a transparent plastic cover for additional protection of the spliced fiber optic cables. The box can be mounted on the wall or snapped onto a top-hat rail (DIN rail). Integrate fiber splicing, termination, storage, and connection in the smallest of spaces with the ultra-compact DIGITUS® FTTX empty housing.
