DIGITUS Keystone Jack Cat6a RJ45 -> LSA shielded 500MHz

Description

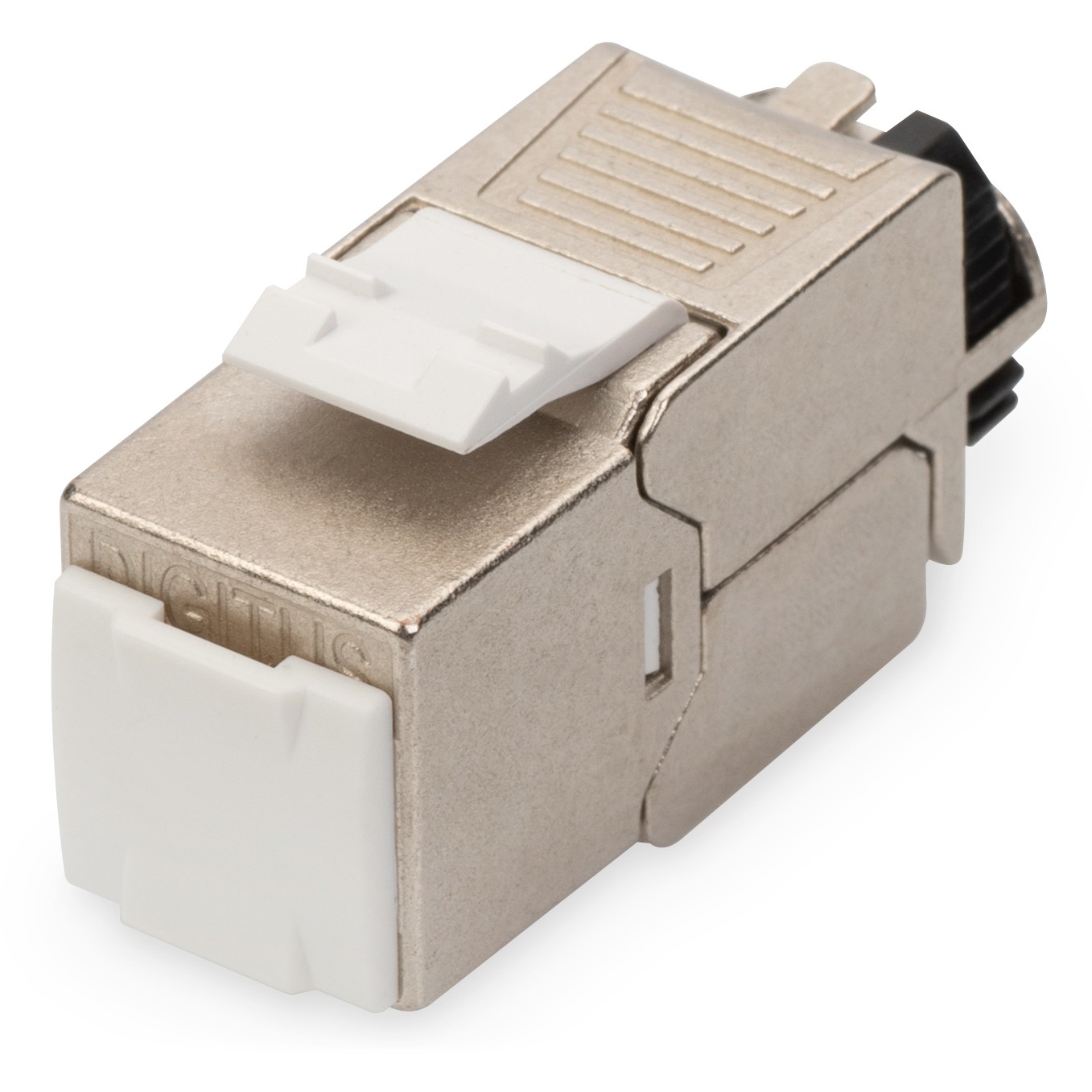

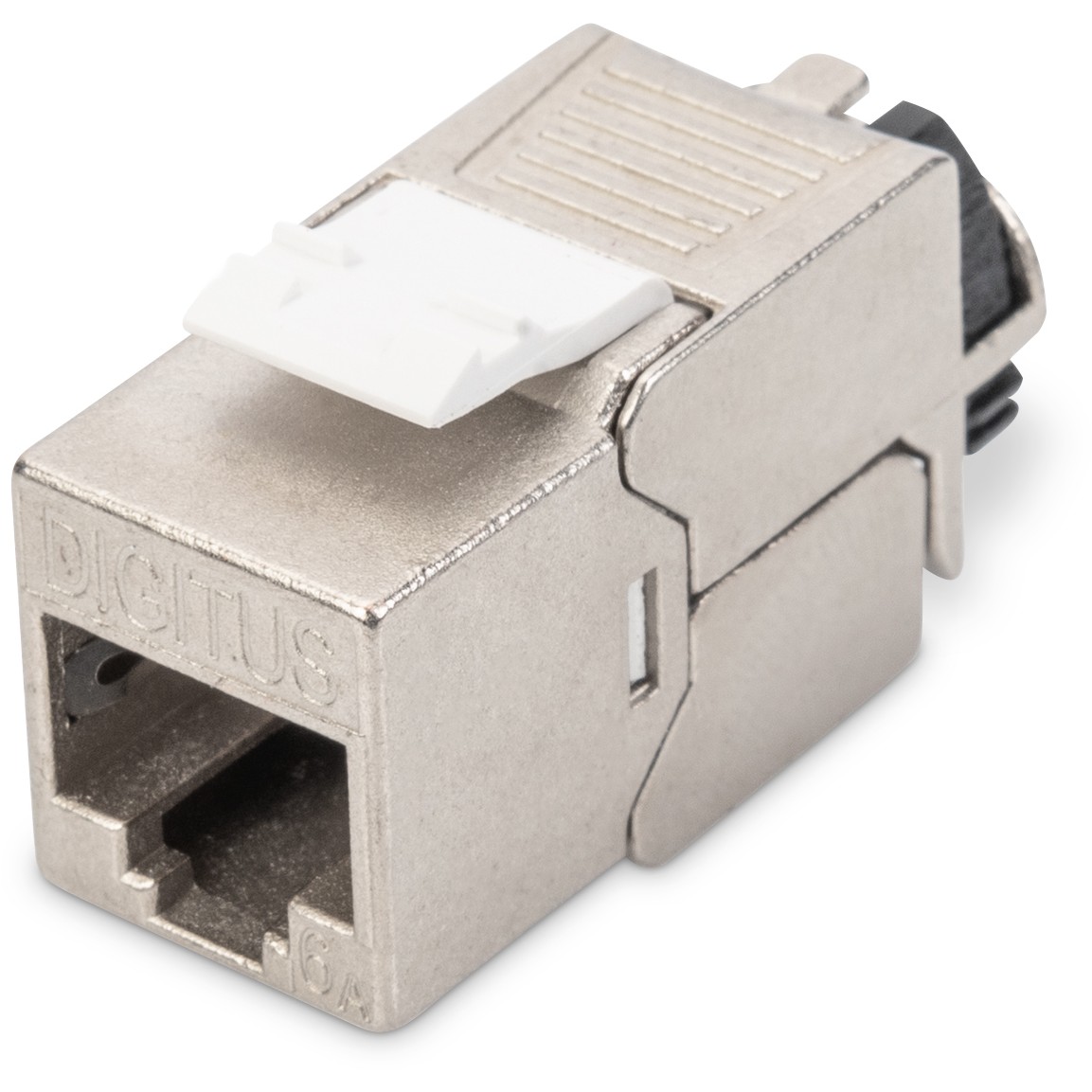

Digitus CAT 6A keystone module, shielded with intelligent cable manager. Product color: silver, connector 1: RJ-45. Weight: 19 g. Country of origin: China

Design-capable, shielded, tool-free and intelligent cable manager

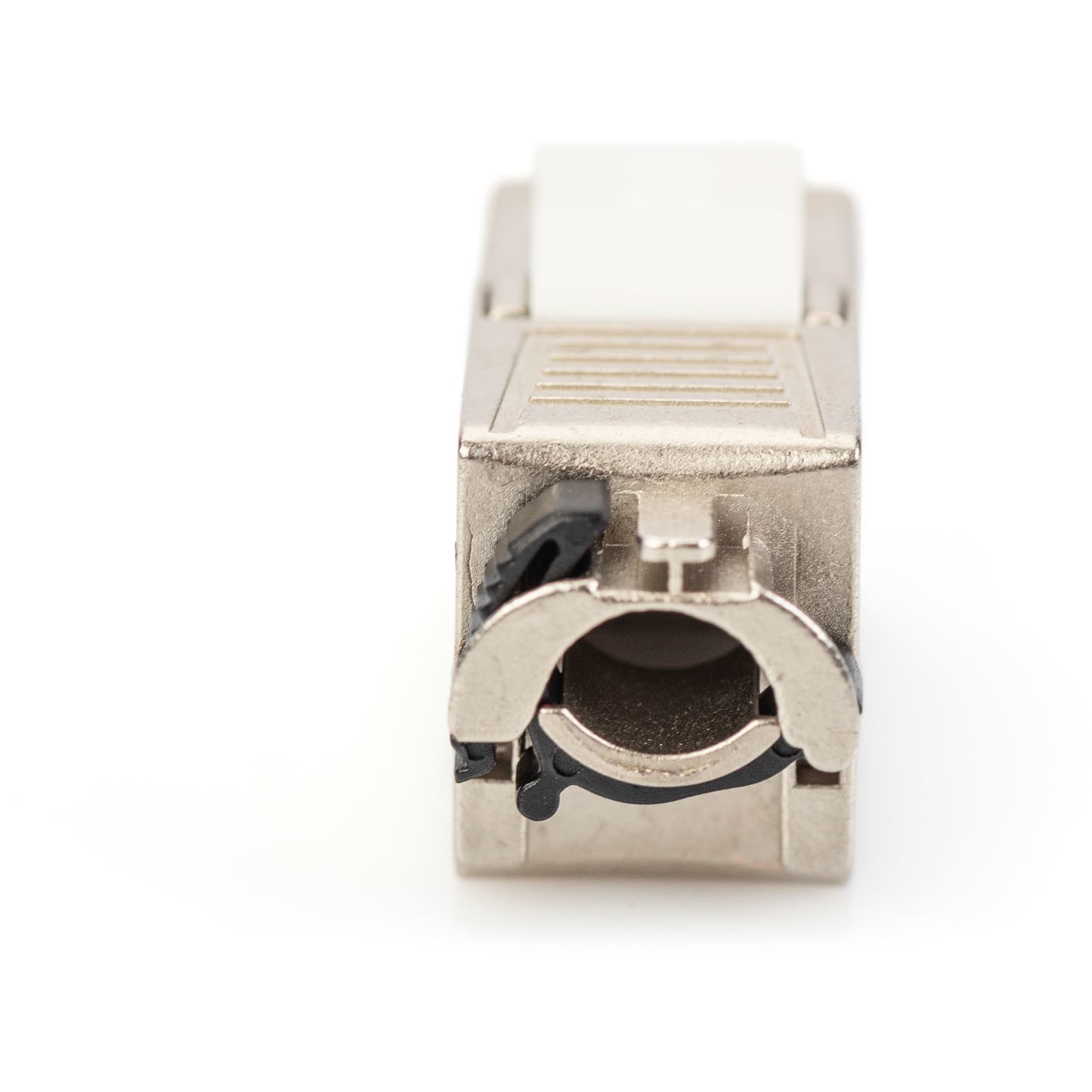

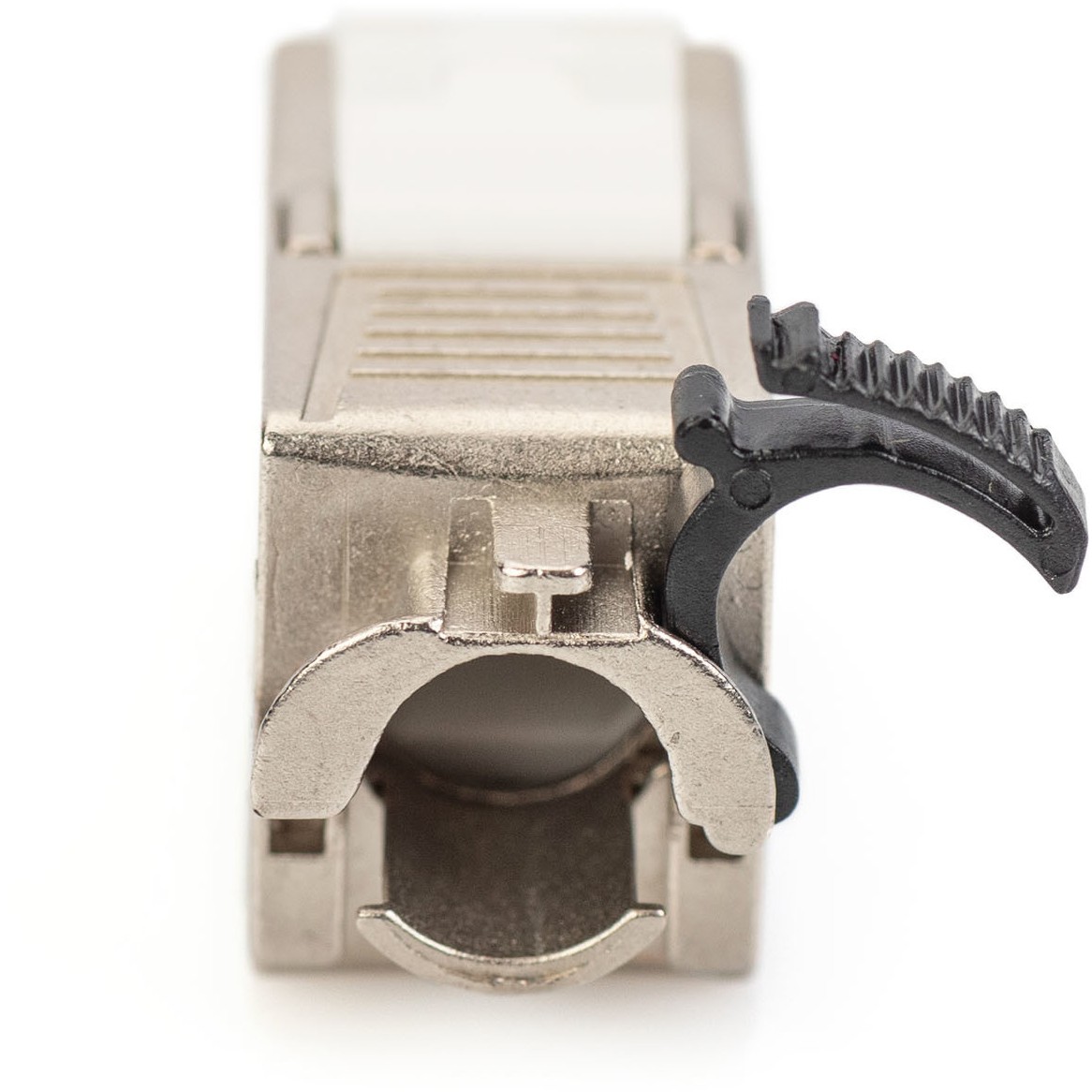

– Strain relief and cable fixation using an intelligent cable manager
– 360° shield contact
– Suitable for field assembly (tool-free assembly)
– Design-capable – suitable for distribution panel and junction box mounting
– CAT 6A with LSA insulation displacement connectors
– Dust cap for RJ45 socket
– GHMT certified
– Supported PoE standards: IEEE 802.3 af/at/bt (PoE, PoE+ & 4PPoE)

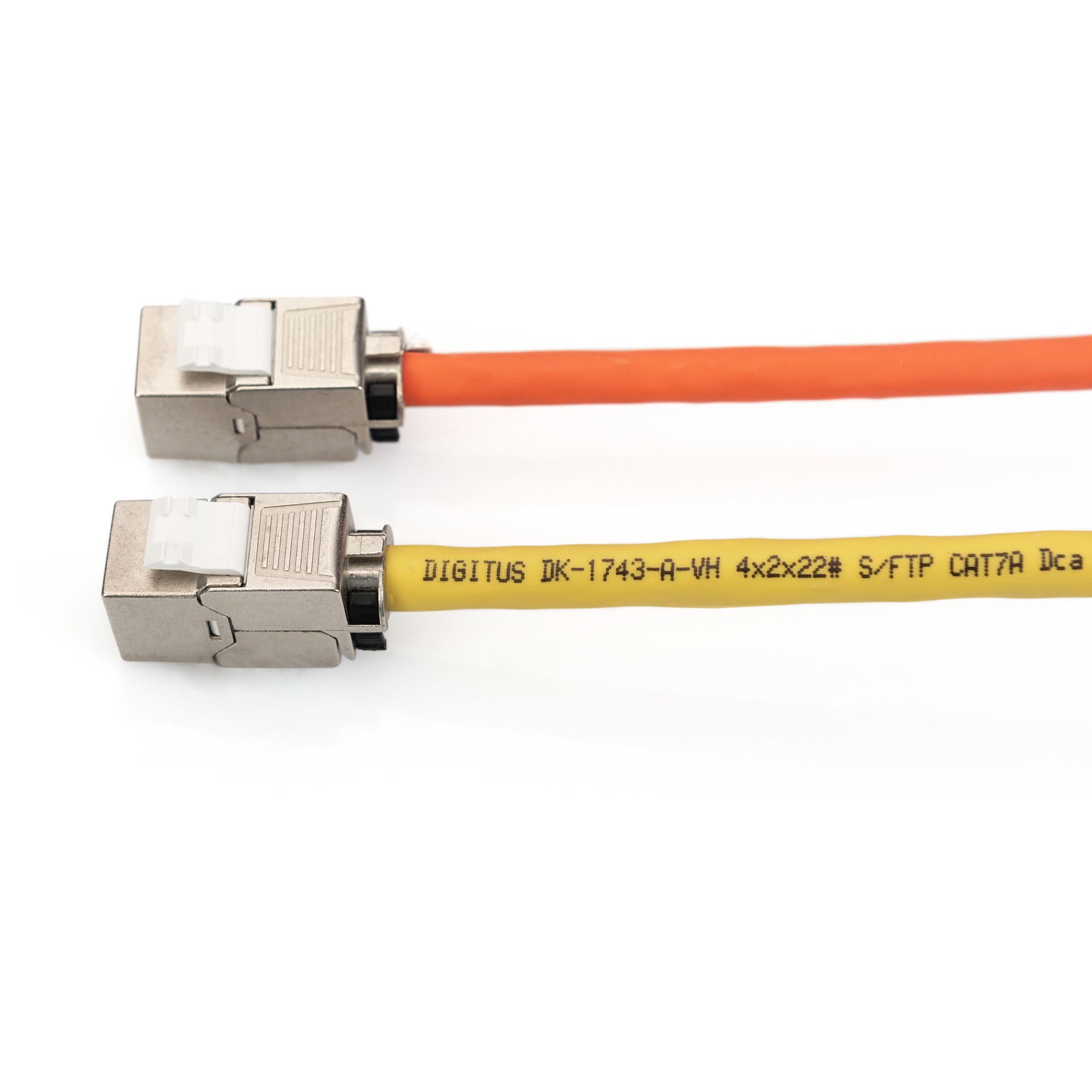

The shielded CAT 6A keystone module set DN-93617 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The modules feature 360° shield contact, a locking lever, and a resealable, intelligent cable manager for strain relief and cable fixation. The compact design allows for series installation in 483 mm (19″) 1U panels. Tool-free installation is achieved via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular wall outlets.
