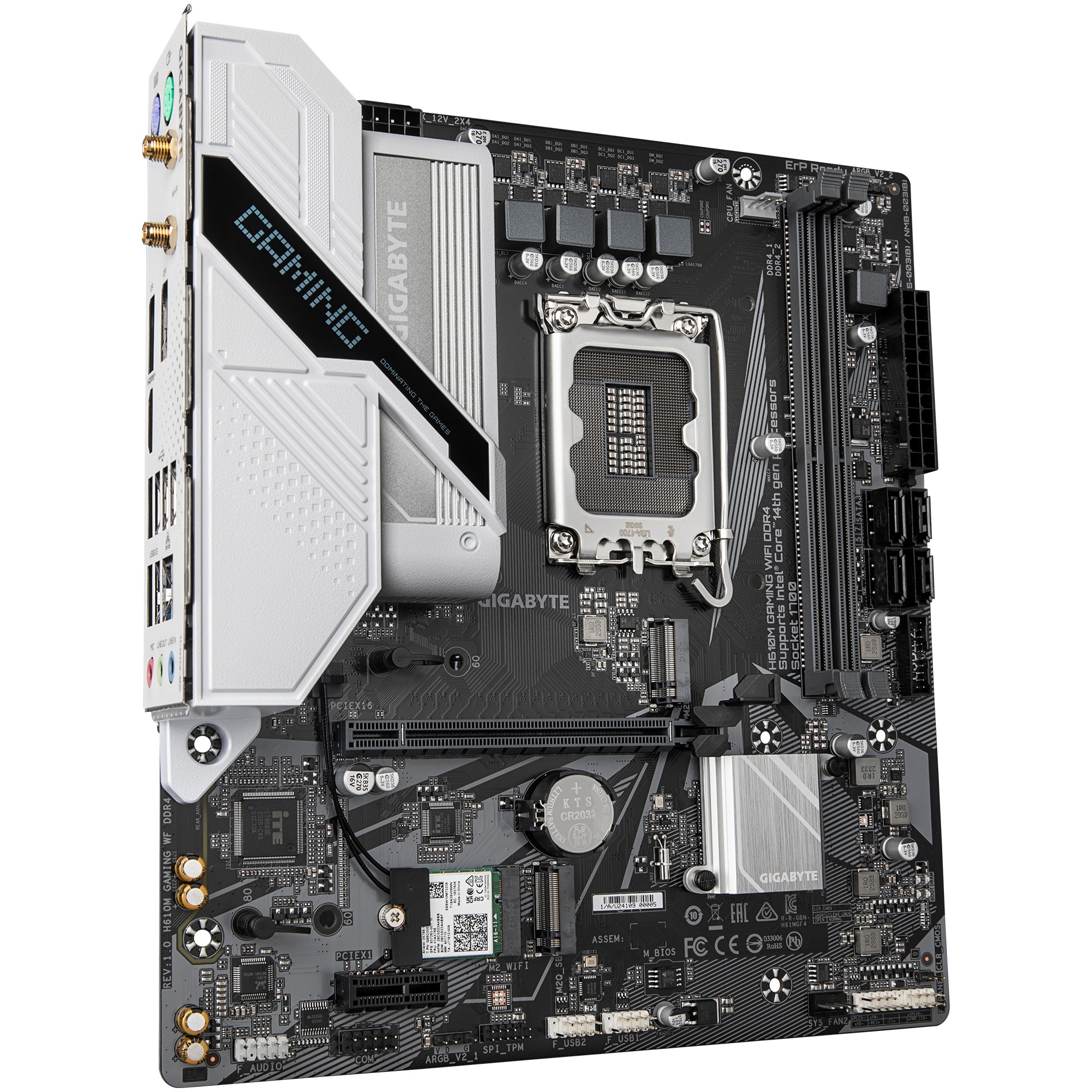

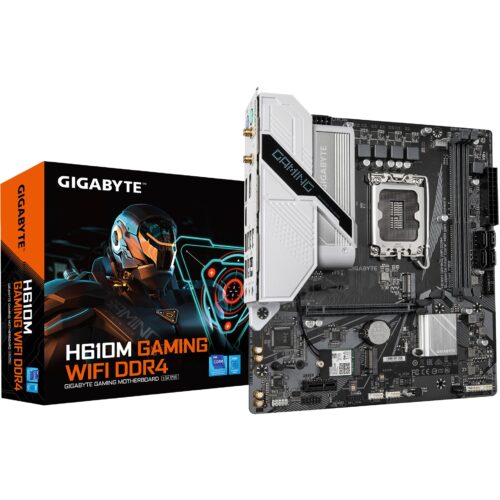

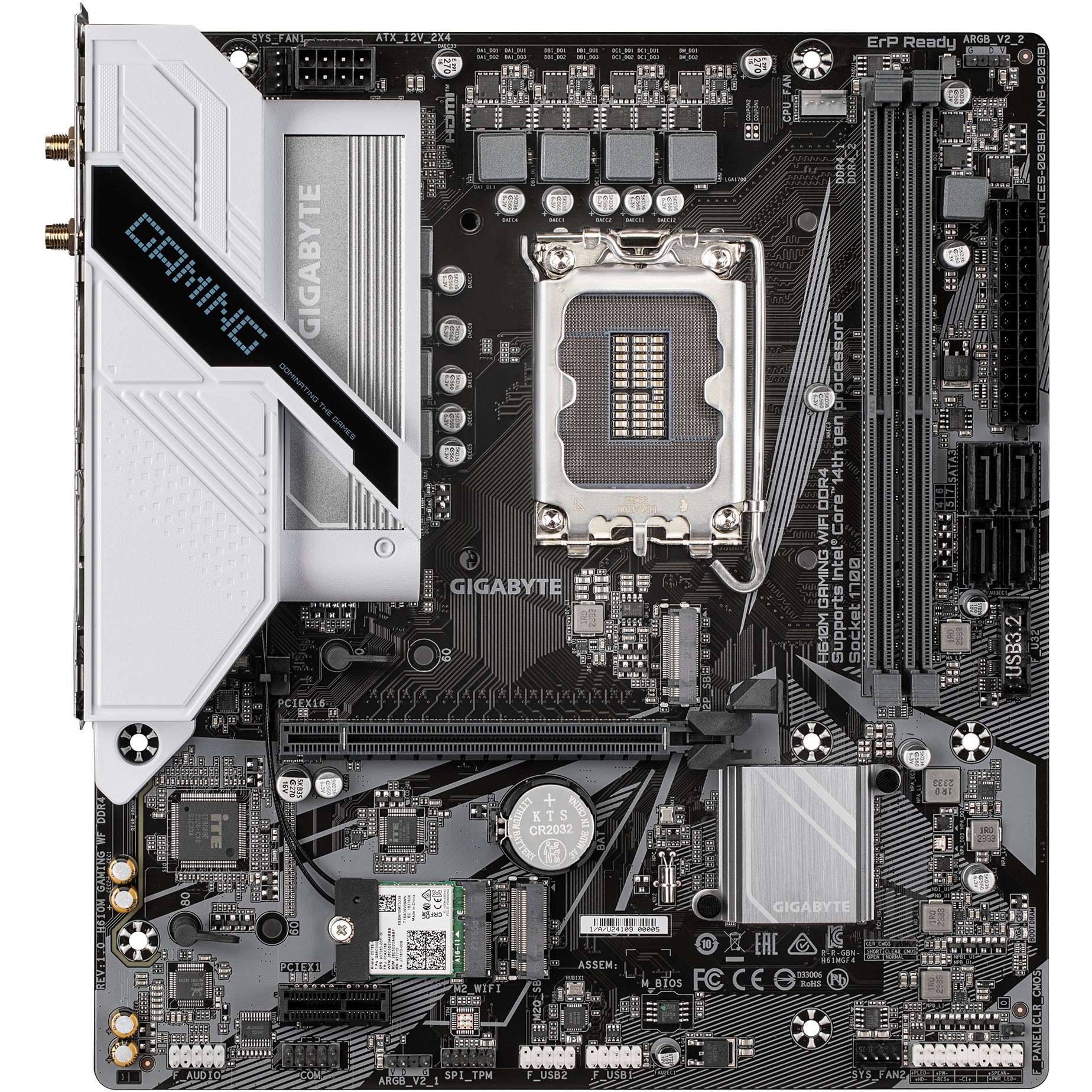

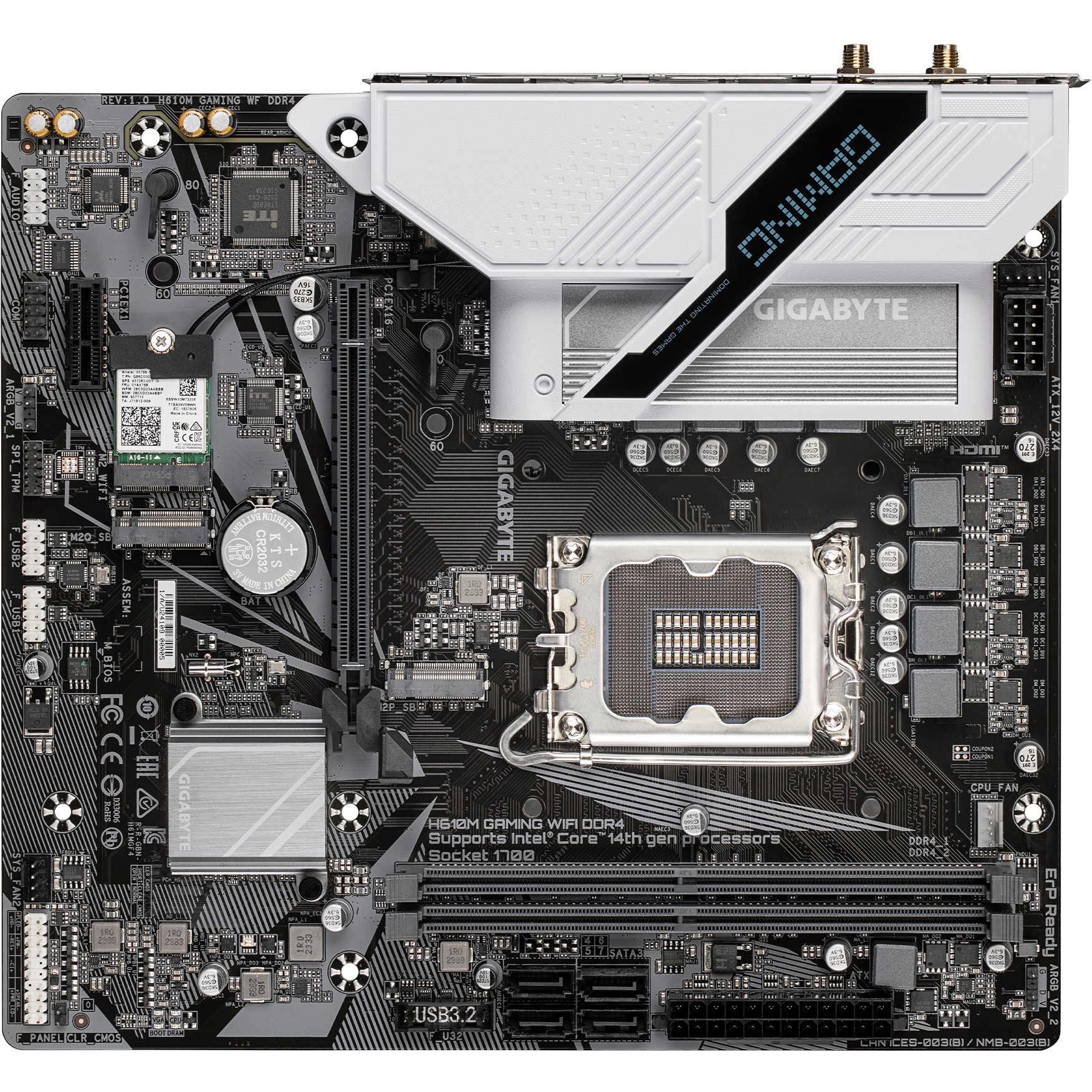

GA-H610M GAMING WF DDR4 (1700) (D)

Name: GA-H610M GAMING WF DDR4 (1700) (D)
SKU: 169399
Price: 121.31 EUR
Availability: InStock

€149.21

GIGABYTE H610M GAMING WF DDR4, Intel, LGA 1700, Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…, LGA 1700, 64 GB, DDR4-SDRAM

20 in stock

Categories: Mainboards & accessories, Motherboards - Intel

Description
Additional information

Description

GIGABYTE H610M GAMING WF DDR4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, etc. Supported memory: DDR4-SDRAM, Maximum RAM: 64 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD. Graphics card family: Intel, Graphics card: HD Graphics, Maximum resolution: 4096 x 2304 pixels. USB connector: USB Type-A

Additional information

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processors	Intel® Celeron®, Intel® Core ™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor slots	LGA 1700
Maximum internal memory supported by the processor	64 GB
Supported RAM	DDR4 SDRAM
Number of memory slots	2
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	ECC & Non-ECC
Supported memory speed	2133,2400,2666,2933,3000,3200 MHz
Supported memory clock speed (max.)	3200 MHz
RAM memory maximum	64 GB
Supported memory module capacities	12GB, 16 GB, 1GB, 2GB, 32GB, 4GB, 8GB
Characteristic	12V power connection, ATX power connector (24-pin), Batteries included, Bluetooth, Clear CMOS button, Clear CMOS jumper, CPU fan connector, EPS power connector (8-pin), Ethernet/LAN, Front panel audio connector, Front panel connector, HDCP, Microphone input, RGB LED header, TPM connector, Unbuffered memory, WIRELESS INTERNET ACCESS
Supported storage drives	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Maximum number of HDDs supported	4
Number of storage drives supported	5
Parallel processing technology	Unsupported
Graphics card family	Intel
Graphic card	HD Graphics
Maximum resolution	4096 x 2304 pixels
DirectX version	12.0
Number of USB 2.0 interfaces	2
USB 3.2 Gen 1 (3.1 Gen 1) ports	1
SATA III connectors	4
Total number of SATA ports	4
Serial port headers	1
Number of USB 2.0 ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	2
Number of Ethernet LAN connections (RJ-45)	1
Number of PS / 2 connections	1
Number of VGA (D-Sub) connections	1
Number of HDMI connections	1
Number of DVI-D connections	1
Number of DisplayPort connections	2
Headphone outputs	3
USB plug	USB Type-A
Ethernet interface type	Gigabit Ethernet
Top WiFi standard	Wi-Fi 6 (802.11ax)
WLAN standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	5.1
Motherboard chipset	Intel H610 Express
Audio chip	Realtek ALC897
Audio channels	7.1 channels
Product color	Brown
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Component for	Pc
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Cooling	Active
Energy source	ATX
Supports Windows operating systems	Windows 10 x64, Windows 11 x64
PCI-Express x1 slots	1
PCI-Express x16 slots	1
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	128 Mbit
ACPI version	5.0
Desktop Management Interface (DMI) version	2.7
System management BIOS (SMBIOS) version	2.7
Country of origin	China
Quantity per shipping box	1 piece (s)
Battery weight	3 g
Lithium weight per battery	0.07g
Number of battery cells	1
Rechargeable battery technology	Lithium Manganese Dioxide (LiMnO2)
Accumulator / battery type	CR2032
Packaging width	270 mm
Packaging depth	268 mm
Packing height	68 mm
Package weight	1.18 kg
Broad	244 mm
Depth	220 mm
Height	35 mm
Supplied cables	SATA
Supplied software	Norton Internet Security (OEM version)LAN bandwidth management software
Warranty period	3 year (s)
Manufacturer	Gigabyte
