GS-4530X

Description

LANCOM GS-4530X. Switch type: Managed, Switch level: L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Number of basic switching RJ-45 Ethernet ports: 30, Number of USB 2.0 ports: 1, Console port: RJ-45/Micro-USB. MAC address table: 32000 entries. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1ak, etc. Rack mounting, form factor: 1U.

Stackable full-layer 3 multi-gigabit access switch
For enterprise networks with high data volumes, this fully managed multi-gigabit access switch is a reliable solution thanks to full Layer 3 features with high-performance uplink and stacking. The industry-standard port configuration provides the necessary performance even under high load. Professional redundancy functions and LANCOM Failsafe Stacking ensure fail-safe operation. Furthermore, this switch is optimally protected by the LANCOM Limited Lifetime Warranty (LLW). Its configuration is automated via the LANCOM Management Cloud.

Advantages

High performance on 30 ports
The LANCOM GS-4530X is equipped with 12x 2.5 Gigabit Ethernet ports, 12x Gigabit Ethernet ports, and 4 SFP+ and 2 QSFP+ FleX ports, supporting transmission rates of 10 and 40 Gbps, respectively. With a data throughput of 324 Gbps on the backplane, it also offers wire-speed performance even under high load. This multi-gigabit access switch thus forms the powerful foundation for modern network infrastructures in all industries and application areas.

A high-performance basis for Wi-Fi 6
Thanks to its 12 high-performance 2.5 Gigabit Ethernet ports, the LANCOM GS-4530X is the ideal LAN-side foundation for integrating the new Wi-Fi 6 standard into modern infrastructures. The increased data rates required by Wi-Fi 6 require 2.5 Gigabit Ethernet, as the performance requirements exceed those of a single Gigabit Ethernet port. This switch thus enables the operation of up to 12 Wi-Fi 6 access points or other network components with high performance requirements.

Redundant network topologies through high-performance stacking
Stacking allows up to eight physical switches to be combined into a single logical unit, making it easy to maintain and manage – whether at a single location or even distributed across multiple sites. Using the non-stop forwarding function, the stack manager cyclically supplies its standby with current information such as the MAC table and its own status information. In the event of a failure, the standby manager can take over without any noticeable network interruption thanks to the hitless failover function. Subsequent network expansion is also possible, as the new switch receives its configuration automatically from the stack manager and is ready for use within seconds. Furthermore, the stacking function can be activated on both the front SFP+ FleX ports and the rear QSFP+ FleX ports, enabling a mixed stack with the LANCOM Aggregation Switches XS-5110F and XS-5116QF.

Full control over your investment
Fully equipped ex works, ready to use, everything from a single source: Based on the “Total Cost of Ownership” (TCO) principle, the LANCOM GS-4554X gives you planning security regarding the acquisition costs of your network expansion from the outset and at all times. Fully equipped with all necessary industry-standard ports, time-consuming and costly retrofitting with proprietary port modules is a thing of the past. Furthermore, our accessories portfolio provides you with the necessary SFP modules and direct attach cables directly from us in tested LANCOM quality. In addition to the guarantee of maximum operational reliability through extensive load and long-term testing of the modules, you also save on long delivery times.

Full Layer 3 routing for high network efficiency
The LANCOM GS-4530X is fully Layer 3 capable with policy-based, dynamic routing via OSPF, enabling dynamic network routes across one or more network segments. This significantly increases network efficiency, for example, in mesh networks with multiple aggregation switches at different locations.

Hardware redundancy
The LANCOM GS-4530X features a hot-swappable PSU (Power Supply Unit) that enables quick and uninterrupted replacement of the power supply in the event of a failure. A separate slot allows for the addition of a second PSU. The integration of two redundant power supplies enables highly fail-safe scenarios, for example. In addition, the redundant (N+1) fan concept ensures fail-safe switch operation in the event of one of the two fans failing.

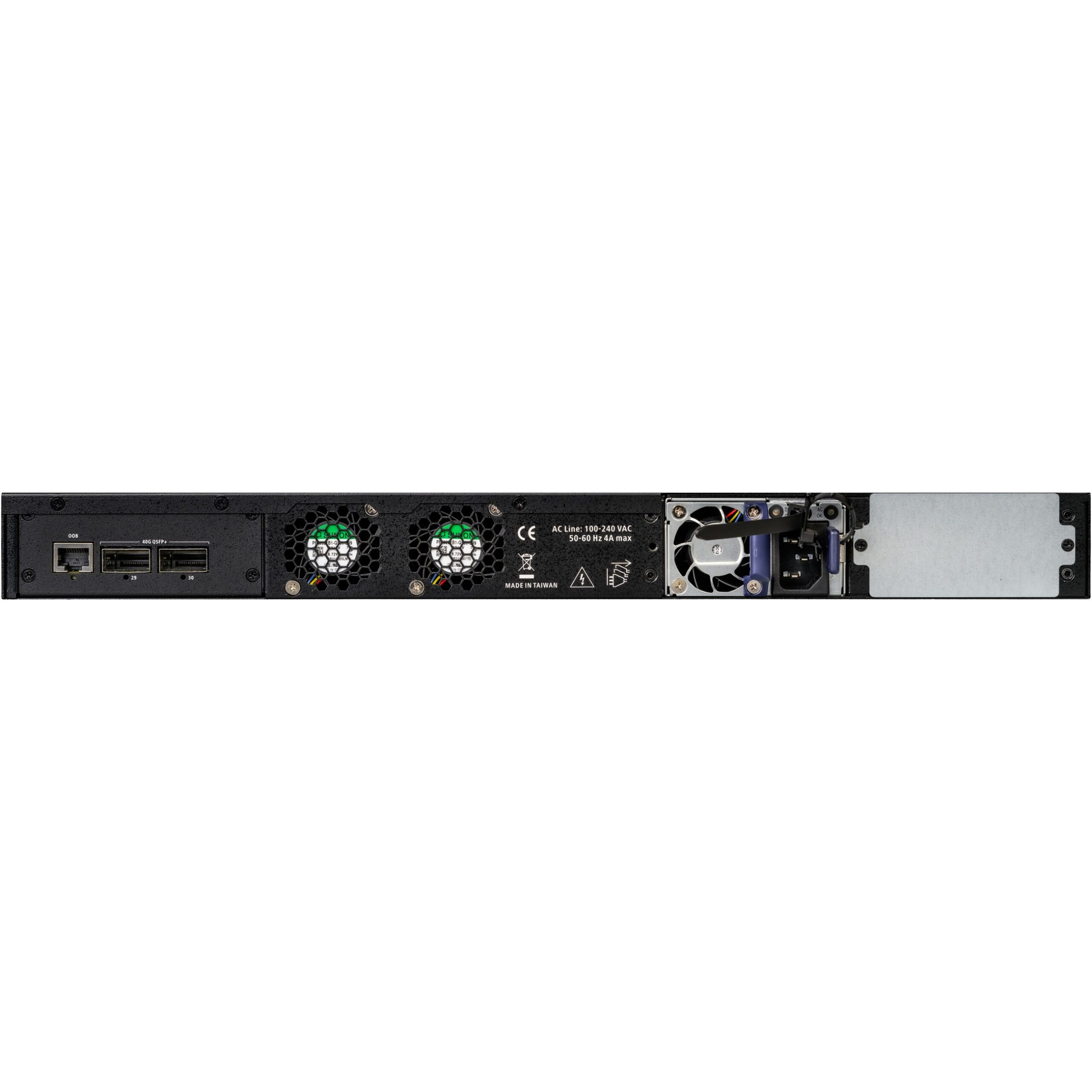

Front-to-back ventilation design
The LANCOM GS-4530X protects your investment with an innovative front-to-back ventilation design. This enables optimal cooling even in 19″ racks and maximizes the device's service life.

Cloud-managed LAN and switch stacking
The LANCOM GS-4530X, with the LANCOM Management Cloud, offers fast and easy network integration and automatic configuration assignment. Cloud-managed LAN replaces individual device configuration with holistic network orchestration and enables automatic VLAN assignment to the desired switch ports. This allows all configurations to be rolled out with a click of the mouse, making even more complex networking scenarios easy to administer. When using the LANCOM GS-4530X in a stack, cloud-managed switch stacking also ensures convenient management and monitoring of the entire stack. The cloud independently detects which and how many switches belong to the stack.

Secure remote management
Thanks to secure communication protocols such as SSH, SSL, and SNMPv3, the LANCOM GS-4530X enables professional remote network management. Furthermore, the switch supports the TACACS+ protocol for authentication, authorization, and accounting. This is an optimal solution that promises maximum security, especially for the management and monitoring of multi-site networks.

LANCOM Limited Lifetime Warranty (LLW)
This enterprise switch is backed by the LANCOM Limited Lifetime Warranty. Regardless of the device's operating time, the replacement service is valid until the device reaches its end-of-life (max. 10 years). The perfect complement: In the event of a hardware defect, ensure minimal downtime with next-business-day delivery of a replacement device. We recommend LANcare NBD Replacement or, in combination with guaranteed service times, LANcare Direct Advanced 24/7 or 10/5.
