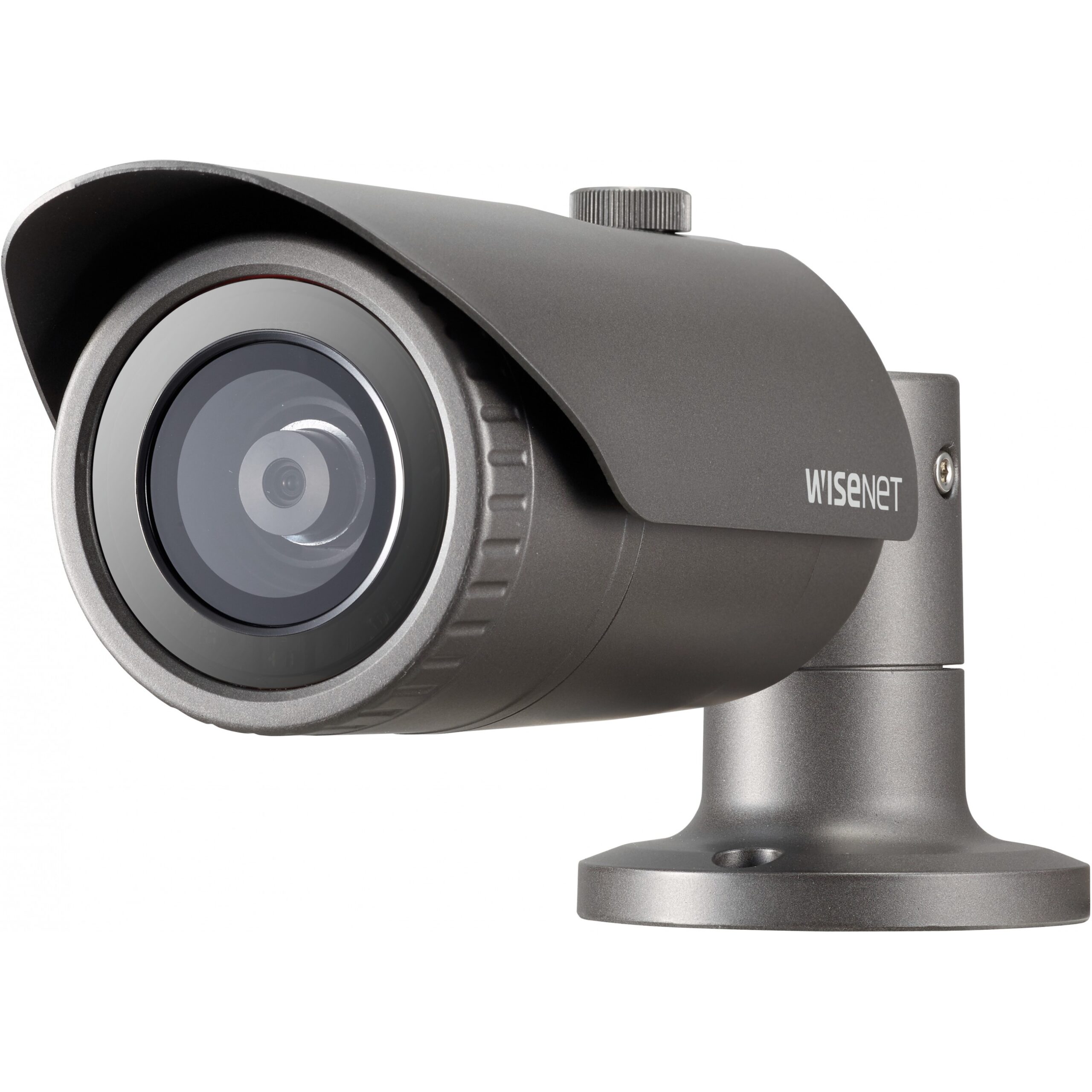

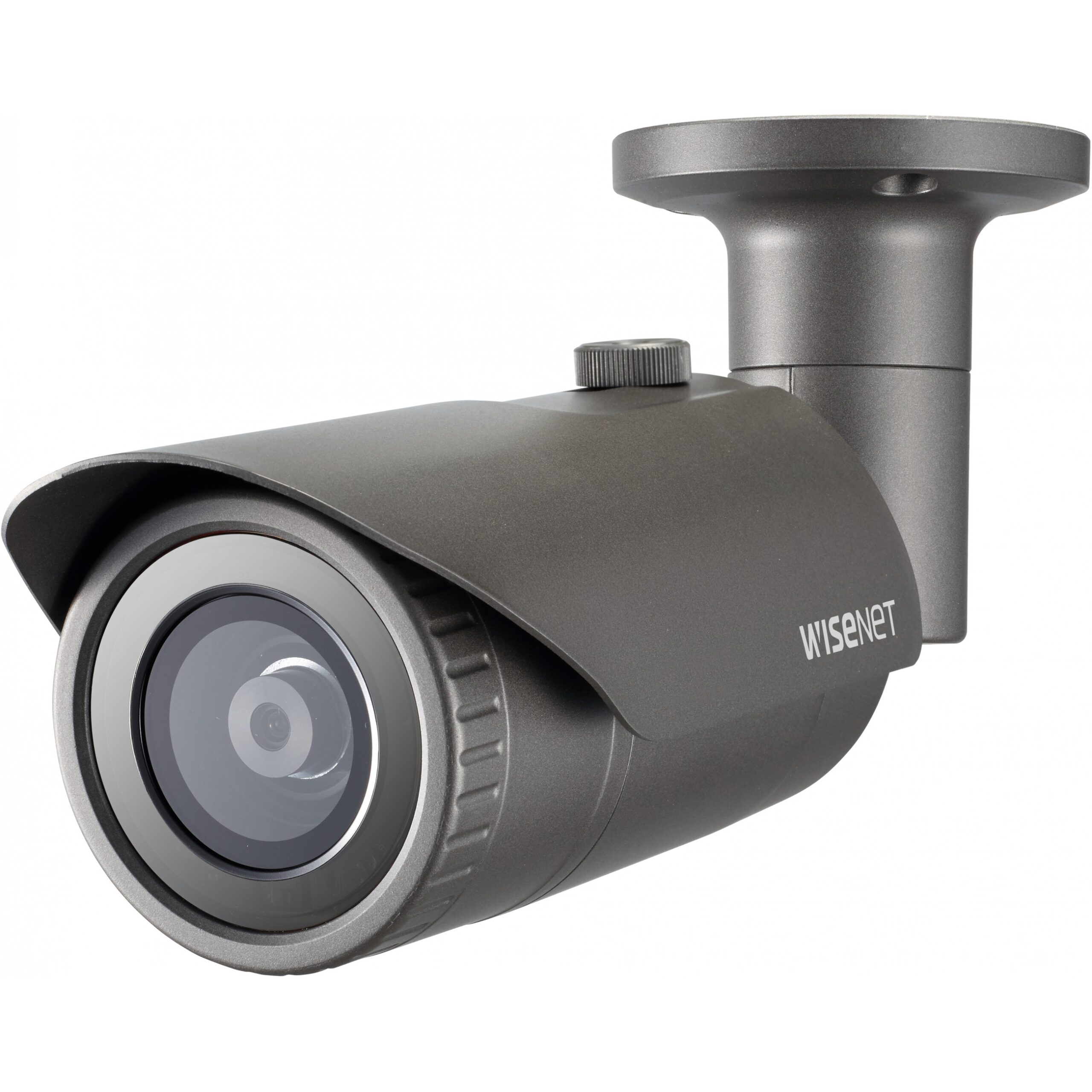

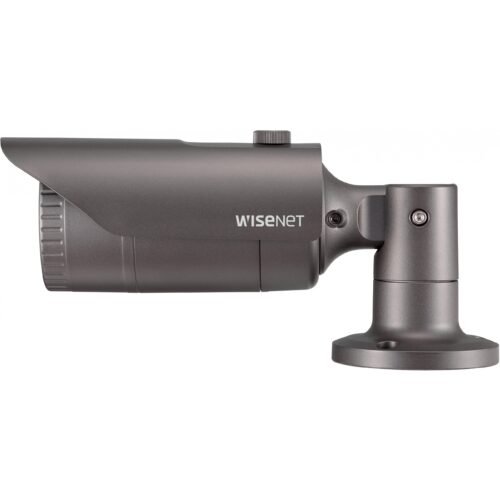

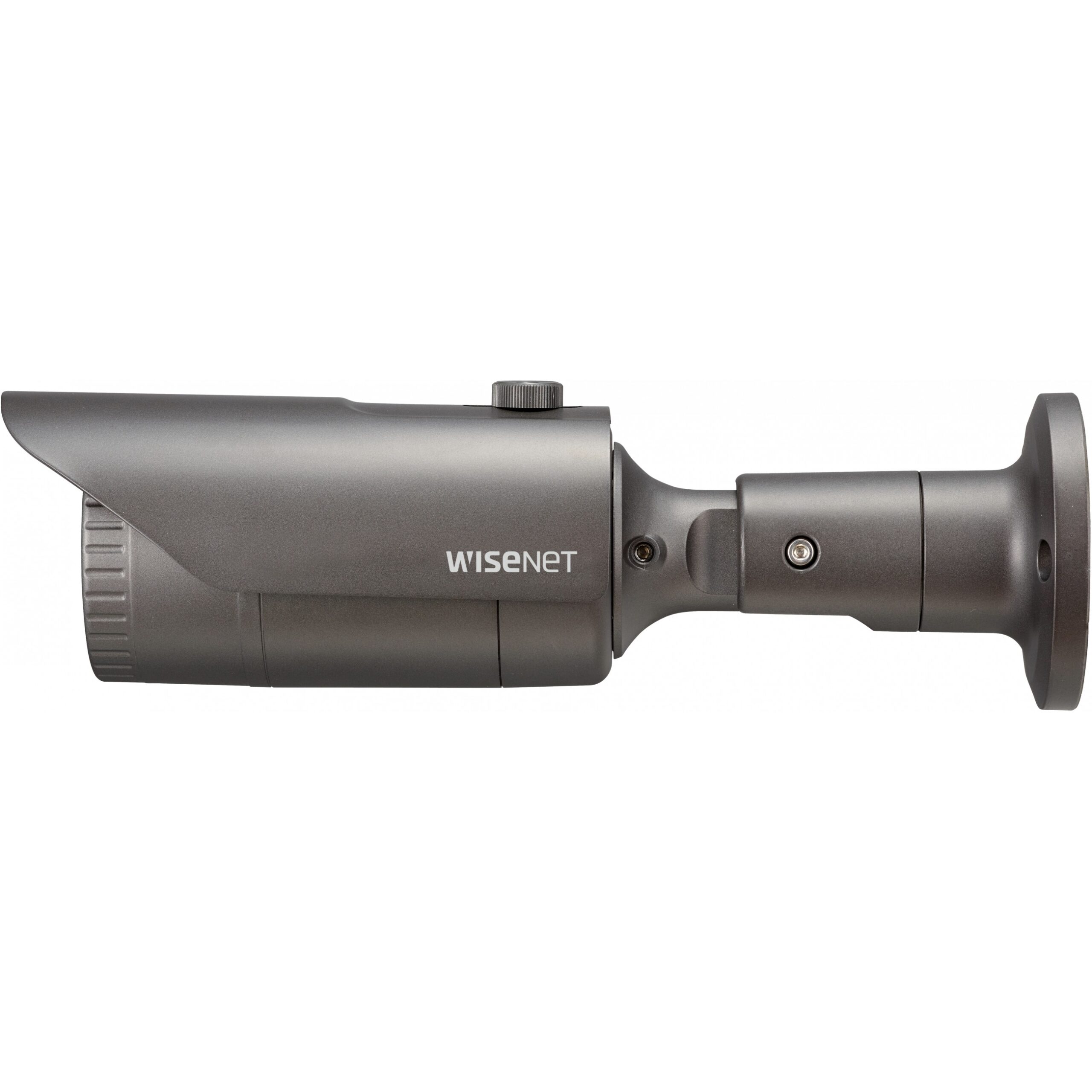

Hanwha Techwin IP-Cam Bullet “Q-Series” QNO-7022R

Name: Hanwha Techwin IP-Cam Bullet "Q-Series" QNO-7022R
SKU: 190462
Price: 383.40 EUR
Availability: InStock

€471.58

Hanwha QNO-7022R, IP Security Camera, Outdoor, Wired, Ceiling/Wall, Gray, Cartridge (Shape)

1 in stock

Categories: network, Network cameras

Description
Additional information

Description

Hanwha QNO-7022R. Type: IP security camera, Supported positioning: Outdoor, Transmission technology: Wired, Mounting type: Ceiling/Wall, Product color: Gray, Form factor: Cartridge. Viewing angle (horizontal): 78.2°, Viewing angle (vertical): 41.2°, Diagonal lens viewing angle: 92°. Sensor type: CMOS, Image sensor size: 25.4 / 3 mm (1 / 3″). Distance detection: 63 m, Distance observation: 25.2 m, Distance detection: 12.6 m

Additional information

pa_type	6473
Assisted positioning	Outside
Transmission technology	Wired
Characteristic	Alarm input/output, Anti-flicker, Day/night mode, Ethernet/LAN, Flip & Mirror, HTTPS encryption, Integrated card reader, IP address filter, Mirror, Night vision, Noise cancellation, Password protection, Privacy masking, Quality of Service (QoS) Support, Video motion detector, Video streaming, Wide Dynamic Range (WDR)
Form factor	Cartridge (shape)
Fastening type	Ceiling / wall
Product color	Gray
Housing material	Aluminum
International protection class (IP code)	IP66
IK Code	IK10
Minimum lighting	0 lux
Viewing angle (horizontal)	78.2°
Viewing angle (vertical)	41.2°
Lens viewing angle, diagonal	92°
White balance	ATW, AWC, Inside, Manually, Outside
Closure type	Electronic
Number of sensors	1
Image sensor size	25.4 / 3mm (1 / 3")
Sensor type	CMOS
Number of lenses	1
Distance determination	6.3m, 63 m
Distance observation	25.2 m
Distance detection	12.6 m
Focal length range	4 mm
Maximum f-number	1.6
Night vision distance	25 m
LED type	IR
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Supported video formats	H.264, H.265, M-JPEG
Video compression formats	H.264, H.265, M-JPEG
Up to 30 frames per second	30 fps
Bitrate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Sample rate	8kHz
Voice codec	G.711, G.711ulaw, G.726
Ethernet interface type	Fast ethernet
Network standard	IEEE 802.1x
Number of users	6 users
Streaming process	Multicasting, Unicast
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Max. Memory card size	128 GB
Flash memory	256 MB
Number of Ethernet LAN connections (RJ-45)	1
Password protection type	User
Supported security algorithms	HTTPS, SNMPv2, SNMPv3
Alert notification type	E-mail
Energy source	Direct current, PoE
Power consumption (standard operation)	8 W.
Power Consumption (Power over Ethernet (PoE))	10.7 W
DC output volts	12
Operating temperatur	40 – 55 ° C
Storage temperature range	40 – 60 ° C
Relative humidity in operation	0 – 95%
Storage humidity	0 – 95%
Diameter	7 cm
Length (mm)	246 mm
Weight	700 g
Number of cameras	1
Manufacturer	Hanwha – Wisenet
