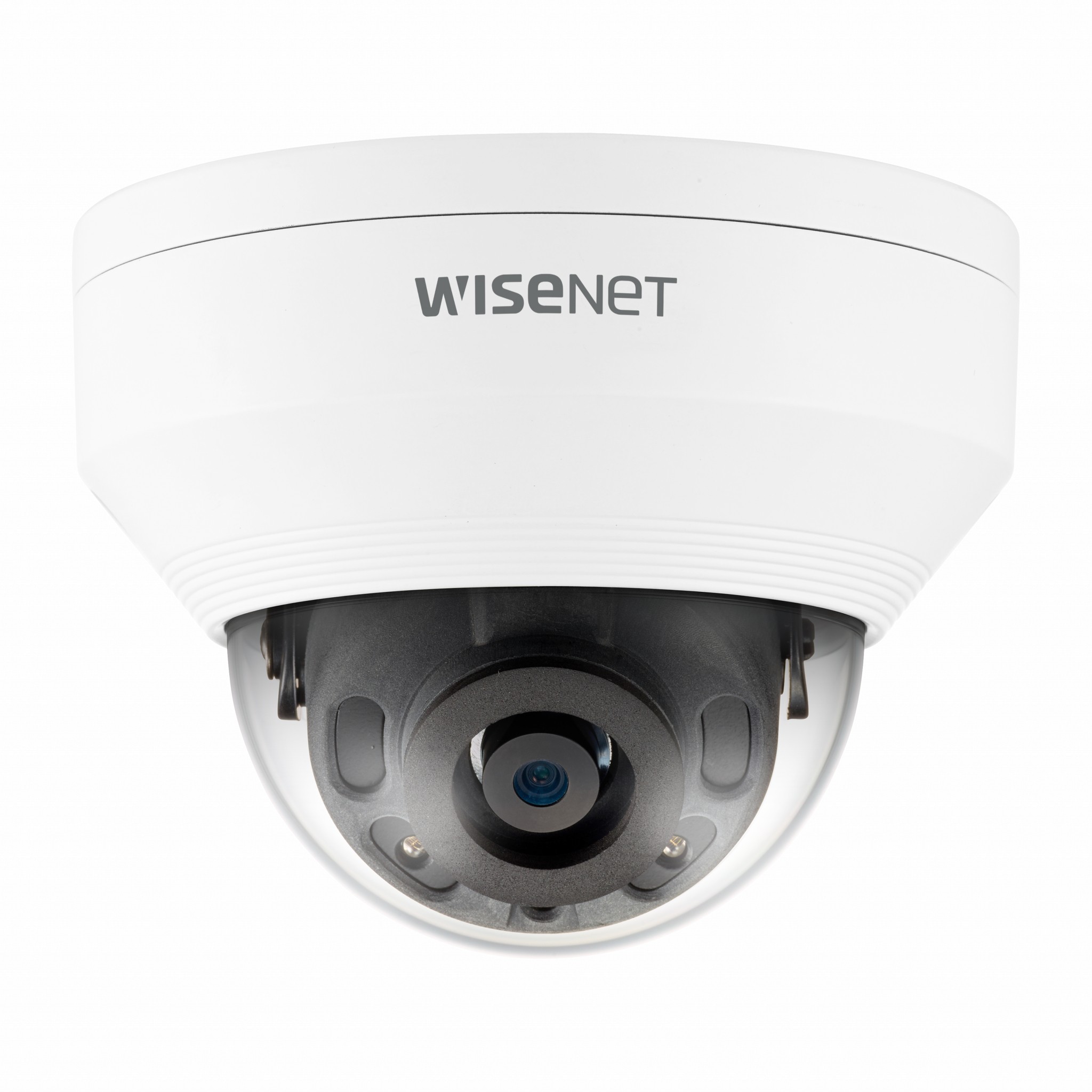

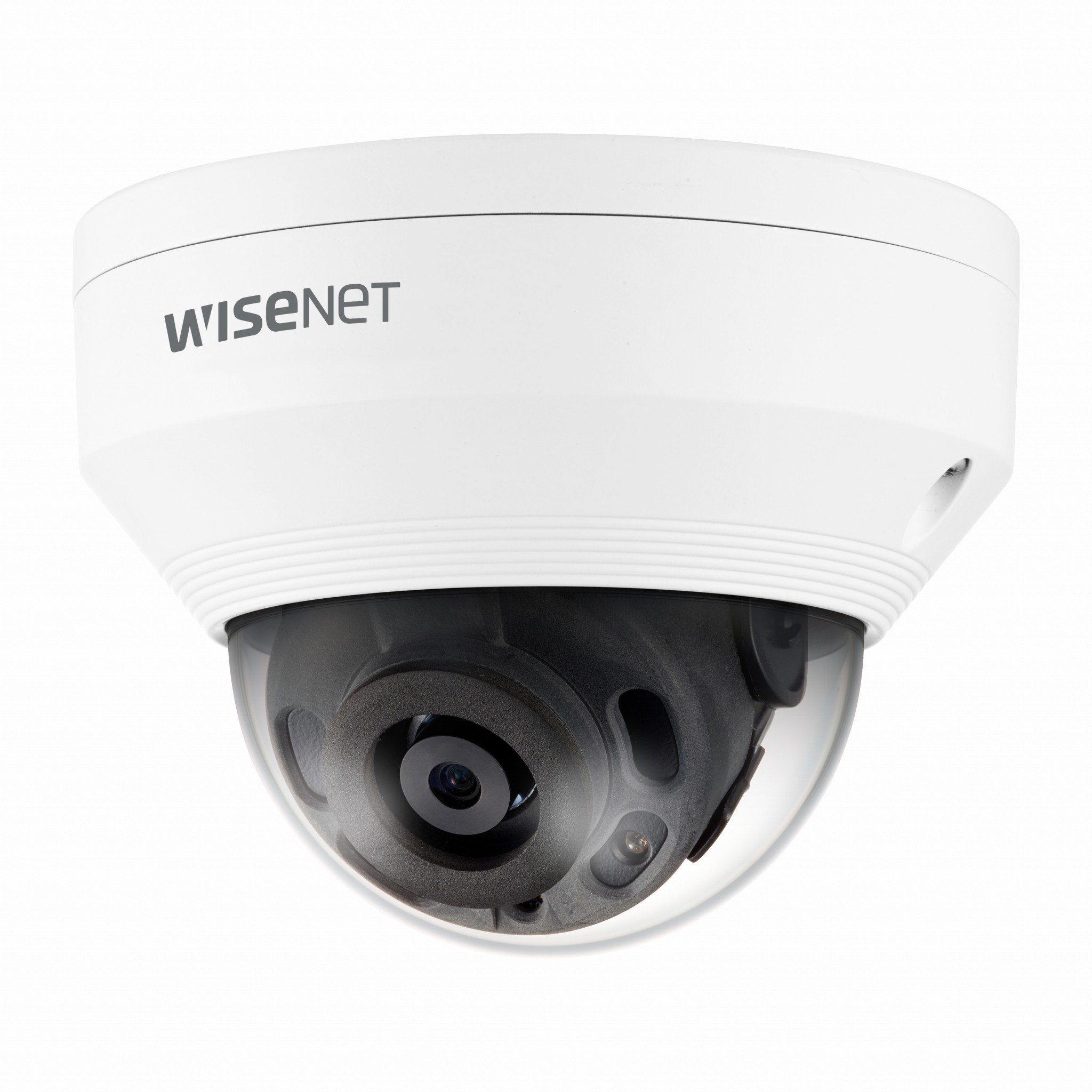

Hanwha Techwin IP-Cam Fixed Dome “Q-Series” QNV-7022R 4MP

Name: Hanwha Techwin IP-Cam Fixed Dome "Q-Series" QNV-7022R 4MP
SKU: 190047
Price: 383.40 EUR
Availability: InStock

€471.58

Hanwha QNV-7022R, IP Security Camera, Outdoor, Wired, Czech, German, Dutch, English, Spanish, French, Greek, Hungarian,…, Ceiling, White

8 in stock

Categories: network, Network cameras

Description
Additional information

Description

Hanwha QNV-7022R. Type: IP security camera, Supported positioning: Outdoor, Transmission technology: Wired. Mounting type: Ceiling, Product color: White, Form factor: Dome. Rotation angle: 350°, Viewing angle (horizontal): 78.2°, Viewing angle (vertical): 41.2°. Sensor type: CMOS, Image sensor size: 25.4 / 3 mm (1 / 3″). Distance detection: 63 m, Distance observation: 25.2 m, Distance detection: 12.6 m

Additional information

pa_type	6473
Assisted positioning	Outside
Transmission technology	Wired
Characteristic	Active counterfeit alarm, Alarm input/output, Anti-flicker, Backlight compensation, Camera pan control, Camera panning control, Day/night mode, Direct current connection (DC), Ethernet/LAN, Fixed focus, Flip & Mirror, HTTPS encryption, Infrared (IR) cut-off filter, Integrated card reader, IP address filter, Microphone input, Night vision, Noise cancellation, Operating manual, Password protection, Privacy masking, Quality of Service (QoS) Support, Video motion detector, Video streaming, Wide Dynamic Range (WDR)
Number of languages	17
Form factor	Dome
Fastening type	Ceiling
Product color	White
Housing material	Aluminum
International protection class (IP code)	IP66
IK Code	IK10
Minimum lighting	0 lux
Rotation angle	350 °
Viewing angle (horizontal)	78.2°
Viewing angle (vertical)	41.2°
Lens viewing angle, diagonal	92°
Tilt angle range	0 – 67°
Swivel range	0-350 °
White balance	ATW, AWC, Inside, Manually, Outside
Closure type	Electronic
Camera shutter speed	1/5 – 1/12000 s
Number of sensors	1
Image sensor size	25.4 / 3mm (1 / 3")
Sensor type	CMOS
Number of lenses	1
Distance determination	6.3m, 63 m
Distance observation	25.2 m
Distance detection	12.6 m
Maximum f-number	1.6
Fixed focal length	4 mm
Night vision distance	25 m
LED type	IR
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Supported video formats	H.264, H.265, M-JPEG
Video compression formats	H.264, H.265, M-JPEG
Up to 30 frames per second	30 fps
Bitrate control	Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
Supported audio formats	ADPCM, G.711, G.726
Sample rate	8kHz
Voice codec	G.711ulaw, G.726, G.726-32
Ethernet interface type	Fast ethernet
Network standard	IEEE 802.3af
Number of users	6 users
Streaming process	Multicasting, Unicast
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Max. Memory card size	128 GB
Flash memory	256 MB
Storage capacity	512 MB
Number of Ethernet LAN connections (RJ-45)	1
Composite video output	1
Password protection type	User
Supported security algorithms	EAP LEAP, EAP-TLS, HTTPS, LEAP
Alert notification type	E-mail
Intelligent Video Surveillance (IVS) System Properties	Defocus
Energy source	Direct current, PoE
Power consumption (standard operation)	6.5 W
Power consumption (max.)	10.7 W
Power Consumption (Power over Ethernet (PoE))	8.1 W
DC output volts	12
Operating temperatur	40 – 55 ° C
Storage temperature range	40 – 60 ° C
Relative humidity in operation	0 – 95%
Storage humidity	0 – 95%
Height	91.7 mm
Diameter	12 cm
Weight	510 g
Manufacturer	Hanwha – Wisenet
