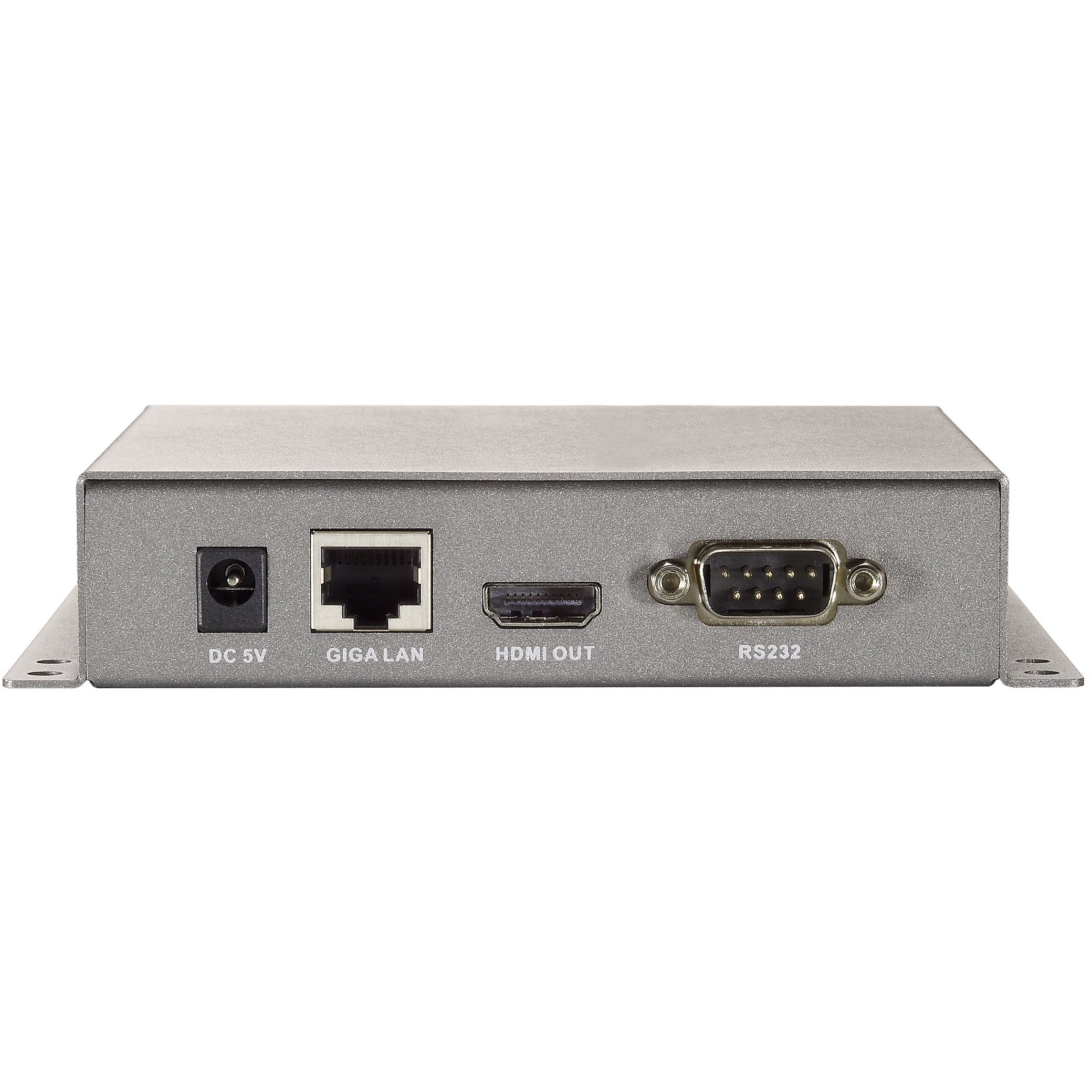

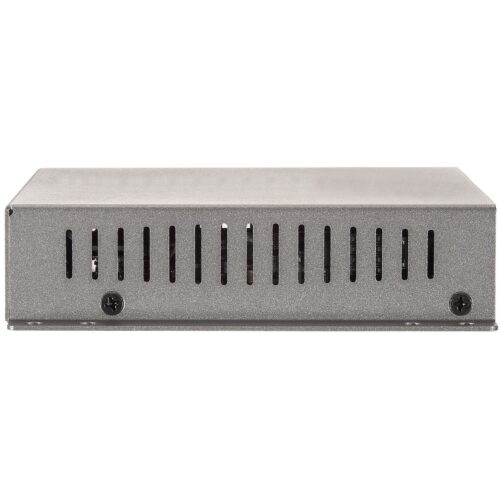

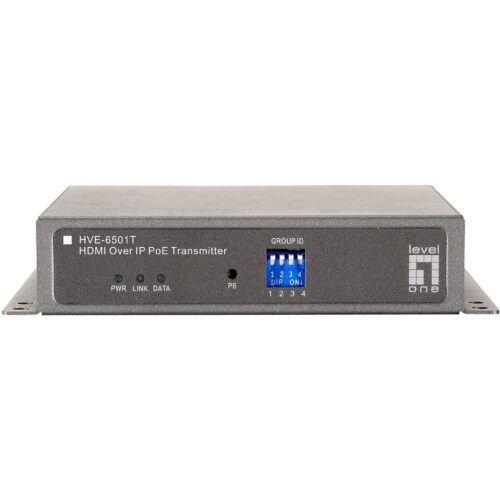

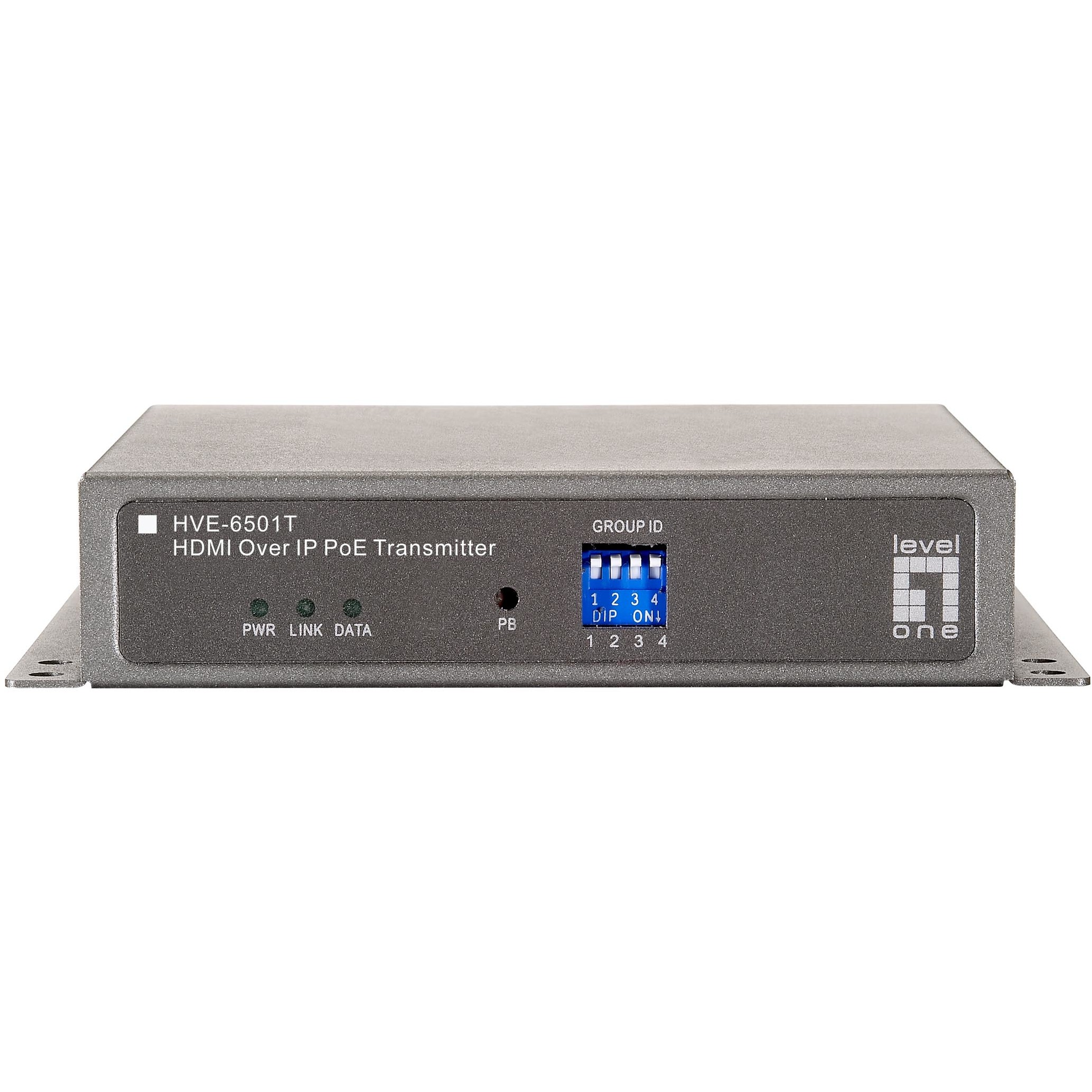

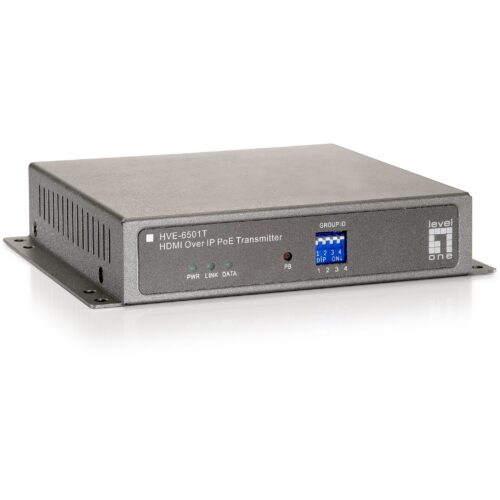

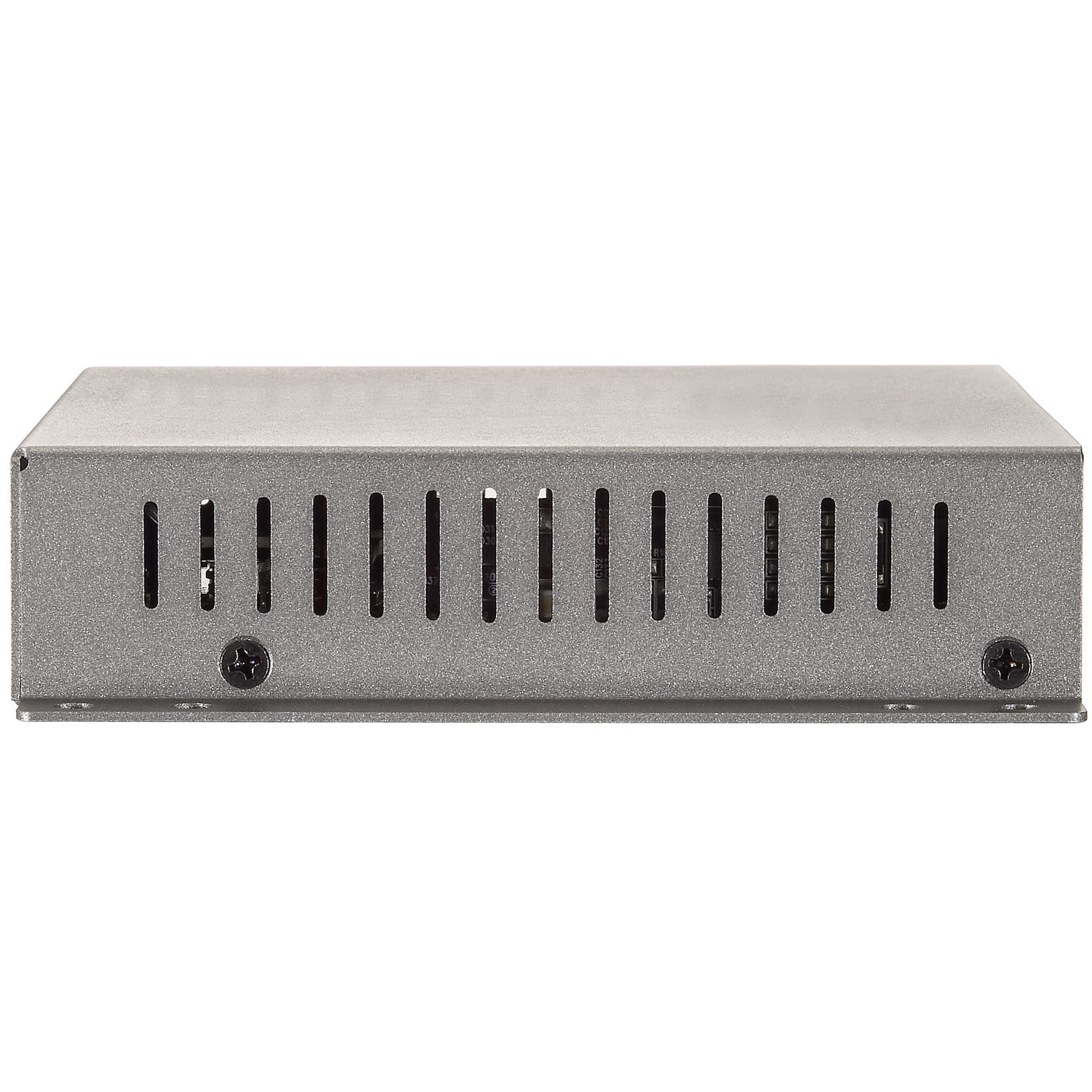

HDMI HVE-6501T over IP PoE Transmitter Video Exe.

Description

LevelOne HVE-6501T. Type: AV transmitter, Maximum resolution: 1920 x 1080 pixels, Supported cable types: Cat5e, Cat6, Cat7. Serial interface: RS-232. Operating voltage: 5 V, Current: 1 A. Width: 114 mm, Depth: 140 mm, Height: 28 mm. Packaging width: 148 mm, Packaging depth: 240 mm, Packaging height: 80 mm.

Necessary infrastructure for digital signage applications
Transmits HDMI solutions at 1080p
HDMI signals are transmitted via Cat.5/6/7 cables
Broadcast HDMI to multiple HDMI destinations
Supports point-to-point, point-to-many and many-to-many network configurations
Integrated DIP switch for setting the group ID
Up to 16 transmitters and more than 200 receivers can be installed in one system
Multi-cast groups with Gigabit Ethernet switch (requirements: 802.1Q VLAN & IGMP)
