K Cooler Multi Socket Noctua NH-U9 TR4-SP3

Description

Noctua NH-U9 TR4-SP3. Type: Cooler, Fan diameter: 9.2 cm, Rotation speed (min.): 400 RPM, Rotation speed (max.): 2000 RPM, Airflow: 78.9 m³/h, Bearing type: Self-Stabilizing Oil-Pressure Bearing (SSO). Voltage: 12 V. Width: 125 mm, Depth: 119 mm, Height: 95 mm. Product color: Aluminum, Beige

With more than 300 awards and recommendations from international publications, Noctua's NH-U9 series has become a benchmark for compact 92mm single-tower coolers. The TR4-SP3 version features a larger contact area specifically tailored for AMD's TR4/SP3 (Ryzen Threadripper / Epyc) platform and comes with the latest SecuFirm2 mounting system for TR4/SP3. The all-round high-quality package of the NH-U9 TR4-SP3 is rounded off by a dual fan configuration consisting of two of Noctua's renowned quiet NF-A9 PWM 92mm fans, Noctua's proven NT-H1 thermal paste, and a 6-year manufacturer's warranty. Its unique combination of excellent cooling performance, excellent acoustics, and outstanding compatibility makes the highly compact NH-U9 TR4-SP3 a truly premium solution for TR4/SP3-based systems with limited space.

Award-winning NH-U series
The NH-U9 TR4-SP3 is part of Noctua's award-winning NH-U series. Launched in 2005, the series is considered a classic in quiet, premium cooling and has received more than 1,000 awards and recommendations from leading international hardware websites and magazines.

Custom-made special version for TR4/SP3 (Ryzen Threadripper / Epyc)
The solid copper contact area of the TR4-SP3 version, measuring 70x56mm, is more than twice the size of the standard model. It was specifically designed for the oversized heat spreaders (IHS) of AMD's TR4/SP3-based processors and enables optimal heat transfer from the CPU to the cooler socket and further via the heat pipes to the cooling fins.

Compact 92mm format for best compatibility
With a total width of just 95mm, the NH-U9S TR4-SP3 never protrudes above the top PCIe x16 slot, offering 100% PCIe compatibility. At the same time, with a height of just 125mm, the cooler fits into many compact systems and most 4U cases.

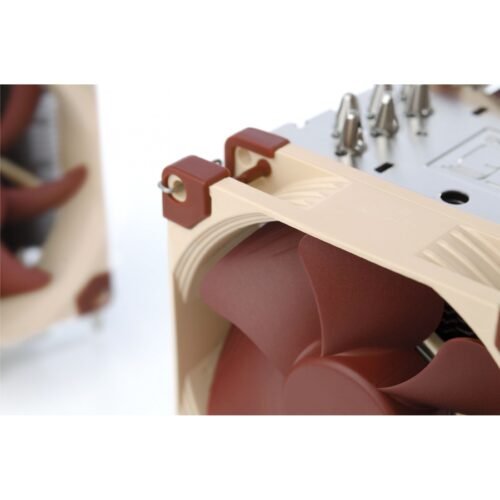

Two NF-A9 PWM fans
The NH-U9 TR4-SP3 comes with two of Noctua's award-winning NF-A9 PWM 92mm fans. This dual-fan configuration delivers impressively silent cooling performance for such a compact cooler, close to the level of the larger NH-U12S TR4-SP3.

PWM and low-noise adapter
The NF-A9 92mm fans of the NH-U9 TR4-SP3 support PWM for convenient, fully automatic speed control via the motherboard. Furthermore, the included low-noise adapters allow the maximum speed to be reduced from 2000 to 1550 rpm for even quieter operation.

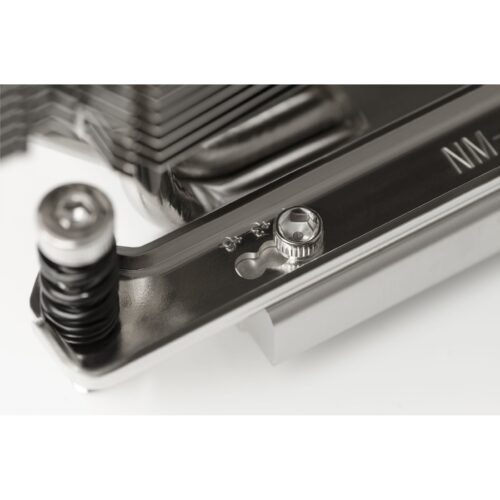

SecuFirm2 mounting system for TR4/SP3
Noctua's SecuFirm2 mounting systems have become synonymous with quality, reliability, and ease of use. The TR4/SP3 version was specifically developed for the new socket and is particularly easy to install: Just place the cooler on top, tighten the four spring-loaded screws, and you're done!

NT-H1 thermal paste
Noctua's renowned NT-H1 is a professional TIM solution that offers minimal thermal resistance, excellent user comfort and excellent durability, making it particularly suitable for use in server and workstation applications.

6-year manufacturer's warranty
Noctua products are known for their impeccable quality and outstanding durability. Like all Noctua fans, the included NF-A9 fans boast an MTTF rating of over 150,000 hours, and the entire NH-U9 TR4-SP3 package comes with a full 6-year manufacturer's warranty.
