Lancom 1800EFW-5G (EU)

Description

LANCOM 1800EFW-5G (EU). Product color: Black, Mounting type: Wall mount. Ethernet LAN data transfer rates: 10, 100, 1000 Mbps, Mobile network generation: 5G, Data network: 5G, HSPA, LTE, UMTS. Supported security algorithms: SNMP, SNMPv2, SNMPv3. SIM card type: MiniSIM, WAN port: Ethernet (RJ-45). Power consumption (max.): 37 W, Power consumption (idle): 14 W.

SD-WAN gateway with fiber, Ethernet, 5G and Wi-Fi 6
The LANCOM 1800EFW-5G's broad range of interfaces enables scalable SD-WAN site connectivity for medium-sized businesses of the highest quality: Connection to modern fiber optic connections and external modems ensures fast and stable internet. The additional 5G modem for intelligent backup scenarios in the event of a wired internet connection failure or for primary operation guarantees high availability and top performance for your business-critical applications. Fast dual-band concurrent Wi-Fi 6 technology connects mobile devices to the corporate network in parallel in the 5 GHz and 2.4 GHz bands. In addition to a secure VPN connection via LANCOM IPSec VPN, the LANCOM Management Cloud (LMC) also enables location-independent work, allowing you to centrally manage your network components.

LANCOM SD-WAN – Next-level networking
With LANCOM SD-WAN, you can manage and monitor your entire corporate network centrally, cost-effectively, quickly, and stress-free! In combination with the LANCOM Management Cloud, the SD-WAN gateway opens up all the possibilities for automated setup of secure VPN connections (Auto-VPN) between locations, including network virtualization. Highlight features such as High Scalability VPN (HSVPN) and Advanced Mesh VPN offer you significant scalability and efficiency gains for multiple branch offices and applications. Furthermore, if multiple WAN connections are defined, they are automatically operated in active/active mode (load balancing), thereby increasing the total available bandwidth. Dynamic Path Selection and Dynamic Traffic Steering also dynamically route applications via the currently best connection.

WAN connectivity with Gigabit Ethernet, fiber optic and 5G
The LANCOM 1800EFW-5G enables direct connection to a fiber optic line (FTTH) via its SFP/TP combo port using a separately available SFP module (GPON / AON). Combined with an integrated 5G modem and Gigabit Ethernet for connecting external modems, the branch router offers maximum flexibility regarding the internet connections available at the location.

Professional integration of wireless clients via Wi-Fi 6
The LANCOM 1800EFW-5G offers Wi-Fi in the Wi-Fi 6 standard (IEEE 802.11ax) and can simultaneously connect both clients in the 2.4 GHz frequency band and modern end devices in the 5 GHz band to the network and provide them with fast Wi-Fi. Dual-band concurrent Wi-Fi 6 technology enables transmission rates of up to 1,200 Mbps in the 5 GHz band and up to 575 Mbps in the 2.4 GHz band.

Modern housing with a focus on sustainability

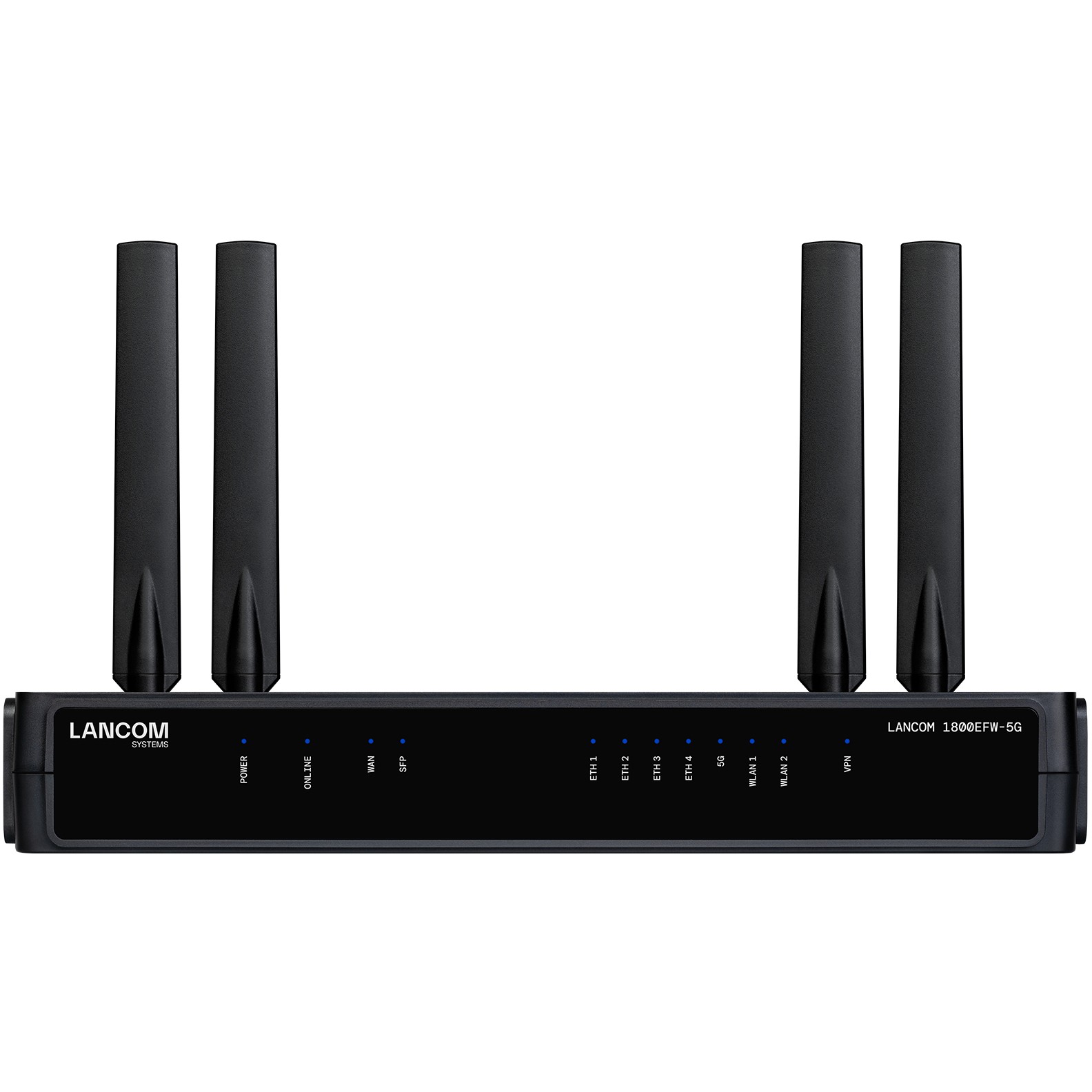

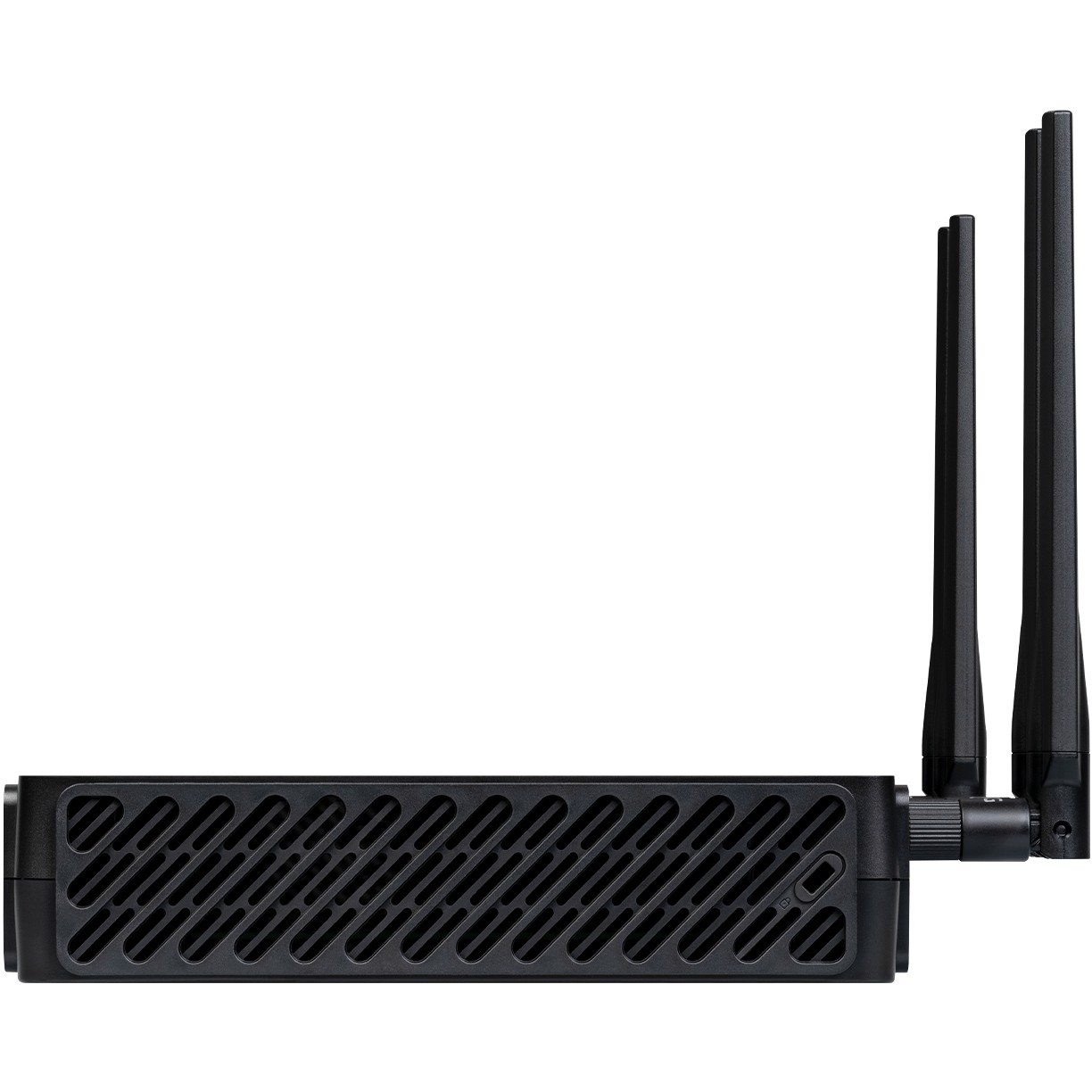

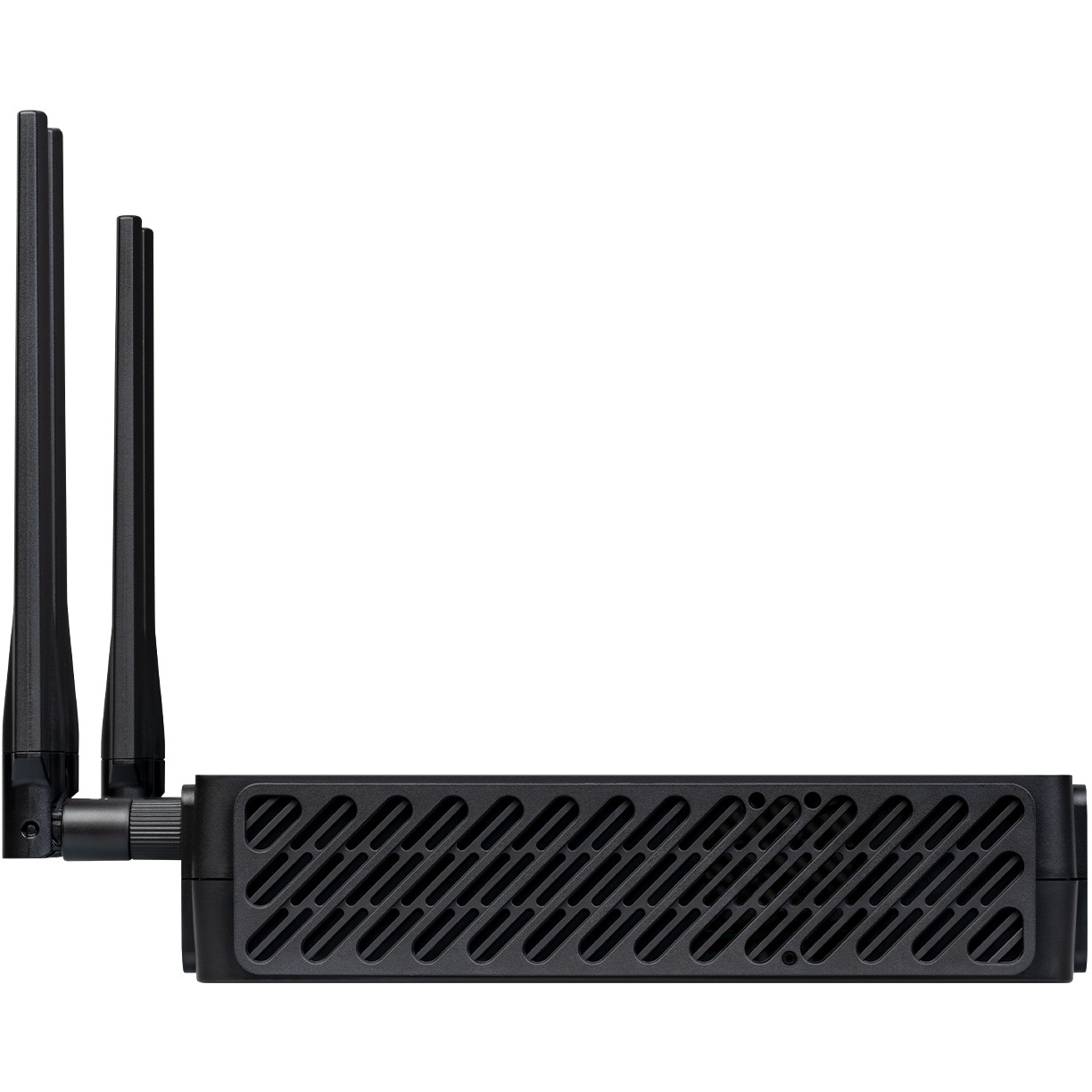

Innovative technology meets a future-oriented look: The interplay of matte black plastic and a mirror-smooth Plexiglas front panel for interface information conveys a tangible sense of security, reliability, and high quality. The housing of the SD-WAN branch router offers high installation flexibility thanks to table, rack, and wall mounting options. Local production ensures short procurement routes with low CO2 emissions, thus scoring particularly highly in terms of sustainability.

Security thanks to ARF, VLAN and Stateful Inspection Firewall
Equipped with a stateful inspection firewall, the LANCOM SD-WAN gateway protects the entire network with features such as intrusion prevention and denial of service protection. Logical network segmentation allows you to define individual security settings and access rights based on user requirements, as well as divide your infrastructure and applications into different areas. This network segmentation, using ARF (Advanced Routing and Forwarding) and VLAN (Virtual Local Area Network), ensures that your corporate network remains protected as a whole, even if a network segment is compromised.

Secure communication via VPN
With virtual private networks (VPNs), you use the public internet as a communication channel and secure the connection so that it remains completely inaccessible to outsiders. This SD-WAN gateway offers five integrated IPSec VPN channels for secure encryption, ensuring the protection of internal company data when connecting mobile employees, home offices, or branch offices. With the LANCOM VPN Option, you can also upgrade the device to up to 25 VPN channels, allowing the infrastructure to easily grow as needed, even without additional hardware.

Maximum future security and digital sovereignty
As an established German manufacturer of IT network solutions, LANCOM stands for reliability and expertise. Software and hardware development and manufacturing take place primarily in Germany, as does network management hosting. Particular attention is paid to GDPR-compliant trustworthiness and data security. The company is committed to ensuring its products are free of backdoors and is a holder of the “IT Security Made in Germany” quality seal initiated by the German Federal Ministry for Economic Affairs and Energy. All devices are equipped with future-proof hardware dimensions. Updates to the LANCOM operating system family are available free of charge several times a year, even across product generations. This guarantees long-term use with the latest technology and offers true investment protection. Furthermore, LANCOM infrastructures are easily scalable thanks to maximum compatibility.
