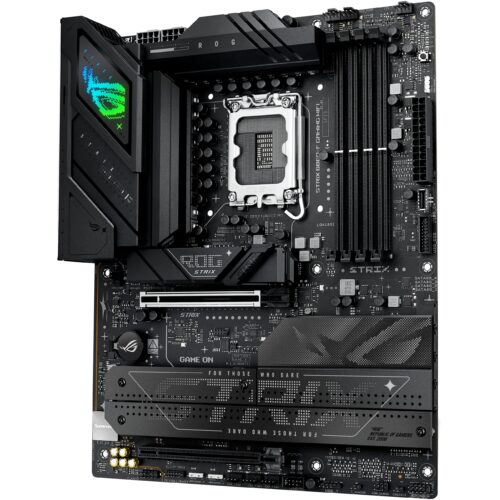

LGA1851 ASUS ROG STRIX B860-F GAMING WIFI

Description

ASUS ROG STRIX B860-F GAMING WIFI. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processors: Intel Core Ultra (Series 2). Supported memory: DDR5-SDRAM, Maximum RAM memory: 256 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD, RAID level: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top WLAN standard: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Intel® B860 LGA 1851 ATX mainboard, Advanced AI PC-ready, 16+1+2+1 power stages, DDR5 slots, AEMP III, WiFi 7 with ASUS WiFi Q-Antenna, four M.2 slots, one PCIe® 5.0 NVMe® SSD slot with M.2 Q-Release, PCIe 5.0 x16 SafeSlot with PCIe Slot Q-Release Slim and full support for next-gen graphics cards, one Thunderbolt™ 4 port, USB 20Gbps Type-C® rear I/O port, NPU Boost, ASUS AI Advisor, AI Networking II, Aura Sync RGB lighting

ROG STRIX B860-F GAMING WIFI
With NPU boosting and cutting-edge AI solutions, ROG STRIX B860-F Gaming WiFi supports advanced AI PC applications. Equipped with Thunderbolt™ 4, PCIe® 5.0, and Aura Sync lighting, it offers ultra-fast data transfer speeds, exceptional connectivity, and a versatile aesthetic that suits both bold and understated styles.

ASUS AI ADVISOR
Using AI technology to understand natural language questions or scenario descriptions, ASUS AI Advisor enables users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.

AI NETWORKING II
AI Networking II combines intelligent technologies to continuously optimize network performance, enable a trusted and seamless connection, and unleash the full speed of WiFi 7*.

NPU BOOST
The integrated NPU in Intel® Core™ Ultra processors (Series 2) efficiently accelerates AI workflows – and with NPU Boost you can do even more with it. This BIOS feature overclocks the NPU with just one click and increases performance by up to 24%.

asynchronous clock
ROG Strix B860-F features a built-in clock generator that isolates the CPU base clock from memory, NPU, D2D, and NGU to ensure the highest frequency flexibility. Push the performance of memory, NPU, and other components to the limit while maintaining the stability of the CPU clock ranges.

DDR5 STRENGTH
ROG has a long history of delivering top-notch memory performance, and DDR5 is no exception. Thanks to improved signal routing, enthusiast kits on the Strix B860-F can go well beyond the 9 GT/s mark, and even higher speeds are on the horizon. For more experienced users, the UEFI offers a wide range of options to optimize and push performance to the limit.

AEMP III
ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that enables users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. In a two-stage, comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. The result is an optimal balance of performance and stability, even at peak speeds of DDR5-8000 or higher.

DIMM FIT
DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and detect potential problems, ensuring maximum efficiency, compatibility, and system stability.

Whether you're an overclocker seeking ultimate performance, a competitor seeking the most responsive gameplay, or a content creator seeking rock-solid stability, DIMM Fit offers optimizations tailored to your needs and hardware configuration.

M.2 HEATSINK
Heatsinks cover each slot to keep the onboard NVME SSDs at optimal temperatures, ensuring consistent performance and reliability.

VRM HEATSINK ARRAY
Two thick heatsinks covering the power delivery area provide strategic airflow channels for improved heat dissipation while supporting the powerful Intel® Core™ Ultra Processors (Series 2)

CPU
CPU FAN CONNECTORS
A dedicated pair of PWM/DC fan headers provides easy access to the CPU coolers.

AIO PUMP FAN CONNECTION
A special PWM/DC header connects standalone water cooling systems.

4-PIN FAN CONNECTORS
The Strix B860-F features four case fan headers, each supporting automatic detection of PWM or DC fans.

WIFI 7
The revolutionary WiFi 7 is faster than standard WiFi 6, thanks to technologies such as 160 MHz channels on the 6GHz band and 4K QAM. Multi-Link Operation (MLO) ensures a more stable WiFi connection and lower latency, opening up new possibilities in gaming, streaming and industrial IoT.

ASUS WiFi Q-ANTENNA
Two transceivers support the 2.4, 5 and 6 GHz bands to enable faster data throughput, with directional sensitivity to improve signal quality and bridge longer distances.

INTEL 2.5Gb ETHERNET
Integrated Intel® 2.5Gb Ethernet gives your wired connection a speed boost. 2.5x the speed of standard Ethernet connections enables fast file transfers, low-latency gaming, and high-resolution video streaming.

PCIE 5.0
The Strix B860-F offers PCIe 5.0 support across the board, and the top x16 expansion slot is protected with a SafeSlot bracket to support the weight of the latest graphics cards. An integrated M.2 slot is designed for blazing read and write speeds of up to 16GB/s, while the remaining slots can still transfer an impressive 8GB/s. And each M.2 slot is equipped with massive heatsinks to dissipate heat from next-gen drives.

THUNDERBOLT 4 TYPE-C® CONNECTOR
The port provides up to 40 Gbps bi-directional bandwidth for the latest super-speed devices and drives. It also supports up to two external 4K displays and PCIe bandwidth is up to 32 Gbps.

UNDENIABLE ROG STRIX
With colorful accents, Aura Sync lighting, and a sleek black PCB, the ROG Strix B860-F gives you a bold start to your rig, especially when paired with similarly vibrant products from the ROG ecosystem.

OUTSHINE THE COMPETITION
ROG Strix motherboards feature ASUS Aura technology, which enables complete lighting control and a variety of presets for onboard RGB LEDs and third-party accessories. The effects can be easily synced with compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

COOLER COMPATIBILITY
ASUS AIO coolers deliver robust performance, high overclocking potential, eye-catching aesthetics, and customizable features for B860 motherboards, allowing you to build your dream gaming rig.

THE ROG STRIX ECOSYSTEM AWAITS YOU
Enhance your game with ROG Strix Enjoy complementary aesthetics, control, and compatibility across AIO coolers, chassis, peripherals, and more. ROG offers more choice than any other brand.

TURBOV CORE
Intuitive overclocking in Windows. No BIOS interface, no reboots. Simple and fast performance tuning at the touch of a button.

ASUS GLIDEX
ASUS GlideX is a cross-device, cross-platform screen sharing, control, and operation solution for increased productivity on PCs, tablets, and smartphones via USB or WiFi. Features include screen mirroring, screen extension, unified control with a keyboard and mouse, easy file transfers, and using phone cameras as PC webcams. It is compatible with Windows, macOS, Android, and iOS.

HWINFO
HWiNFO and ROG have collaborated on this comprehensive system information and diagnostic tool that provides detailed information about hardware components and real-time monitoring of system performance in ROG style. It supports a wide range of hardware devices and is regularly updated to reflect the latest technologies.

ASUS DRIVERHUB
ASUS DriverHub simplifies the installation and management of ASUS drivers and utilities to keep your hardware up to date and running at its best. This standalone application automatically detects the latest driver versions and displays available updates in a list view. ASUS motherboards are supported by default and users are prompted to install ASUS DriverHub after the operating system installation. In addition, ASUS DriverHub offers one-click installation and update checking, making it easier for users to keep their system running smoothly and efficiently.

AIDA64 EXTREME
ROG Strix B860-F includes a sixty-day subscription to AIDA64 Extreme, a tool that provides detailed information about hardware and software, as well as benchmarks to measure the performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostic feature to detect and prevent hardware problems. All major system sensors can be tracked in real time, so voltage readings, fan speeds, and temperature information can be displayed on the desktop or sent to dedicated displays or the LCD panels of ROG AIO liquid coolers*.

ARMOURY CRATE
Armoury Crate is a software program that gives you centralized control over supported gaming products and makes it easy to optimize the look and feel of your system. Through an intuitive interface, Armoury Crate lets you customize RGB lighting and effects for compatible devices and sync them with Aura Sync to create a unified lighting scheme across your entire system. In addition, Armoury Crate's Fan Xpert4 tool provides comprehensive control over fans, water pumps, and all-in-one (AIO) coolers.
