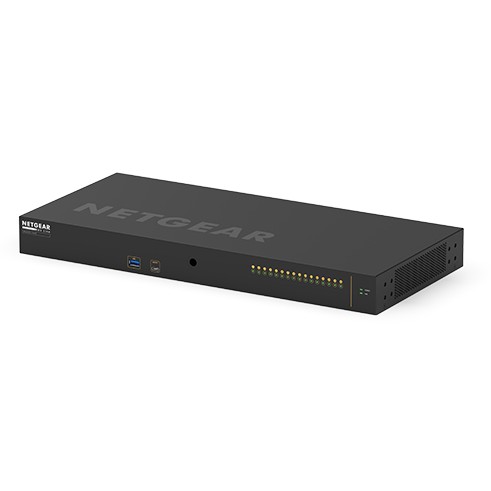

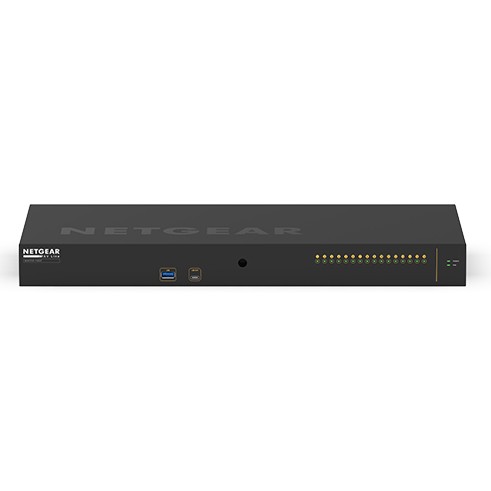

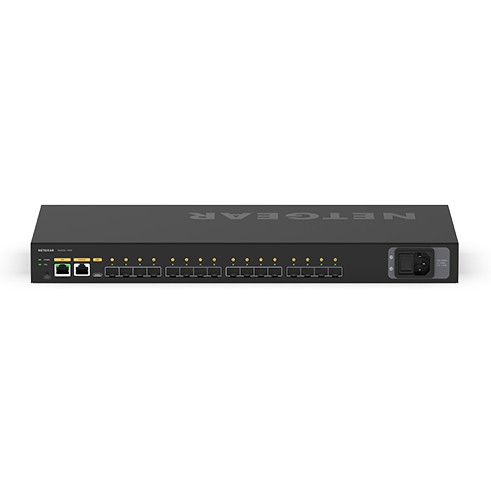

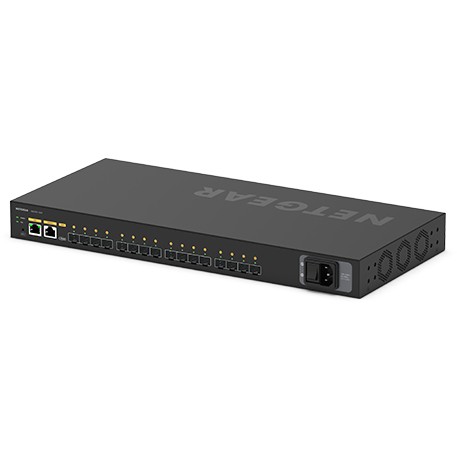

M4250 16-PORT AV LINE SWITCH

Name: M4250 16-PORT AV LINE SWITCH
SKU: 224850
Price: 1420.41 EUR
Availability: InStock

€1,747.10

NETGEAR M4250-16XF, Managed, L2/L3, Full Duplex, Rack Mount, 1U

11 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

NETGEAR M4250-16XF. Switch type: Managed, Switch layer: L2/L3. Console port: RJ-45/USB Type-C. Full duplex. MAC address table: 16,000 entries, Routing/switching capacity: 320 Gbps. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE…. Rack-mountable, form factor: 1U

Additional information

Switch type	Managed
Switch level	L2 / L3
Characteristic	10G support, Access control list, BPDU filtering/protection, Broadcast storm control, Built-in processor, Full duplex, IGMP snooping, Jumbo frames support, Link aggregation, Loop protection, Multicast support, Quality of Service (QoS) Support, Rack installation, Rate Limiting, Spanning tree protocol, SSH/SSL support, Store and forward, VLAN support
Quantity of SFP + module slots	16
Console port	RJ-45/USB Type-C
Network standard	IEEE 802.1ab, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x
Virtual LAN functions	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Number of VLANs	4093
Routing / switching capacity	320 Gbps
Passage	238.08Mpps
MAC address table	16,000 entries
Waiting time (1 Gbps)	1.274 µs
Waiting time (10 Gbps)	0.811 µs
Number of queues	8
Jumbo frames	12000
Data packet buffer memory	16 MB
DHCP functions	DHCP option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping
Authentication	MAC based authentication
Authentication type	RADIUS
IPv4 multicast entries	2000
IPv6 multicast entries	2000
Form factor	1U
Product color	Black
LED indicators	Perfomance, PoE, Status
Processor	ARM Cortex-A9
Processor clock frequency	1250MHz
Storage capacity	2048 MB
Noise level	56.7 dB
Mean Time Between Failures (MTBF)	778769 hours
Power consumption (standard operation)	47.84 W
Operating temperatur	0 – 50 ° C
Storage temperature range	20 – 70 ° C
Relative humidity in operation	0 – 90%
Storage humidity	0 – 95%
Height during operation	0 – 3000 m
Heat dissipation	163.33 BTU/h
Broad	440 mm
Depth	100 mm
Height	43.2 mm
Weight	1.74 kg
Goods tariff number (HS)	85176990
Manufacturer	NETGEAR
