MAG B760M Gaming Plus Wifi (B760.S1700.mATX.DDR5)

Name: MAG B760M Gaming Plus Wifi (B760.S1700.mATX.DDR5)
SKU: 166107
Price: 146.96 EUR
Availability: InStock

€180.76

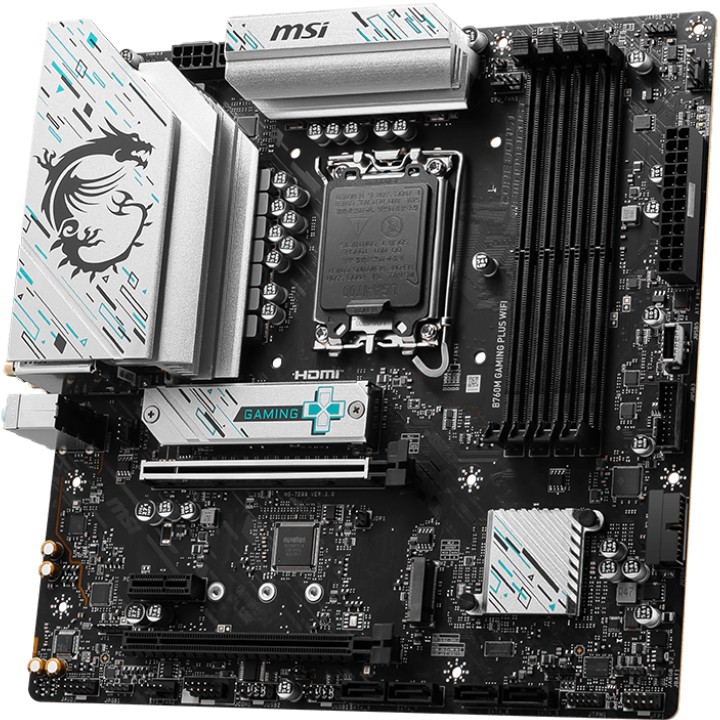

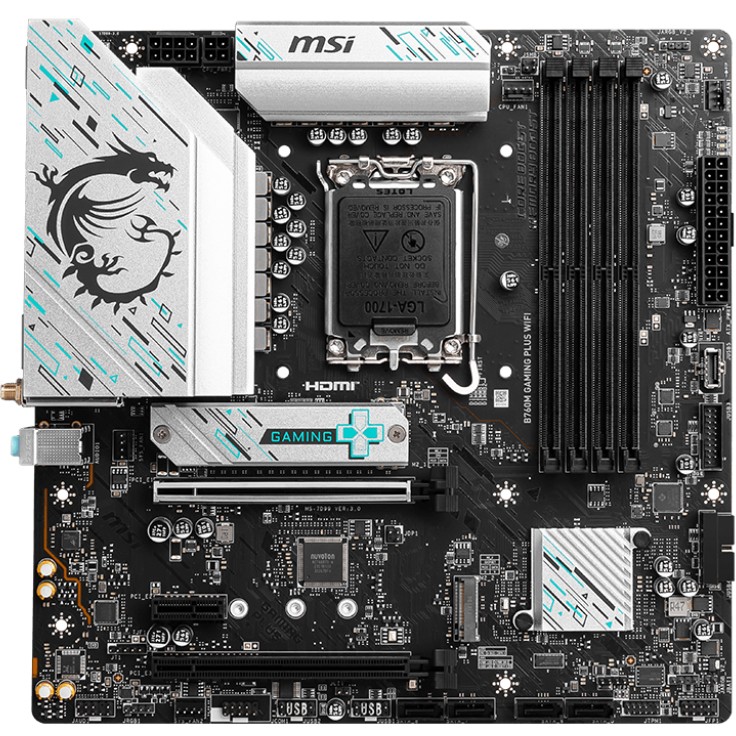

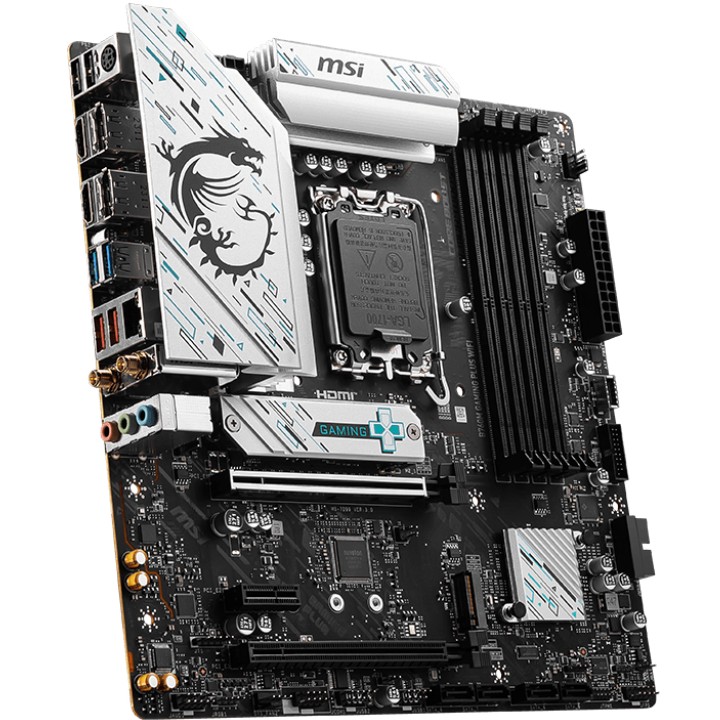

MSI B760M GAMING PLUS WIFI, Intel, LGA 1700, Intel® Celeron®, Intel® Pentium® Gold, LGA 1700, DDR5-SDRAM, 192GB

100 in stock

Categories: Mainboards & accessories, Motherboards - Intel

Description
Additional information

Description

MSI B760M GAMING PLUS WIFI. Processor manufacturer: Intel, processor socket: LGA 1700, compatible processors: Intel® Celeron®, Intel® Pentium® Gold. Supported memory: DDR5-SDRAM, maximum RAM memory: 192 GB, memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top WLAN standard: Wi-Fi 6E (802.11ax), WLAN standards: 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Additional information

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processors	Intel® Celeron®, Intel® Pentium® Gold
Maximum number of SMP processors	1
Supported processor slots	LGA 1700
Supported RAM	DDR5 SDRAM
Number of memory slots	4
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	Non-ECC
Supported memory speed	4800 MHz, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800
Supported memory clock speed (max.)	6800MHz
RAM memory maximum	192 GB
Supported storage drive interfaces	M.2, SATA III
Characteristic	ATX power connector (24-pin), Bluetooth, Clear CMOS jumper, CPU fan connector, Ethernet/LAN, Front panel audio connector, Front panel connector, RAID support, RGB LED header, TPM connector, WIRELESS INTERNET ACCESS
RAID level	1, 10, 5

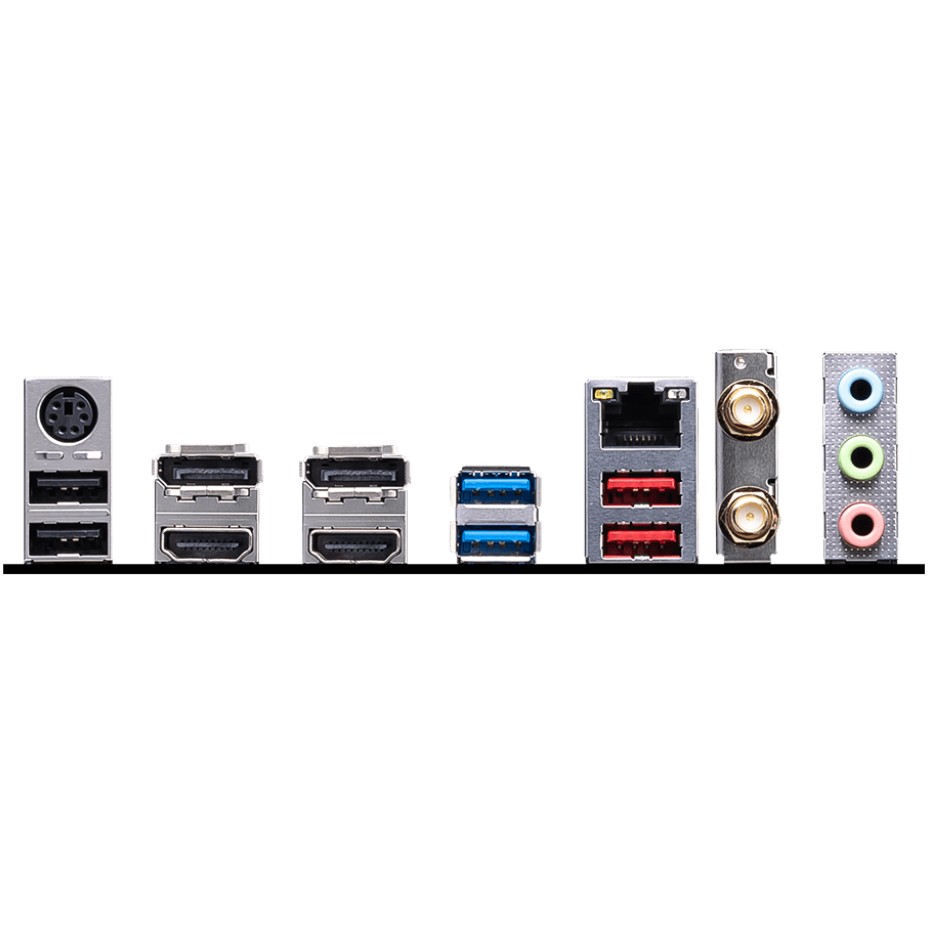

Number of USB 2.0 interfaces	4
USB 3.2 Gen 1 (3.1 Gen 1) ports	4
USB 3.2 Gen 2 (3.1 Gen 2) ports	1
SATA III connectors	4
Number of USB 2.0 ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports	2
Number of Ethernet LAN connections (RJ-45)	1
Number of HDMI connections	2
HDMI version	2.1
Number of DisplayPort connections	2
DisplayPorts version	1.4
Ethernet interface type	2.5 Gigabit Ethernet
Top WiFi standard	Wi-Fi 6E (802.11ax)
WLAN standards	802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Bluetooth version	5.3
Motherboard chipset	Intel B760
Audio chip	Realtek ALC897
Audio channels	7.1 channels
Component for	Pc
Motherboard form factor	Micro ATX
Motherboard chipset family	Intel
Energy source	ATX
Supports Windows operating systems	Windows 10, Windows 11
PCI-Express x1 (Gen 3.x) connectors	2
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.4
System management BIOS (SMBIOS) version	3.5
Broad	243.8 mm
Depth	243.8 mm
Manufacturer	MSI
