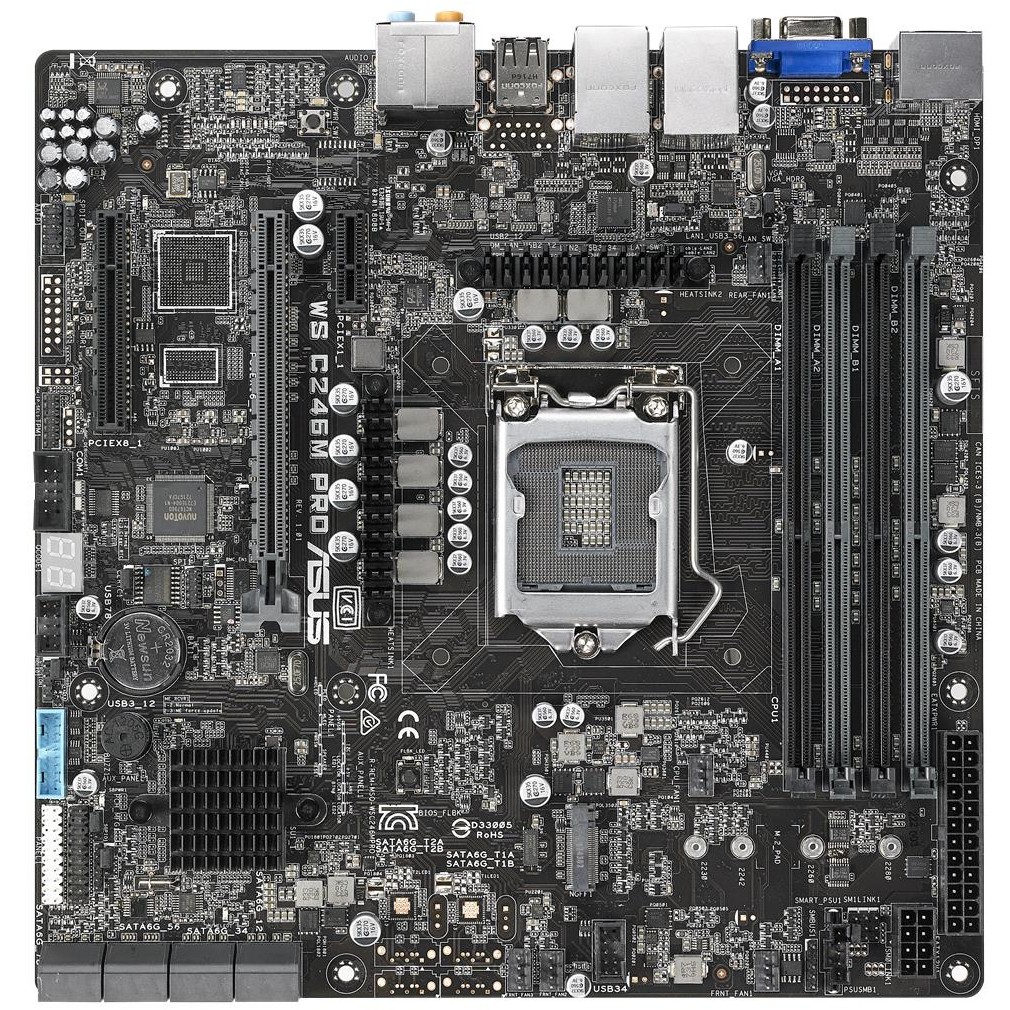

MB ASUS C246M PRO (Intel.1151.DDR4.mATX)

Description

ASUS WS C246M PRO. Processor manufacturer: Intel, Processor socket: LGA 1151 (Socket H4), Compatible processors: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®. Supported memory: DDR4-SDRAM, Maximum RAM memory: 64 GB, Memory type: DIMM. Supported storage drive interfaces: SATA III. LAN controller: Intel® I210-AT, Intel I219LM. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Server rack optimized design for better cooling efficiency
The WS C246M PRO is the perfect workstation motherboard for media servers, cloud gaming, and video streaming applications. Its server rack-optimized layout maximizes cooling efficiency for optimal performance and stability, meeting the demanding requirements of enterprise or educational environments.

Powerful performance with Intel® Xeon® E processors and ECC memory
The WS C246M PRO supports Intel® Xeon™ E processors to deliver high, optimized performance in always-on scenarios. Support for ECC memory enables automatic detection and repair of single-bit memory errors, reducing the likelihood of system crashes and data loss for reliable and responsive workstation performance.

Supports three independent screens simultaneously
The WS C246M PRO features integrated HDMI, DisplayPort, and VGA ports for maximum flexibility in display selection. With a compatible latest-generation Intel® processor, you can connect and control three independent monitors simultaneously—ideal for multitasking and even better for productivity.

Accelerated data transfer speeds of up to 32Gbit/s with M.2
Featuring PCI Express 3.0 x4 bandwidth, a single M.2 interface with native NVMe support delivers data transfer speeds of 32Gbps—up to 5.3x faster than traditional SSDs. The WS C246M PRO also supports the latest 2.5-inch NVMe SSDs for quick and easy setup.

Onboard USB 3.1 for higher transfer speeds of up to 10Gbit/s
The WS C246M PRO features two integrated USB 3.1 Gen2 ports that enable data transfer speeds of up to 10Gbps, twice as fast as USB 3.1 Gen1.

SafeSlot
ASUS SafeSlot is ASUS' revolutionary new PCIe slot, engineered to offer superior resistance to stress and bending, providing optimal protection for your expensive graphics card. Manufactured in a single step, the slot is bonded to a reinforcing metal using a new injection molding method, significantly increasing its strength. The slot is then firmly anchored to the board with additional solder joints.

ASUS Control Center
The WS C246M PRO features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS products, including servers, workstations, and digital signage. ACC enables remote BIOS updates, multi-system monitoring via mobile devices, and one-click software updates and dispatching. These features simplify server management for any IT infrastructure.
