MB ASUS ROG CROSSHAIR X870E EXTREME (AMD.AM5.DDR5.E-ATX)
€1,345.84
ASUS ROG CROSSHAIR
- Description
- Additional information
Description
ASUS ROG CROSSHAIR X870E EXTREME. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory: DDR5-SDRAM, Maximum RAM: 256 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top WLAN standard: Wi-Fi 7 (802.11be), WLAN standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD
AMD X870E (AM5 Socket) E-ATX motherboard, Advanced AI PC-ready, 20+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP & NitroPath DRAM technology, Wi-Fi 7 with ASUS WiFi Q-Antenna, three onboard PCIe® 5.0 NVMe® SSD slots, two PCIe 4.0 M.2 slots on ROG Q-DIMM.2, SlimSAS connector, PCIe® 5.0 x16 SafeSlots with PCIe® Slot Q-Release Slim, two USB4® ports, front USB 20Gbps Type-C® port with Quick Charge 4+ up to 60W and USB Wattage Watcher, ASUS AI Advisor, AI Overclocking, AI Cooling II, AI Networking II, and a full-color 5″ LCD screen.

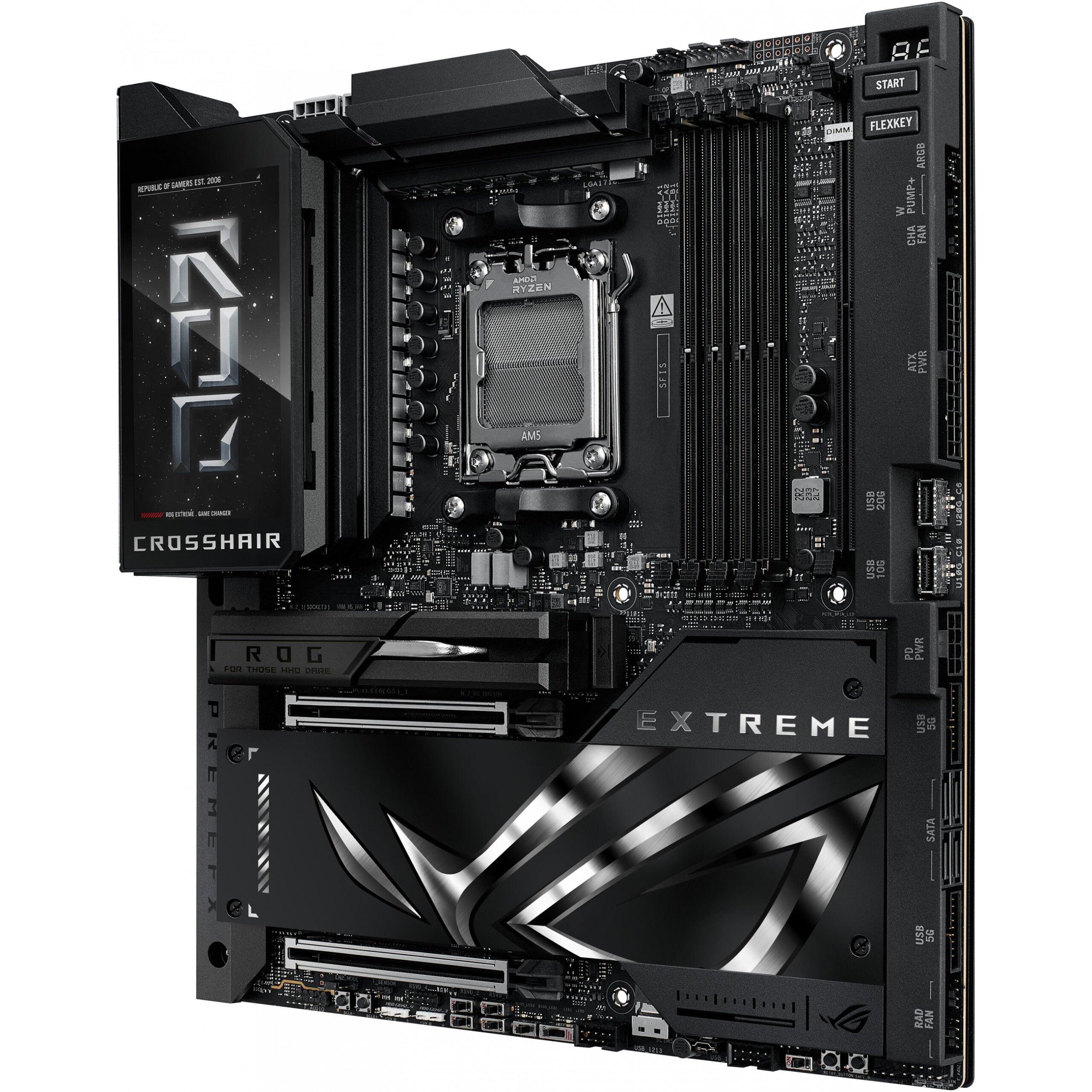

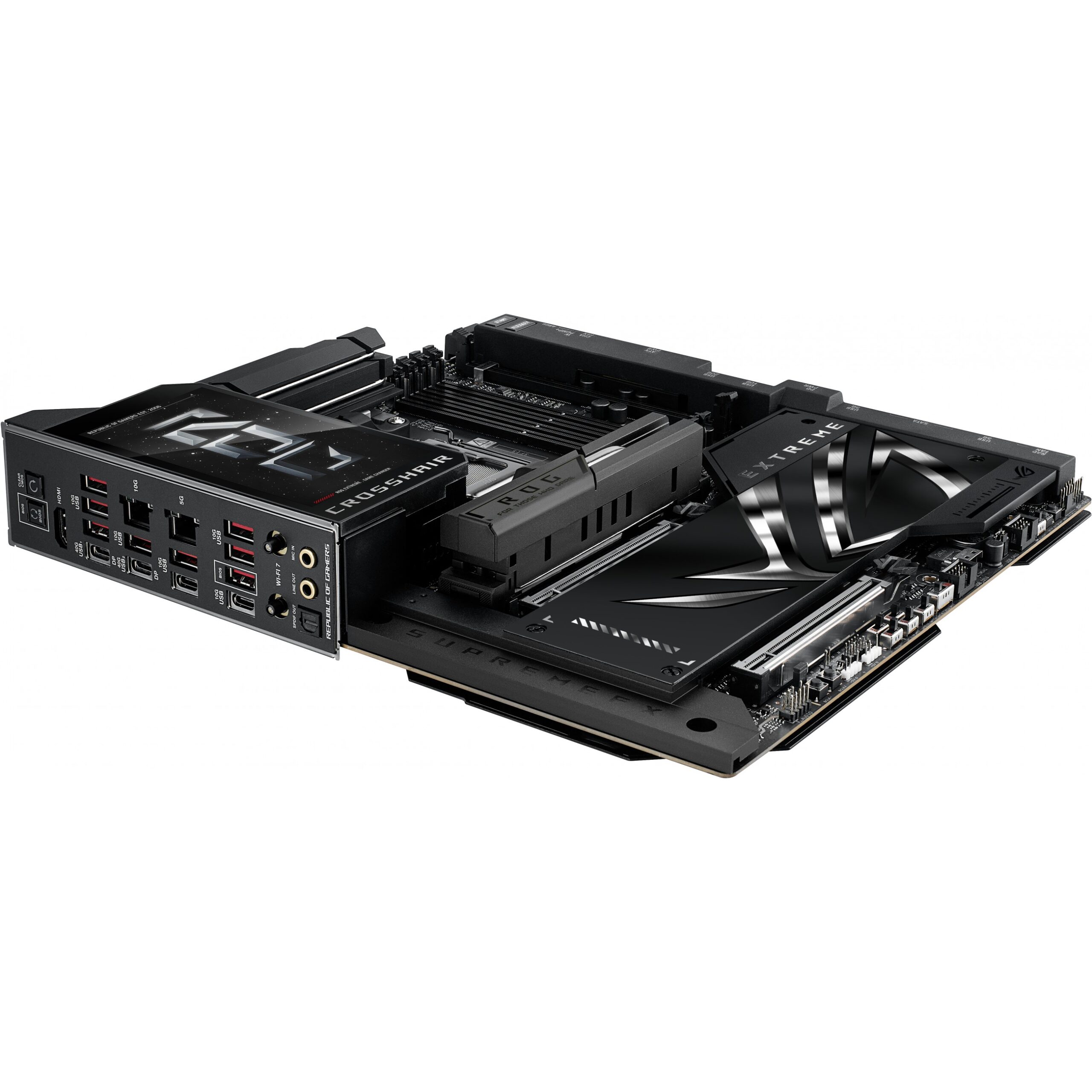

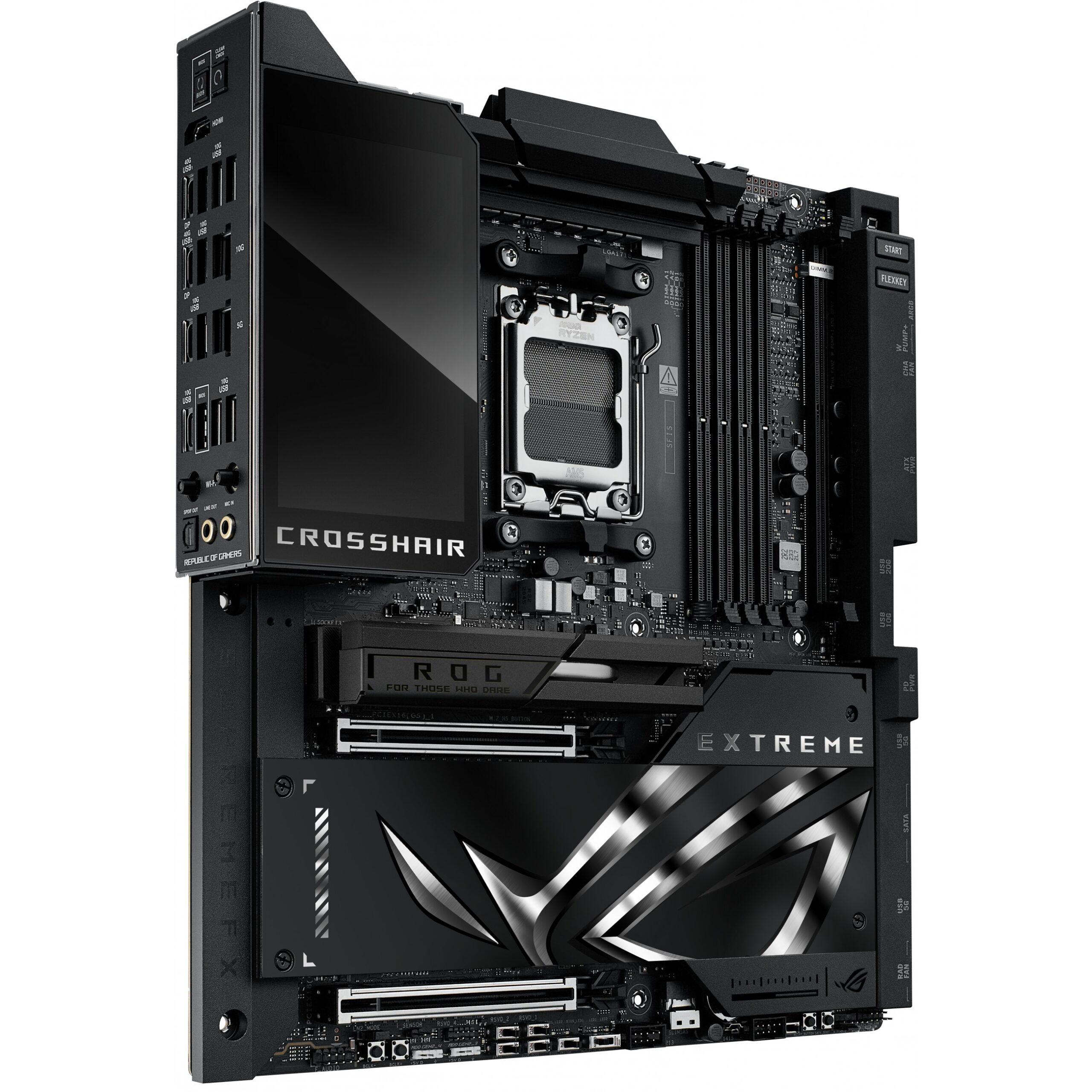

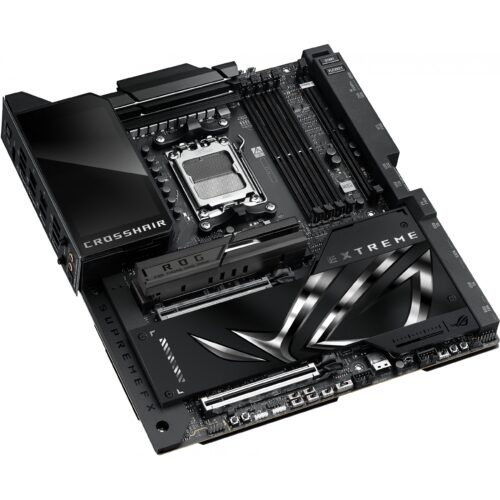

ROG CROSSHAIR X870E EXTREME
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most demanding users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-proofing. Its comprehensive connectivity options include USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a personal touch.
Additional information
| Weight | 5.317 kg |
|---|---|
| Processor manufacturer | |
| Processor socket | |
| Compatible processors | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor slots | |
| Supported RAM | |
| Number of memory slots | |
| RAM type | |
| Memory channels | |
| ECC compatibility | ECC & Non-ECC |
| RAM memory maximum | |
| Characteristic | 12V power connection, Antenna included, ATX power connector (24-pin), Bluetooth, CPU fan connector, Drivers included, EPS power connector (8-pin), Ethernet/LAN, Front panel audio connector, Front panel connector, RAID support, RGB LED header, S/PDIF output, Unbuffered memory, WIRELESS INTERNET ACCESS |
| Supported storage drives | |
| Supported storage drive interfaces | |
| Number of storage drives supported | |
| RAID level | |
| Parallel processing technology | |
| Number of USB 2.0 interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) ports | |
| USB 3.2 Gen 2x2 ports | 1 |
| SATA III connectors | |
| Number of chassis fan plugs | |
| USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports | 2 |
| Number of USB4 Gen 3 × 2 ports | |
| Number of Ethernet LAN connections (RJ-45) | |
| Number of PS / 2 connections | |
| Number of HDMI connections | |
| WiFi AP antenna socket | |
| Ethernet interface type | |
| Top WiFi standard | |
| WLAN standards | |
| Bluetooth version | |
| Motherboard chipset | |
| Audio chip | |
| Audio channels | |
| Product color | |
| Component for | |
| Motherboard form factor | |
| Motherboard chipset family | |
| Supports Windows operating systems | |
| PCI Express x16 slots (Gen 4.x) | |
| PCI Express x16 slots (Gen 5.x) | 2 |
| Number of M.2 (M) slots | |
| 1. M.2 largest key size | 22110 |
| 1. M.2 highest PCI Express generation | 5.0 |
| 2. M.2 largest key size | 2280 |
| 2. M.2 highest PCI Express generation | 5.0 |
| 3. M.2 largest key size | 22110 |
| 3. M.2 highest PCI Express generation | 5.0 |
| 4. M.2 largest key size | 22110 |
| 4. M.2 highest PCI Express generation | 4.0 |
| 5. M.2 largest key size | 22110 |
| 5. M.2 highest PCI Express generation | 4.0 |
| BIOS type | |
| BIOS memory size | |
| Packaging width | |
| Packaging depth | |
| Packing height | |
| Package weight | |
| Broad | |
| Depth | |
| Supplied cables | |
| Manufacturer |
