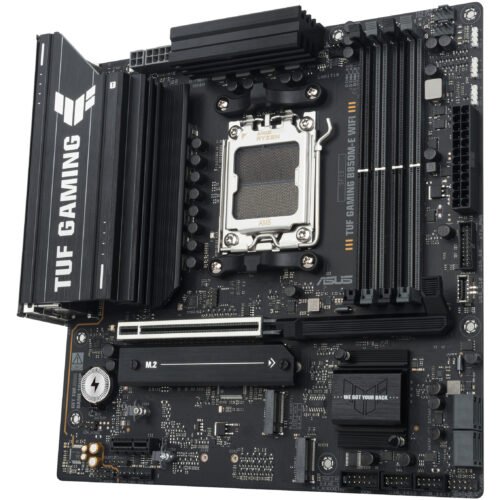

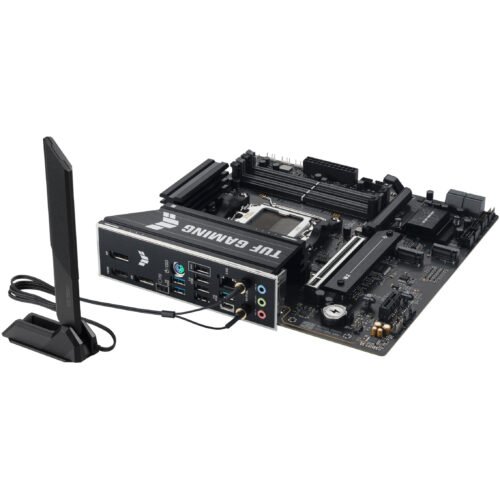

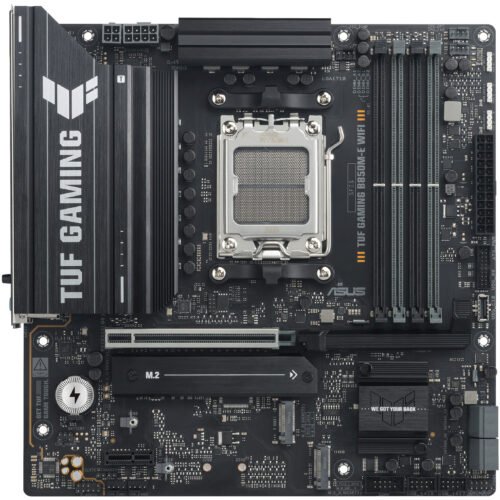

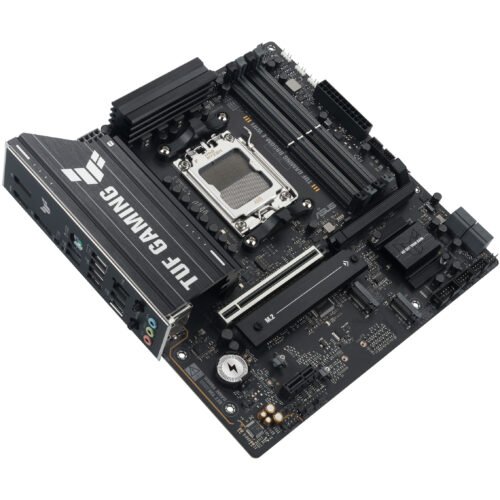

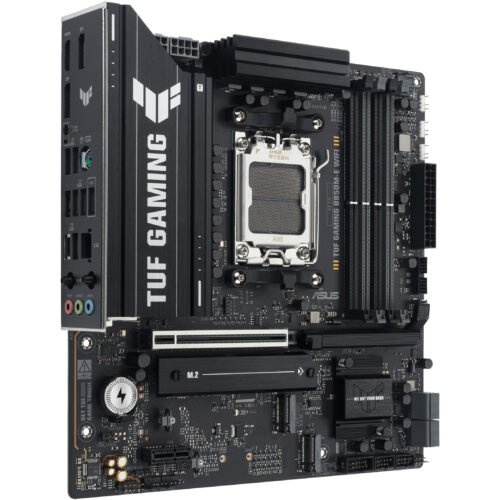

MB ASUS TUF GAMING B850M-E WIFI

Description

ASUS TUF GAMING B850M-E WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory: DDR5-SDRAM, Maximum RAM: 256 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top WLAN standard: Wi-Fi 6E (802.11ax), WLAN standards: Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

The ASUS TUF GAMING B850M-E WIFI incorporates all the essential elements of the latest AMD Ryzen™ processors and combines them with gaming-ready features and proven durability. With military-grade components, an enhanced power supply solution, and a comprehensive cooling system, this motherboard exceeds expectations, delivering rock-solid and stable performance for gaming marathons. TUF GAMING motherboards also undergo rigorous stress testing to ensure they can withstand conditions where others might fail. This platform offers the performance and connectivity required by advanced AI PC applications.

Intelligent
Intelligent control

AI Advisor
The ASUS AI Advisor is an ASUS technical expert always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. It offers beginners easy-to-understand explanations of optimization features like AI overclocking and fan speed tuning. Experienced PC builders will find guides and tips on the latest features ASUS offers.
* ASUS AI Advisor availability may vary by region.
**The features of ASUS AI Advisor may vary depending on the platform.

UEFI BIOS
The UEFI interface offers user-friendly configuration options for PC novices and advanced features for veterans.

ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and updates for smooth, efficient system performance.

ASUS GlideX
Enable seamless screen sharing and control on PCs, tablets and smartphones via USB or WiFi and support multiple platforms.

Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

performance
Premium Power Design
A stable power supply is crucial for maximizing the performance of AMD processors. This motherboard is designed to meet the demands of high-core-count CPUs. It features 8 (80A) + 2 (80A) + 1 (80A) power stages, integrating high-side and low-side MOSFETs and drivers in packages rated up to 80A each. This configuration ensures optimal power delivery, efficiency, stability, and performance for current and future AMD processors.

Eight-layer PCB design
Improved stability and overclocking.

ProCool power connections
Proprietary 8+4-pin connectors improve the PSU connection.

TUF components
TUF chokes and capacitors offer rock-solid durability and stability.

Digi+VRM control
Real-time voltage control.

performance
Storage & Drives

DRAM Overclocking Performance
Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With this motherboard, you can unlock the full potential of your DDR5 modules*, whether they come from an extreme-speed kit or an entry-level set that would otherwise be locked.
* Memory overclocking may vary depending on the CPU series. See the specifications table for detailed information.

DDR5 DOMINANCE
For those looking to push beyond standard DDR5 speeds, this motherboard is ready for enthusiast-grade kits thanks to its extensive AMD EXPO™ (Extended Profiles for Overclocking) support. Experienced veterans can further optimize performance through a wide range of settings in the UEFI.

ASUS AEMP
ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for memory modules with PMIC limitations. AEMP automatically detects the memory chips in your kit and then presents optimized frequency, timing, and voltage profiles that you can quickly apply.

M.2 PCIe 5.0 support
This motherboard also features a PCIe 5.0 M.2 slot for the fastest data transfers of up to 128 Gbps* and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

cooling
Cooler by design

cooling
Cooler compatibility
ASUS AIO coolers offer robust performance, high overclocking potential, striking aesthetics and customizable features for the new TUF Gaming motherboards, allowing you to build your dream gaming rig.

Connectivity
Empowering connection
This motherboard offers versatile connectivity options with PCIe 5.0, a rear USB 10Gbps Type-C® port and a front USB 5Gbps Type-C® port.

PCIe 5.0 for graphics card
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it particularly suitable for handling new data-intensive tasks. PCIe 5.0 also brings further advantages, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with earlier versions of the PCIe bus.

Rear USB 10Gbps Type-C®
Extensive USB support allows for the connection of a wide variety of external devices. This motherboard features a USB 10Gbps Type-C® port on the rear I/O panel, enabling transfer speeds of up to 10 Gbps.

Front USB 5Gbps Type-C®
This motherboard features a front-panel USB 5Gbps Type-C® port for fast data transfers of up to 5 Gbit/s.

DIY
Simple PC DIY

PCIe Slot Q-Release
A physical lever unlocks the security lock of the first PCIe slot with a single finger press, greatly simplifying the removal of a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

Q-antenna
With Q-Antenna, attaching a WiFi antenna to your PC is now quick and easy. Instead of slowly twisting two fasteners until they finally click into place, they simply snap into place. Less hassle and consistent performance.

M.2 Q-Latch
The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without special tools or screws. This design uses a simple locking mechanism to secure the drive and release it with a fingertip.

Q-LED
With its integrated Q-LED troubleshooting lights, PC builders can quickly determine whether key components—CPU, RAM, graphics card, drives—are functioning normally during startup. It can also warn you if memory modules are not installed correctly—even before booting.

BIOS FlashBack™
BIOS FlashBack™ simplifies BIOS updates. Simply load the BIOS file onto a FAT32 USB drive, plug it into the BIOS FlashBack™ port, and press a key – no CPU or memory is required.

DIY
Assemble with trust
The TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, including PC cases, power supplies, CPU coolers, memory kits, and more. With new partnerships and components added regularly, the TUF Gaming Alliance will continue to grow stronger.

Gaming
Ultra-fast networking
Offering a powerful gaming package with ultra-fast networks for smooth online gameplay.

WiFi 6E
WiFi 6E ensures stable connections and low latency.

2.5Gb Ethernet
The integrated 2.5 Gb Ethernet makes your LAN connection even more powerful, as the bandwidth is up to 2.5 times faster than with 1 Gb connections.

Audio

Realtek 7.1 Channel Audio
ALC1220P
This motherboard uses an audio codec developed in close collaboration with Realtek – the Realtek ALC1220P. With an unprecedented signal-to-noise ratio (SNR) of 120 dB for the stereo line-out and 113 dB SNR for the line-in, it delivers pristine audio quality. Furthermore, an impedance detection circuit automatically adjusts the gain to ensure optimal volume for your headphones.

DTS Audio Processing
DTS® Audio Processing enhances the sound experience of gaming headsets and speakers by reducing distortion and delivering deeper bass, making games, movies, and music sound better. It also allows you to customize audio settings.

lighting

OUTSHINE THE COMPETITION
ASUS Aura Sync offers synchronized lighting with other Aura Sync products, including motherboards, graphics cards, monitors and peripherals.

Addressable Gen2 RGB headers
Automatically optimize the lighting effects for the number of LEDs in compatible ARGB devices.

In search of a sustainable solution
ASUS is committed to creating a sustainable future where everyone on the planet we call home can thrive.

Every step counts, and as part of ASUS's commitment to a more sustainable future, ASUS has started using Forest Stewardship Council (FSC™) certified recycled plastic and paper (PCR) in the packaging of the motherboard.
Join us on our journey to make the world a better place.

BUILD THE MOST ADVANCED PC FOR GAMING AND CREATION
When only the fastest will do, TUF Gaming B850 motherboards deliver. With fast dual-channel DDR5 memory support, AMD EXPO™ technology, and PCIe® 5.0 support for graphics and NVMe, you can play the most demanding games and realize your biggest projects with the revolutionary performance of a TUF Gaming B850 motherboard and AMD Ryzen™ 9000, 8000, and 7000 series processors.
