Midi Sharkoon M25-V

Description

Sharkoon M25-V. Form factor: Midi Tower, Type: PC, Product color: Black. Power supply placement: Bottom. Installed fans (front): 1x 120 mm, Supported front fan diameter: 120 mm, Installed rear fans: 1x 120 mm. Supported hard disk drive sizes: 2.5″, 3.5″. Width: 210 mm, Depth: 450 mm, Height: 465 mm.

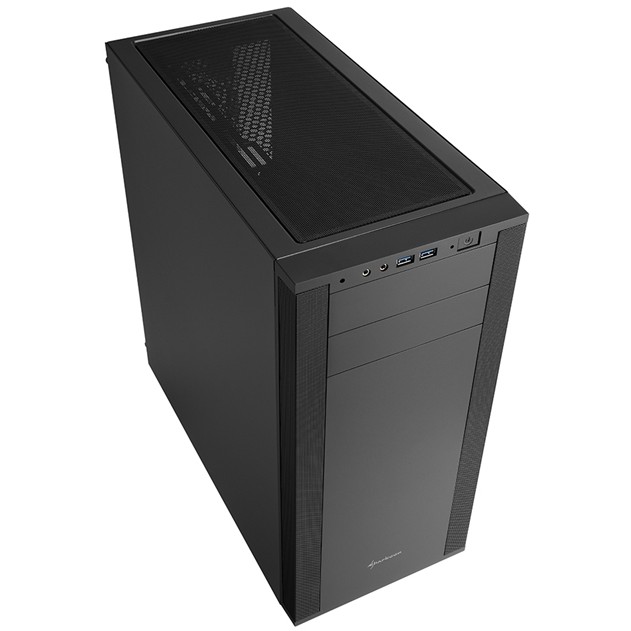

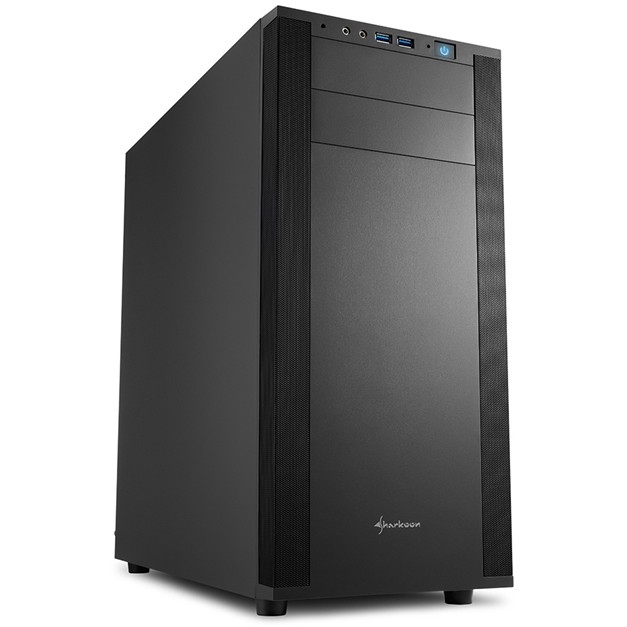

The all-black M25-V impresses with its minimalist, timeless design featuring subtle mesh panels and countless features. The case's elegant look continues inside. It's both tidy on the outside and neat on the inside – the power supply, hard drives, and cables are hidden from view.

Order with system

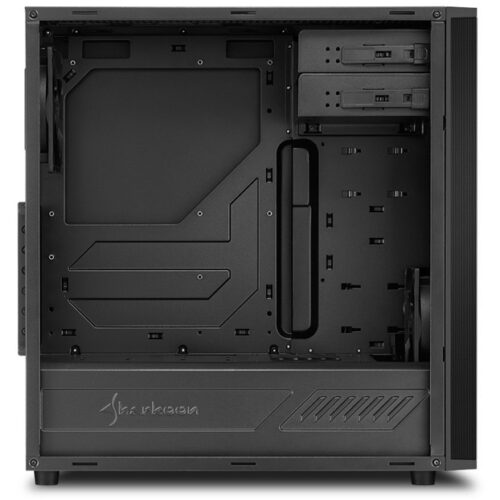

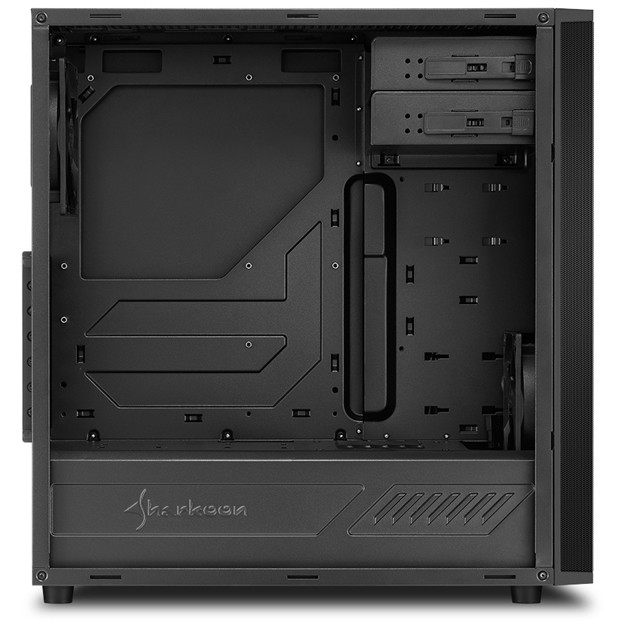

The special design of the case's interior offers enormous possibilities for the discreet installation of a wide variety of components. Cabling can be unobtrusive and hidden, thus ensuring unobstructed airflow within the case. The power supply and up to three 3.5-inch hard drives can be installed in a tunnel in the bottom of the case to avoid compromising its appearance. The tunnel features ventilation slots on the sides and top to ensure optimal cooling of the hard drives. The mainboard and other components can be perfectly wired thanks to the cable routing. Installing a new CPU heatsink is also child's play thanks to the opening in the mainboard tray. Tower coolers up to 16.7 cm high can be installed. The maximum length of the usable graphics cards is 40 cm, and power supplies up to 20.5 cm long can be used. Three pre-installed dust filters protect the installed hardware from dirt. The filters can be easily removed and reinstalled for cleaning. There is also a filter pre-installed on the top, which can be removed quickly thanks to magnetic fastening.

Wireless front panel design
Another major advantage of the M25-V is its cable-free front panel design. The panel can be easily removed at any time without having to unplug a cable. This makes installing a 5.25-inch or 3.5-inch drive much easier.

Optimal preparation for perfect airflow
The case front features numerous air inlets on the right and left, hidden behind the mesh panels, to ensure a supply of cool air. A 120 mm fan is pre-installed in the case front behind the dust filter. Alternatively, suitable holes are provided for two 140 mm fans. For water cooling, the M25-V offers the option of installing a 240 mm or 280 mm radiator with a total height of up to 5.5 cm including the fan in the front of the case. A 120 mm fan is pre-installed on the rear of the case. Optionally, three 120 mm or two 140 mm fans can be installed under the magnetic dust filter. The use of slotted holes also offers optimal options for perfect positioning of the fans or radiator.

Modern front connections

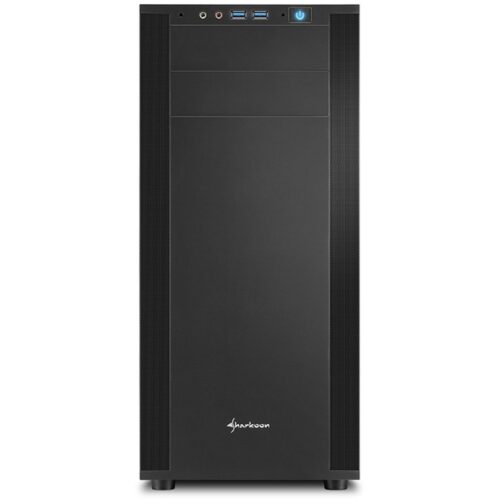

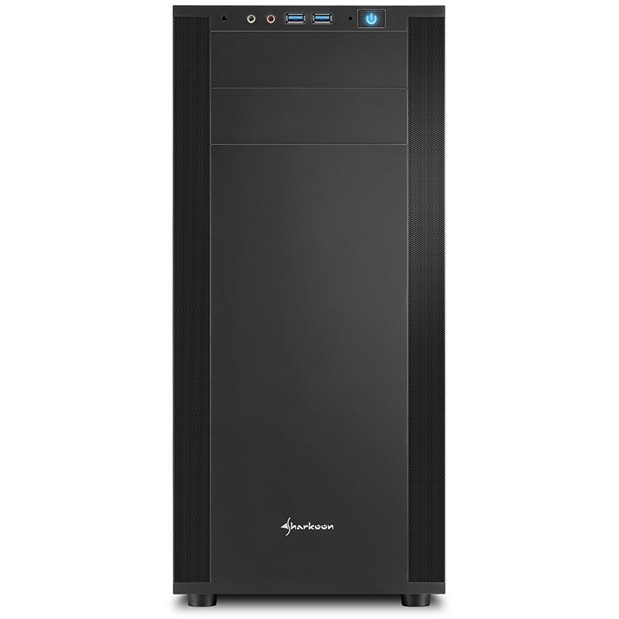

Two USB 3.0 and two audio ports on the front of the case provide quick access for connecting your most important peripherals. The USB 3.0 ports are connected to the motherboard via a 19-pin connector.

Versatile installation options
The M25-V offers two 5.25-inch drive bays for optical drives, each equipped with self-closing quick-release fasteners. Using the included 5.25-inch front panel with a 3.5-inch opening, a card reader, for example, can be quickly and easily installed into one of the two 5.25-inch drive bays. If necessary, two 2.5-inch HDDs/SSDs can be installed instead. If even more space is needed, the screwed-in brackets can be removed completely. Up to two 3.5-inch hard drives, or two 2.5-inch hard drives or SSDs can be installed decoupled using a mounting frame on the bottom of the case. There is also space for an additional 3.5-inch drive on the case floor. The M25-V has two brackets each for 2.5-inch drive bays, behind the motherboard tray and on the tunnel. Up to two 2.5-inch hard drives/SSDs can be mounted there using convenient knurled screws.
