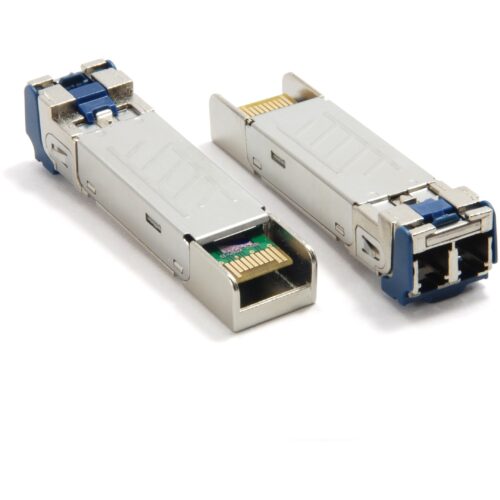

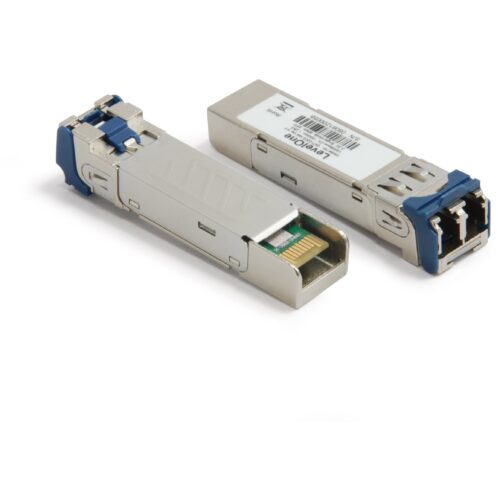

MiniGBIC GVT-0302 SFP ZX/LC Fiber SM 80km

Description

LevelOne 1.25G Single-Mode SFP Transceiver (80km). SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbps, Interface: SFP. Compatible products: GSW-2453 GVT-4000. Input voltage: 3.5 V, Maximum voltage: 6 V, Maximum current: 0.3 A. Certification: Class 1 Laser: EN60825-1 FDA 21: 1040.10, 1040.11. Width: 55.5 mm, Depth: 13.5 mm, Height: 11.7 mm

Product overview
The LevelOne GVT-0302 SFP (Small Form-factor Pluggable) transceivers provide flexibility for the use of fiber optic connections in Gigabit networks in data and telecommunications applications.

Support for Mini-GBIC connectivity
GVT-0302 SFP transceivers support ZX standard optics with single-mode mini-GBIC connectors. They provide signal amplification to transmit and receive data between two mini-GBIC ports.

Universally applicable
The GVT-0302 SFP transceivers can be used for distributed multi-processing, switch-to-switch interfaces,
It can be used for high-speed I/O file transfer, bus extension, channel expansion, or data storage applications. The LevelOne GVT-0302 can be used in any LevelOne switch or module that supports SFP modules.

– Provides a 1000Base-ZX connection for LevelOne switches via Mini-GBIC/SFP ports
– Connections up to 80km
– TTL signal detect indicator
– Compatible with IEEE 802.3z Gigabit Ethernet
– Easy installation and hot-swappable
– Differential LVPECL input and output
– Single 3.3V power supply
– Duplex LC connector
