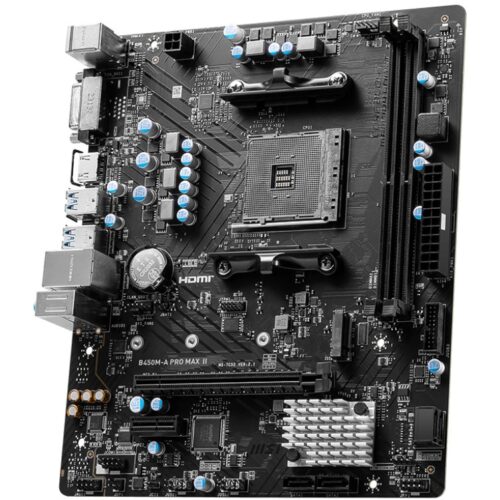

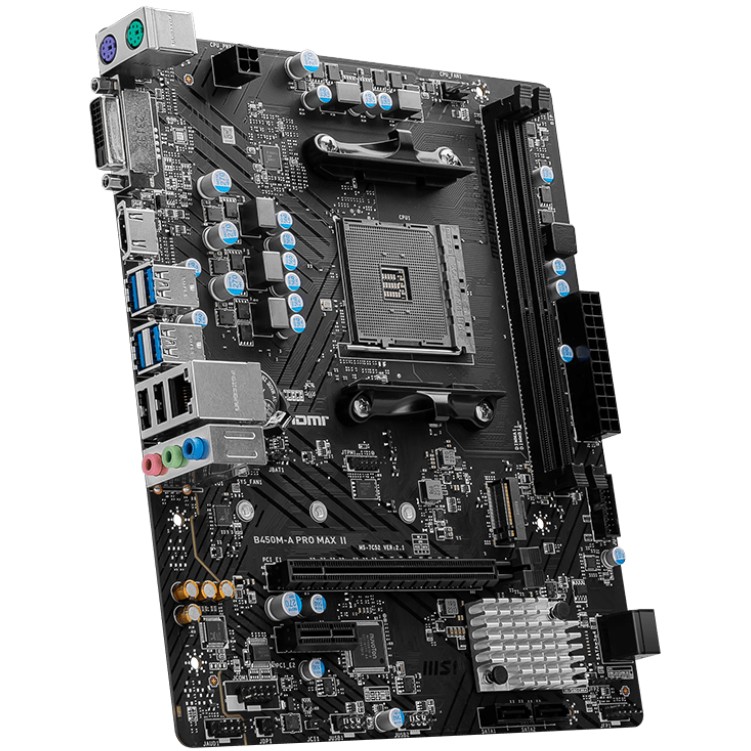

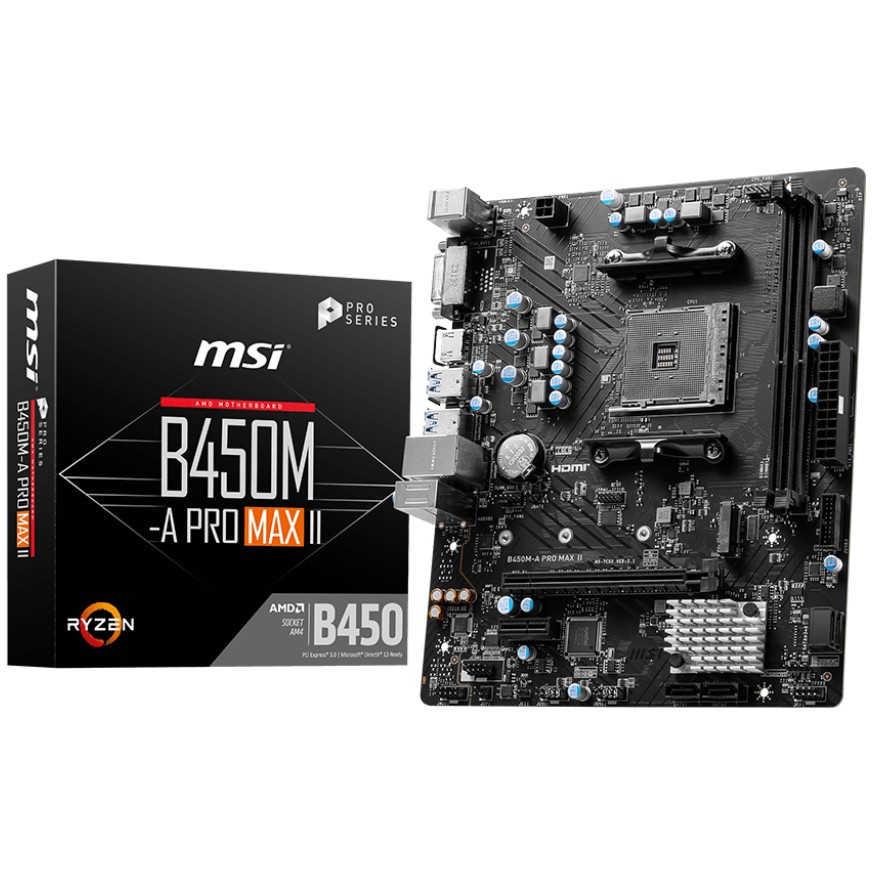

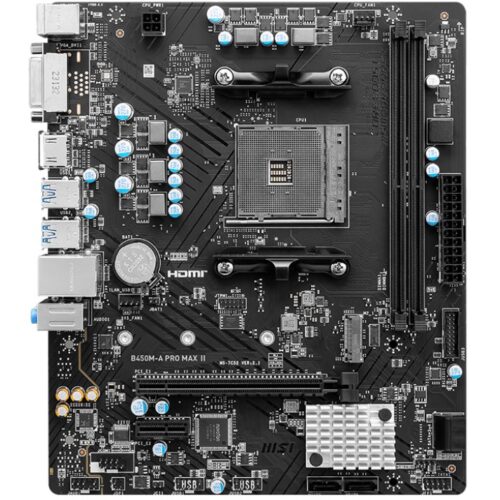

MSI B450M-A Pro MAX II (B450.AM4.mATX.DDR4)

Name: MSI B450M-A Pro MAX II (B450.AM4.mATX.DDR4)
SKU: 165291
Price: 67.40 EUR
Availability: InStock

€82.90

MSI B450M-A PRO MAX II, AMD, Socket AM4, AMD Ryzen™ 5, Socket AM4, DDR4-SDRAM, 64GB

100 in stock

Categories: Mainboards & accessories, Motherboards - AMD

Description
Additional information

Description

MSI B450M-A PRO MAX II. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processors: AMD Ryzen™ 5. Supported memory: DDR4-SDRAM, Maximum RAM: 64 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: SSD. Maximum resolution: 4096 x 2160 pixels. USB connector: USB Type-A

Additional information

Processor manufacturer	AMD
Processor socket	Socket AM4
Compatible processors	AMD Ryzen™ 5
Maximum number of SMP processors	1
Supported processor slots	Socket AM4
Supported RAM	DDR4 SDRAM
Number of memory slots	2
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	ECC & Non-ECC
Supported memory speed	2667, 2800, 2933, 3000, 3066, 3200, 3466, 3600, 3733, 3866, 4000, 4133 MHz
RAM memory maximum	64 GB
Characteristic	ATX power connector (24-pin), Chassis intrusion connector, Clear CMOS jumper, CPU fan connector, Discrete graphics support, Drivers included, Ethernet/LAN, Front panel audio connector, Front panel connector, Microphone input, Parallel connectors, Quick installation guide, TPM connector, Unbuffered memory
Supported storage drives	SSD
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology	Unsupported
Maximum resolution	4096 x 2160 pixels
Number of USB 2.0 interfaces	4
USB 3.2 Gen 1 (3.1 Gen 1) ports	2
SATA III connectors	4
Serial port headers	1
Number of USB 2.0 ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	4
Number of Ethernet LAN connections (RJ-45)	1
Number of PS / 2 connections	2
Number of HDMI connections	1
HDMI version	1.4
Number of DVI-D connections	1
Headphone outputs	1
USB plug	USB Type-A
Ethernet interface type	2.5 Gigabit Ethernet
Motherboard chipset	AMD B450
Audio chip	Realtek ALC897
Audio channels	7.1 channels
Motherboard form factor	Micro ATX
Motherboard chipset family	AMD
Energy source	ATX
Supports Windows operating systems	Windows 10 x64, Windows 7 x64
PCI-Express x1 (Gen 2.x) connectors	1
PCI-Express x16 slots	1
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.1
System management BIOS (SMBIOS) version	2.8
Broad	200 mm
Depth	236 mm
Supplied cables	SATA
Manufacturer	MSI
