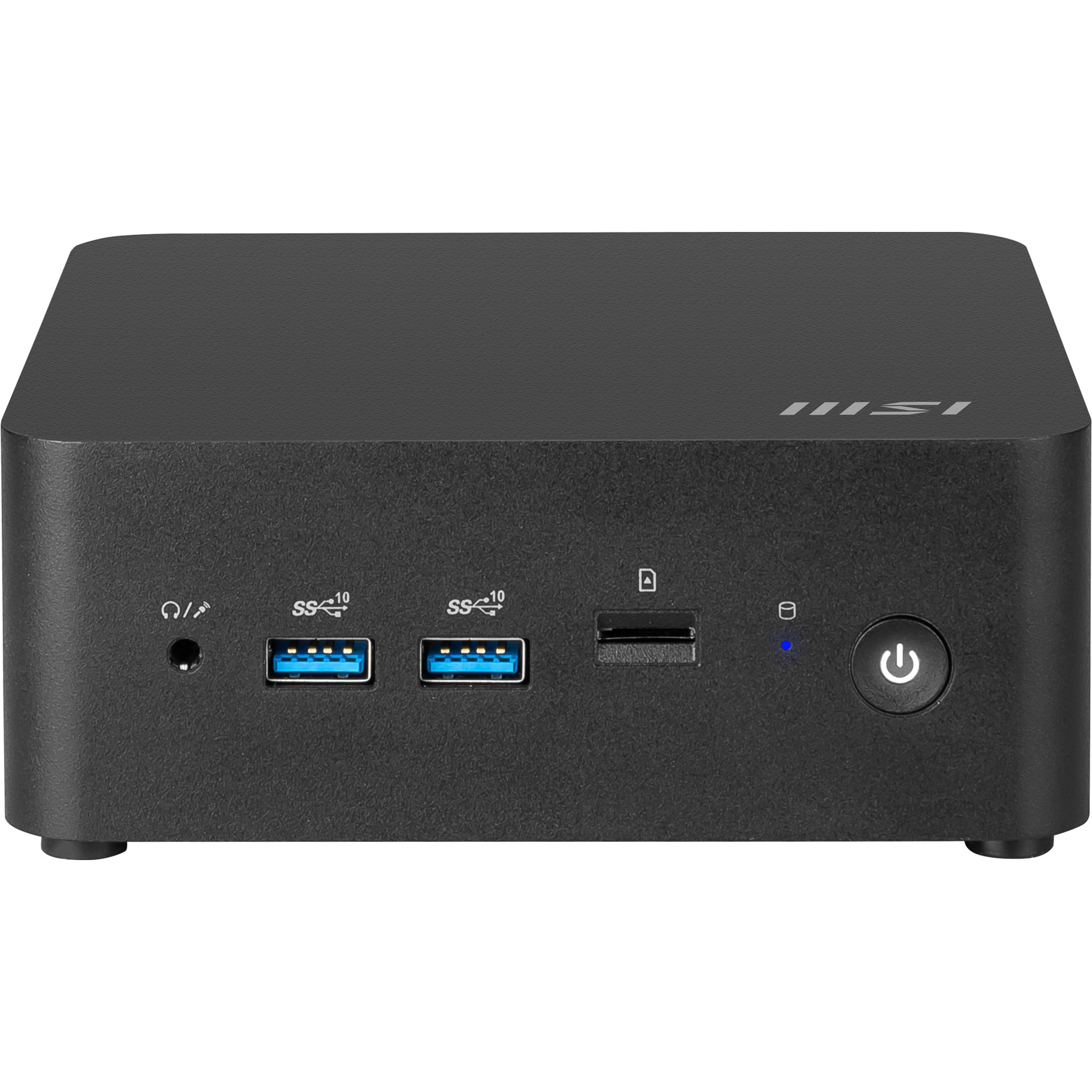

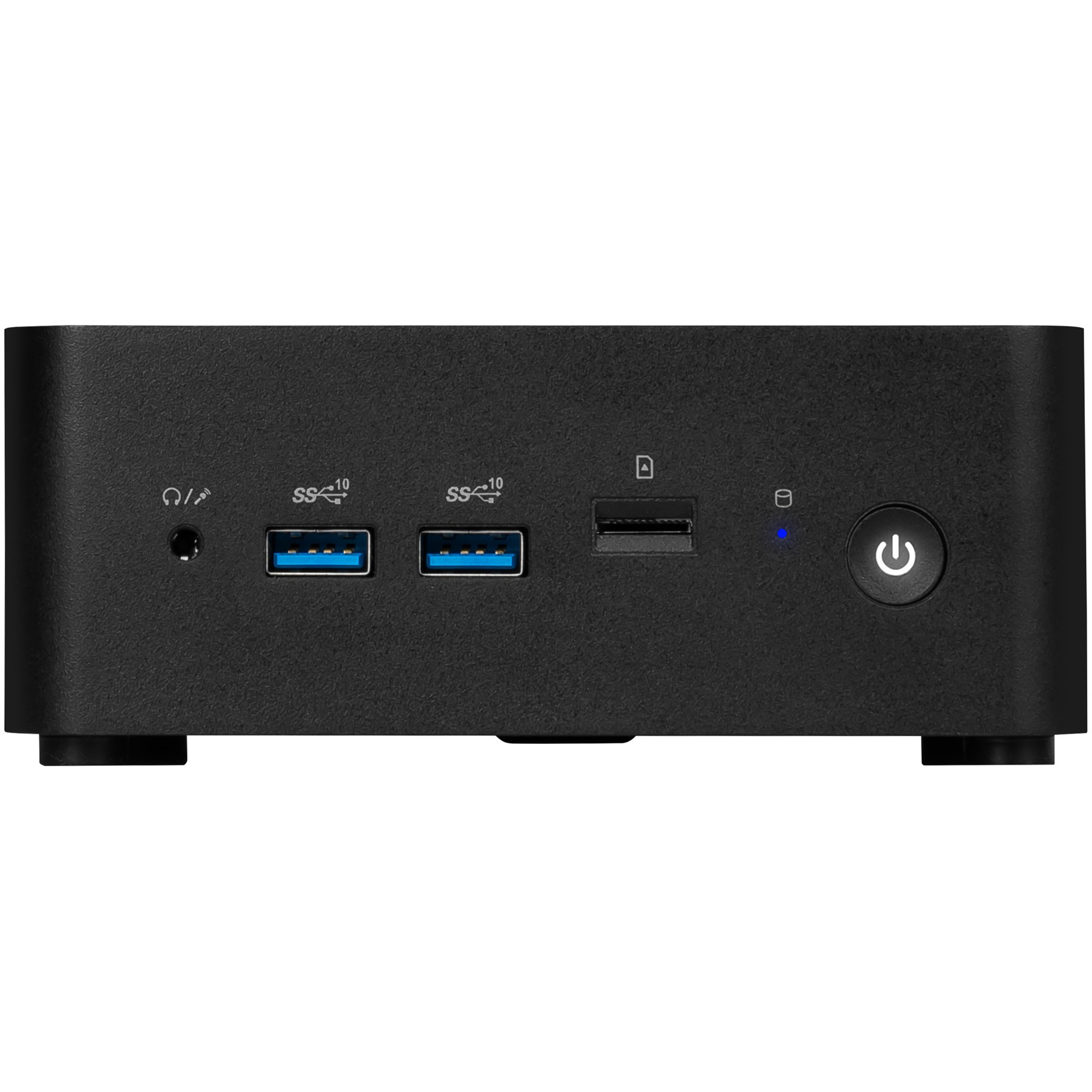

MSI Cubi NUC 1MG-023DE i3-100U/black/8GB/256GB SSD W11P

Name: MSI Cubi NUC 1MG-023DE i3-100U/black/8GB/256GB SSD W11P
SKU: 166646
Price: 750.59 EUR
Availability: InStock

€923.23

MSI Cubi NUC 1MG-023DE, Intel Core 3, 100U, 8GB, DDR5-SDRAM, 256GB, Windows 11 Pro

100 in stock

Categories: Branded PCs, PC systems

Description
Additional information

Description

MSI Cubi NUC 1MG-023DE. Processor family: Intel Core 3, Processor: 100U. Memory capacity: 8 GB, Internal memory type: DDR5-SDRAM, Memory clock speed: 5600 MHz. Total storage capacity: 256 GB, Storage media: SSD, Integrated card reader. Built-in graphics card model: Intel Graphics. Installed operating system: Windows 11 Pro. Power supply: 120 W. Chassis type: Mini PC. Product type: Mini PC. Weight: 630 g. Product color: Black

Additional information

Processor manufacturer	Intel
Processor family	Intel® Core™ 3
Processor generation	Intel Core (Series 1)
Processor	100U
Number of CPU cores	6
Processor threads	8
Processor boost frequency	4.7 GHz
Performance cores	2
Efficient Cores	4
Performance core maximum turbo frequency	4.7 GHz
Efficient core maximum turbo frequency	3.3 GHz
Power Fundamental frequency of the core	1.2 GHz
Efficient base frequency of the core	0.9 GHz
Processor cache	10MB
Processor cache type	Smart cache
Number of processors supported	1
Base performance of the processor	15 W
Maximum turbo performance	55 W
Storage capacity	8 GB
RAM memory maximum	64 GB
Internal storage type	DDR5 SDRAM
Memory card slots	2x SO-DIMM
Memory clock frequency	5600MHz
Supported RAM	DDR5 SDRAM
Total storage capacity	256 GB
Storage media	SSD
Total capacity of the SSDs	256 GB
Number of SSD installed	1
SSD storage capacity	256 GB
SSD interface	PCI Express 4.0
Characteristic	AC power adapter, Bluetooth, Built-in graphics adapters, Cable lock slot, Combined headphone/microphone connection, Direct current connection (DC), Ethernet/LAN, Integrated card reader, Intel® Thunderbolt 4, NVMe, Power cord included, Trusted Platform Module (TPM), VESA mount, WIRELESS INTERNET ACCESS
SSD form factor	M.2
Compatible memory cards	MicroSD (TransFlash)
Separate graphics card model	Not available
Manufacturer of the built-in GPU	Intel
On-board graphics adapter family	Intel Graphics
Built-in graphics card model	Intel Graphics
LAN controller	Intel I226-V
Top WiFi standard	Wi-Fi 6E (802.11ax)
WLAN standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel WiFi 6E AX211
Bluetooth version	5.3
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	4
Number of Thunderbolt 4 ports	2
Number of HDMI connections	2
HDMI version	1.4b/2.1
Number of Ethernet LAN connections (RJ-45)	2
Housing type	Mini PC
Slot type cable lock	Kensington
Product color	Black
Housing material	Plastic
Motherboard chipset	Intel SoC
Motherboard form factor	NUC
Trusted Platform Module (TPM) version	2.0
Product type	Mini pc
Installed operating system	Windows 11 Pro
Power supply	120 W
Operating temperatur	0 – 35 ° C
Storage temperature range	20 – 60 ° C
Relative humidity in operation	0-85%
Storage humidity	0 – 90%
Certification	BSMI, CB/CE, FCC(Class B), RCM(C tick), UL (cUL), VCCI
Broad	132.5 mm
Depth	135.6 mm
Height	50.1 mm
Weight	630 g
Packaging width	205 mm
Packaging depth	220 mm
Packing height	94 mm
Package weight	1.38 kg
Power supply type	External AC adapter
Panel mounting interface	100 x 100 mm
Graphics card family	Intel
Cooling	Active
Number of display supported	4
Number of M.2 (M) slots	2
Manufacturer	MSI
