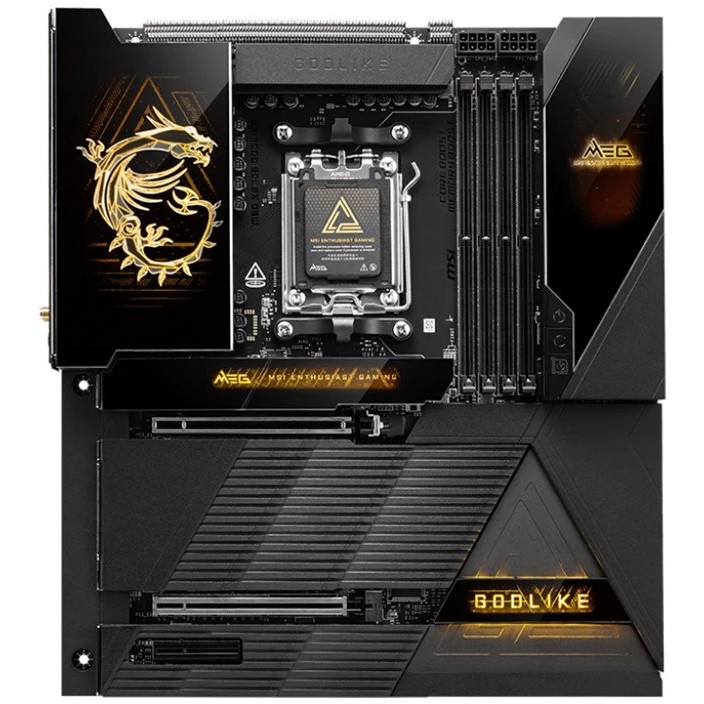

MSI MEG X870E GODLIKE (AM5) (D)

Name: MSI MEG X870E GODLIKE (AM5) (D)
SKU: 221728
Price: 1144.69 EUR
Availability: InStock

€1,407.97

MSI MEG

1 in stock

Categories: Mainboards & accessories, Motherboards - AMD

Description
Additional information

Description

MSI MEG X870E GODLIKE. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory: DDR5 SDRAM, Maximum RAM: 256 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 5 Gigabit Ethernet, Top WLAN standard: Wi-Fi 7 (802.11be), WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD

Additional information

Weight	6.42 kg
Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processors	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor slots	Socket AM5
Supported RAM	DDR5 SDRAM
Number of memory slots	4
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	Non-ECC
Supported memory speed	4800, 5600 MHz
Supported memory clock speed (max.)	9000MHz
RAM memory maximum	256 GB
Supported storage drives	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Maximum number of HDDs supported	4
Number of storage drives supported	9
Characteristic	ATX power connector (24-pin), Bluetooth, CPU fan connector, EPS power connector (8-pin), Ethernet/LAN, Microphone input, RAID support, S/PDIF output, WIRELESS INTERNET ACCESS
RAID level	1, 10
Number of USB 2.0 interfaces	4
USB 3.2 Gen 1 (3.1 Gen 1) ports	4
USB 3.2 Gen 2 (3.1 Gen 2) ports	2
SATA III connectors	4
Total number of SATA ports	4
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports	8
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports	5
Number of USB4 Gen 2×2 ports	2
Number of Ethernet LAN connections (RJ-45)	1
HDMI version	2.1
Ethernet interface type	5 Gigabit Ethernet
Top WiFi standard	Wi-Fi 7 (802.11be)
WLAN standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Motherboard chipset	AMD X870E
Audio channels	7.1 channels
Product color	Black
PC health monitoring	CPU, Fan, Temperature, Voltage
Component for	Pc
Motherboard form factor	Extended ATX
Motherboard chipset family	AMD
Supports Windows operating systems	Windows 11 x64
PCI-Express x16 (Gen 3.x) connectors	1
PCI Express x16 slots (Gen 4.x)	1
PCI Express x16 slots (Gen 5.x)	1
Number of M.2 (M) slots	5
1. M.2 largest key size	2280
1. M.2 highest PCI Express generation	5.0
2. M.2 largest key size	2280
2. M.2 highest PCI Express generation	5.0
3. M.2 largest key size	22110
3. M.2 highest PCI Express generation	4.0
4. M.2 largest key size	2280
4. M.2 highest PCI Express generation	4.0
5. M.2 largest key size	2280
5. M.2 highest PCI Express generation	4.0
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
ACPI version	6.5
System management BIOS (SMBIOS) version	3.7
Broad	304.8 mm
Depth	277 mm
Manufacturer	MSI
