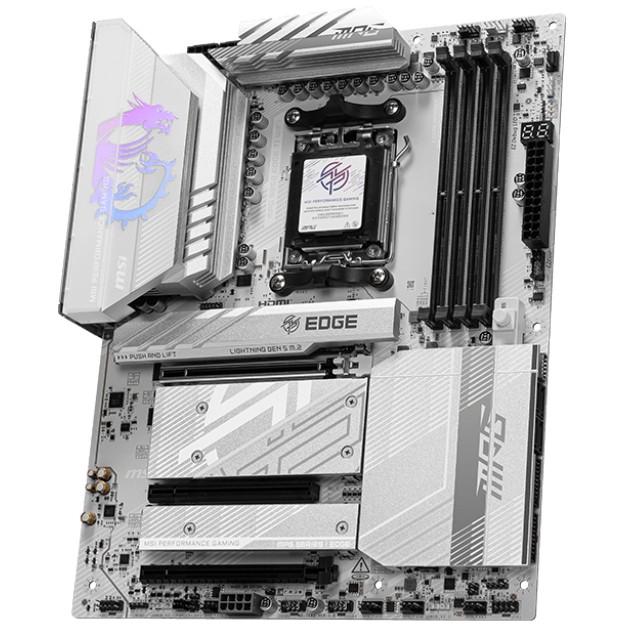

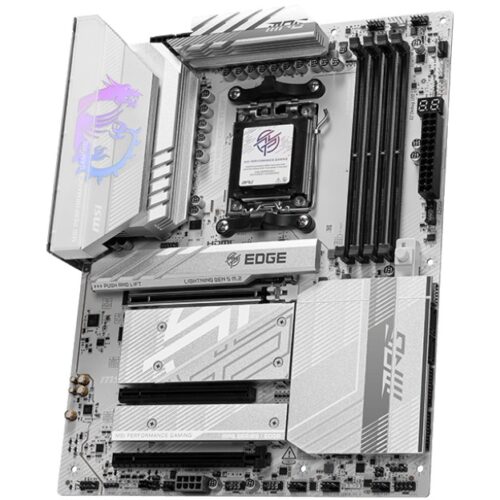

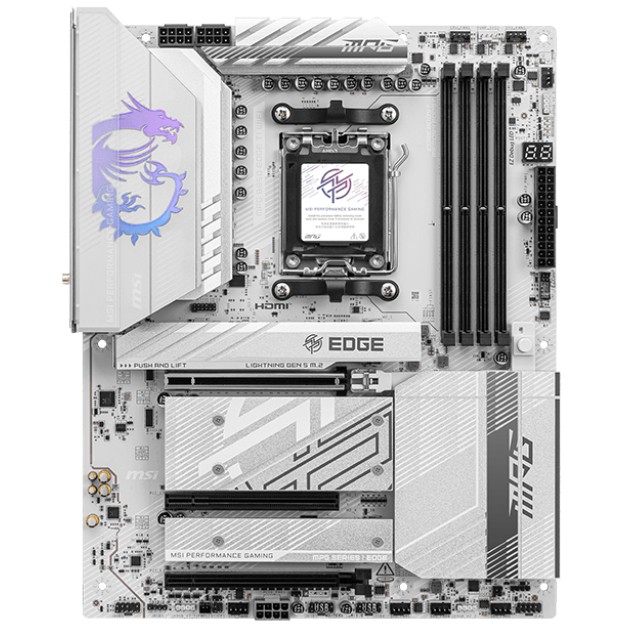

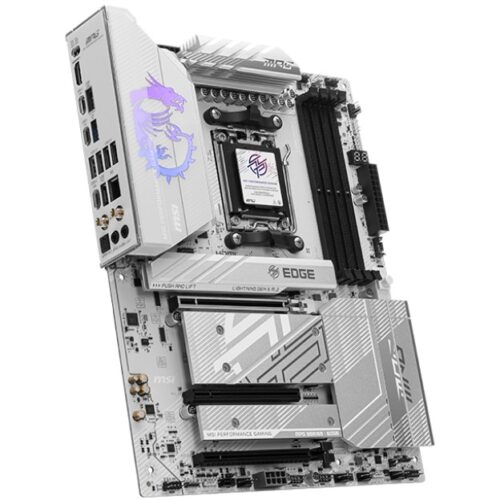

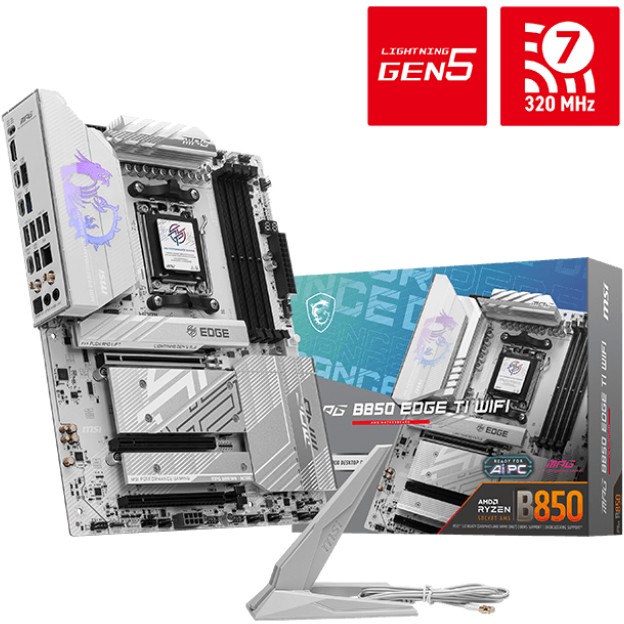

MSI MPG B850 EDGE TI Wifi (B850.AM5.ATX.DDR5)

Name: MSI MPG B850 EDGE TI Wifi (B850.AM5.ATX.DDR5)
SKU: 165249
Price: 273.67 EUR
Availability: InStock

€336.61

MSI MPG B850 EDGE TI WIFI, AMD, Socket AM5, AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series, Socket AM5, 256GB, DDR5-SDRAM

8 in stock

Categories: Mainboards & accessories, Motherboards - AMD

Description
Additional information

Description

MSI MPG B850 EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processors: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory: DDR5-SDRAM, Maximum RAM: 256 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, Micro SATA III, Supported storage drives: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top WLAN standard: Wi-Fi 7 (802.11be), WLAN standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E…. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD

Additional information

Processor manufacturer	AMD
Processor socket	Socket AM5
Compatible processors	AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor slots	Socket AM5
Maximum internal memory supported by the processor	256 GB
Supported RAM	DDR5 SDRAM
Number of memory slots	4
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	Non-ECC
Supported memory speed	4800,5600,8400 MHz
Supported memory clock speed (max.)	8400 MHz
RAM memory maximum	256 GB
Supported storage drives	HDD & SSD
Supported storage drive interfaces	M.2, Micro SATA III
Maximum number of HDDs supported	4
Number of storage drives supported	8
Characteristic	Bluetooth, CPU fan connector, Ethernet/LAN, RAID support, RGB LED header, WIRELESS INTERNET ACCESS
RAID level	1, 10
Number of USB 2.0 interfaces	4
USB 3.2 Gen 1 (3.1 Gen 1) ports	4
USB 3.2 Gen 2 (3.1 Gen 2) ports	1
SATA III connectors	4
Total number of SATA ports	4
Number of CPU fan connectors	6
Number of water pump connections	1
Number of RGB LED pin headers	3
Number of USB 2.0 ports	4
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports	2
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type-C ports	3
Number of Ethernet LAN connections (RJ-45)	1
Number of HDMI connections	1
HDMI version	2.1
Ethernet interface type	2.5 Gigabit Ethernet
Top WiFi standard	Wi-Fi 7 (802.11be)
WLAN standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Motherboard chipset	AMD B850
Audio chip	Realtek ALC4080
Audio channels	7.1 channels
Product color	White
Component for	Pc
Motherboard form factor	ATX
Motherboard chipset family	AMD
Supports Windows operating systems	Windows 11 x64
PCI-Express x16 (Gen 3.x) connectors	1
PCI Express x16 slots (Gen 4.x)	1
PCI Express x16 slots (Gen 5.x)	1
Number of M.2 (M) slots	4
1. M.2 largest key size	22110
1. M.2 highest PCI Express generation	5.0
2. M.2 largest key size	2280
2. M.2 highest PCI Express generation	5.0
3. M.2 largest key size	2280
3. M.2 highest PCI Express generation	4.0
4. M.2 largest key size	2280
4. M.2 highest PCI Express generation	4.0
Broad	304.8 mm
Depth	243.8 mm
Manufacturer	MSI
