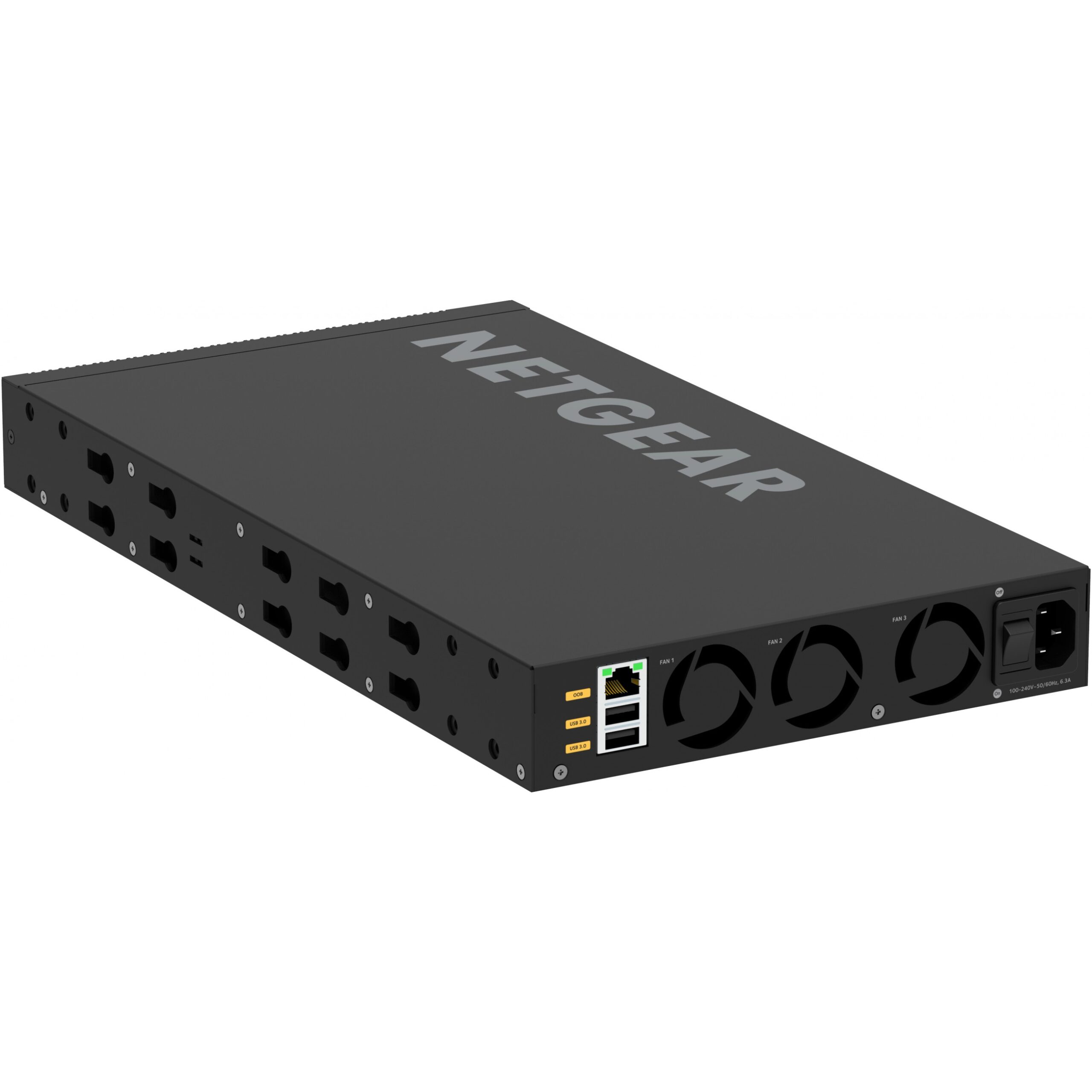

NETGEAR Switch 24x (12x 10G/ 12x SFP+) M4350-12X12F

Name: NETGEAR Switch 24x (12x 10G/ 12x SFP+) M4350-12X12F
SKU: 224966
Price: 3117.17 EUR
Availability: InStock

€3,834.12

NETGEAR M4350-12X12F, Managed, L3, 10G Ethernet (100/1000/10000), Full Duplex, Rack Mount, 1U

3 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

NETGEAR M4350-12X12F. Switch type: Managed, Switch level: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Number of basic switching RJ-45 Ethernet ports: 12. Full duplex. MAC address table: 16000 entries. Routing/switching capacity: 480 Gbps. Network standard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE…. Power connector: AC input jack. Rack mount, form factor: 1U.

Additional information

Switch type	Managed
Switch level	L3
Characteristic	10G support, 6to4 Tunnel, Access control list, ARP inspection, BPDU filtering/protection, Broadcast storm control, Built-in processor, DoS attack prevention, Filter MAC addresses, Full duplex, GARP VLAN Registration Protocol (GVRP), IGMP proxy, IGMP snooping, Jumbo frames support, LED indicators, Link aggregation, Loop protection, Multicast Listener Discovery (MLD) Snooping, Multicast support, Password protection, Policy-based routing, Power supply included, Quality of Service (QoS) Support, Quick start overview, Rack installation, Rack mounting kit, Rate Limiting, Root protection, SFlow, Spanning tree protocol, Stackable, Static connection security, Store and forward, Support data flow control, Sustainability compliance, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	12
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Number of 10G Ethernet (copper) ports	12
Quantity of SFP + module slots	12
Power plug	AC input socket
IPv4 routes	512
IPv6 routes	256
Virtual LAN functions	MAC address-based VLAN, Private VLAN, Voice VLAN
Number of VLANs	4093
Routing / switching capacity	480 Gbit/s
Passage	357.12 MPps
MAC address table	16,000 entries
Waiting time (1 Gbps)	2.14 µs
Waiting time (10 Gbps)	2.29 µs
Jumbo frames	12000
Data packet buffer memory	32 MB
DHCP functions	DHCP Option 150, DHCP Option 66, DHCP Option 67, DHCP relay, DHCP server, DHCP snooping
Access Control List (ACL) output	1023
Access Control List (ACL) inbox	511
Authentication	Guest VLAN, MAC based authentication
Authentication type	RADIUS, TACACS +
Queue planning algorithms	Strict Priority Queue (SPQ), Weighted random early detection (WRED)
Management logs	SNMP v1, V2, V3
Router protocol	OSPF, OSPFv2, OSPFv3, RIP, RIP-1, RIP-2
Form factor	1U
Product color	Black
Airflow direction	Airflow from front to back
Processor	ARM Cortex-A57
Processor clock frequency	1800 MHz
Storage type	DDR4 SDRAM
Storage capacity	2048 MB
Flash memory	512 MB
Energy source	AC
Power consumption (standard operation)	95.8 W
Power supply	240 W
Operating temperatur	0 – 50 ° C
Storage temperature range	20 – 70 ° C
Relative humidity in operation	0 – 90%
Storage humidity	0 – 95%
Height during operation	0 – 3000 m
Storage height	0 – 3000 m
Broad	220 mm
Depth	400 mm
Height	43.2 mm
Weight	4.3 kg
Supplied cables	AC, USB Type-C
Connector types included	EU, N / A, UK
Certificates of conformity	BSMI, CCC, CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD)
Manufacturer	NETGEAR
