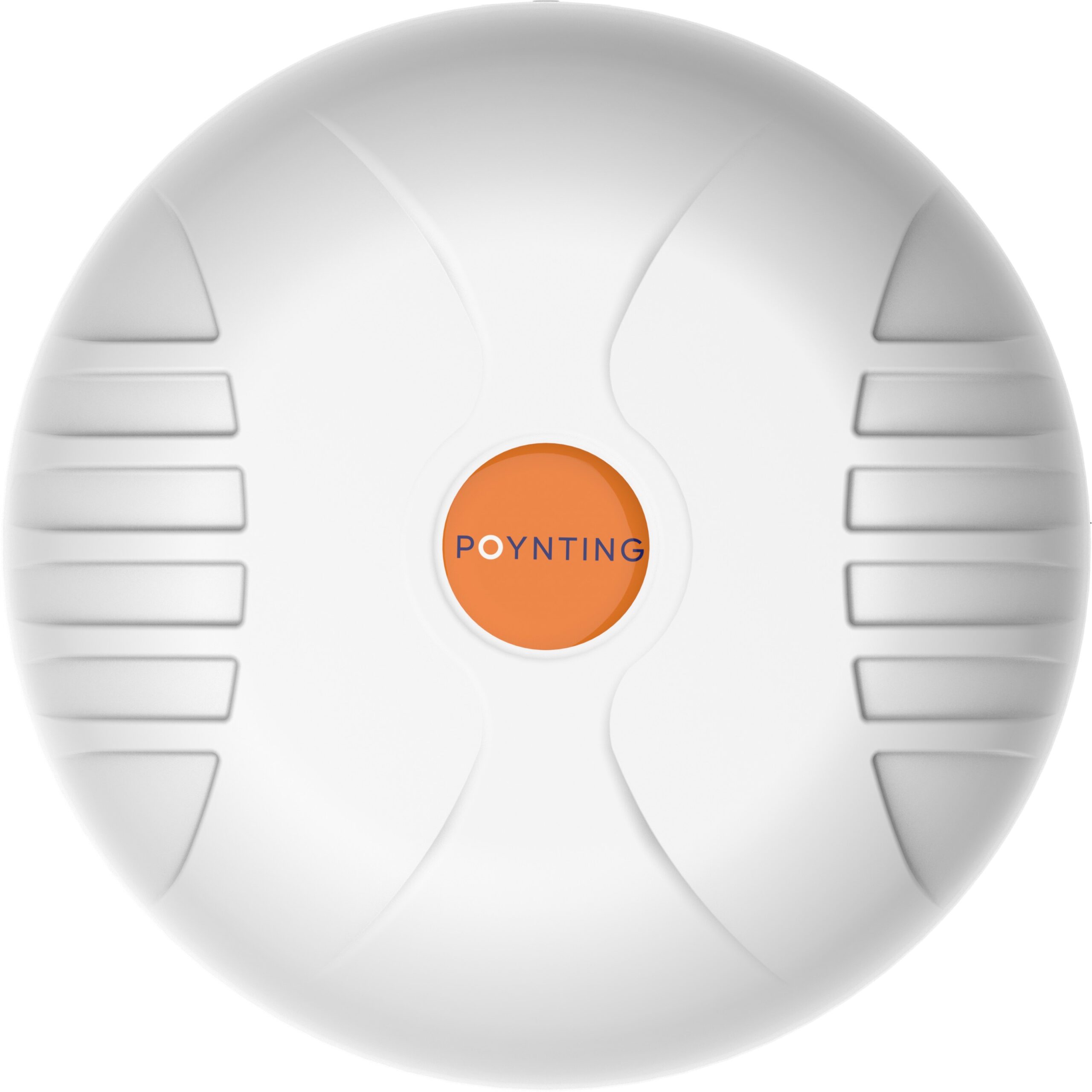

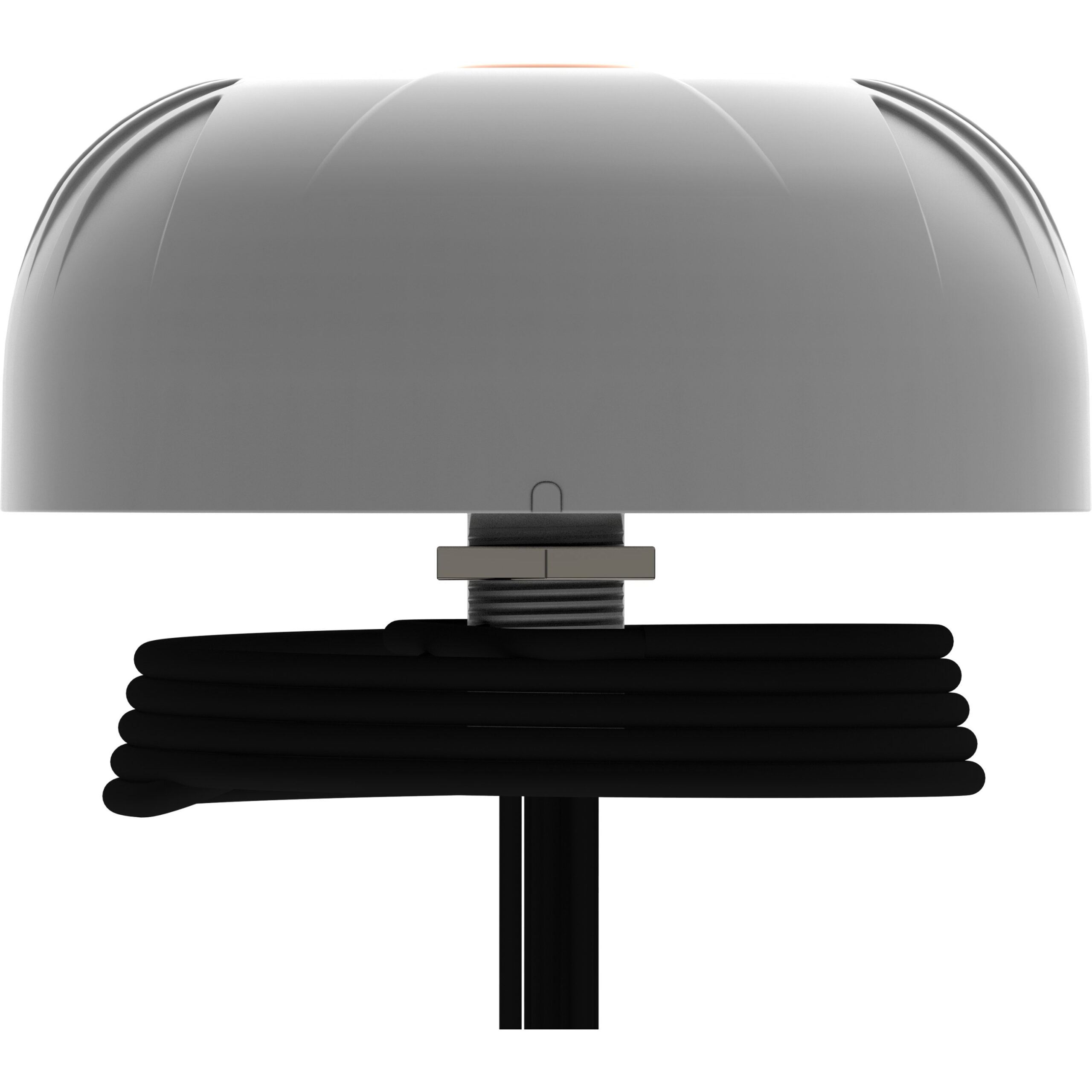

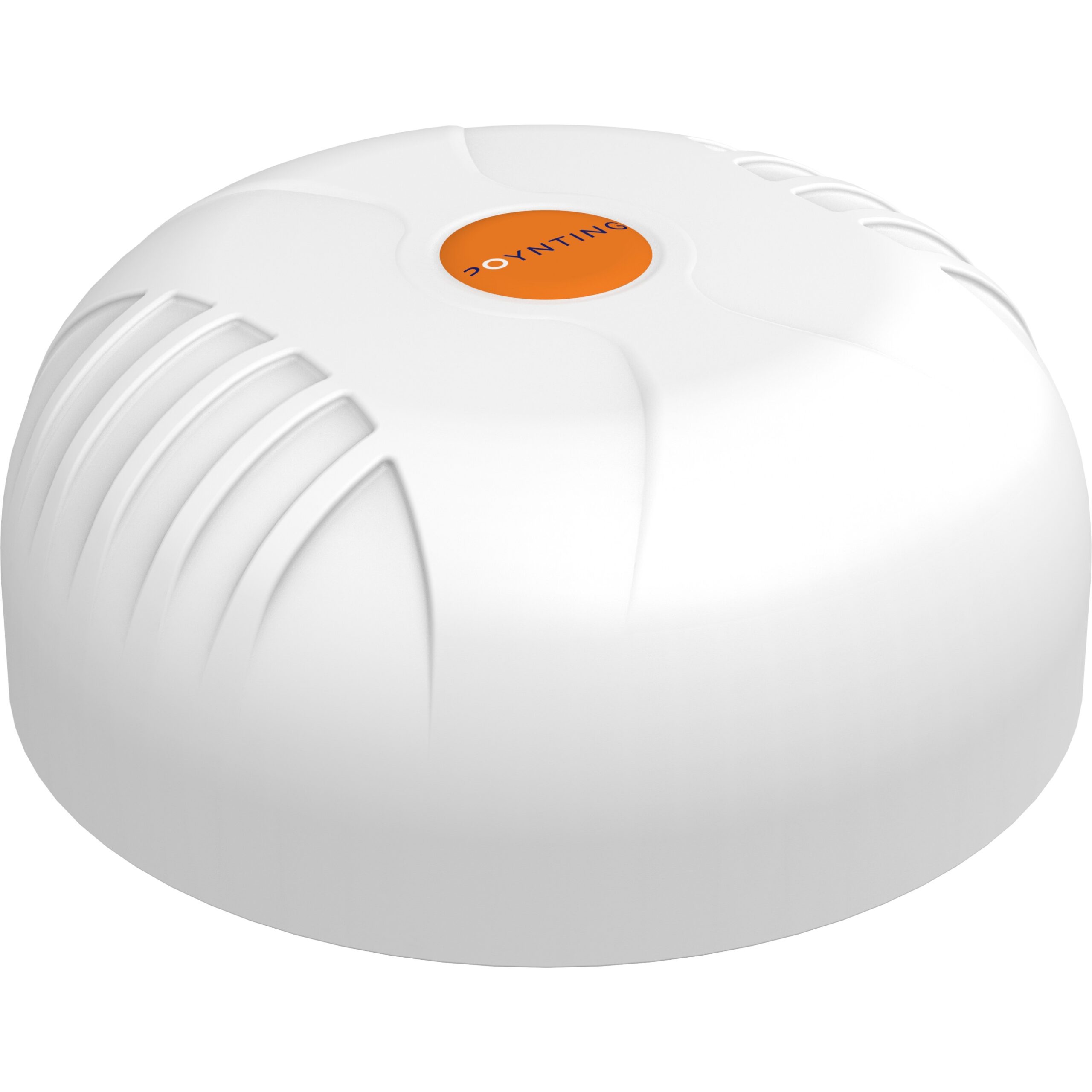

Poynting Antennas 5G/LTE Car/Marine A-MIMO-0004-V1-04-W white SMA (M) 3.5~6dBi 2M SMA-M cable IP69K

Name: Poynting Antennas 5G/LTE Car/Marine A-MIMO-0004-V1-04-W white SMA (M) 3.5~6dBi 2M SMA-M cable IP69K
SKU: 182640
Price: 162.85 EUR
Availability: InStock

€200.31

Poynting A-MIMO-0004-V1-04-W, 6 dBi, 0.617 – 6.0 GHz, 50 Ohm, Omnidirectional Antenna, SMA, Male

13 in stock

Categories: network, Network antennas

Description
Additional information

Description

Poynting A-MIMO-0004-V1-04-W. Antenna gain (max): 6 dBi, Frequency band: 0.617 – 6.0 GHz, Impedance: 50 ohms. Antenna type: Omnidirectional antenna, Antenna connector type: SMA, Connector gender: Male. Input voltage: 2.7 – 3.3 V. Conformance certifications: CE, RoHS. Diameter: 16 cm.

Additional information

Weight	1.086 kg
Frequency band	0.617 – 6.0 GHz
Impedance	50 ohms
Antenna gain level (max)	6 dBi
Antenna type	Omnidirectional antenna
Antenna connector type	HT20)
Connector gender	Masculine
Polarization	Vertical polarization
Voltage Position Wave Ratio (VSWR)	2.5: 1
Product color	Black
Protective function	Dust resistant, UV-resistant, Waterproof
International protection class (IP code)	IP69K
Characteristic	Sustainability compliance, Ultraviolet (UV) resistant
Survival wind speed	220km/h
Maximum input power	10 W.
Cable length	2 m
Cable type	HDF-195 & RTK-031
Purpose	Outside
Input voltage	2.7 – 3.3V
Certificates of conformity	CE, RoHS
Operating temperatur	40 – 80 ° C
Storage temperature range	40 – 80 ° C
Storage humidity	5 – 95%
Diameter	16 cm
Packaging width	265 mm
Packaging depth	211 mm
Packing height	204 mm
Package weight	1.61 kg
Quantity per pack	1 piece (s)
Country of origin	China
Manufacturer	Poynting
