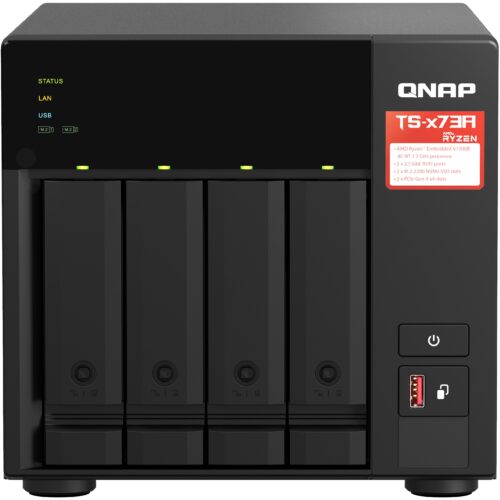

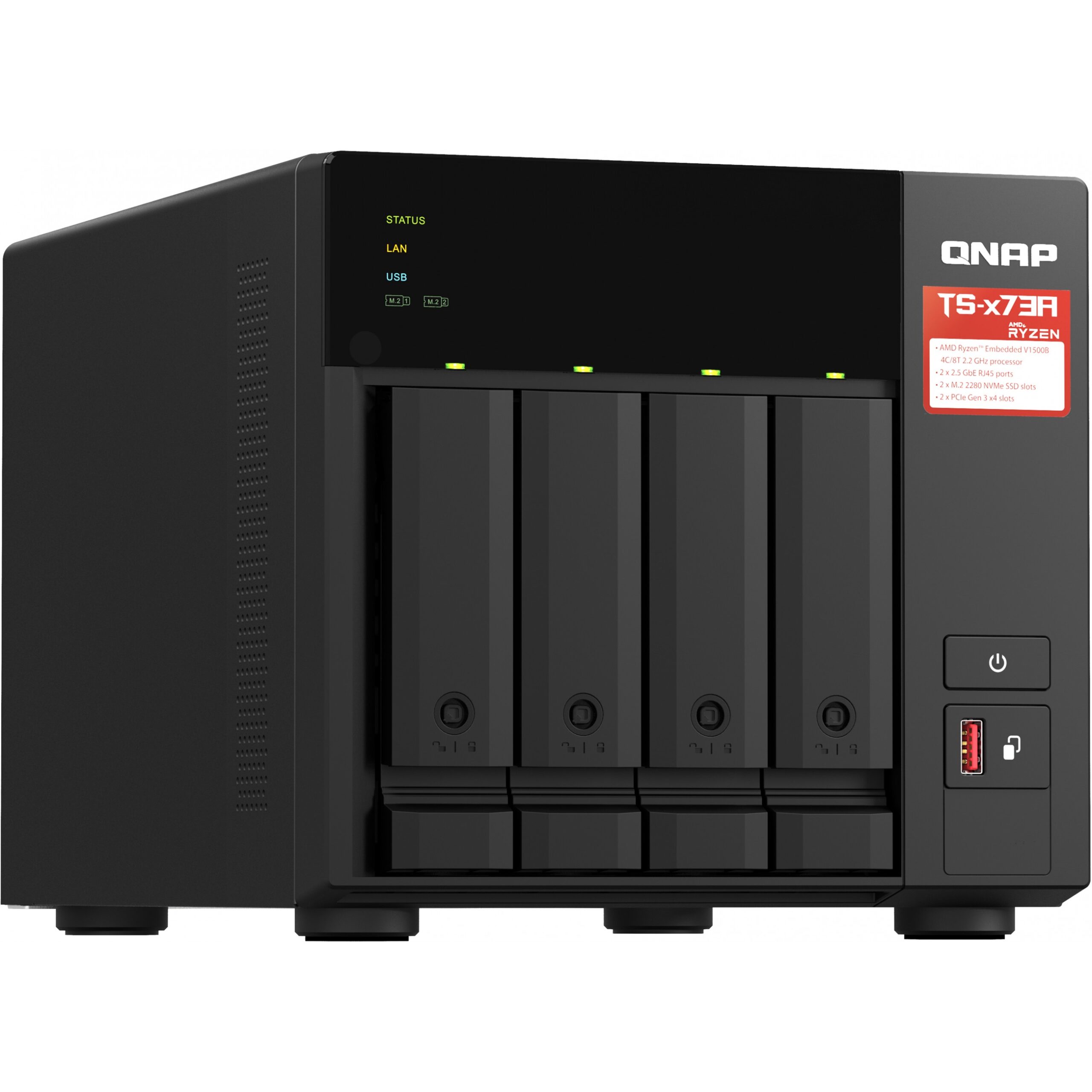

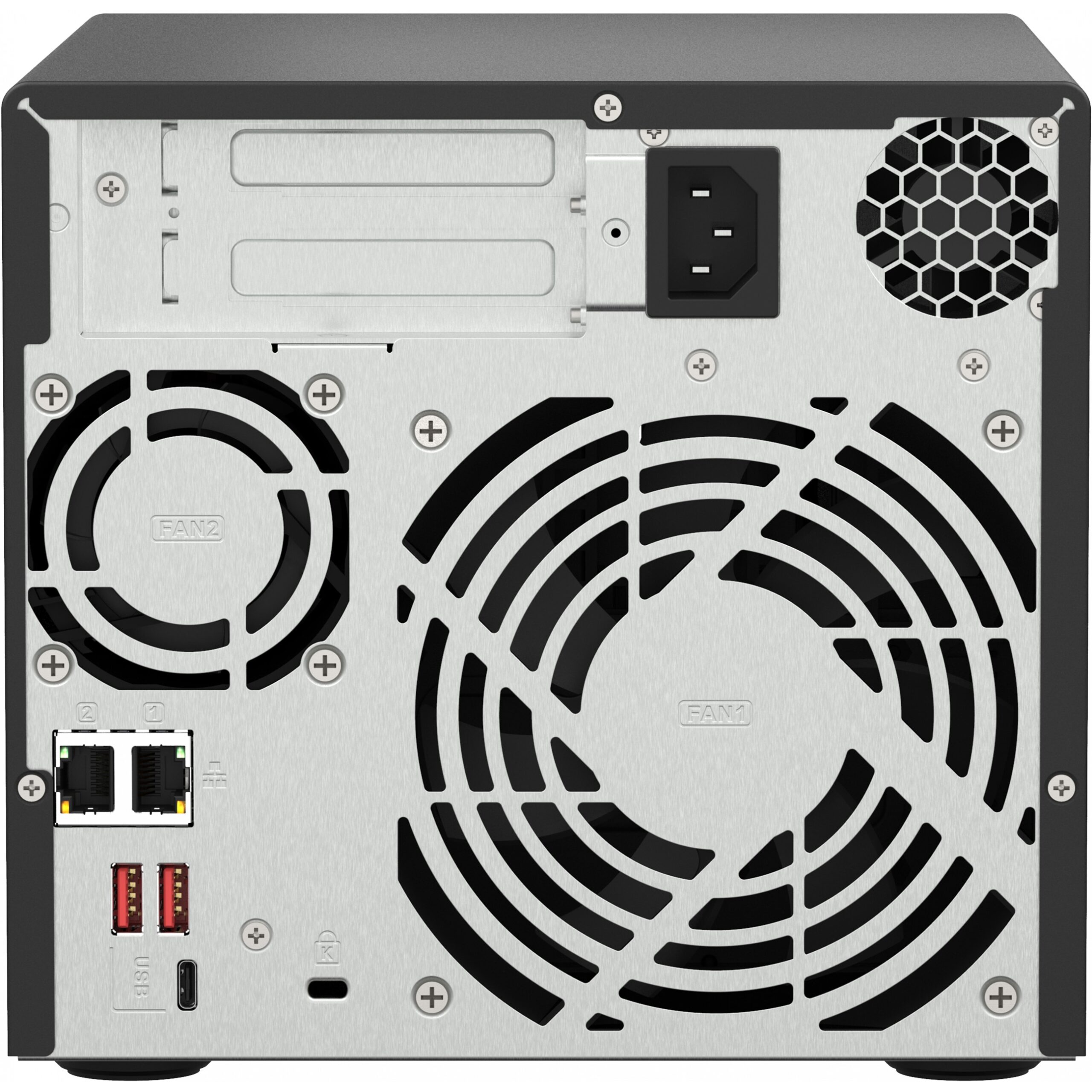

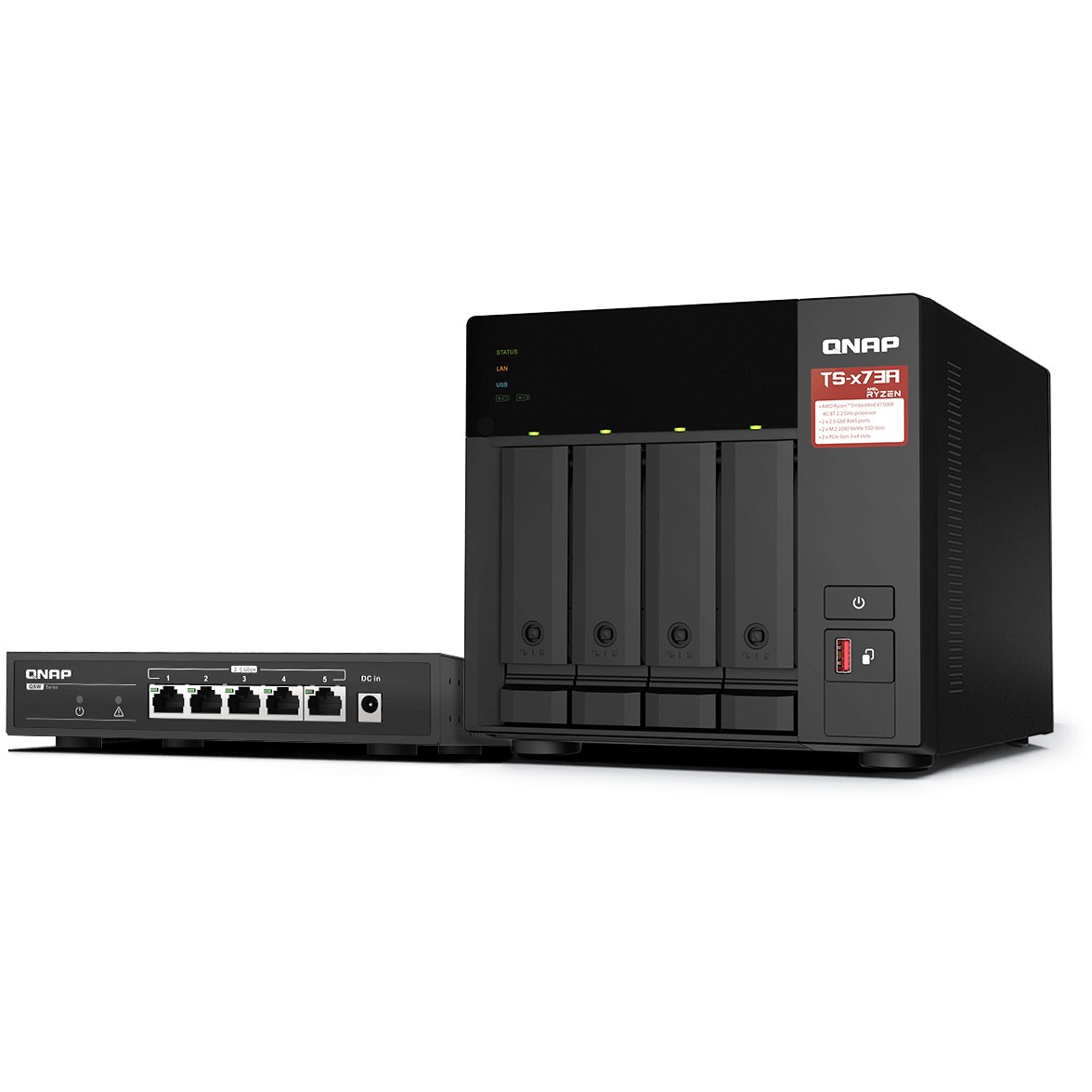

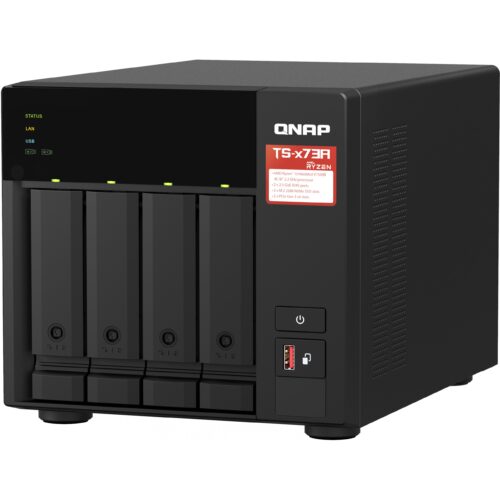

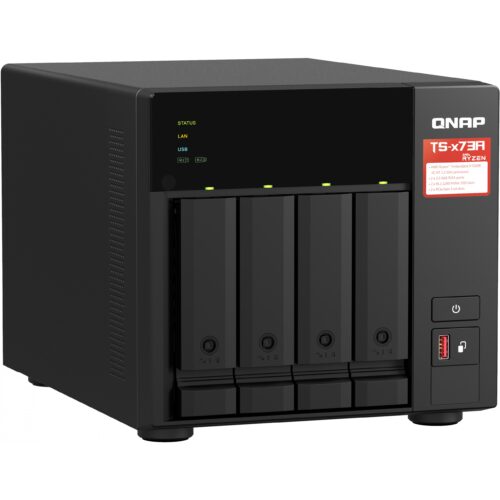

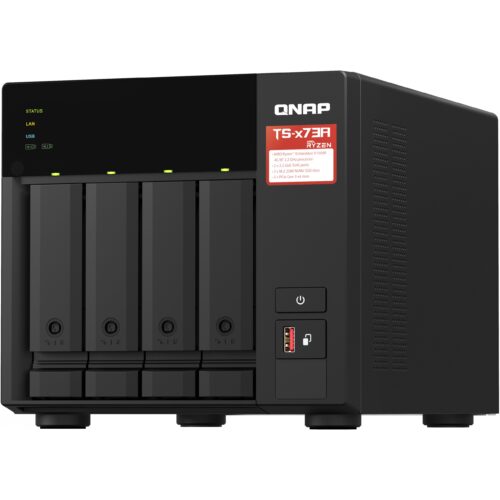

QNAP Bundle NAS TS-473A 4 bay AMD Ryzen Embedded V1500B 2.5G + Switch QSW-1105-ST 5 ports 2.5G

Name: QNAP Bundle NAS TS-473A 4 bay AMD Ryzen Embedded V1500B 2.5G + Switch QSW-1105-ST 5 ports 2.5G
SKU: 270596
Price: 946.10 EUR
Availability: InStock

€1,163.70

QNAP TS-473A + QSW-1105-5T Bundle Pack, NAS, Tower, Ryzen Embedded, V1500B, 8GB, DDR4

1 in stock

Categories: NAS systems, network

Description
Additional information

Description

QNAP TS-473A + QSW-1105-5T Bundle Pack. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Ryzen Embedded, Processor: V1500B, Processor clock speed: 2.2 GHz. Memory capacity: 8 GB, Internal memory type: DDR4. Total installed storage capacity: 0 TB. Installed operating system: QNAP Turbo System

Additional information

Storage capacity	0 GB, 8 GB
Storage drive interface	Serial ATA III
Supported storage drive interfaces	M.2, SATA, Serial ATA II, Serial ATA III
Supported storage drive sizes	2.5,3.5, M.2
Number of installed system drives	1
System Drive Capacity	5 GB
Number of M.2 (M & B) slots	2
Characteristic	Alarm, Backup function, DHCP server, Disk check, Dynamic DNS (DDNS), ECC, Ethernet/LAN, Housing slot with snap-in function, Housing slots that can be changed during operation, Integrated FTP server, Jumbo frames support, On/off switch, Online RAID expansion, Online RAID migration, Password authentication, RAID rebuild, RAID support, Remote control, Reset button, SMART support, Supported Linux operating systems, USB copy function, USB port, Wake-on-LAN ready
RAID level	1, 10, 5, 6, JBOD
Total installed storage capacity	0 TB
Number of storage drives supported	4
Supported storage drives	HDD & SSD
Processor manufacturer	AMD
Processor generation	AMD Ryzen Embedded V1000 Series
Processor family	Ryzen embedded
Processor	V1500B
Processor clock frequency	2.2 GHz
Number of CPU cores	4
Processor threads	8
Built-in graphics card model	Not available
Internal storage type	DDR4
Maximum RAM supported	64 GB
Memory card slots	2
Memory form factor	SO-DIMM
Flash memory	5000MB
Ethernet LAN data transfer rates	100,1000,2500 Mbit / s
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type-C ports	1
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports	3
Number of Ethernet LAN connections (RJ-45)	2
Simultaneous connections	2000
PCI-Express x4 (Gen 3.x) connectors	2
Housing type	Tower
Cooling	Active
Product color	Black
Number of fans	2 fans
Fan diameter	12 cm
Fan diameter 2	6 cm
LED indicators	LAN, Perfomance, SSD, Status, USB
pa_type	1109
Device class	Small & Medium Business
Backup functions	Cloud, ISCSI LUN, USB stick
Noise level	21.4 dB
Supported security algorithms	256-bit AES, FIPS 140-2, SSH, SSL / TLS
Supported browser	AppleSafari, Google Chrome, Microsoft Edge, Mozilla Firefox
Installed operating system	QNAP Turbo System
Supports Windows operating systems	Windows 10, Windows 7, Windows 8
Supports Mac operating systems	Mac OS X 10.10 Yosemite
Supported server operating systems	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power supply placement	Built-in
Power unit capacity	250 W
Number of power supply units	1
Power consumption (standard operation)	29.792W
Power consumption (HDD standby)	19.576W
AC input voltage	100-240V
AC input frequency	50-60 Hz
Output current	3.5 A
Broad	199.3mm
Depth	280.8 mm
Height	188.2 mm
Supplied cables	AC, LAN (RJ-45)
Number of power cables	1
Number of screws	24
Operating temperatur	0 – 40 ° C
Relative humidity in operation	5 – 95%
Storage temperature range	20 – 70 ° C
Storage humidity	5 – 95%
Manufacturer	QNAP
