SFP Transceiver 1.25G Multi-mode Duplex LC 2km

Description

LevelOne 1.25G Multi-Mode SFP Transceiver 2km, 1310nm. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1250 Mbps, Interface: SFP. Input voltage: 3.3 V, Maximum voltage: 6 V, Maximum current: 0.3 A. Conformance certifications: RoHS, Safety: EN 60825-1, Certifications: CE, FCC. Width: 57 mm, Depth: 12 mm, Height: 13.7 mm. Quantity per package: 1 piece(s)

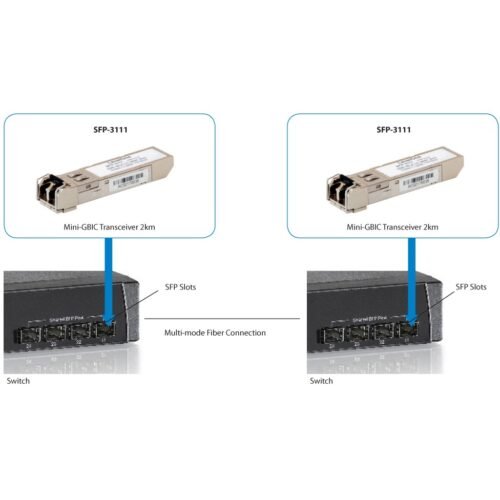

The LevelOne SFP-3111 is a high-performance and cost-effective multi-mode SFP transceiver. For use with Gigabit Ethernet, it offers up to 1.25 Gbps bidirectional data transmission rate on a single-duplex fiber optic core. When used with 50 and 62.5 micrometer fiber optic cables, a distance of up to 2 km can be achieved. The SFP-3111 transceiver operates at a wavelength of 1310 nm and uses an FP-LD laser diode light source and features an LC connector.

– 1310nm FP LD
– Data rate: 1.25Gbps, NRZ
– Single +3.3V power supply
– RoHS compliant and lead-free
– AC/AC Differential Electrical Interface
– Compatible with Multi-Source Agreement (MSA)
– Small Form Factor Pluggable (SFP)
– Duplex LC Connector
– Compatible with IEEE 802.3z specification for Gigabit Ethernet with 1.25Gbps
– Compatible with ANSI specification for fiber optic applications at 1.06bps
– No configuration or software installation required
– Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
