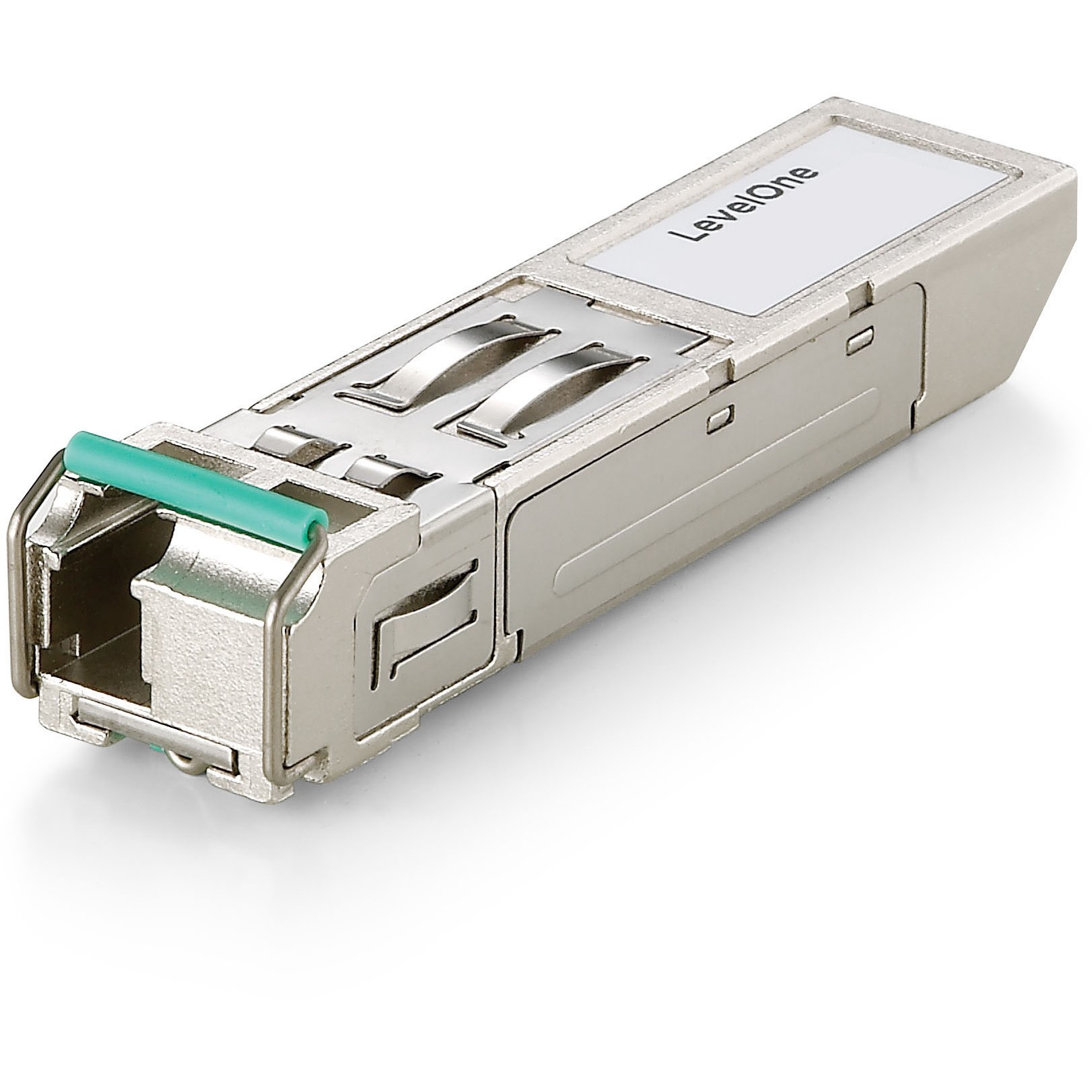

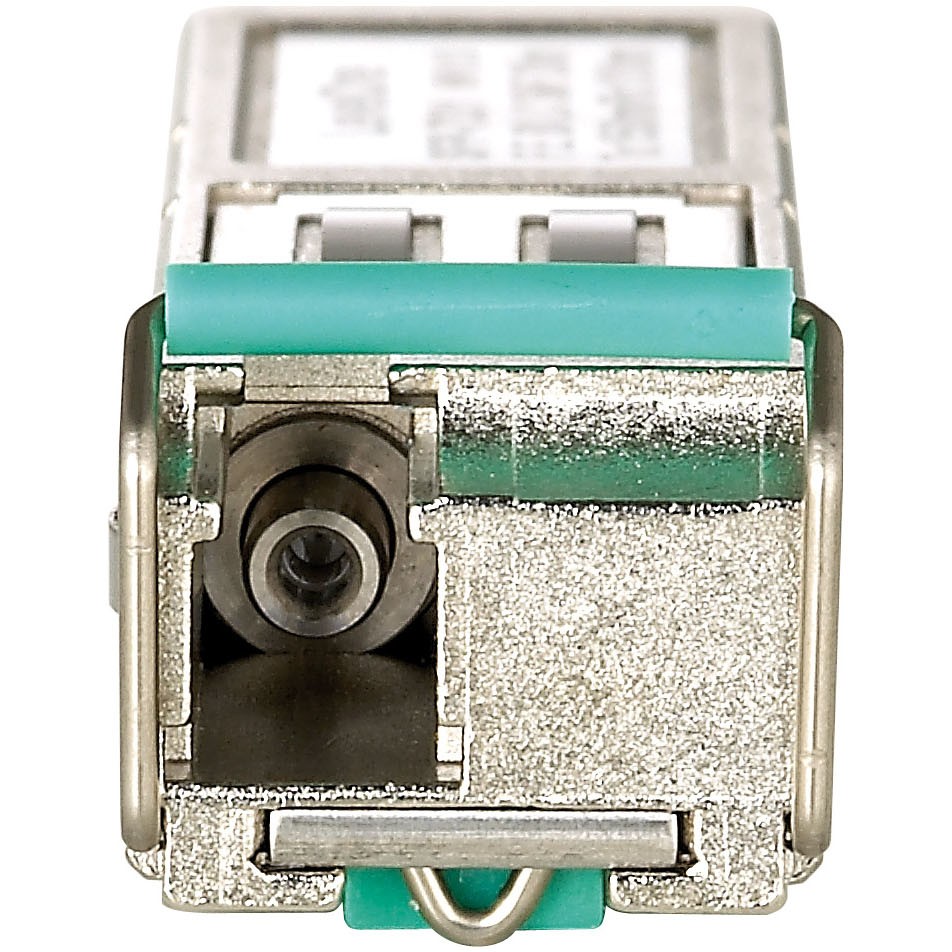

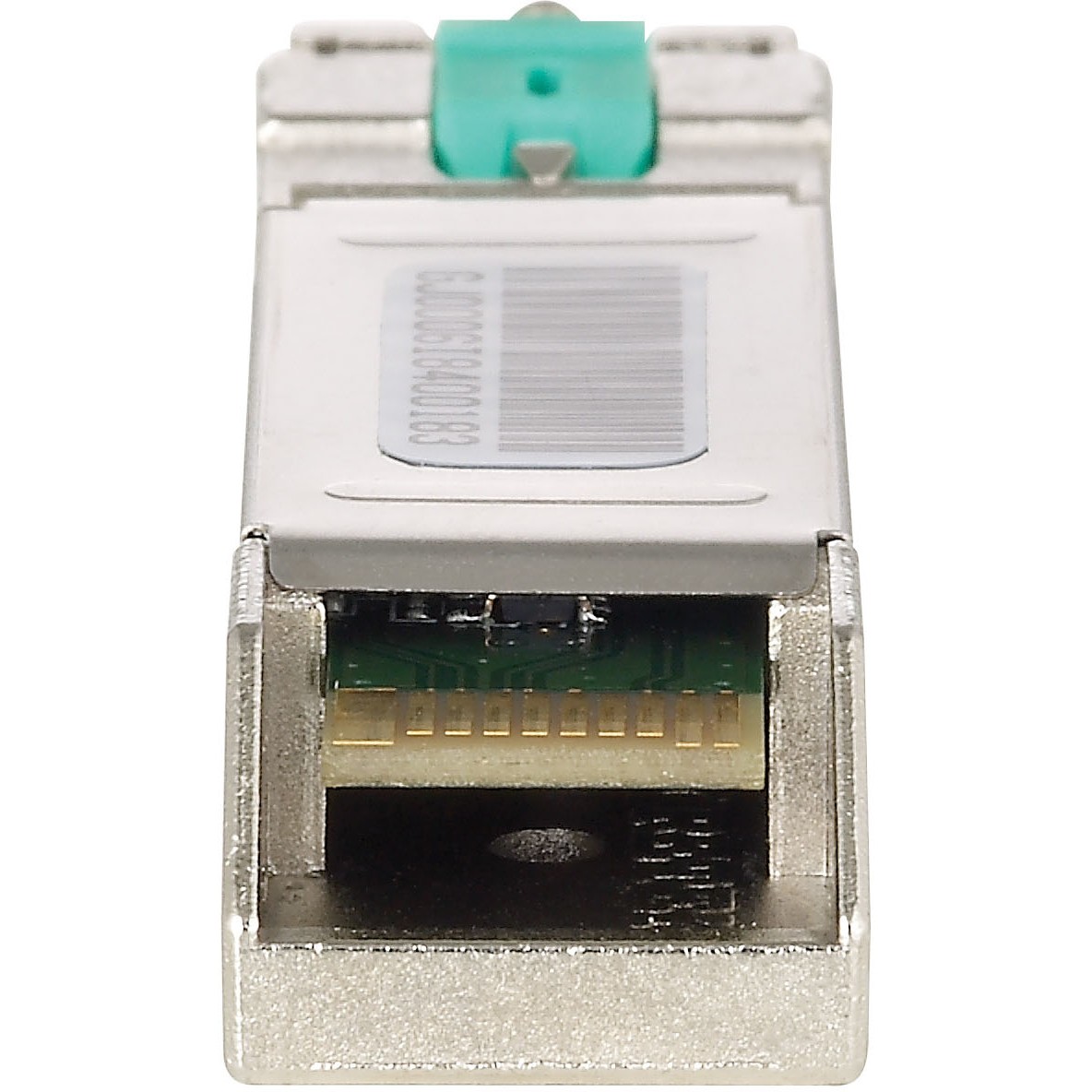

SFP Transceiver 155M Single-mode Simplex LC 20km

Description

LevelOne SFP-7331. SFP transceiver type: fiber optic, maximum data transfer rate: 155 Mbps, interface: SFP. Input voltage: 3.3 V, maximum voltage: 6 V, maximum current: 0.3 A. Conformance certifications: RoHS, safety: EN 60825-1, certification: CE, FCC. Width: 13.7 mm, depth: 56.5 mm, height: 8.95 mm. Quantity per package: 1 piece(s)

The LevelOne SFP-7331 is a high-performance and cost-effective SFP transceiver. It provides up to 155Mbps bidirectional data transmission up to 20km over a single fiber core.

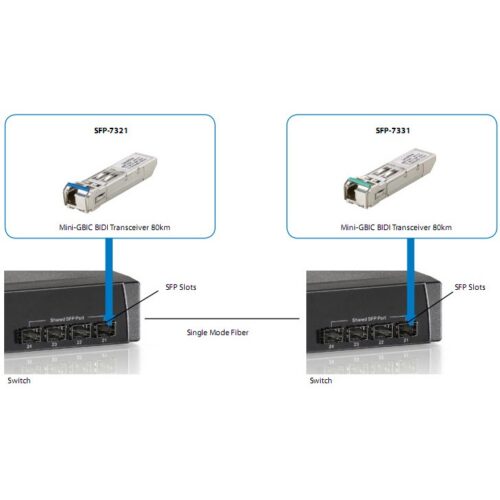

Bidirectional SFP transceivers can transmit data in both directions through a single optical fiber by using different wavelengths for each direction.

The SFP-7331 transceiver transmits at a wavelength of 1550nm and receives at a wavelength of 1310nm. When used with a LevelOne SFP-7331 transceiver, you get bidirectional data communication (1550nm TX and 1310nm RX) over a single fiber core.
