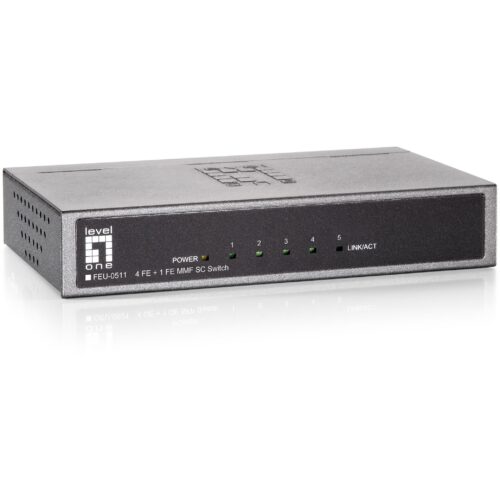

Switch 4x FE FEU-0511 1x SC MM Fiber Metal

Description

LevelOne 5-port Fast Ethernet switch, 1 port SC multi-mode fiber, 2 km. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100). Number of basic switching RJ-45 Ethernet ports: 4. Full duplex. MAC address table: 1024 entries. Network standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Power connector: DC connector.

LevelOne's FEU-0511 is a 4-port Fast Ethernet switch with an additional 100BaseFX SC port. The switch is designed for use in small to medium-sized networks. Its compact housing allows for deployment even in areas with limited space.

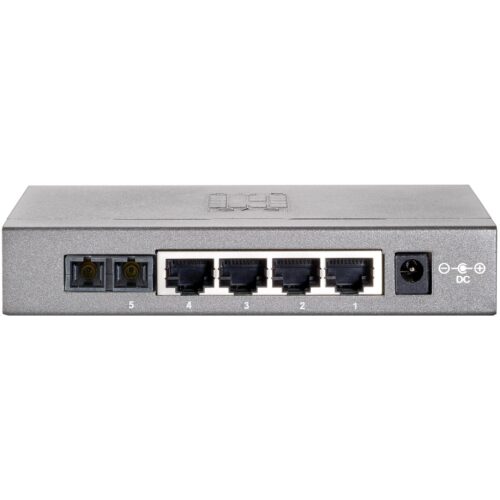

1-Port 100BaseFX (Multi Mode, SC)

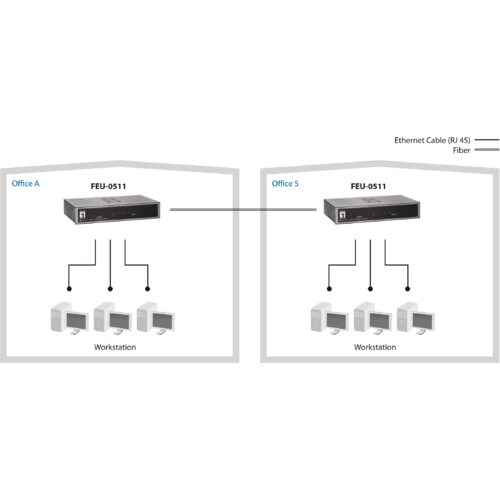

With the fiber uplink, users can be connected to the network over long distances.

Auto-MDI/MDI-X
Each port automatically detects the connected cable type, eliminating the need for crossover cables.

Auto-negotiation
Each port automatically detects whether the connected device operates at 10 Mbps or 100 Mbps. The switch also adjusts the duplex mode (full/half).

Non-blocking
The switch receives and transmits traffic using a non-blocking wire-speed architecture. Each port supports 200 Mbps of bandwidth in full-duplex mode.

Store-and-Forward
This feature maximizes network performance and minimizes faulty data transmissions.

– Offers flexibility of 4 x 10/100BASE-TX ports
– 100BASE-FX multi-mode fiber optic for connection up to 2 km
– 10/100 Mb/s, full/half duplex, auto-negotiation, auto-MDI/MDIX
– IEEE 802.3x monitoring protects against lost packets and ensures reliable data transmission

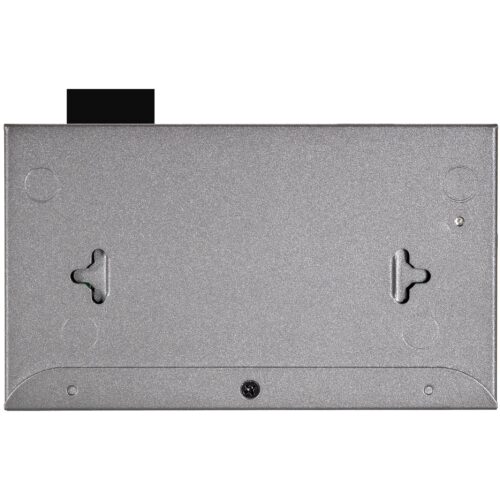

– Offers table or wall mounting
