Switch 5x GE IGS-2105P 4xPoE outputs black
€170.55
LevelOne Hilbert 5-Port Industrial Gigabit PoE Smart Lite Switch, 4 PoE outputs, 802.3at/af PoE, Managed, L2, Gigabit Ethernet (10/100/1000), Full Duplex, Power over Ethernet (PoE)
- Description
- Additional information
Description
LevelOne Hilbert 5-Port Industrial Gigabit PoE Smart Lite Switch, 4 PoE outputs, 802.3at/af PoE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 5. Full duplex. MAC address table: 2000 entries. Routing/switching capacity: 10 Gbps. Network standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE…. DC input voltage: 44 – 57 V. Power over Ethernet (PoE)

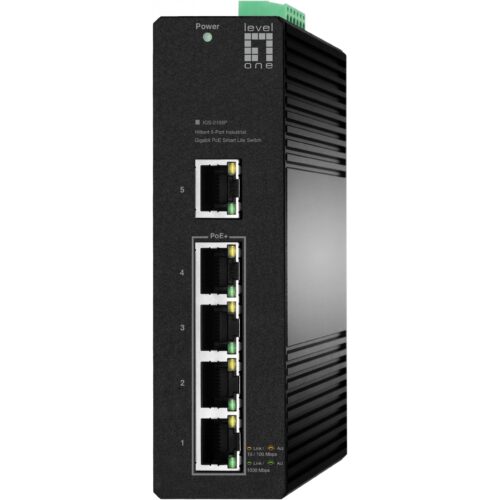

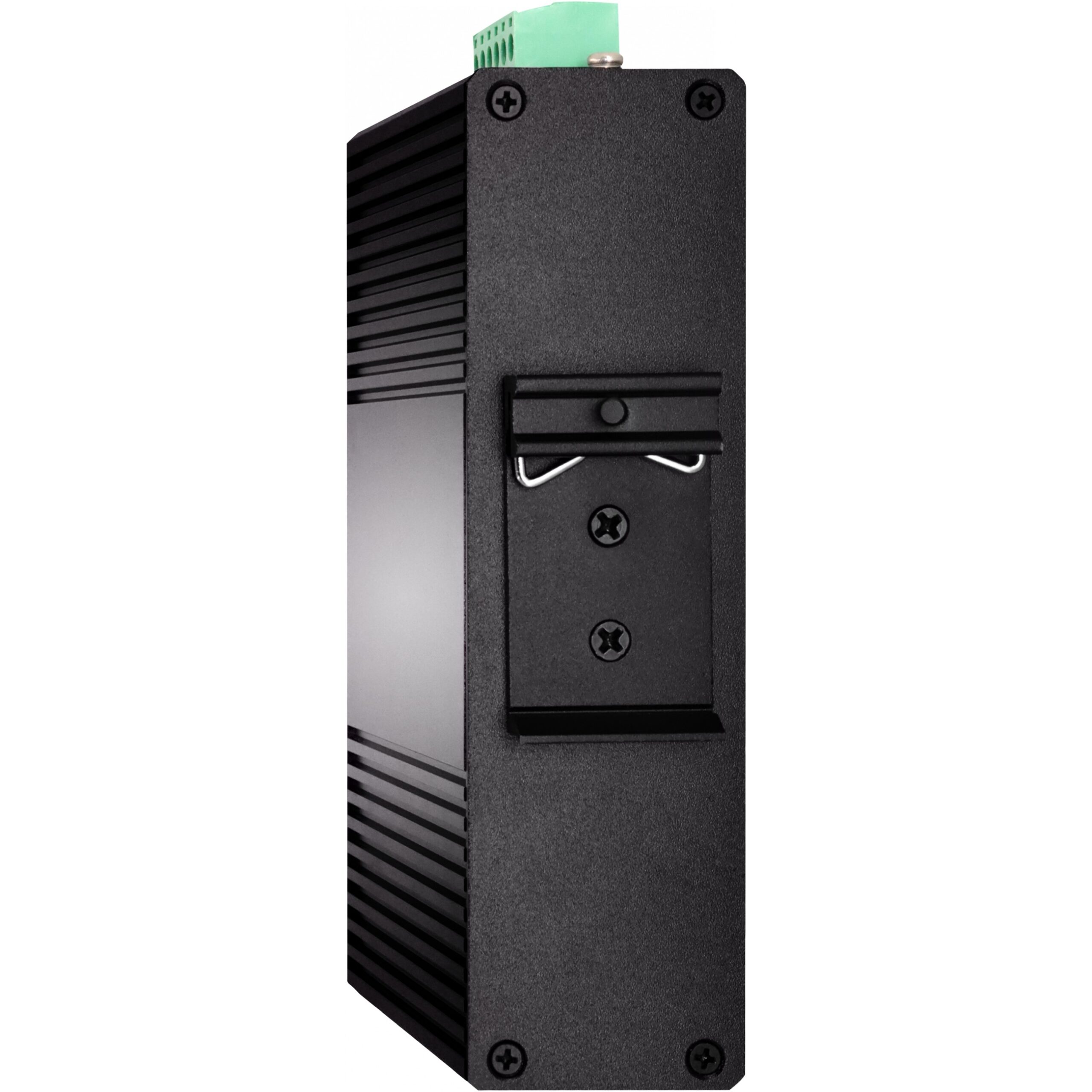

The LevelOne IGS-2105P Hilbert 5-Port Industrial Gigabit PoE Smart Lite Switch is a next-generation Ethernet switch that delivers powerful PoE functionality and ease of use, cost-effectively delivering Ethernet services over copper connections. The IGS-2105P provides 5 (10M/100M/1G) RJ45 ports, including 4 PoE+ ports (supporting 802.3at/af), to enable high-speed networking in mission-critical environments. Featuring industrial-standard DIN rail mounting and highly visible status LEDs, the switch provides easy port connection monitoring. LevelOne's new IP Locator, the simple switch discovery software, allows you to search for all Hilbert series switches and display information about the switch and its IP configuration. It is compatible with most Windows and Mac operating systems.
The LevelOne IGS-2105P offers high hardware performance and environmental flexibility for enterprises. The IGS-2105P is ideal for easy management, optimal usability, and lower total cost of ownership.
Additional information
| Switch type | |
|---|---|
| Switch level | |
| Characteristic | Auto MDI/MDI-X, Auto-aging of MAC addresses supported, Auto-negotiation function, Broadcast storm control, DIN rail included, DIN rail mounting, Fanless, Full duplex, Half duplex, IGMP snooping, Jumbo frames support, Link aggregation, Multicast support, Port mirroring, Power over Ethernet (PoE), Pressure rise protection, Quality of Service (QoS) Support, Quick start overview, Rate Limiting, Self-learning of MAC addresses supported, Spanning tree protocol, Support data flow control, Support for redundant power supply, Sustainability compliance, Terminal block included, Unused fan support, VLAN support, Web-based management |
| Number of basic switching RJ-45 Ethernet ports | |
| Basic switching RJ-45 Ethernet ports type | |
| Number of Gigabit Ethernet (copper) connections | |
| Number of uplink ports | 1 |
| Network standard | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Copper ethernet cabling technology | |
| Virtual LAN functions | |
| Number of VLANs | |
| Routing / switching capacity | |
| Transfer rate | |
| MAC address table | |
| Jumbo frames | |
| Data packet buffer memory | |
| Queue planning algorithms | |
| LED indicators | |
| International protection class (IP code) | |
| Flash memory | |
| Noise level | |
| Mean Time Between Failures (MTBF) | |
| Energy source | |
| DC input voltage | |
| Power consumption (standard operation) | |
| Pressure rise protection voltage | 4kV |
| Number of Power over Ethernet plus (PoE +) connections | |
| Total power over Ethernet (PoE) | |
| Operating temperatur | 40 – 70 ° C |
| Storage temperature range | |
| Relative humidity in operation | |
| Storage humidity | |
| Heat dissipation | |
| Broad | |
| Depth | |
| Height | |
| Weight | |
| Packaging type | |
| Packaging width | |
| Packaging depth | |
| Packing height | |
| Package weight | |
| Number of layers per pallet (air) | 16 piece (s) |
| Pallet length (gross) | 80 cm |
| Pallet width (gross) | 120 cm |
| Certificates of conformity | CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Pallet height (gross) | 154.4 cm |
| Country of origin | |
| Width of the shipping box | |
| Shipping box length | |
| Shipping box height | |
| Goods tariff number (HS) | 8517620090 |
| Shipping box weight | |
| Number of products per shipping carton | 34 piece(s) |
| Manufacturer |
