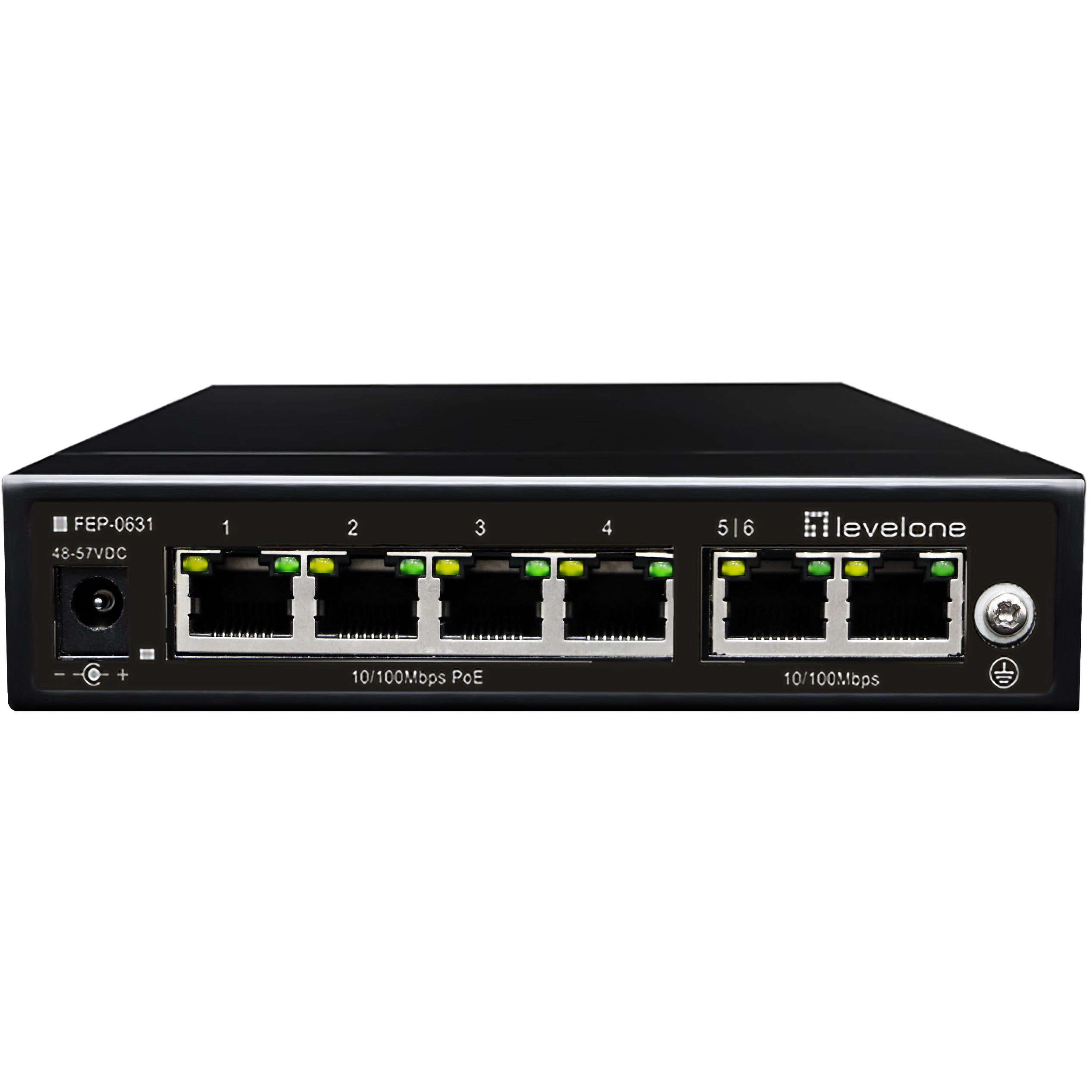

Switch 6x FE FEP-0631 60W 4xPoE+

112.02

LevelOne FEP-0631, Fast Ethernet (10/100), Power over Ethernet (PoE)

16 in stock

Categories: ,

Description

LevelOne FEP-0631. Basic Switching RJ-45 Ethernet Ports. Type: Fast Ethernet (10/100). Number of basic switching RJ-45 Ethernet ports: 6. MAC address table: 1000 entries. Network standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. DC input voltage: 48 – 57 V. Power over Ethernet (PoE)

The LevelOne FEP-0631 is a Fast Ethernet PoE switch with a total of 6 ports, two of which are available as uplink ports and 4 ports for Power over Ethernet. Each PoE port can deliver up to 30W of power. The total PoE power budget is 60W. Distances of up to 250m at 10Mbps are supported. It is the ideal solution when users use a combination of PoE and non-PoE devices. The FEP-0631's four PoE-capable ports make it ideal for deploying PoE-enabled devices, including a mix of PoE IP phones, PoE Wi-Fi APs, and PoE IP cameras. It is the perfect solution for environments that want to upgrade their devices and LAN infrastructure to PoE capability. The switch automatically detects the connected IEEE 802.3at/af standard device and supplies these devices with power and data over a single cable. Furthermore, the FEP-0631 enables users to deploy a stable and reliable high-speed LAN environment with store-and-forward switching architecture, packet error filtering, and non-blocking packet forwarding. The 802.3x flow control mechanisms operate in both full- and half-duplex modes. The device supports the N-Way Auto-Negotiation protocol, which automatically detects network speed and duplex mode. For instant error detection, the FEP-0631 is equipped with a series of LEDs that facilitate network monitoring and troubleshooting.
