Switch 8x GE IGP-1061 2xGSFP 240W 8xPoE+
€472.05
LevelOne IGP-1061, Managed, L2, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE)
- Description
- Additional information
Description
LevelOne IGP-1061. Switch type: Managed, Switch level: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 8. Number of installed SFP modules: 2. Console port: RJ-45. MAC address table: 8000 entries. Network standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE…. DC input voltage: 48 – 57 V. Power over Ethernet (PoE)

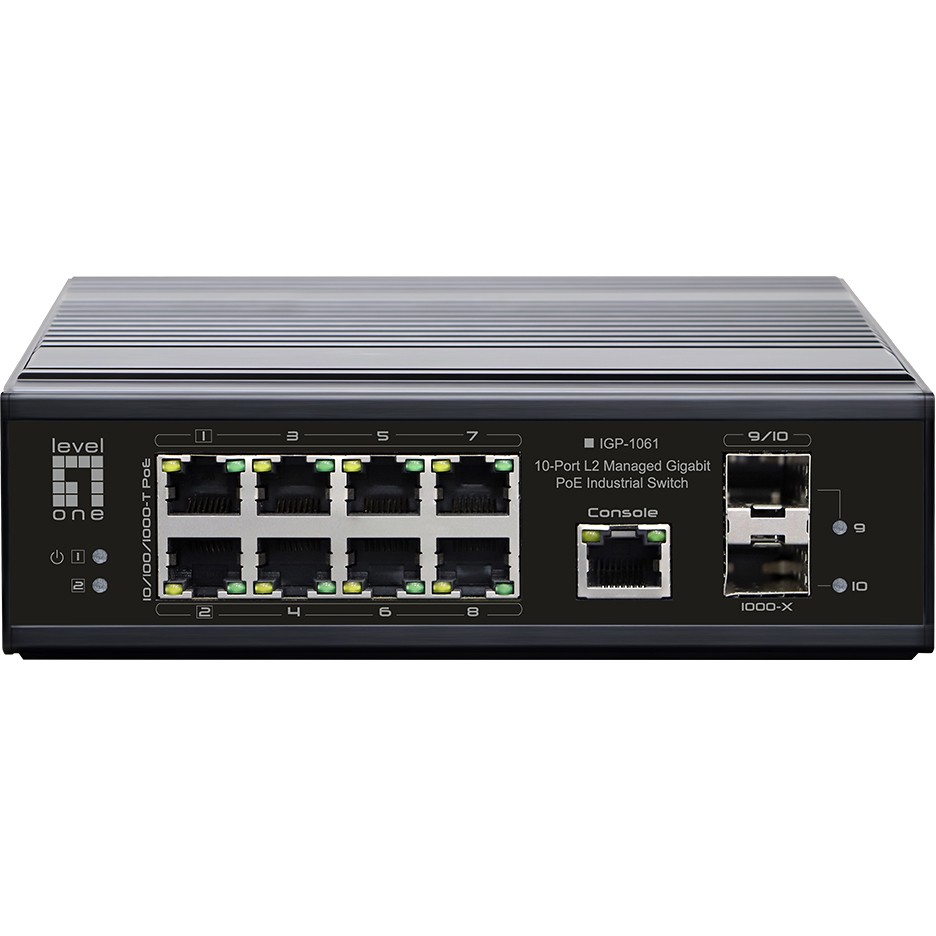

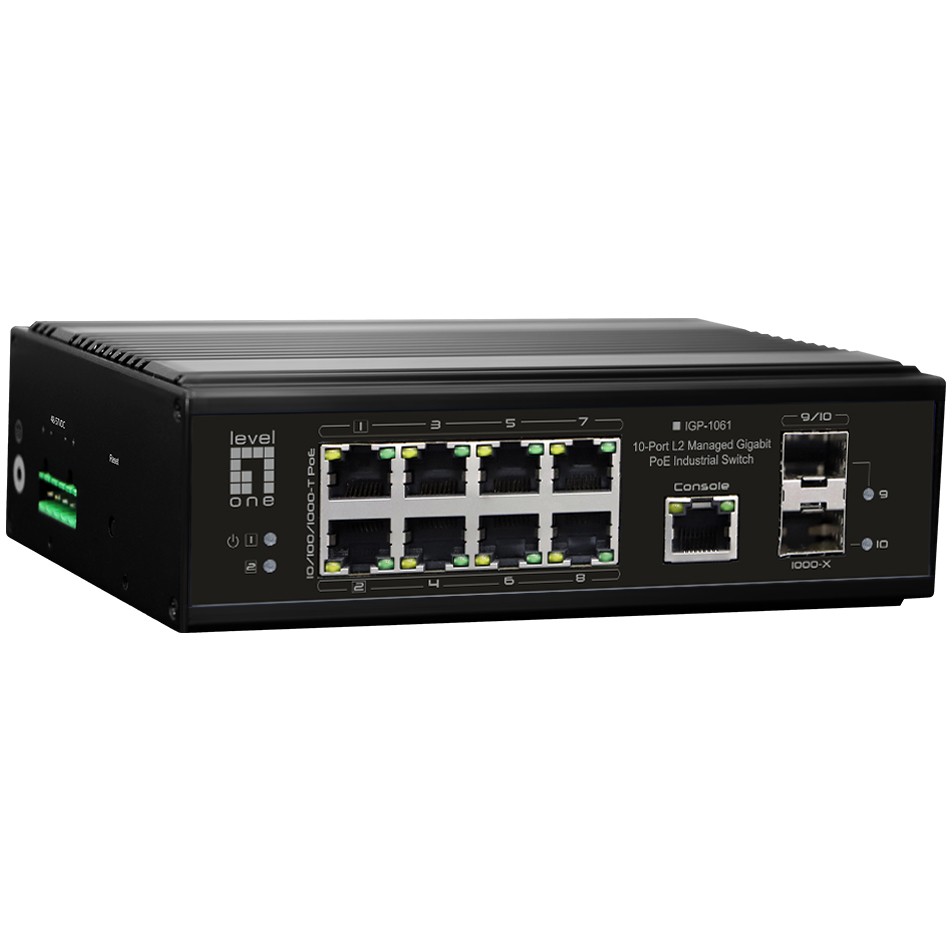

The LevelOne IGP-1061 Layer 2 Managed Gigabit PoE Industrial Switch offers 8 PoE 10/100/1000Base-T ports and 2 Gigabit SFP ports to enable high-speed networking in mission-critical environments. Industrial-standard DIN-rail mounting and high-visibility status LEDs allow for easy monitoring of port connection activity. Additionally, the SFP slots support pluggable modules, allowing you to choose from a wide variety of transceivers. This switch is a Power Sourcing Equipment (PSE) and fully compliant with the IEEE 802.3af/at/bt PoE standard, with a maximum power budget of 90W on ports 1 and 2. It helps drastically reduce infrastructure cabling costs by eliminating electrical wiring and reducing the need for UPSs.
Additional information
| Switch type | |
|---|---|
| Switch level | |
| Characteristic | ARP inspection, Auto-negotiation function, BPDU filtering/protection, Broadcast storm control, DIN rail mounting, Fanless, Filter MAC addresses, Jumbo frames support, Link aggregation, Multicast support, Password protection, Port mirroring, Power over Ethernet (PoE), Quality of Service (QoS) Support, Quick start overview, Spanning tree protocol, Static route, Support data flow control, VLAN support, Web-based management |
| Number of basic switching RJ-45 Ethernet ports | |
| Basic switching RJ-45 Ethernet ports type | |
| Number of Gigabit Ethernet (copper) connections | |
| Number of installed SFP modules | |
| Console port | |
| Network standard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Copper ethernet cabling technology | |
| Virtual LAN functions | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| MAC address table | |
| Jumbo frames | |
| DHCP functions | |
| Product color | |
| LED indicators | |
| Storage capacity | |
| Flash memory | |
| Noise level | |
| Mean Time Between Failures (MTBF) | |
| Energy source | |
| DC input voltage | |
| Power consumption (standard operation) | |
| Power consumption (max.) | |
| Power over Ethernet (PoE) power per connection | |
| Total power over Ethernet (PoE) | |
| Operating temperatur | 40 – 75 ° C |
| Storage temperature range | |
| Relative humidity in operation | |
| Storage humidity | |
| Broad | |
| Depth | |
| Height | |
| Weight | |
| Packaging type | |
| Packaging width | |
| Packaging depth | |
| Packing height | |
| Package weight | |
| Certification | |
| Country of origin | |
| Goods tariff number (HS) | 85176990 |
| Manufacturer |
