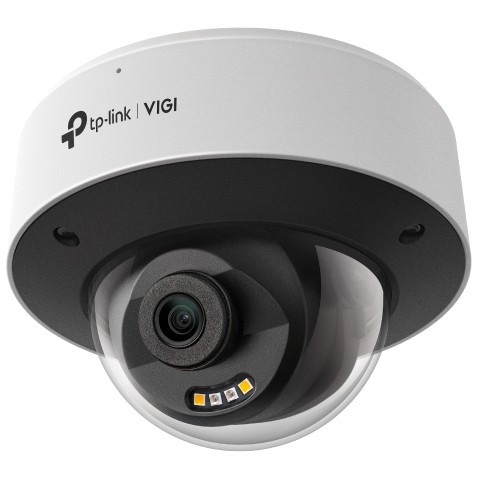

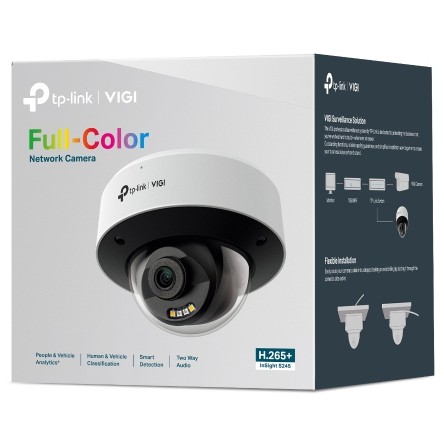

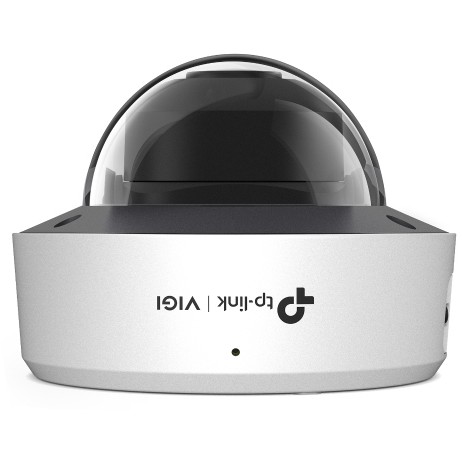

TP-Link Omada InSight S245(4mm) 4MP full-color network camera
€265.93
TP-Link InSight S245, IP security camera, outdoor, wired, 80 m, 120 dB, ceiling
- Description
- Additional information
Description
TP-Link InSight S245. Type: IP security camera, Supported positioning: Outdoor, Transmission technology: Wired, Mounting type: Ceiling, Product color: White, Form factor: Dome. Viewing angle (horizontal): 88°, Viewing angle (vertical): 46°, Diagonal lens viewing angle: 105.4°. Sensor type: CMOS, Image sensor size: 25.4 / 2.7 mm (1 / 2.7″). Distance detection: 80 m, Distance observation: 33 m, Distance detection: 16 m
All colors, anytime
4 MP full color dome network camera
Person and vehicle analysis
Search and filter for people or vehicles of interest based on various attributes to make post-processing faster and easier.
Human and vehicle classification
Distinguish people and vehicles from other objects and receive more accurate event notifications.
Intelligent video enhancement technology
– True WDR: By analyzing and combining different exposures, true WDR ensures that both bright and dark areas remain correctly exposed. This delivers a balanced and natural image, even in high-contrast environments.
– Intelligent IR: Intelligent IR dynamically adjusts infrared illumination to avoid overexposure and glare, improve visibility at different distances, and ensure clearer recordings.
– 3D DNR: 3D DNR is a noise reduction technology that analyzes image data across multiple frames to selectively reduce noise while preserving important details.
– White balance: White balance ensures that white in an image appears neutral regardless of the lighting conditions.
Efficient H.265+ compression technology
H.265+ reduces the bandwidth and storage requirements for video while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively.
Additional information
| pa_type | 6473 |
|---|---|
| Assisted positioning | Outside |
| Transmission technology | |
| Maximum working distance | 80m |
| Characteristic | Backlight compensation, Built-in microphone, Built-in speakers, Camera pan control, Camera panning control, Classification of human and vehicle targets, Cloud managed, Day/night mode, Digest authentication, Digital Wide Dynamic Range (DWDR), Direct current connection (DC), Ethernet/LAN, Full-screen method, Highlight Compensation (HLC), HTTPS encryption, Infrared (IR) cut-off filter, Integrated sirens, IP address filter, Live View, Mirror, Motion sensor, Night vision, Operating manual, Password protection, Reset button, Video motion detector, Video recording, View from a distance, Weather resistance, Web browser, Web-based management, Wide Dynamic Range (WDR) |
| Dynamic range | 120dB |
| Form factor | |
| Fastening type | |
| Product color | |
| Housing material | |
| Protective function | |
| International protection class (IP code) | |
| IK Code | IK10 |
| Minimum lighting | 0 lux |
| Viewing angle (horizontal) | 88° |
| Viewing angle (vertical) | 46° |
| Lens viewing angle, diagonal | 105.4° |
| Tilt angle range | |
| Camera shutter speed | 1/3 to 1/10000 |
| Image sensor size | 25.4/2.7mm (1/2.7") |
| Sensor type | |
| Distance determination | 80m |
| Distance observation | 33 m |
| Distance detection | |
| Maximum f-number | |
| Fixed focal length | |
| LED type | |
| Maximum resolution | |
| Total megapixels | |
| Video compression formats | |
| Supported graphic resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304×1296, 2560 x 1440, 2688×1520 |
| Image quality adjustment | Brightness, Color saturation, Contrast, Mirror, Sharpness |
| Bitrate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Transmission speed | Main Stream: H.265+/H.265/H.264+/H.264, Substream: H.265/H.264 |
| Audio system | |
| Audio input channels | 1 channels |
| Audio channels | |
| Supported audio formats | |
| Sample rate | |
| Number of microphones | |
| Bitrate range | 0 – 64 kbit/s |
| Network standard | |
| Supported network protocols | ARP, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IPv4, IPv6, NTP, RTP, RTSP, SSL / TLS, TCP / IP, UDP, UPnP UDP |
| Compatible memory cards | |
| Max. Memory card size | |
| Number of Ethernet LAN connections (RJ-45) | |
| Alert notification type | |
| Energy source | |
| Power Consumption (Power over Ethernet (PoE)) | 12.52 W |
| DC output volts | |
| Operating temperatur | 30 – 60 ° C |
| Storage temperature range | |
| Relative humidity in operation | |
| Storage humidity | |
| Broad | |
| Depth | |
| Height | |
| Weight | |
| Number of cameras | |
| Manufacturer |
