Description

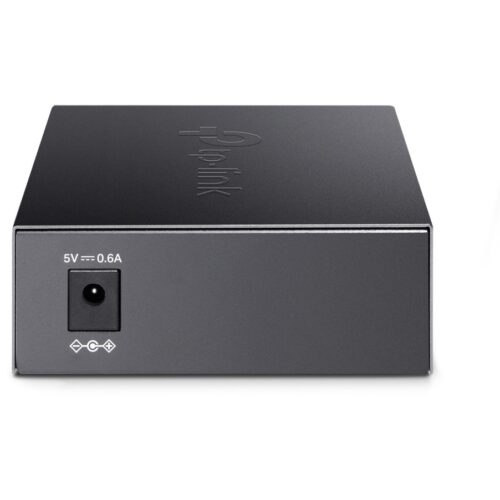

TP-Link Gigabit WDM Media Converter. Maximum data transfer rate: 1000 Mbps, Network standard: IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, Ethernet interface type: Gigabit Ethernet. Maximum possible transmission distance: 2000 m, Cable mode structure: Single mode, Supported fiber cable diameters (core/cladding): 9/125 µm. LED indicators: Activity, Link, Power, Product color: Black. Optical cable connector: SC, Transmission technology: Wired. Output voltage: 5 V, Output current: 0.6 A

What this product does

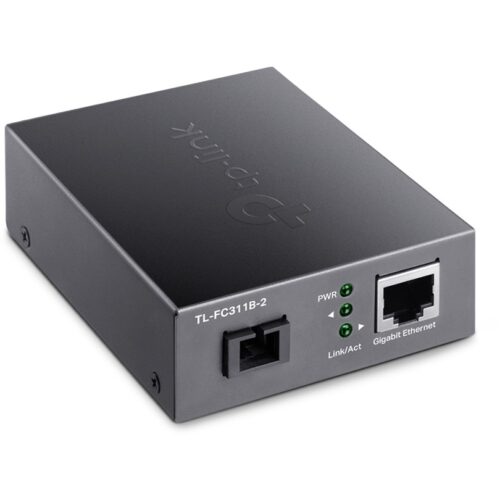

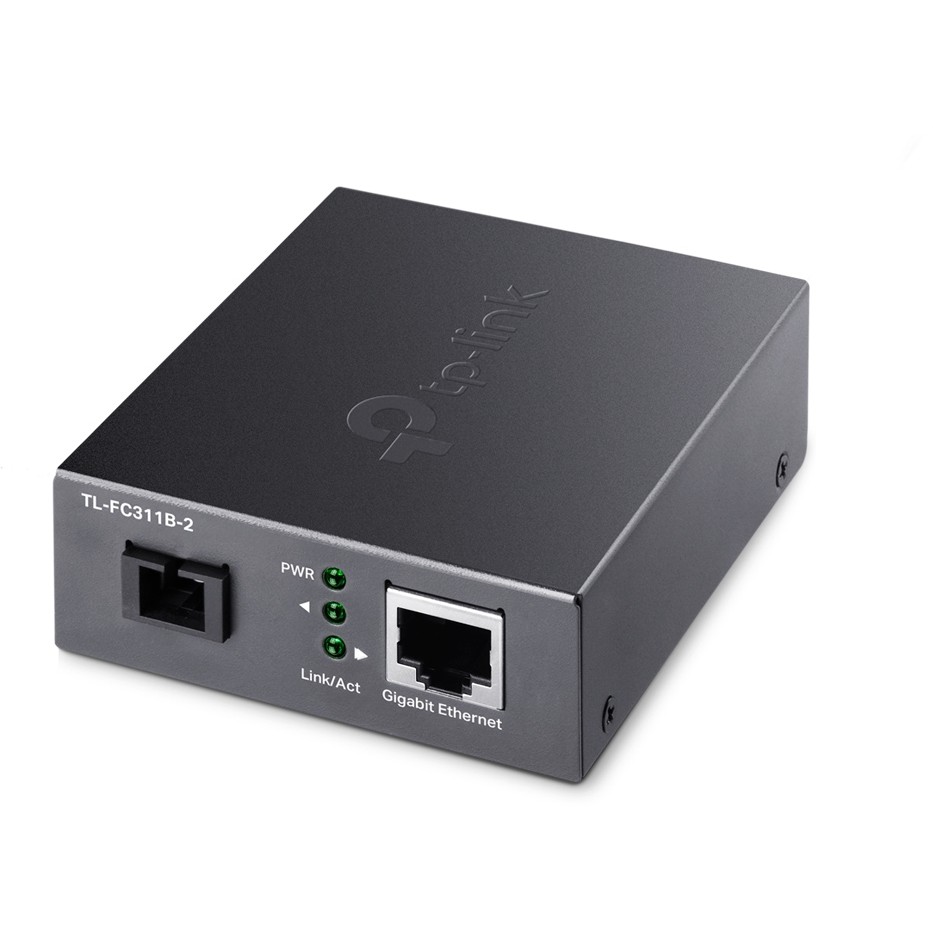

The TL-FC311B-2 is a Gigabit media converter with a Gigabit RJ-45 port and a Gigabit SC fiber optic port, capable of converting between electrical and optical signals. Long-distance data transmission via fiber optics is applicable to commercial scenarios such as parking security monitoring and wireless networking.

How this product works
The TL-FC311B-2 uses Wavelength Division Multiplexing (WDM) technology, which allows data to be transmitted and received over a distance of up to 2 km using a single-mode fiber, saving customers half the cost of cable deployment. The TL-FC311B-2 transmits data at a wavelength of 1310 nm and receives data at a wavelength of 1550 nm on a single optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311B-2 should transmit data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. Another TP-Link media converter, the TL-FC311A-2, is one of the products that can work with the TL-FC311B-2.

Other features
Additionally, this media converter can be used as a standalone device (no rack required) or with TP-Link's TL-FC1420 rack mount for Auto MDI/MDI-X in the TX port, where duplex mode is automatically negotiated.
