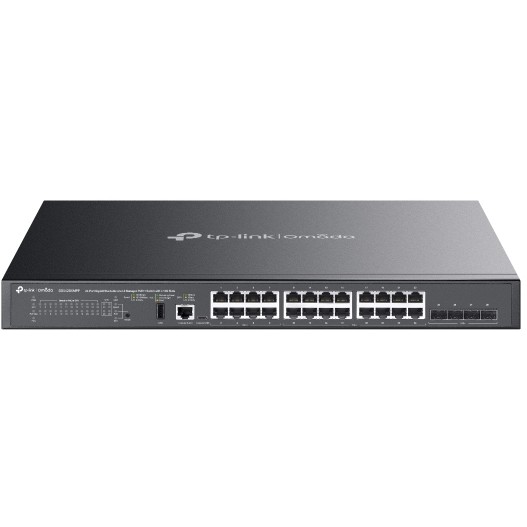

TP-Link Omada SG5428XMPP 24-port stack. Lite L3 mgd. PoE++ Switch 10G

Name: TP-Link Omada SG5428XMPP 24-port stack. Lite L3 mgd. PoE++ Switch 10G
SKU: 233800
Price: 819.03 EUR
Availability: InStock

€1,007.41

TP-Link SG5428XMPP, Managed, L3, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), rack installation

1 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

TP-Link SG5428XMPP. Switch type: Managed, Switch level: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Number of basic switching RJ-45 Ethernet ports: 24, Number of USB 2.0 ports: 1, Console port: RJ-45. MAC address table: 16,000 entries, Routing/switching capacity: 128 Gbps. Network standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Power over Ethernet (PoE). Rack-mountable.

Additional information

Switch type	Managed
Switch level	L3
Characteristic	10G support, ARP inspection, Broadcast storm control, Built-in processor, Cloud managed, Filter MAC addresses, IGMP snooping, IP-MAC port binding, Jumbo frames support, LED indicators, Link aggregation, Multicast support, Password protection, Port mirroring, Power over Ethernet (PoE), Power supply included, Pressure rise protection, Quality of Service (QoS) Support, Quick start overview, Rack installation, Rack mounting kit, SSH/SSL support, Stackable, Static connection security, Store and forward, Telnet, Upgradeable firmware, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Number of Gigabit Ethernet (copper) connections	24
Quantity of SFP + module slots	4
USB Type-C number of ports	1
Console port	RJ-45
Number of USB 2.0 ports	1
Network standard	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Virtual LAN functions	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000
Routing / switching capacity	128 Gbit / s
Transfer rate	95.23 Mpps
MAC address table	16,000 entries
Jumbo frames	9000
Data packet buffer memory	12 MB
DHCP functions	DHCP relay, DHCP server
Supported security algorithms	SNMP, SNMPv2, SNMPv3
Product color	Black
Number of fans	3 fans
Physical stacking (units)	4
Processor manufacturer	POOR
Processor clock frequency	1200 MHz
Storage type	DRAM
Storage capacity	2000 MB
Flash memory	512 MB
Mean Time Between Failures (MTBF)	292.83 hours
Energy source	AC/PoE
AC input voltage	100-240V
AC input frequency	50/60 Hz
Power consumption (max.)	587.7 W
Pressure rise protection voltage	6kV
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Number of Power over Ethernet plus (PoE +) connections	16
Number of Power over Ethernet 4PPoE (PoE++) ports	8
Power over Ethernet (PoE) power per connection	90 W
Total power over Ethernet (PoE)	500 W
Management level	4
Bandwidth	64 Gbit / s
Operating temperatur	5 – 45 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	5 – 90%
Broad	440 mm
Depth	330 mm
Height	44 mm
Supplied cables	AC
Certificates of conformity	CE, Federal Communications Commission (FCC), RoHS
Manufacturer	TP-Link
