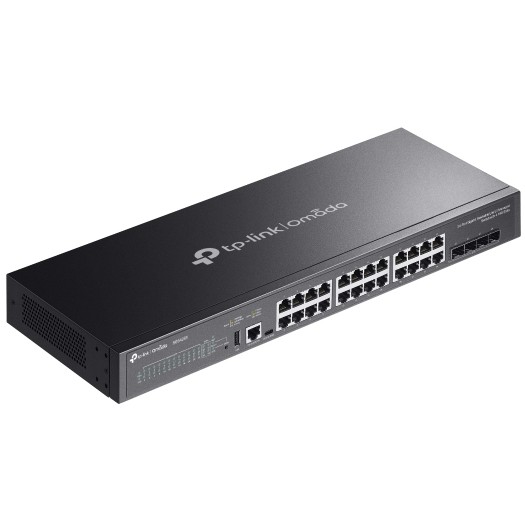

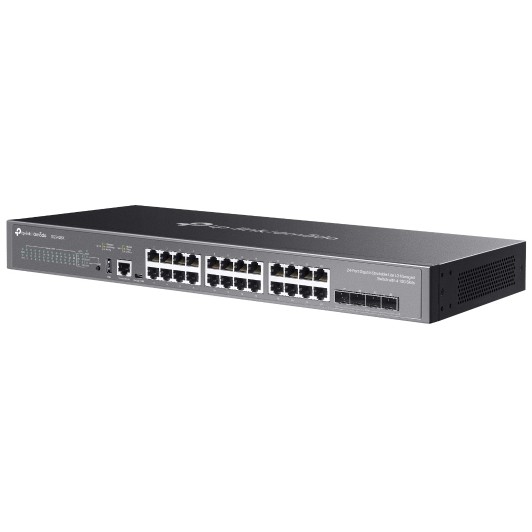

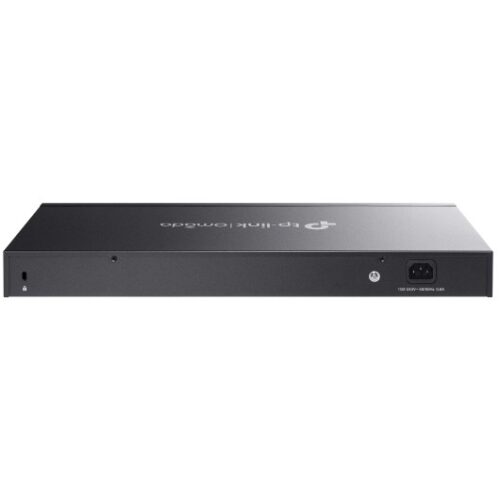

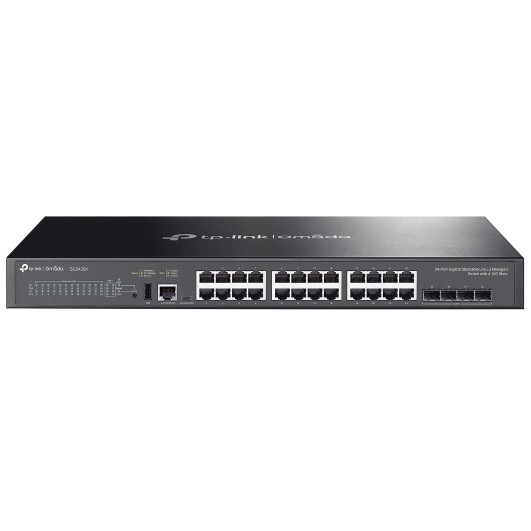

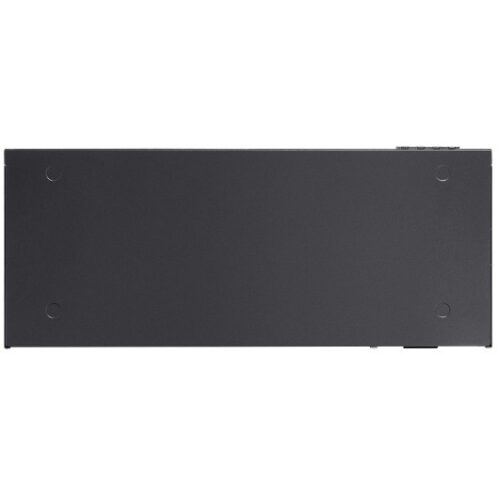

TP-Link Omada SG5428X(UN) 24-Port stack Lite L3 mgd Switch 4 10G Slots

Name: TP-Link Omada SG5428X(UN) 24-Port stack Lite L3 mgd Switch 4 10G Slots
SKU: 235057
Price: 469.02 EUR
Availability: InStock

€576.89

TP-Link Omada SG5428X, Managed, L3, Gigabit Ethernet (10/100/1000), Rack Mount

6 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

TP-Link Omada SG5428X. Switch type: Managed, Switch level: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Number of basic switching RJ-45 Ethernet ports: 24, Number of USB 2.0 ports: 1, Console port: RJ-45. MAC address table: 16,000 entries, Routing/switching capacity: 128 Gbps. Network standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt. Rack-mountable.

Additional information

Switch type	Managed
Switch level	L3
Characteristic	10G support, Access control list, ARP inspection, Broadcast storm control, Built-in processor, Cloud managed, Fanless, Filter MAC addresses, IGMP snooping, IP-MAC port binding, Jumbo frames support, LED indicators, Link aggregation, Multicast support, Password protection, Port mirroring, Power supply included, Pressure rise protection, Quality of Service (QoS) Support, Quick start overview, Rack installation, Rack mounting kit, SSH/SSL support, Stackable, Static connection security, Store and forward, Telnet, Upgradeable firmware, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Number of Gigabit Ethernet (copper) connections	24
Quantity of SFP + module slots	4
USB Type-C number of ports	1
Console port	RJ-45
Number of USB 2.0 ports	1
Network standard	IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Virtual LAN functions	MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs	4000
Routing / switching capacity	128 Gbit / s
Transfer rate	95.23 Mpps
MAC address table	16,000 entries
Jumbo frames	9000
Data packet buffer memory	12 MB
DHCP functions	DHCP relay, DHCP server
Supported security algorithms	SNMP, SNMPv2, SNMPv3
Product color	Black
Physical stacking (units)	4
Processor manufacturer	POOR
Processor clock frequency	1200 MHz
Storage type	DRAM
Storage capacity	2000 MB
Flash memory	512 MB
Mean Time Between Failures (MTBF)	519,543 hours
Energy source	AC
AC input voltage	100-240V
AC input frequency	50/60 Hz
Power consumption (max.)	19.6 W
Pressure rise protection voltage	6kV
Management level	4
Bandwidth	64 Gbit / s
Operating temperatur	5 – 45 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	5 – 90%
Heat dissipation	66.87 BTU/h
Broad	440 mm
Depth	180 mm
Height	44 mm
Supplied cables	AC
Certificates of conformity	CE, Federal Communications Commission (FCC), RoHS
Manufacturer	TP-Link
