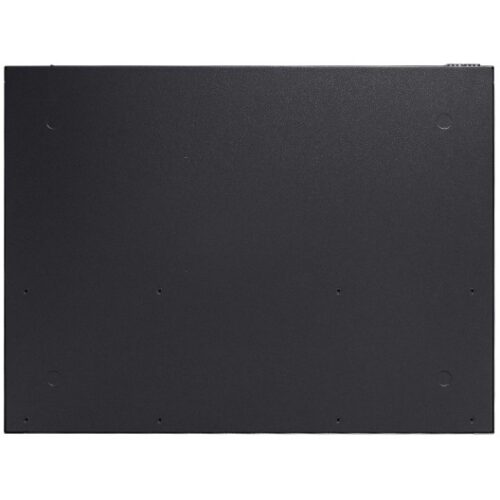

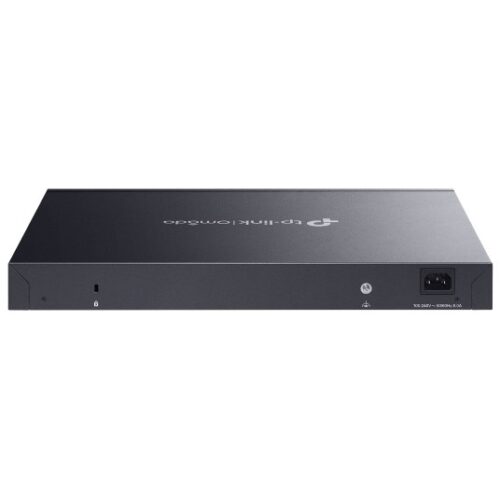

TP-Link Omada Switch 24x GE SG3428XMPP

Name: TP-Link Omada Switch 24x GE SG3428XMPP
SKU: 234914
Price: 680.10 EUR
Availability: InStock

€836.52

TP-Link Omada SG3428XMPP, Managed, L2+, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), rack installation, 1U

1 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

TP-Link Omada SG3428XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 24. Console port: RJ-45/Micro USB. MAC address table: 16,000 entries. Routing/switching capacity: 128 Gbps. Network standard: IEEE 802.3af, IEEE 802.3at. Power connector: AC input jack. Power over Ethernet (PoE). Rack mountable, form factor: 1U.

Additional information

Switch type	Managed
Switch level	L2 +
Characteristic	10G support, Access control list, ARP inspection, BPDU filtering/protection, Broadcast storm control, Cloud managed, Configuring Site Settings (CLI), Filter MAC addresses, Head-of-Line (HOL) blocking, IGMP snooping, IP-MAC port binding, Jumbo frames support, LED indicators, Link aggregation, Multicast support, Port mirroring, Power over Ethernet (PoE), Power supply included, Quality of Service (QoS) Support, Quick start overview, Rack installation, Rate Limiting, Reset button, Spanning tree protocol, SSH/SSL support, Static connection security, Store and forward, Support data flow control, System event log, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Quantity of SFP + module slots	4
Console port	RJ-45 / micro USB
Power plug	AC input socket
Network standard	IEEE 802.3af, IEEE 802.3at
Routing / switching capacity	128 Gbit / s
Transfer rate	95.23 Mpps
MAC address table	16,000 entries
Jumbo frames	9000
Data packet buffer memory	12 MB
DHCP functions	DHCP client, DHCP relay, DHCP server
Authentication	AutoVLAN, Guest VLAN
Form factor	1U
Product color	Black
Number of fans	3 fans
Energy source	AC
AC input voltage	100-240V
AC input frequency	50/60 Hz
Power consumption (max.)	486.2 W
Number of Power over Ethernet plus (PoE +) connections	16
Number of Power over Ethernet 4PPoE (PoE++) ports	8
Power over Ethernet (PoE) power per connection	30 W
Total power over Ethernet (PoE)	500 W
Operating temperatur	0 – 40 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	5 – 90%
Heat dissipation	1658.78 BTU/h
Broad	440 mm
Depth	330 mm
Height	44 mm
Supplied cables	AC
Certification	CE, FCC, RoHS
Manufacturer	TP-Link
