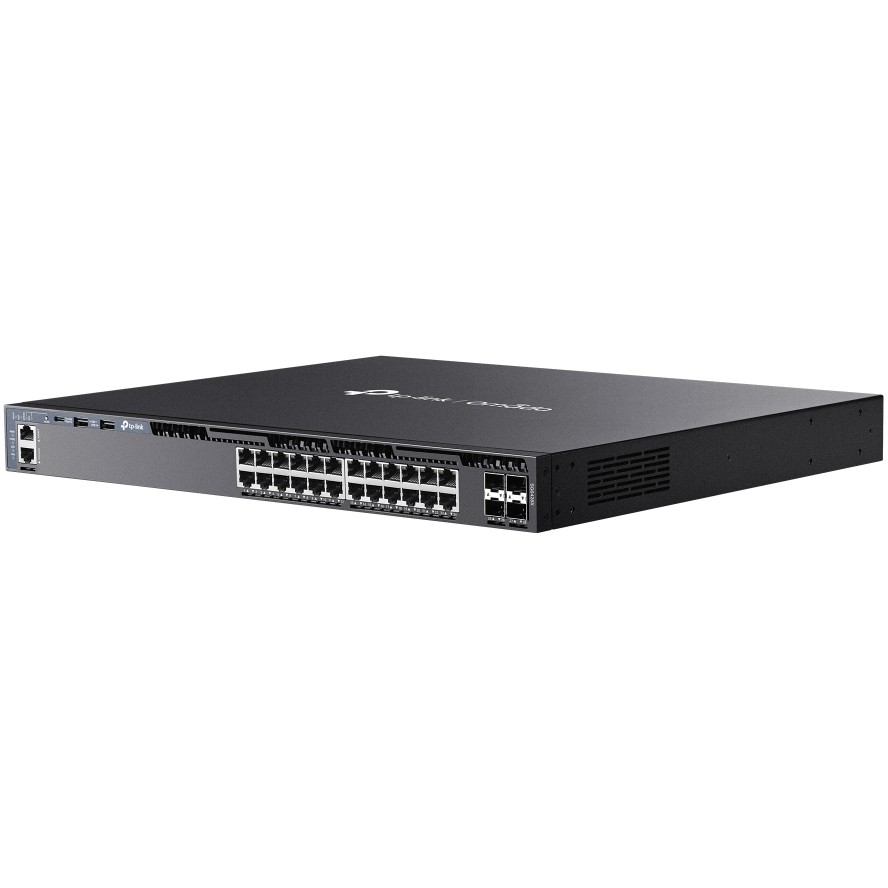

TP-Link Omada Switch 24x GE SG6428X Layer 3

Name: TP-Link Omada Switch 24x GE SG6428X Layer 3
SKU: 234896
Price: 1600.26 EUR
Availability: InStock

€1,968.32

TP-Link Omada SG6428X, Managed, L3, Gigabit Ethernet (10/100/1000), Rack-Mounted, 1U

3 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

TP-Link Omada SG6428X. Switch type: Managed, Switch level: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Number of basic switching RJ-45 Ethernet ports: 2, Number of USB 2.0 ports: 2, Console port: RJ-45/USB Type-C. MAC address table: 32,000 entries, Routing/switching capacity: 128 Gbps. Network standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x. Rack mountable, form factor: 1U

Additional information

Switch type	Managed
Switch level	L3
Characteristic	Access control list, ARP inspection, Broadcast storm control, Cloud managed, Configuring Site Settings (CLI), IGMP snooping, IP routing, Jumbo frames support, LED indicators, Loop protection, Multicast support, Operating manual, Port mirroring, Power supply included, Quality of Service (QoS) Support, Rack installation, Rate Limiting, Spanning tree protocol, SSH/SSL support, Stackable, Static route, Support data flow control, System event log, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Quantity of SFP + module slots	4
Console port	RJ-45/USB Type-C
Number of USB 2.0 ports	2
Network standard	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3x
Ethernet LAN data transfer rates	10,100,1000 Mbit / s
Virtual LAN functions	MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN
Number of VLANs	4000
Routing / switching capacity	128 Gbit / s
Transfer rate	95.2 Mpps
MAC address table	32,000 entries
Jumbo frames	9000
Data packet buffer memory	3 MB
DHCP functions	DHCP relay, DHCP snooping, DHCPv6 snooping
IGMP entries	2048
Authentication	AutoVLAN, MAC based authentication, Port based authentication
Authentication type	RADIUS
Form factor	1U
Product color	Black
Number of fans	4 fans
Energy source	AC
AC input voltage	100-240V
AC input frequency	50/60 Hz
Power consumption (max.)	28.4 W
Operating temperatur	5 – 40 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	5 – 90%
Heat dissipation	96.91 BTU/h
Broad	440 mm
Depth	380 mm
Height	44 mm
Supplied cables	AC, LAN (RJ-45)
Manufacturer	TP-Link
