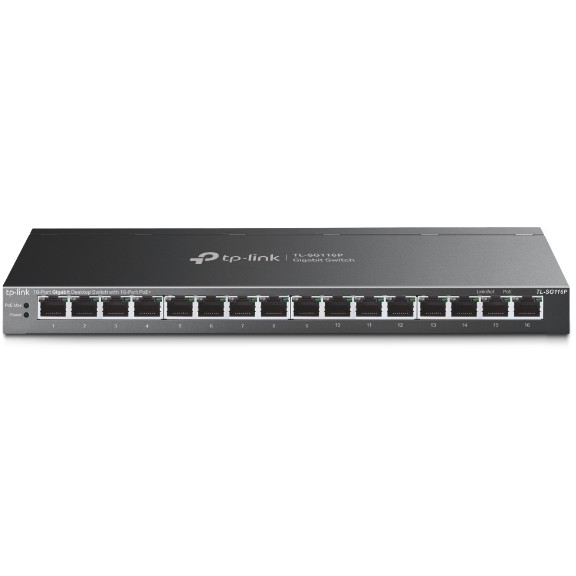

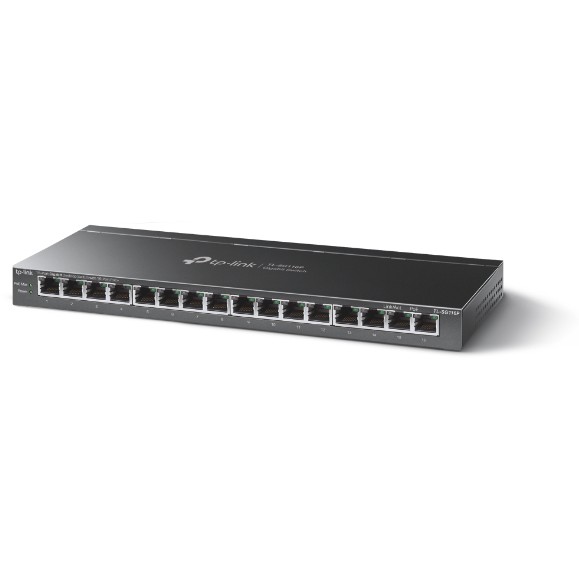

TP-Link Switch 16x GE TL-SG116P

Name: TP-Link Switch 16x GE TL-SG116P
SKU: 235046
Price: 139.31 EUR
Availability: InStock

€171.35

TP-Link TL-SG116P, Unmanaged, Gigabit Ethernet (10/100/1000), full duplex, Power over Ethernet (PoE), wall mounting

5 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

TP-Link TL-SG116P. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports: Gigabit Ethernet (10/100/1000). Number of basic switching RJ-45 Ethernet ports: 16. Full duplex. MAC address table: 8000 entries. Routing/switching capacity: 32 Gbps. Network standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. DC input voltage: 9 V. Power over Ethernet (PoE). Wall-mountable.

Additional information

Switch type	Unmanaged
Characteristic	Auto MDI/MDI-X, Auto-negotiation function, Broadcast storm control, Cable length measurement, Full duplex, IGMP snooping, Jumbo frames support, LED indicators, Link aggregation, Loop protection, Port mirroring, Power over Ethernet (PoE), Power supply included, Quality of Service (QoS) Support, Quick start overview, Rate Limiting, Stackable, Store and forward, Support data flow control, VLAN support, Wall mounting
Number of basic switching RJ-45 Ethernet ports	16
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Number of Gigabit Ethernet (copper) connections	16
Network standard	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Copper ethernet cabling technology	1000BASE-T, 100BASE-TX, 10BASE-T
Supported cable types	Cat3, Cat4, Cat5, Cat5e, Cat6
Virtual LAN functions	Protocol-based VLAN, Tagged VLAN
Number of VLANs	32
Routing / switching capacity	32 Gbit / s
Transfer rate	23.81 Mpps
MAC address table	8000 entries
Number of queues	4
Jumbo frames	9000
Data packet buffer memory	4.1 MB
Product color	Black
Housing material	Metal
AC input voltage	220 V
AC input frequency	50 Hz
DC input voltage	9 V
Input current	0.6 A
Power consumption (standard operation)	11.72 W
Power consumption (max.)	144.28 W
Operating temperatur	0 – 40 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	5 – 90%
Heat dissipation	490.55 BTU/h
Broad	286 mm
Depth	111.7 mm
Height	25.4 mm
Packaging width	227 mm
Packaging depth	434 mm
Packing height	70 mm
Package weight	2 kg
Manufacturer	TP-Link
