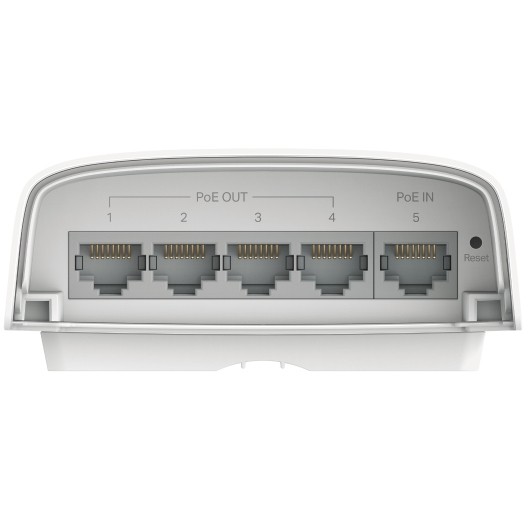

TP-Link TP-Link Omada Switch 5x GE SG2005P-PD

Name: TP-Link TP-Link Omada Switch 5x GE SG2005P-PD
SKU: 248702
Price: 119.97 EUR
Availability: InStock

€147.56

TP-Link Omada SG2005P-PD, Managed, L2/L2+, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), Desktop

34 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

TP-Link Omada SG2005P-PD. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Number of basic switching RJ-45 Ethernet ports: 4. MAC address table: 8000 entries. Routing/switching capacity: 10 Gbps. Network standards: IEEE 802.11d, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE…. Power over Ethernet (PoE). Form factor: Desktop.

Additional information

Weight	0.52 kg
Switch type	Managed
Switch level	L2 / L2 +
Characteristic	10G support, Access control list, ARP inspection, Cloud managed, Filter MAC addresses, IGMP snooping, IP-MAC port binding, Jumbo frames support, LED indicators, Link aggregation, MIB support, Multicast support, Password protection, Port mirroring, Power over Ethernet (PoE), Power supply included, Quality of Service (QoS) Support, Spanning tree protocol, Support data flow control, Sustainability compliance, VLAN support, Web-based management
Number of basic switching RJ-45 Ethernet ports	4
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Number of 10G Ethernet (copper) ports	4
Copper ethernet cabling technology	100BASE-T, 100BASE-TX, 10BASE-T
Supported cable types	Cat5, Cat5e
IPv4 routes	32
IPv6 routes	32
Virtual LAN functions	Voice VLAN
Number of VLANs	4000
Routing / switching capacity	10 Gbit / s
MAC address table	8000 entries
Jumbo frames	9
Packet forwarding rate (1 Gbit / s)	7440 pps
Data packet buffer memory	4.1 MB
DHCP functions	DHCP relay, DHCP server
Access Control List (ACL) IPv4 entries	32
Supported security algorithms	802.1x RADIUS
Authentication	MAC based authentication, Port based authentication
Multicast MAC address table	8000 entries
IPv4 multicast entries	511
IPv6 multicast entries	511
IPv4 & IPv6 functions	Dual stack IPv4 / IPv6, IPv4 / IPv6 access-control list (ACL), IPv6 tracer
Form factor	Desktop
Product color	White
Energy source	DC/PoE
Power consumption (standard operation)	71.5 W
Power over Ethernet (PoE) power per connection	64 W
Operating temperatur	40 – 60 ° C
Storage temperature range	40 – 70 ° C
Relative humidity in operation	10 – 90%
Storage humidity	5 – 90%
Heat dissipation	243.99 BTU/h
Broad	170 mm
Depth	100 mm
Height	38.5mm
Certificates of conformity	CE, RoHS
Manufacturer	TP-Link
