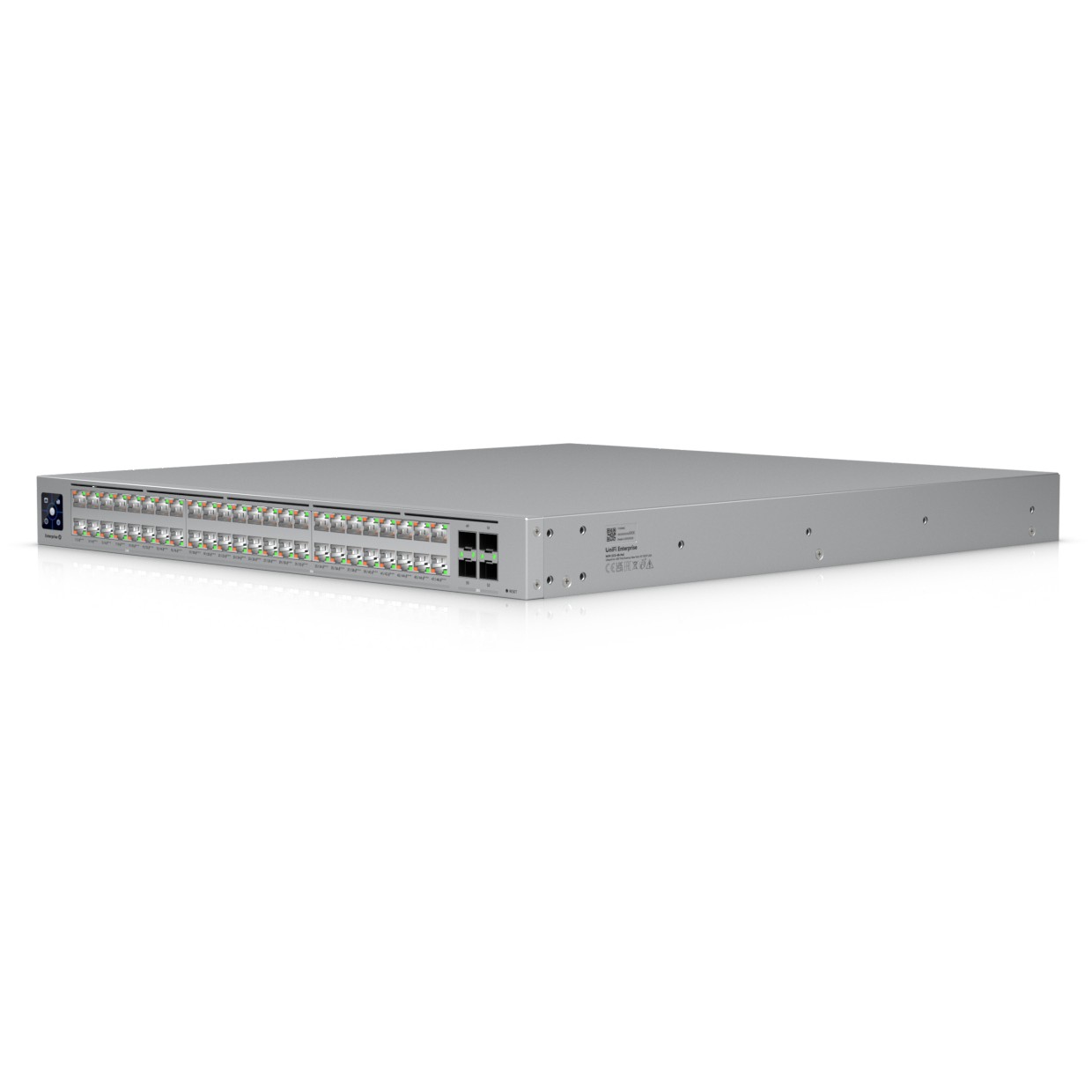

Ubiquiti Switch UniFi 16×2.5G RJ45/32x10G RJ45/4xSFP28 Managed PoE+++ 2150W 19″ rack-mountable. 1.3″ touchscreen

Name: Ubiquiti Switch UniFi 16x2.5G RJ45/32x10G RJ45/4xSFP28 Managed PoE+++ 2150W 19" rack-mountable. 1.3" touchscreen
SKU: 273406
Price: 4087.35 EUR
Availability: InStock

€5,027.44

Ubiquiti UniFi ECS-48-PoE, Managed, L2/L3, 10G Ethernet (100/1000/10000), Power over Ethernet (PoE), rack-mount, 1U

18 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Ubiquiti UniFi ECS-48-PoE. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Number of basic switching RJ-45 Ethernet ports: 48. MAC address table: 128,000 entries, Routing/switching capacity: 920 Gbps. Network standard: IEEE 802.1x, IEEE 802.3bt. Power connector: AC input jack. Power over Ethernet (PoE). Rack mount, form factor: 1U.

Additional information

Switch type	Managed
Switch level	L2 / L3
Characteristic	10G support, Broadcast storm control, IGMP snooping, Jumbo frames support, Link aggregation, Loop protection, Mounting blocks included, Multicast support, Port mirroring, Power over Ethernet (PoE), Power supply included, Quality of Service (QoS) Support, Rack installation, Rack mounting kit, Rate Limiting, Reset button, Static route, Storage rails, Support data flow control, Support for redundant power supply, Unused fan support, VLAN support
Number of basic switching RJ-45 Ethernet ports	48
Basic switching RJ-45 Ethernet ports type	10G Ethernet (100/1000/10000)
Number of 2.5G Ethernet (copper) ports	16
Number of 10G Ethernet (copper) ports	32
Quantity of SFP module slots	4
Number of SFP28 ports	4
Power plug	AC input socket
Network standard	IEEE 802.1x, IEEE 802.3bt
Ethernet LAN data transfer rates	10,100,1000,2500,5000,10000Mbps
IPv4 routes	256000
Virtual LAN functions	Voice VLAN
Number of VLANs	1000
Routing / switching capacity	920 Gbit/s
Throughput	460 Gbit/s
Transfer rate	684 MPps
MAC address table	128,000 entries
Data packet buffer memory	8 MB
DHCP functions	DHCP guarding, DHCP relay, DHCP snooping
Form factor	1U
Product color	Gray
Housing material	SGCC
LED indicators	Activity, Link, Status
Display type	LCM
Number of fans	4 fans
Energy source	AC
Number of power supply units	2
AC input voltage	100-240V
AC input frequency	50/60 Hz
Power consumption (max.)	2400W
Power over Ethernet (PoE) type supported	PoE+, PoE++ (4PPoE)
Power over Ethernet (PoE) power per connection	90 W
Total power over Ethernet (PoE)	2150 W
Operating temperatur	5 – 40 ° C
Relative humidity in operation	10 – 90%
Broad	442 mm
Depth	496 mm
Height	43.7 mm
Weight	9.46kg
Supplied cables	Perfomance
Certificates of conformity	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Manufacturer	Ubiquiti
