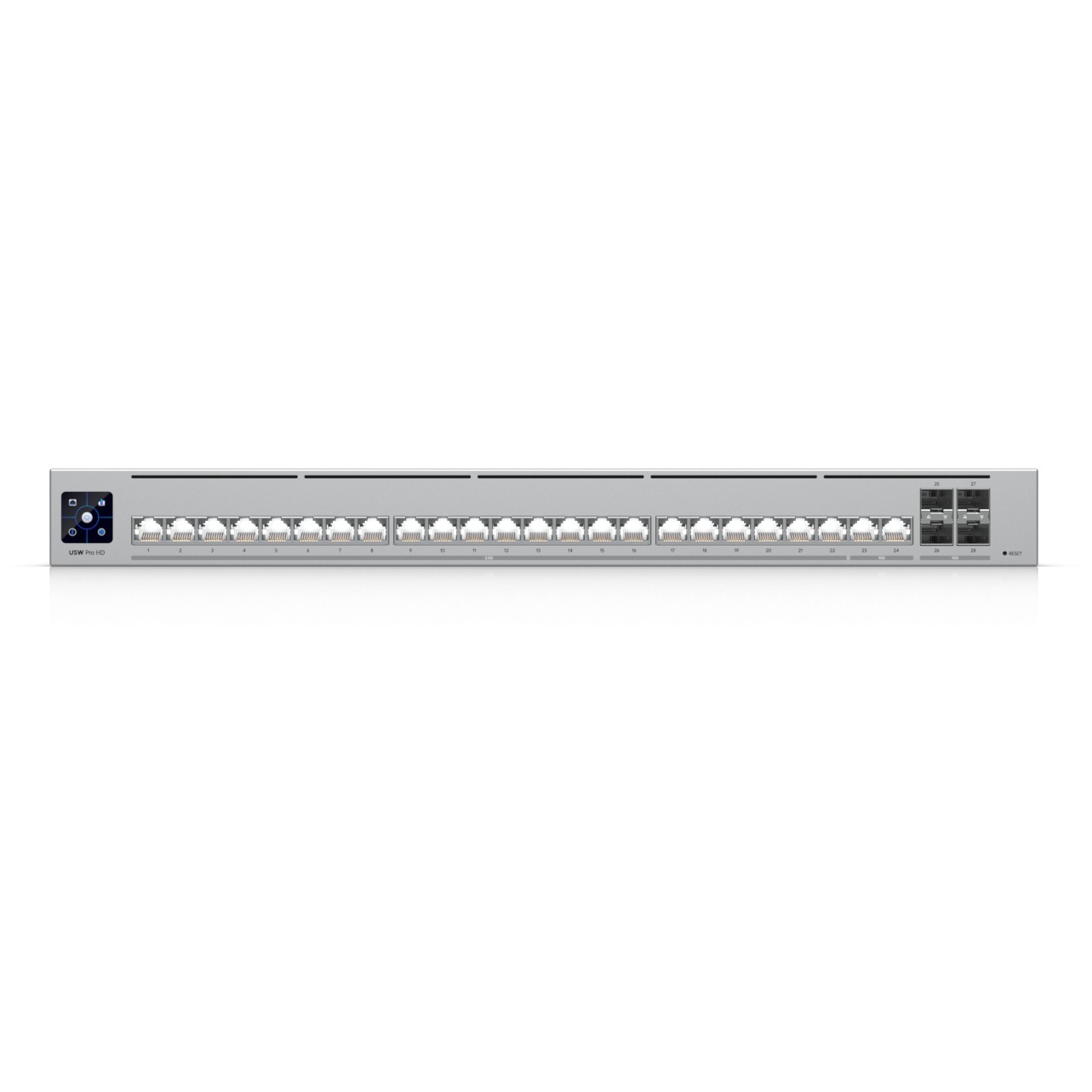

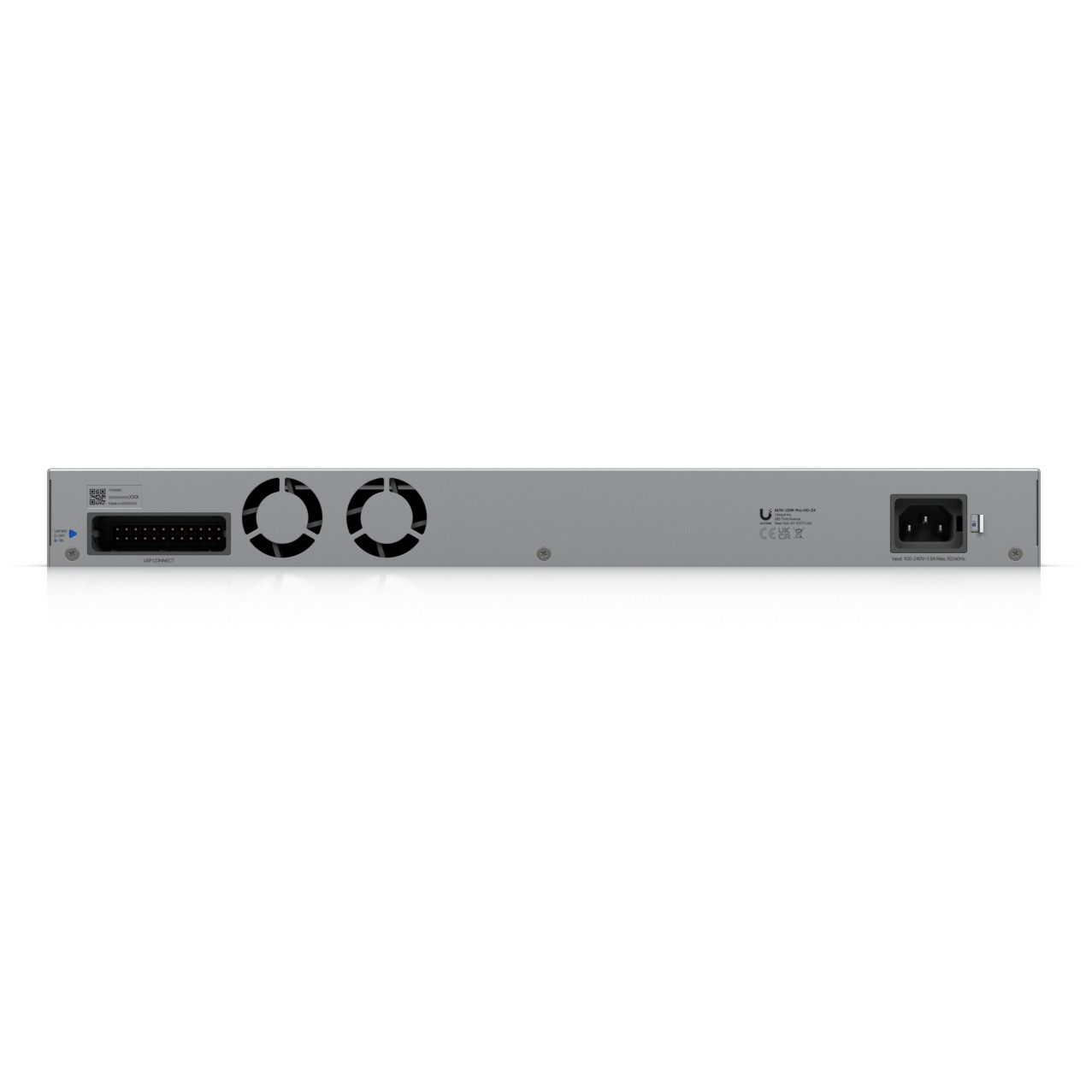

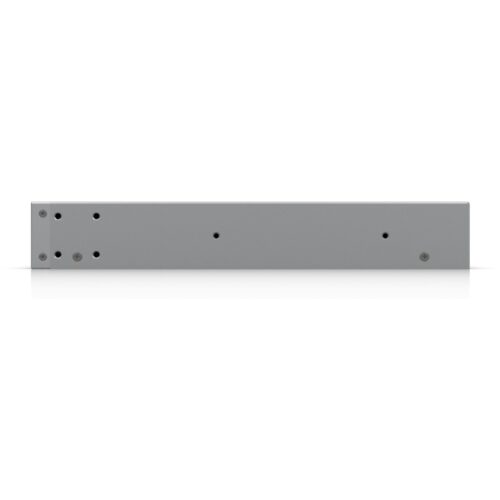

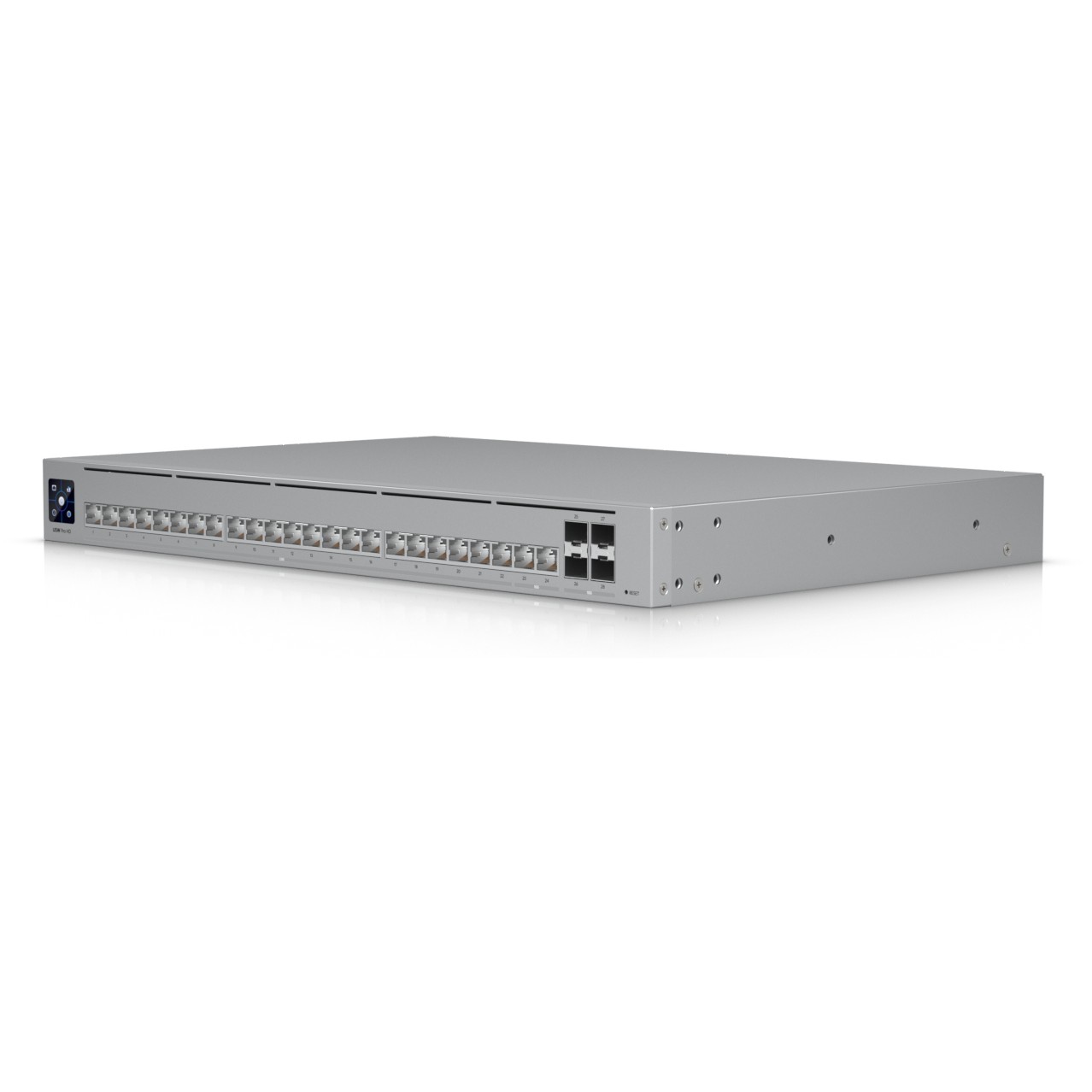

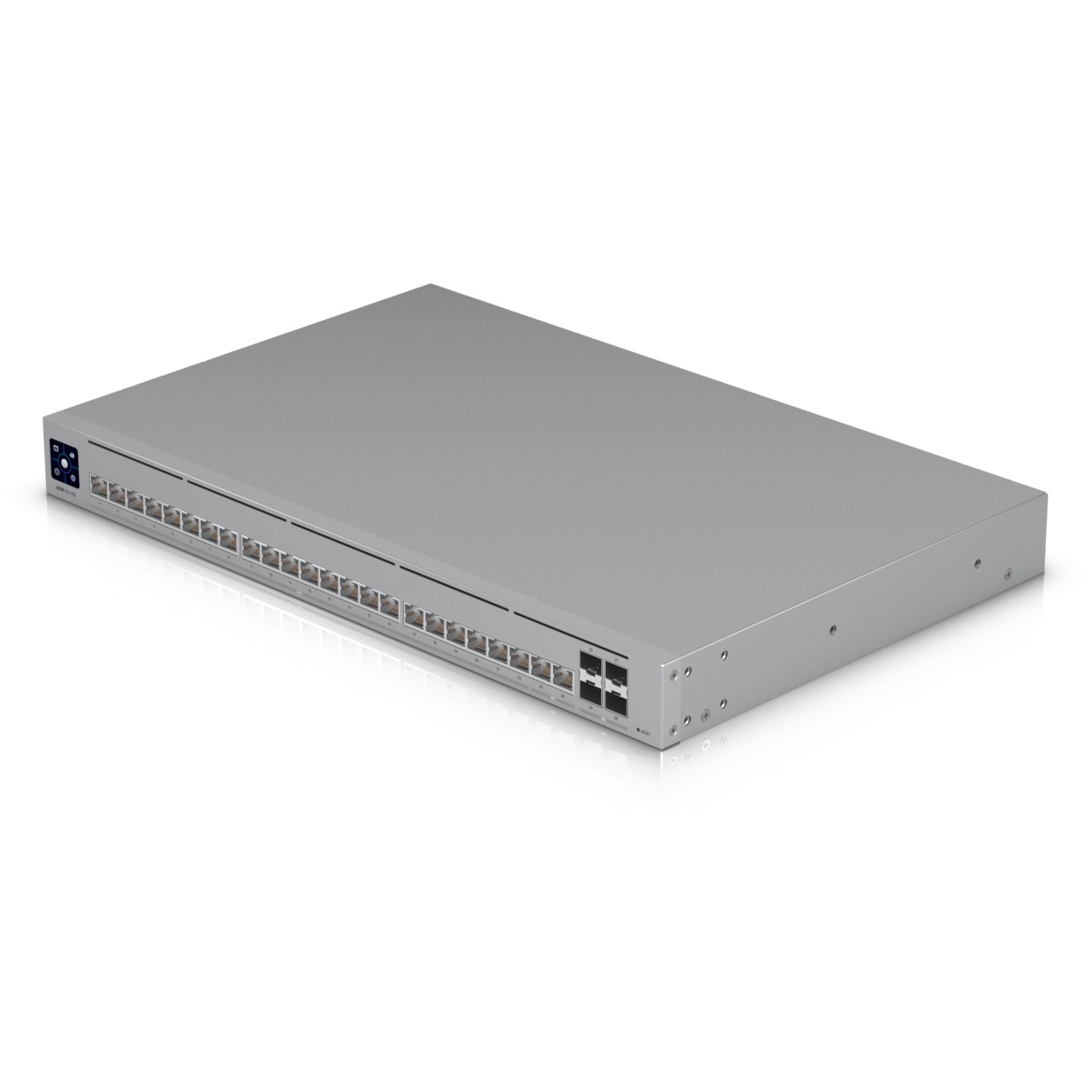

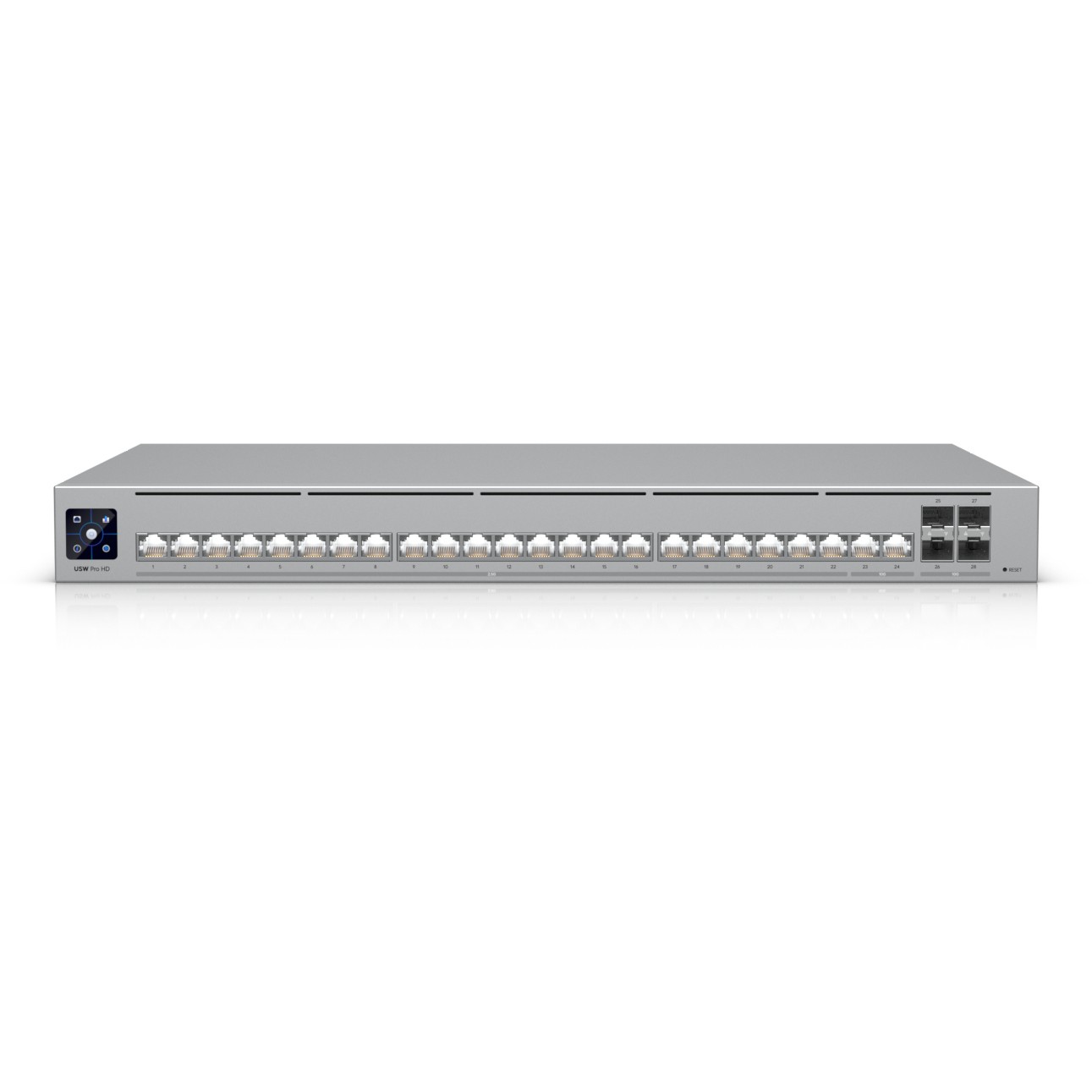

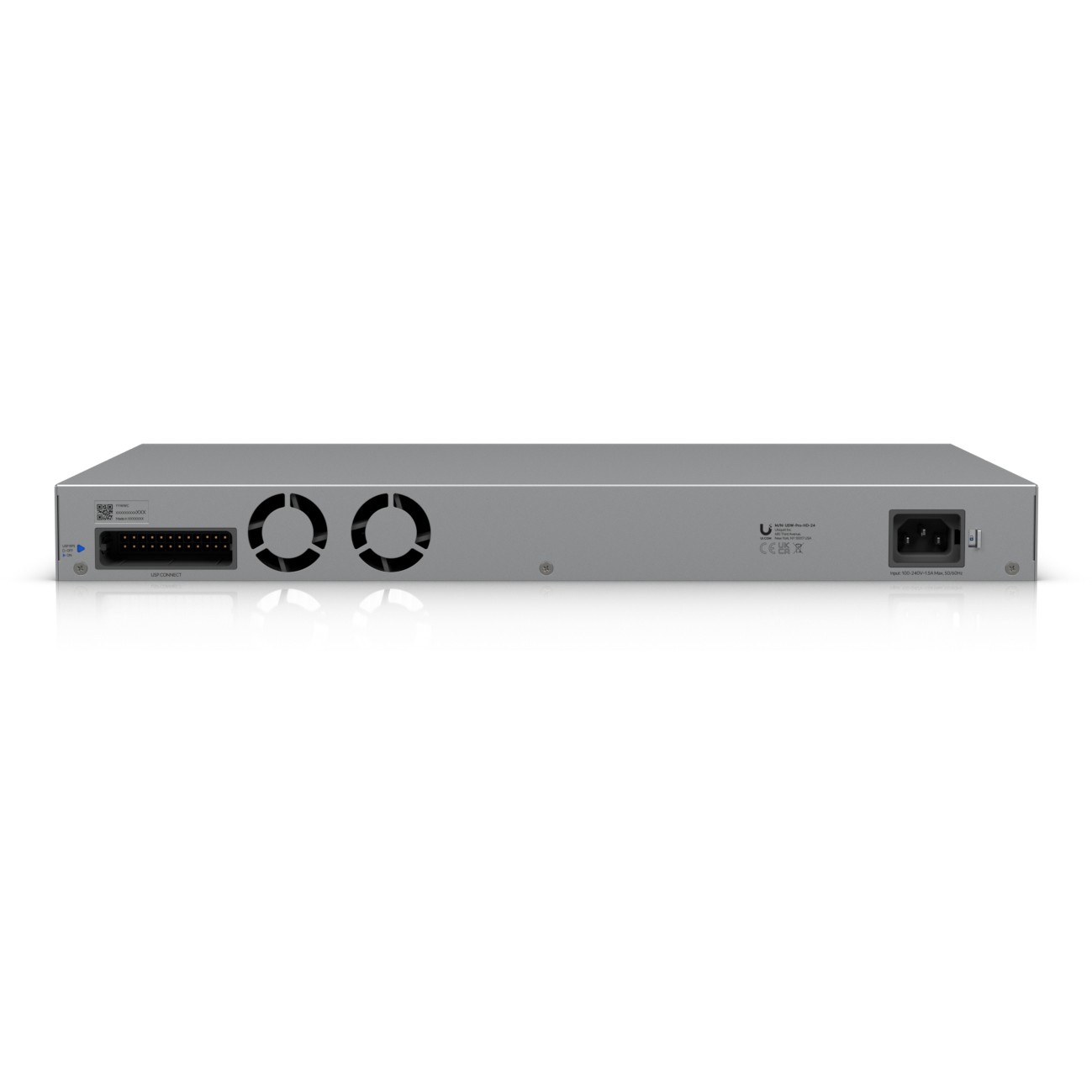

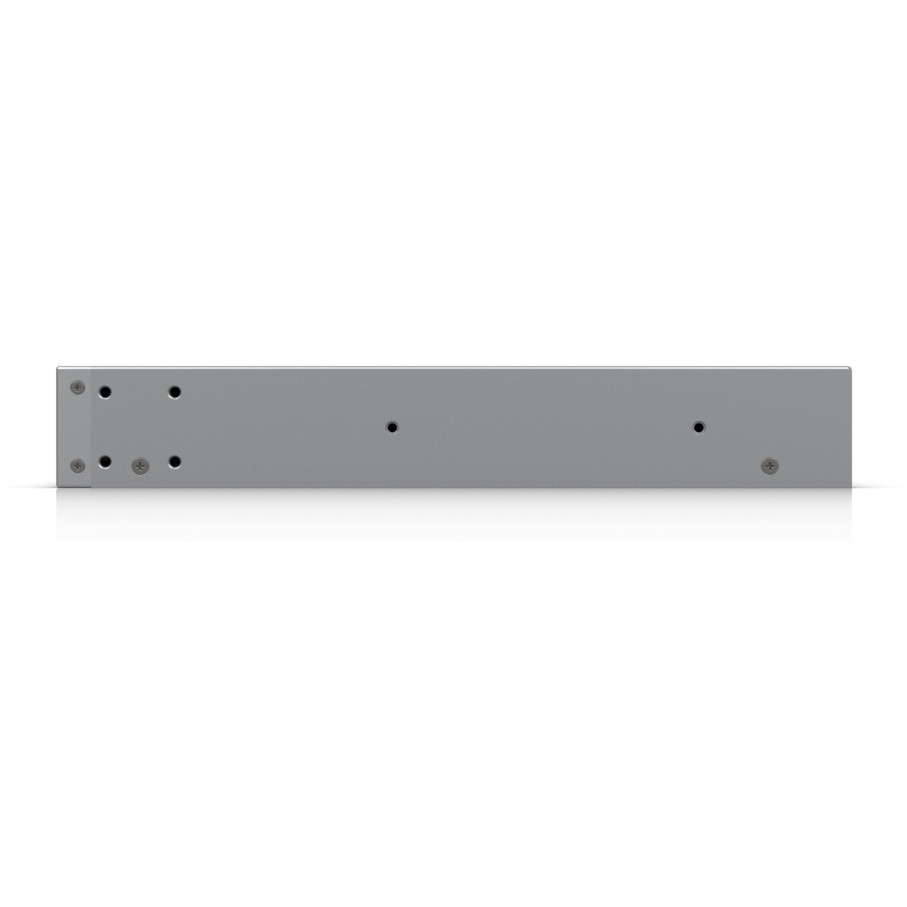

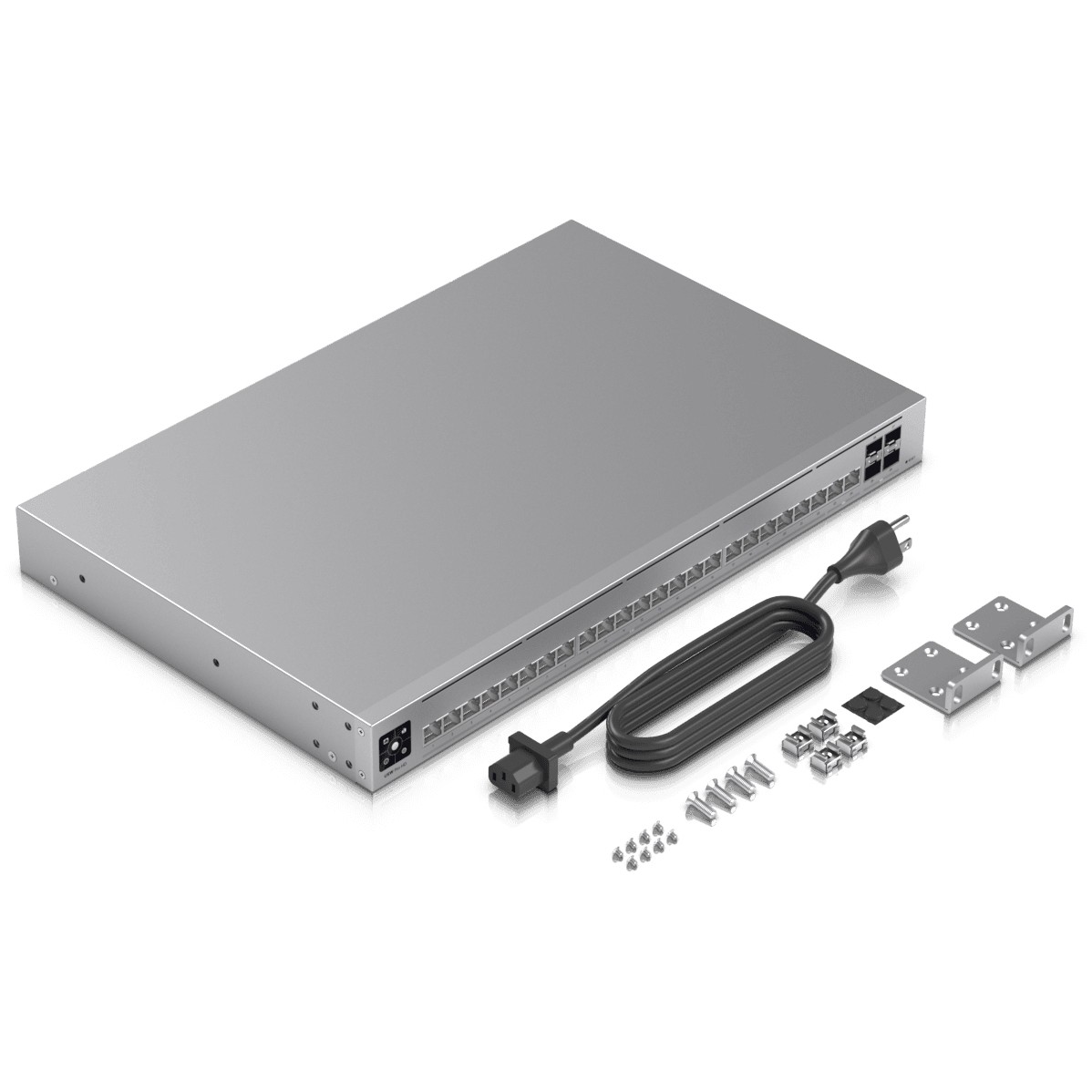

Ubiquiti UniFi Switch Pro HD 24 USW-PRO-HD-24

Name: Ubiquiti UniFi Switch Pro HD 24 USW-PRO-HD-24
SKU: 209129
Price: 585.65 EUR
Availability: InStock

€720.35

Ubiquiti UniFi Pro HD 24, Managed, L2/L3, 2.5G Ethernet (100/1000/2500), Rack Mount, 1U

31 in stock

Categories: network, Switching Hubs

Description
Additional information

Description

Ubiquiti UniFi Pro HD 24. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Number of basic switching RJ-45 Ethernet ports: 22. MAC address table: 32000 entries, Routing/switching capacity: 230 Gbps. Network standard: IEEE 802.1x. Power connector: AC/DC. Rack mount, form factor: 1U.

Additional information

Weight	5.34 kg
Switch type	Managed
Switch level	L2 / L3
Characteristic	10G support, Broadcast storm control, IGMP snooping, Jumbo frames support, Loop protection, Multicast support, Port mirroring, Power supply included, Quality of Service (QoS) Support, Rack installation, Rack mounting kit, Rate Limiting, Reset button, Stackable, Static route, Support data flow control, Support for redundant power supply, VLAN support
Number of basic switching RJ-45 Ethernet ports	22
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Number of 2.5G Ethernet (copper) ports	22
Number of 10G Ethernet (copper) ports	2
Quantity of SFP + module slots	4
Power plug	AC/DC
Network standard	IEEE 802.1x
IPv4 routes	12000
Virtual LAN functions	Voice VLAN
Number of VLANs	1000
Routing / switching capacity	230 Gbit/s
Throughput	115 Gbit/s
Transfer rate	171.12 MPps
MAC address table	32,000 entries
Data packet buffer memory	2 MB
DHCP functions	DHCP guarding, DHCP relay, DHCP server, DHCP snooping
Form factor	1U
Product color	Gray
Housing material	SGCC
LED indicators	Link, Speed, Status
Display type	LCM
Energy source	AC/DC
AC input voltage	100-240V
AC input frequency	50/60 Hz
Power consumption (max.)	60 W
Operating temperatur	5 – 40 ° C
Relative humidity in operation	10 – 90%
Heat dissipation	102.36 BTU/h
Broad	442.4 mm
Depth	285 mm
Height	44 mm
Weight	4.2 kg
Supplied cables	Perfomance
Certificates of conformity	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Manufacturer	Ubiquiti
