WL antenna WAN-9180 18dBi 5.0GHz outdoor

Description

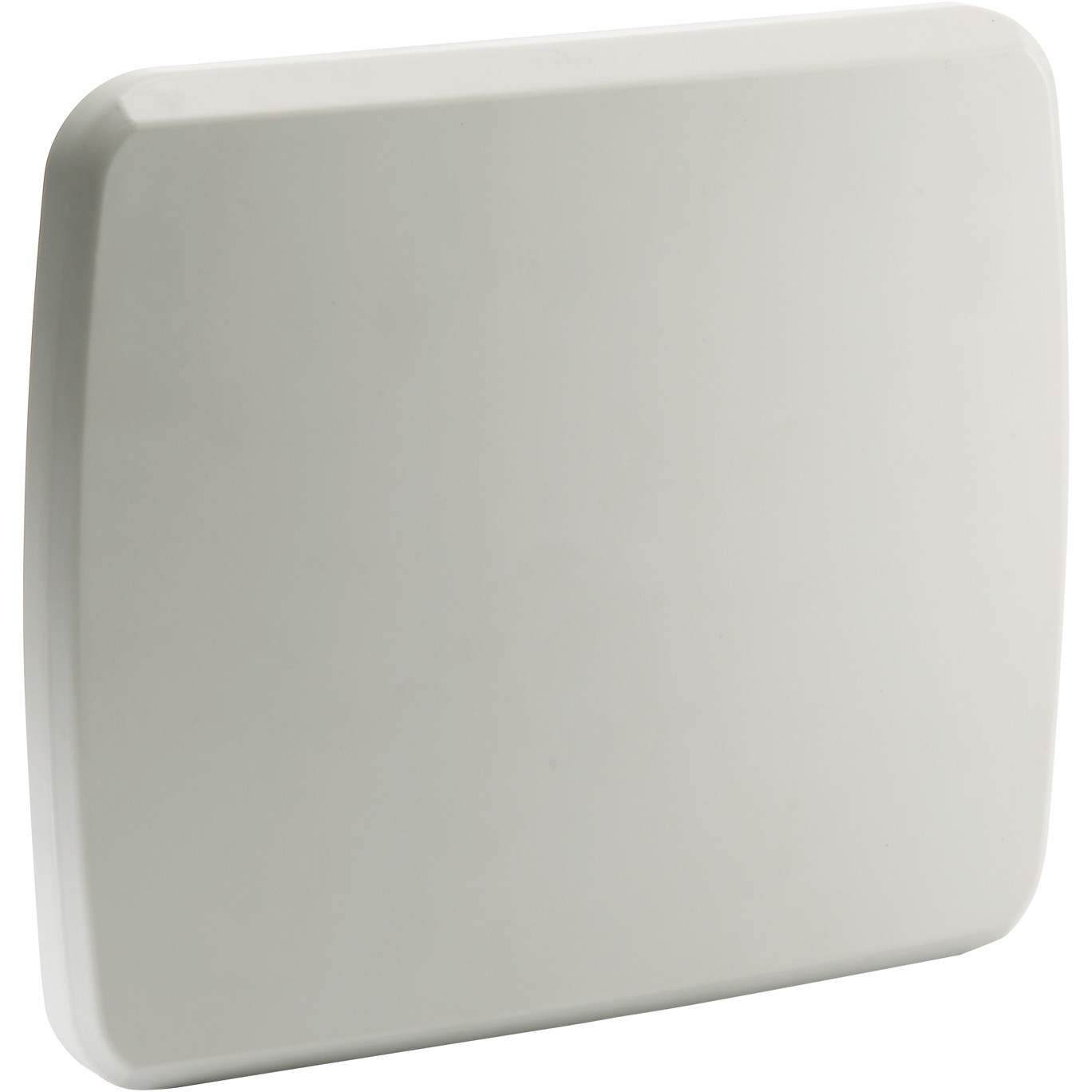

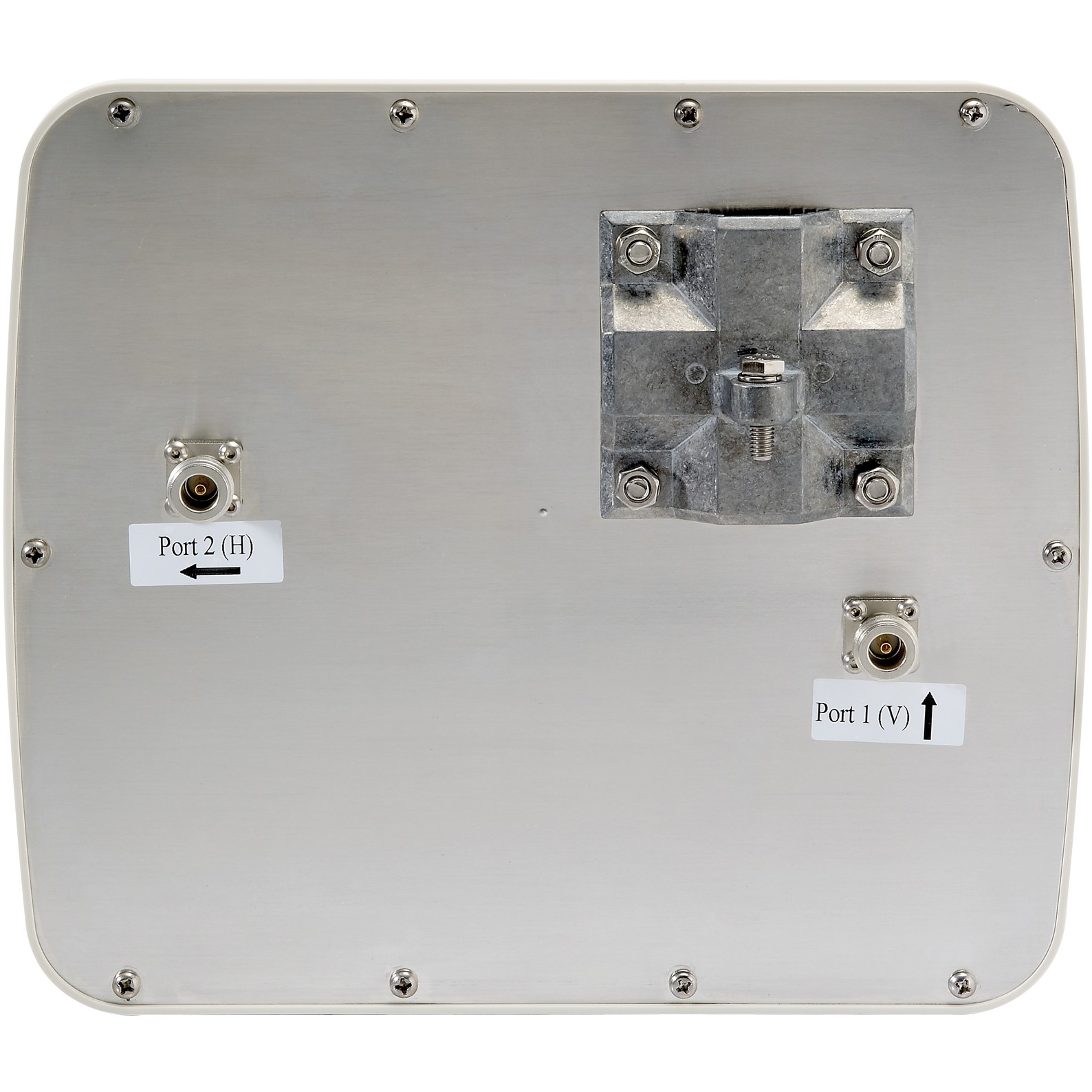

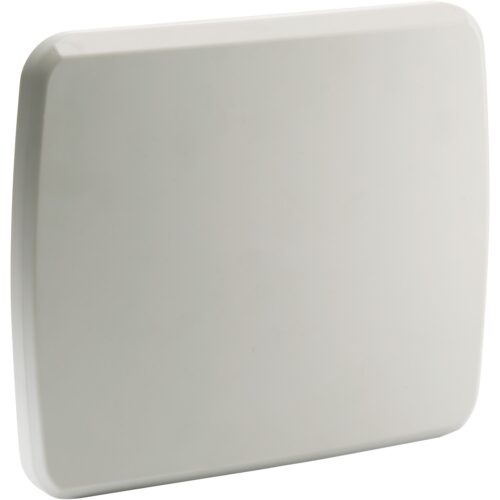

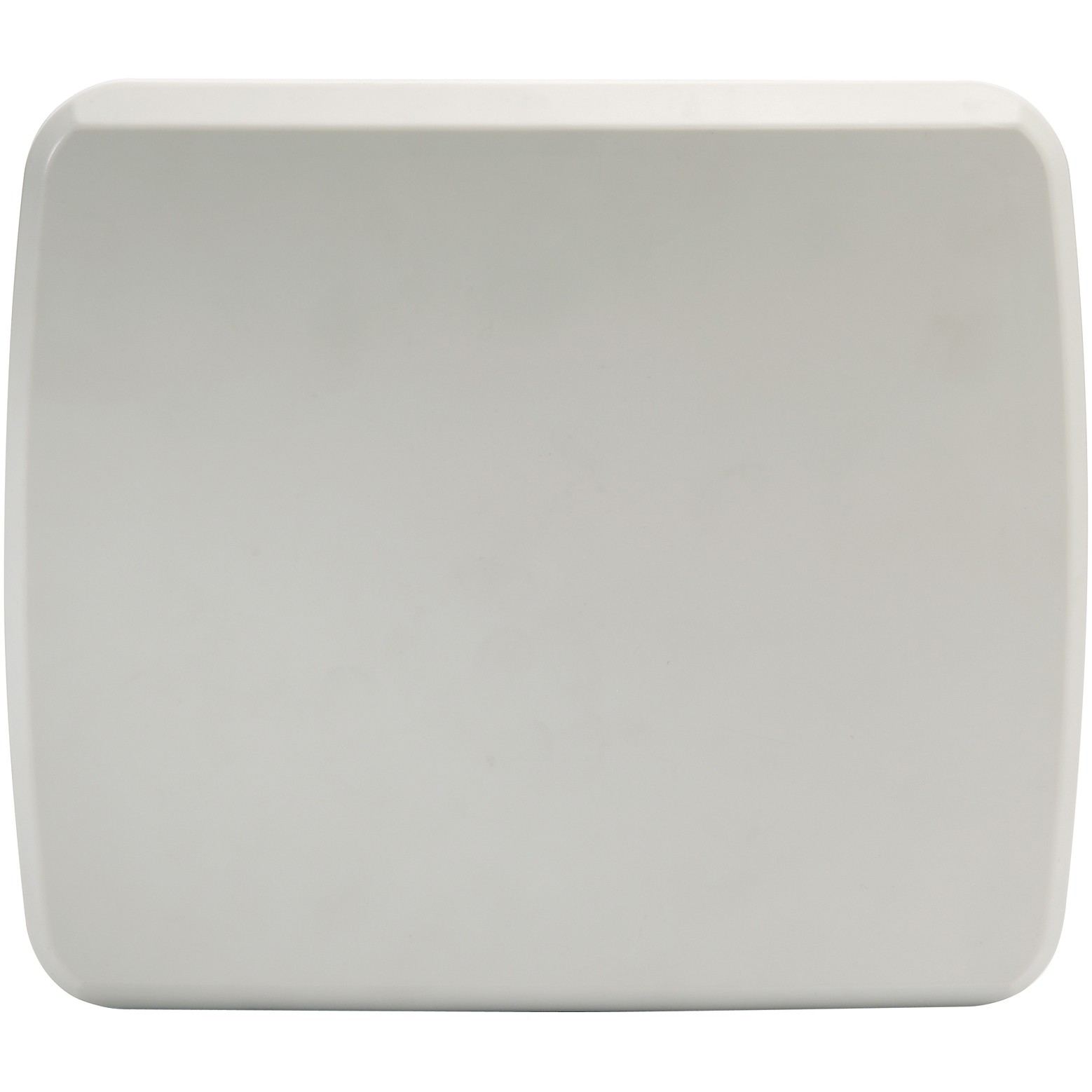

LevelOne 5GHz 18dBi Directional Dual-Polarization Outdoor Panel Antenna. Antenna gain (max): 18 dBi, Frequency band: 5.15 – 5.875 GHz, Network standard: IEEE 802.11a, IEEE 802.11n. Antenna type: Directional antenna, Antenna connector type: N-type, Connector gender: Female. Width: 256 mm, Depth: 227 mm, Height: 19 mm. Packaging width: 343 mm, Packaging depth: 235 mm, Packaging height: 47 mm. Quantity per package: 1 piece(s)

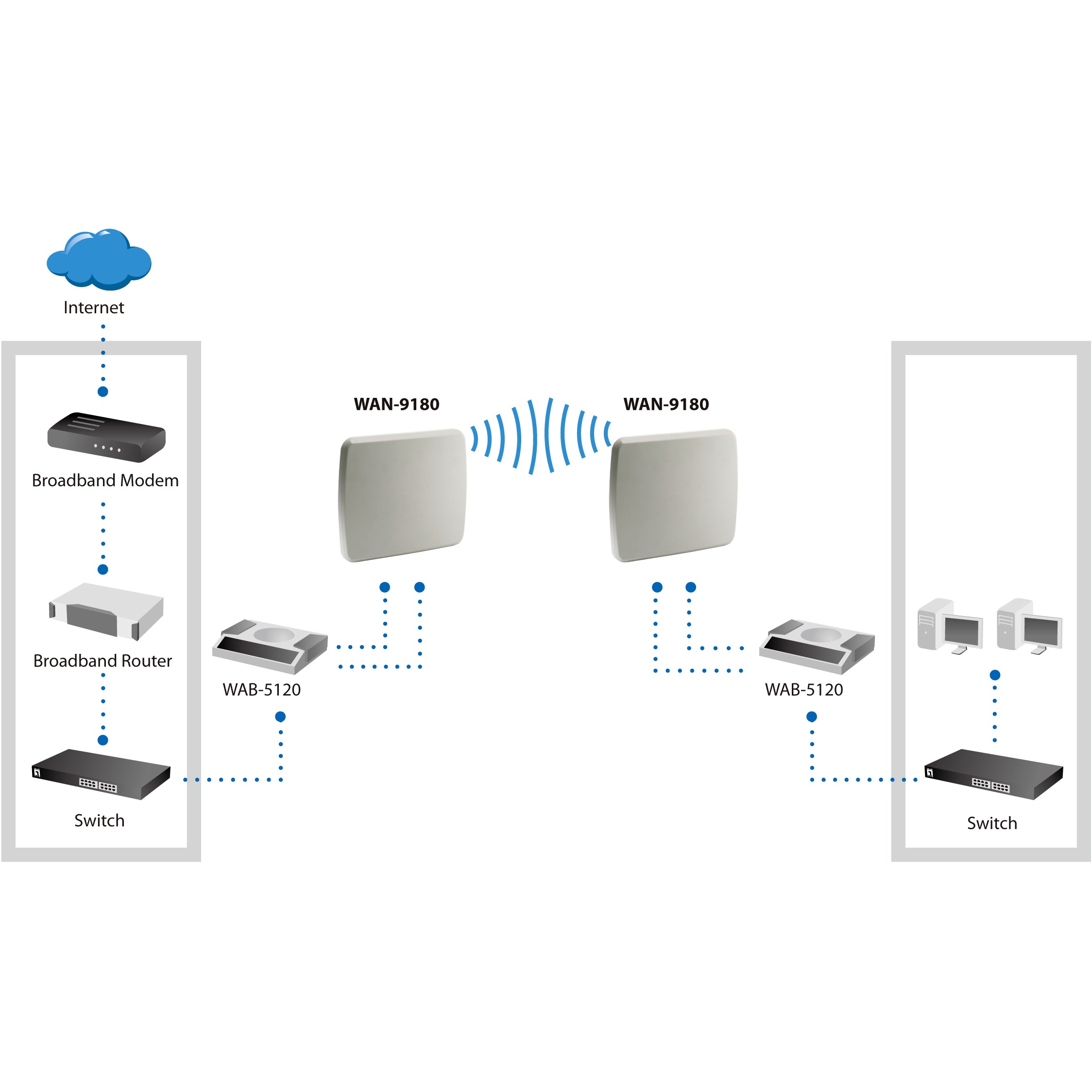

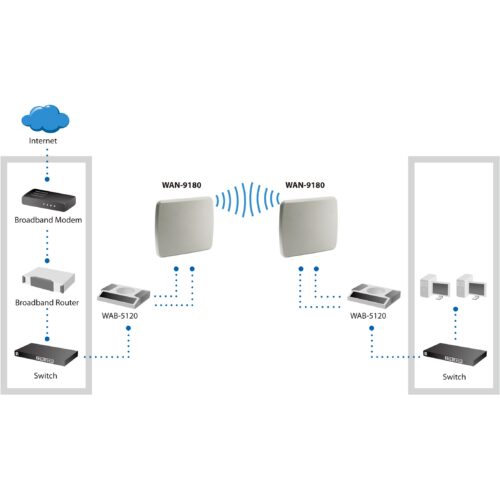

The LevelOne WAN-9180 18dBi directional dual-polarization antenna kit is designed for outdoor wireless connections. With a radio pattern ranging from +45° to -45° polarization, users can achieve improved signal strength in congested areas with high levels of interference. Signal strength and range are improved in the 5GHz frequency band with a directional radio pattern.

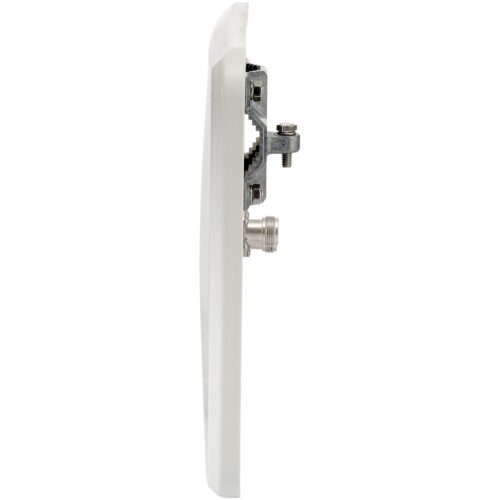

This panel antenna is easy to mount on any smooth surface. It's designed for outdoor use and can withstand even strong winds. The IP-67 rated housing is protected against dust and moisture.

– Compatible with IEEE802.11a/n standards, 5GHz frequency band
– Antenna with 18dBi high-gain transmission power
– Dual polarization to avoid interference
– Broadband frequency enables future expansion and offers flexibility
– Easy wall mounting
