YS-7154CF-F2B

Description

LANCOM YS-7154CF-F2B. Switch type: Managed. Switch layer: L2/L3. Console port: RJ-45. Full duplex. MAC address table: 32000 entries. Network standard: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x. Power connector: AC input jack. Rack mount, form factor: 1U.

25G Stackable Fiber Aggregation Switch for Campus Networks

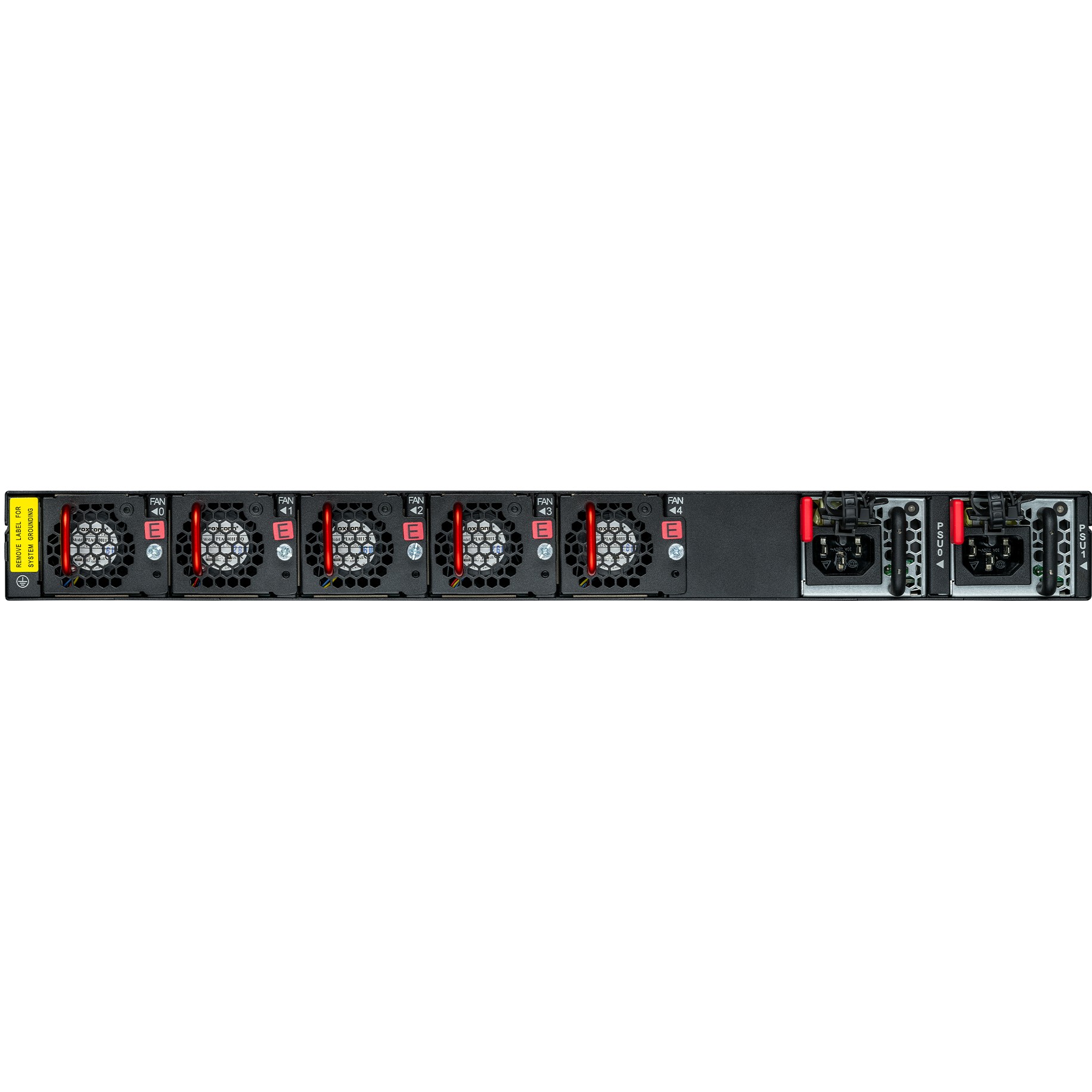

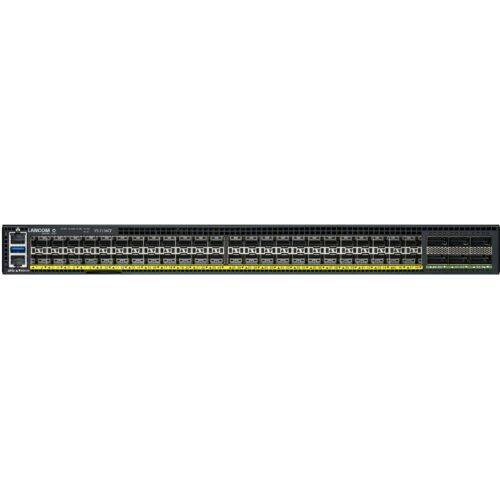

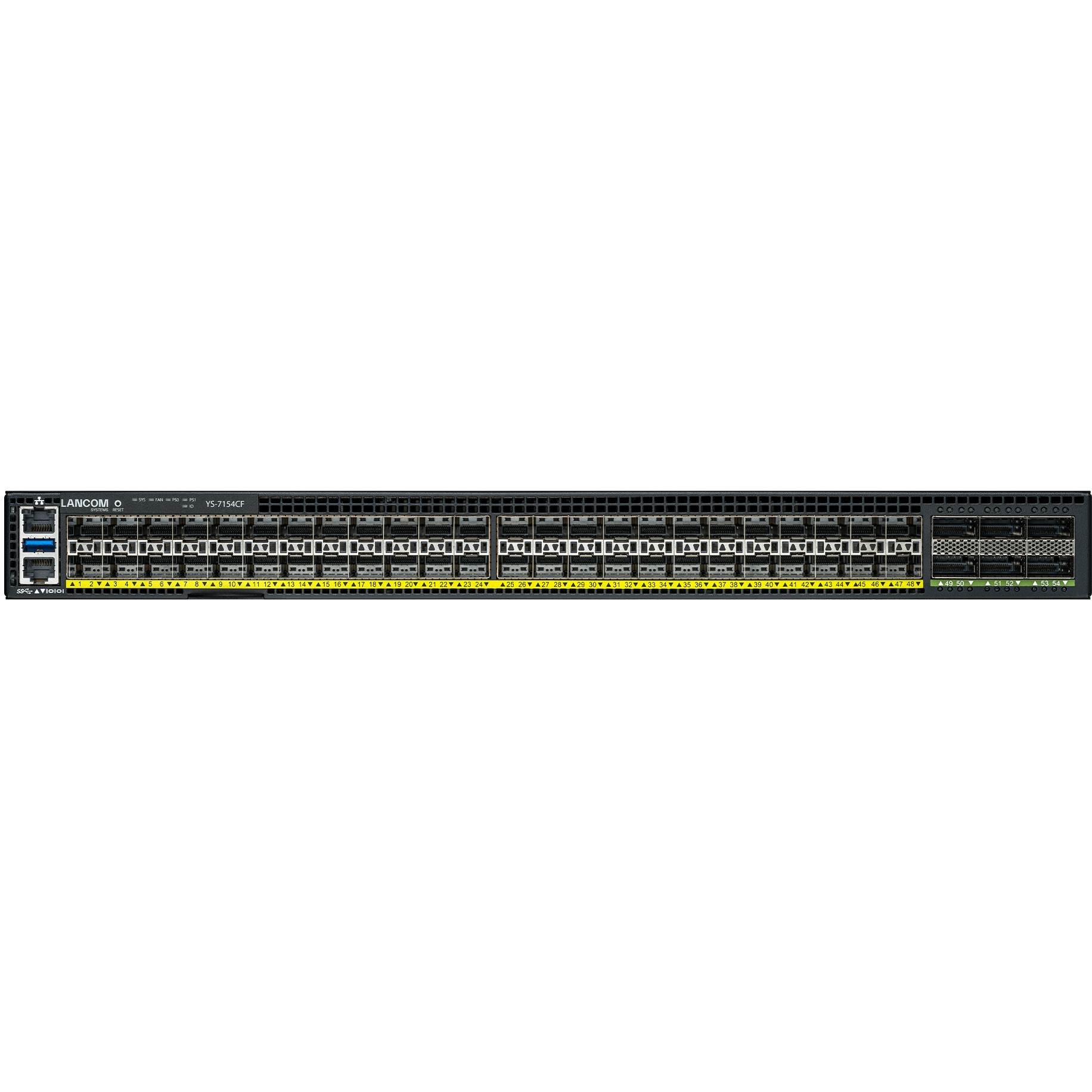

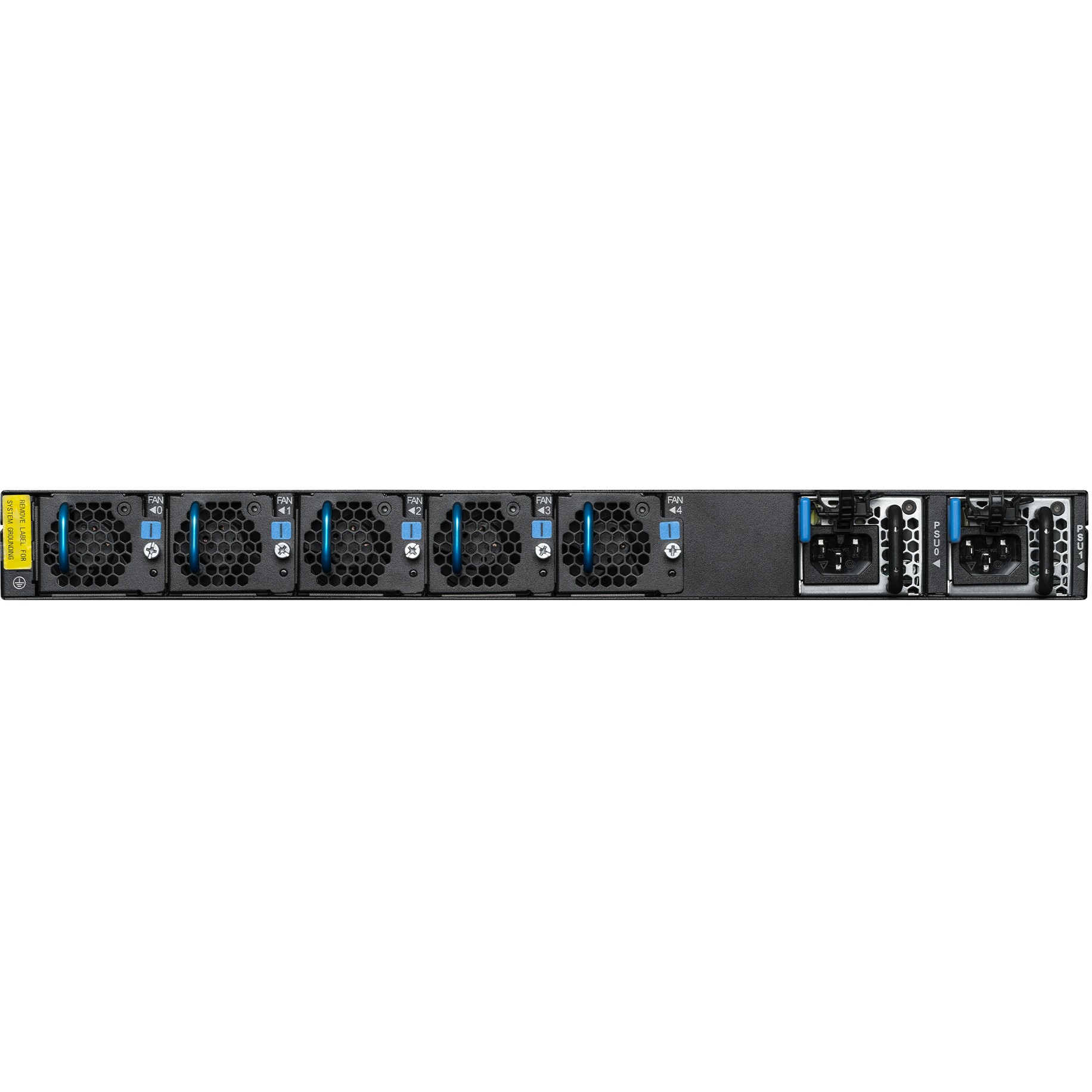

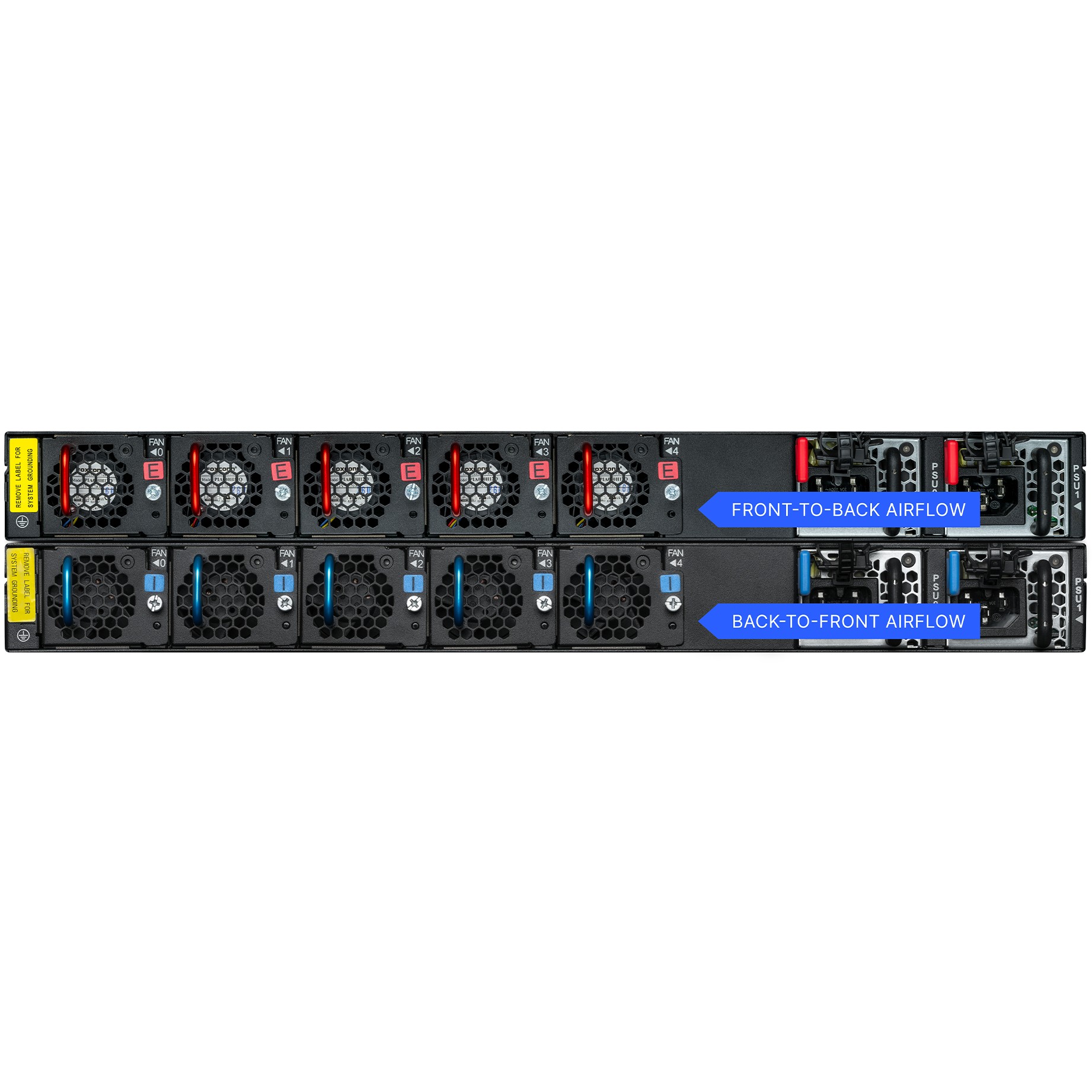

In data-intensive, distributed campus networks, the LANCOM YS-7154CF ensures the necessary performance and high availability of network resources. With 48x 25G SFP28 and 6x 100G QSFP28 ports, the switch offers maximum connection flexibility in mixed 1G-100G environments, achieving a total of 3.6 Tbps of switching capacity. Depending on the size of the installation, the LANCOM YS-7154CF can be integrated into hierarchical switch infrastructures either as an aggregation switch (distribution basis) between core and access switches (three-tier design) or as a core switch or “collapsed backbone” at the top level of the WAN (two-tier design). Reliable, high-performance operation, even in bandwidth-intensive networks, is ensured by Virtual Port Channel (VPC) or stacking. Two redundant power supplies, five hot-swappable fan modules, and a selectable ventilation concept ensure additional reliability. Central network management with real-time monitoring of the device status is automated and location-independent via the LANCOM Management Cloud or via the industry-standard web GUI and CLI.
