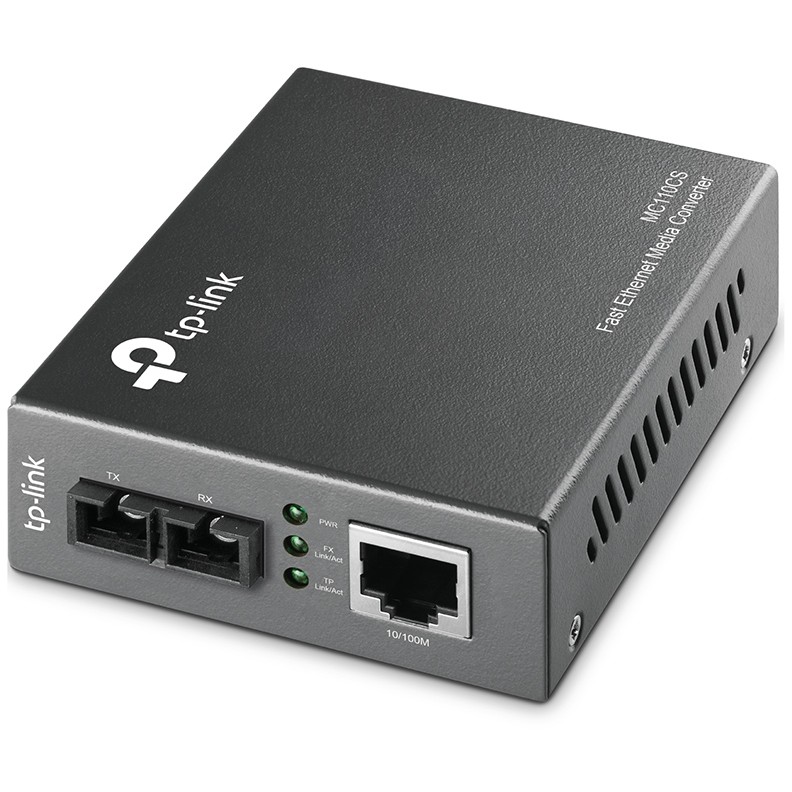

Z TP-Link MC110CS – Media converter RJ45 -> 100Base-FX – SC

Description

TP-Link Fast Ethernet single-mode media converter. Maximum data transfer rate: 1000 Mbps, Network standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, Ethernet interface type: Gigabit Ethernet. Maximum possible transmission distance: 20,000 m, Wavelength: 1310 nm. LED indicators: Power, Speed, Product color: Black, Industry standard compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. Optical cable connector: SC, Transmission technology: Wired. Power consumption (max.): 1.52 W

The MC110CS is a media converter designed to convert 100BASE-FX fiber media to 100BASE-TX copper media, or vice versa. The MC110CS complies with the IEEE 802.3u (10/100Base-TX) and 100Base-FX standards and is intended for use with single-mode fiber optic cables with SC connectors. The MC110CS supports the longwave (LX) laser specification at a full-bandwidth forwarding rate. It transmits and receives at a wavelength of 1310nm.

Other features of the module include the ability to use the device as a standalone device (no additional enclosure required) or with TP-LINK's 19-inch system chassis, auto-MDI/MDIX for the transmit port, auto-negotiation in duplex mode on the transmit port, and a status LED on the front panel. The MC110CS transmits in Fiber Optic Long Distance mode using single-mode fiber optic cable up to a distance of 20 km.
