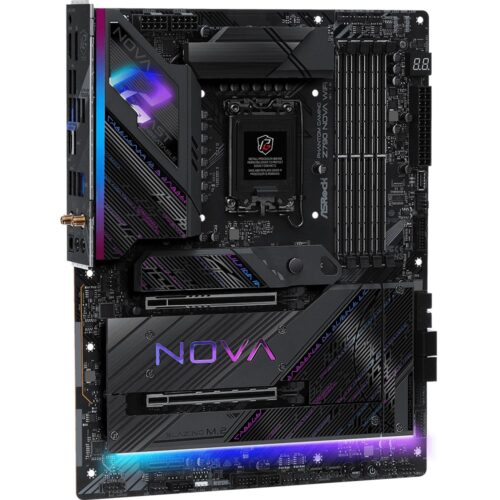

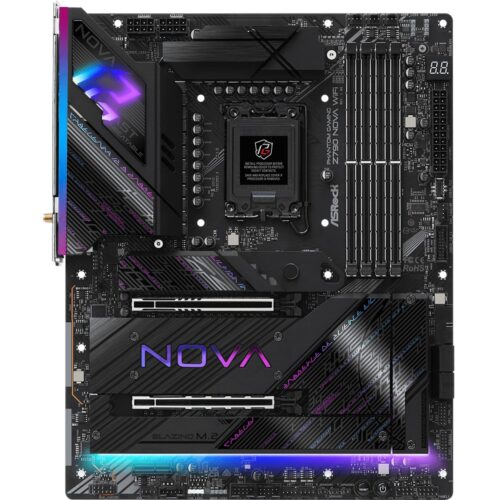

Z790 Nova WiFi 1700 ATX HDMI/DP DDR5 retail

Name: Z790 Nova WiFi 1700 ATX HDMI/DP DDR5 retail
SKU: 165812
Price: 278.89 EUR
Availability: InStock

€343.03

Asrock Z790 Nova WiFi, Intel, LGA 1700, Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™…, LGA 1700, DDR5-SDRAM, 192 GB

6 in stock

Categories: Mainboards & accessories, Motherboards - Intel

Description
Additional information

Description

Asrock Z790 Nova WiFi. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processors: Intel® Celeron® G, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™…. Supported memory: DDR5-SDRAM, Maximum RAM: 192 GB, Memory type: DIMM. Supported storage drive interfaces: M.2, RAID levels: 0, 1, 5, 10. Parallel processing technology: CrossFire, Graphics card family: Intel, Graphics card: Intel Iris Xe Graphics. USB connectors: USB Type-A, USB Type-C

Additional information

Processor manufacturer	Intel
Processor socket	LGA 1700
Compatible processors	Intel® Celeron® G, Intel® Core ™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor slots	LGA 1700
Supported RAM	DDR5 SDRAM
Number of memory slots	4
RAM type	DIMM
Memory channels	Dual channel
ECC compatibility	Non-ECC
Supported memory clock speed (max.)	8000 MHz
RAM memory maximum	192 GB
Characteristic	12V power connection, Antenna included, ATX power connector (24-pin), Bluetooth, Clear CMOS button, CPU fan connector, Discrete graphics support, Ethernet/LAN, Front panel audio connector, HDCP, M.2 spacers included, Microphone input, RAID support, RGB LED header, S/PDIF output, Screws included, Sustainability compliance, TPM connector, Unbuffered memory, WIRELESS INTERNET ACCESS
Supported storage drive interfaces	M.2
Number of storage drives supported	6
RAID level	1, 10, 5
Parallel processing technology	CrossFire
Graphics card family	Intel
Graphic card	Intel Iris Xe Graphics
Maximum resolution	7680 x 4320 pixels
Number of USB 2.0 interfaces	2
USB 3.2 Gen 1 (3.1 Gen 1) ports	2
USB 3.2 Gen 2x2 ports	1
SATA III connectors	4
Number of chassis fan plugs	5
Thunderbolt headers	1
Number of USB 2.0 ports	2
USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports	3
USB 3.2 Gen 2 (3.1 Gen 2) Number of Type A ports	4
USB 3.2 Gen 2x2 Type-C number of ports	1
Number of Ethernet LAN connections (RJ-45)	1
Number of HDMI connections	1
HDMI version	2.1
Number of DisplayPort connections	1
DisplayPorts version	1.4
WiFi AP antenna socket	2
USB plug	USB Type-A, USB Type-C
Ethernet interface type	2.5 Gigabit Ethernet
LAN controller	Killer E3100G
Top WiFi standard	Wi-Fi 7 (802.11be)
WLAN standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be)
Bluetooth version	5.4
Motherboard chipset	Intel Z790
Audio chip	Realtek ALC4082
Audio channels	7.1 channels
Product color	Black
Component for	Pc
Motherboard form factor	ATX
Motherboard chipset family	Intel
Supports Windows operating systems	Windows 10 x64, Windows 11 x64
PCI-Express x1 (Gen 3.x) connectors	1
PCI Express x16 slots (Gen 4.x)	1
PCI Express x16 slots (Gen 5.x)	1
Number of M.2 (M) slots	1
BIOS type	UEFI AMI
BIOS memory size	256 Mbit
Broad	305 mm
Depth	244 mm
Supplied cables	SATA
Supplied software	ASRock Motherboard Utility (Phantom Gaming Tuning) – Killer Control Center – ASRock Polychrome SYNC
Sustainability certificates	Erp
Certificates of conformity	CE, EuP, Federal Communications Commission (FCC)
Manufacturer	ASRock
