Repeater POR-0120 1x RJ-45 GB PoE

Description

LevelOne Gigabit PoE Repeater, Cascading. Type: Network Repeater, Maximum possible transmission distance: 100 m, Data transfer rate: 1000 Mbps. Cabling technology: 10/100/1000Base-T(X), Network standard: IEEE 802.3af, IEEE 802.3x. Product color: Black, LED indicators: PoE, Power, Country of origin: Taiwan. Power consumption (max.): 2.5 W. Width: 90 mm, Depth: 120 mm, Height: 28 mm

LevelOne's POR-0120 is a Gigabit PoE repeater. It allows you to extend the standard 100m limit for PoE networks by an additional 100m. Multiple POR-0120s can be daisy-chained.

POR-0120 is powered by the Gigabit PoE switch (or Gigabit PoE injector), so no power supply is required to operate the repeater.

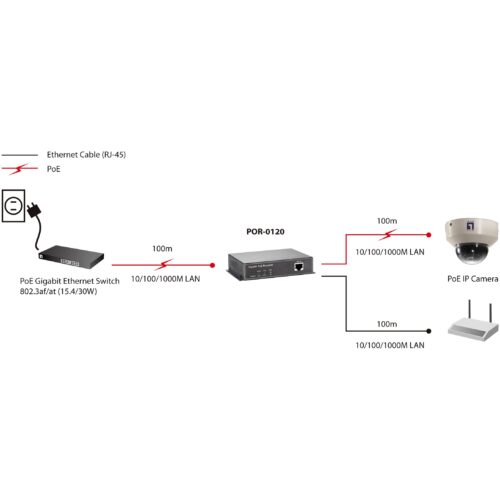

A simple application example is the installation of a PoE device 200 meters away from the Gigabit PoE switch.
The Gigabit PoE switch transmits power and data over the first 100m. The POR-0120 processes the power and data signals and transmits them a further 100m to the PoE device.

– Extended Gigabit PoE connection for an additional 100 meters
– High Power Midspan PoE compliant to simplify deployment and installation
– Power supply via Ethernet (PoE) to remote device
– 2 integrated outputs for 1 PoE and 1 non-PoE device
– No additional power supply required
– Cable transmission and reception for 10/100/1000 Mbit/s
– Easy plug-and-play installation
